Grand Canyon 18" to 60" Quaking Aspen See Through Vented Gas Logs

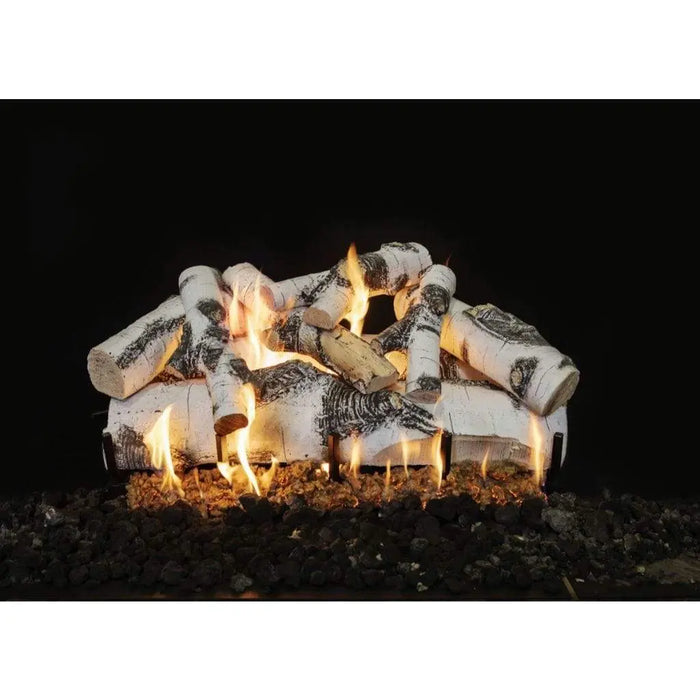

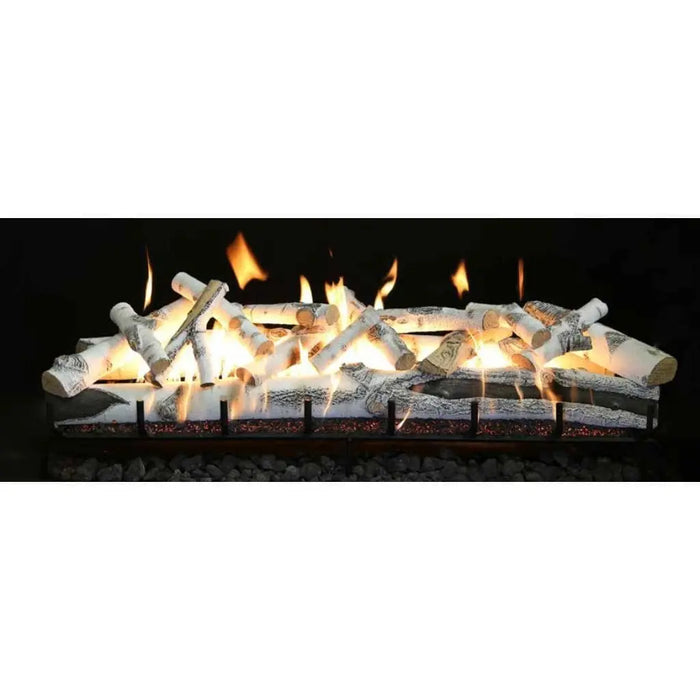

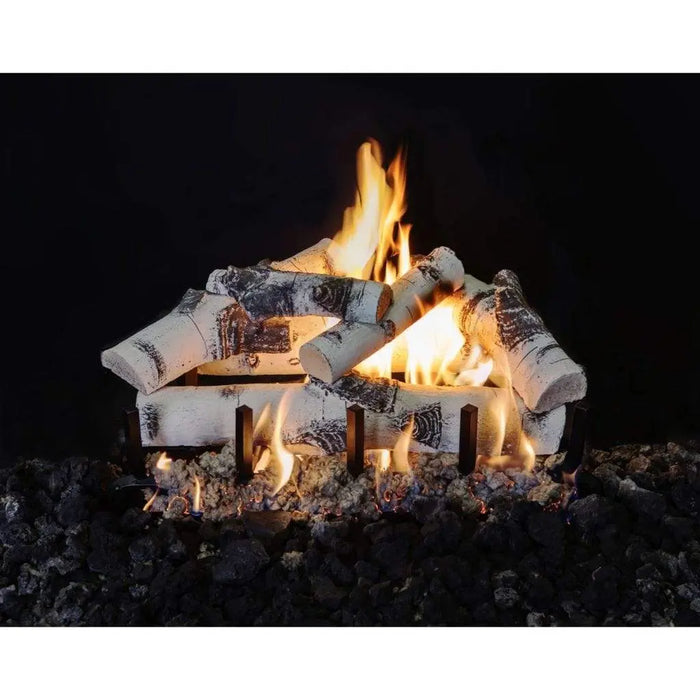

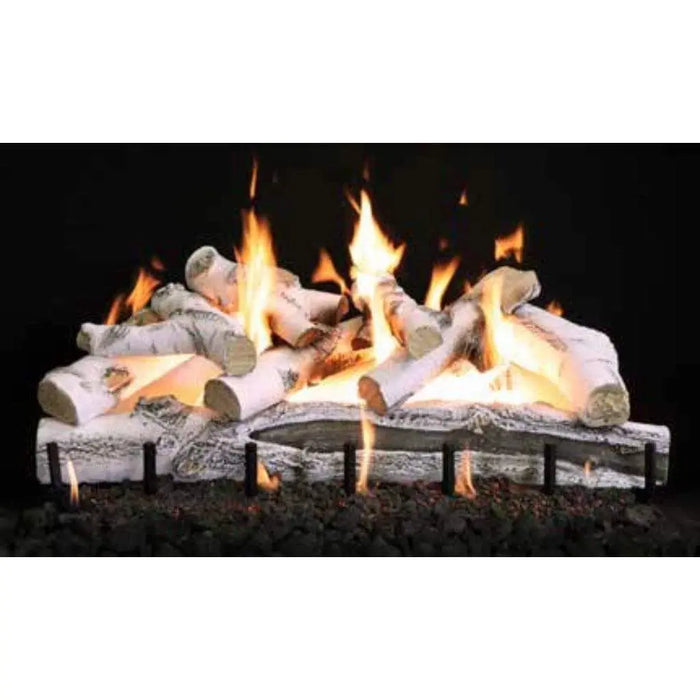

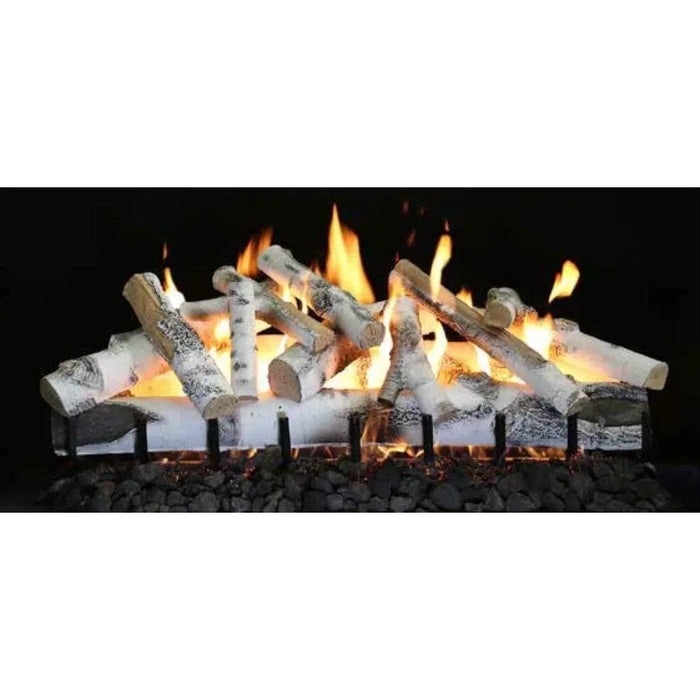

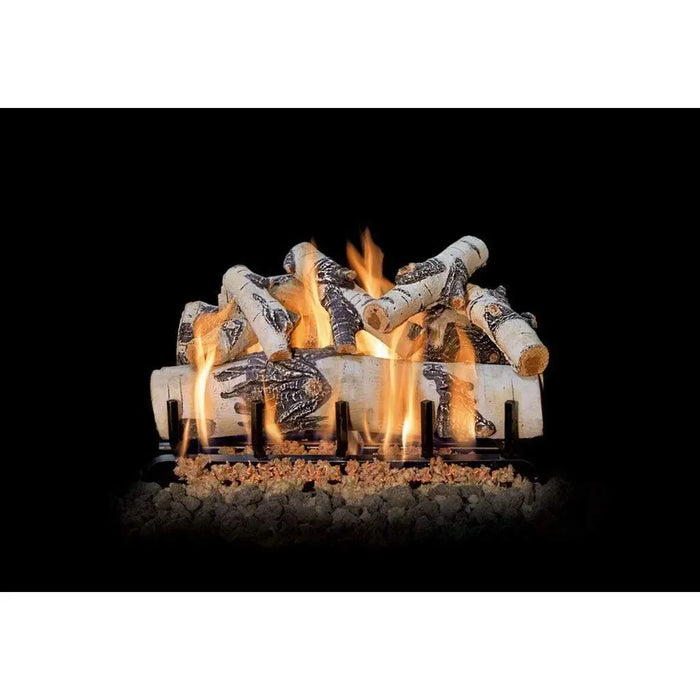

Grand Canyon Quaking Aspen See-Through Vented Gas Logs are refractory ceramic logs for see-through (two-sided) fireplaces, finished to be seen from both sides. The set is Grand Canyon's signature birch-look set: cream-white bark marked with the black scars aspens pick up over the winters. Each log is cast individually from high-temperature concrete with ceramic refractory and stainless steel fiber, then painted by hand.
On this page the logs are sold together with a burner. Pick the size, the fuel and one of 12 burner choices, from a match-lit burner you add your own control to, up to an assembled system with a remote. The log set is model ASPENST##LOGS, where ## is the size, and comes in 7 sizes from 18" to 60". These are vented logs: they need a working chimney with the damper locked open.
What's Included
- Quaking Aspen See-Through log set in the size you choose
- The burner you choose, with lava rock, black glowing embers, flex line, inlet fitting and damper clamp
- Assembled options: the control system installed and tested at the factory, plus the remote where the option includes one
- Vermiculite (propane options only)
- Rating plate and manual
Key Features
- 7 sizes: 18", 24", 30", 36", 42", 48", 60"
- Hand-painted refractory ceramic logs, cast from real wood
- 2-burner or 3-burner; the 3-burner gives a taller, fuller flame and is offered up to 42"
- Natural gas or propane on the assembled systems; match-lit burners are natural gas
- Indoor burners, or 304 stainless steel burners for outdoor fireplaces under a patio cover
- Vented: the fireplace damper must be locked open with the included damper clamp
- Burners tested to ANSI Z21.60 for decorative gas appliances in solid-fuel fireplaces
What to Order With It
Every choice on this page includes a burner, so the assembled systems need nothing else to run. The match-lit burners ship without a valve; you can light them by hand or add one of the controls below. Which control fits depends on the burner size and fuel, so check the burner page or ask us before ordering one.
Optional controls (match-lit burners only):
Optional:
-
Twig Sets (ASPENTWIG4): add height and mass to the stack
-
Extra Embers (GLE-6B black glowing embers, PBE-1 platinum bright embers)
Specifications
Log sets
| Size |
Log Set Model |
Shipping Weight |
Boxes |
Pieces |
| 18" |
ASPENST18LOGS |
33 lbs |
1 |
7 |
| 24" |
ASPENST24LOGS |
80 lbs |
1 |
8 |
| 30" |
ASPENST30LOGS |
113 lbs |
1 |
9 |
| 36" |
ASPENST36LOGS |
153 lbs |
2 |
10 |
| 42" |
ASPENST42LOGS |
245 lbs |
2 |
13 |
| 48" |
ASPENST48LOGS |
265 lbs |
2 |
15 |
| 60" |
ASPENST60LOGS |
290 lbs |
2 |
15 |
Burner choices
The burner model is added to the log model to make the full order number, for example ASPENST18LOGS + 2BRN-ST-18-NG-SP. Each burner name links to its own page with full specifications.
BTU ratings
| Size |
2-Burner Natural Gas |
2-Burner Propane |
3-Burner Natural Gas |
3-Burner Propane |
| 18" |
103,000 |
93,000 |
103,000 |
93,000 |
| 24" |
118,000 |
100,000 |
118,000 |
100,000 |
| 30" |
128,000 |
115,000 |
128,000 |
115,000 |
| 36" |
135,000 |
125,000 |
135,000 |
125,000 |
| 42" |
140,000 |
130,000 |
140,000 |
130,000 |
| 48" |
150,000 |
145,000 |
Not offered |
Not offered |
| 60" |
175,000 |
165,000 |
Not offered |
Not offered |
| Vent Type |
Vented |
| Log Material |
High-temperature concrete with ceramic refractory and stainless steel fiber |
| Gas Inlet |
1/2" NPT |
| Burner Standard |
ANSI Z21.60 |
Minimum Fireplace Dimensions
Measure the empty firebox: front opening width, back width, depth and height. These are the smallest fireboxes each size will fit.
| Size |
Front Width |
Back Width |
Depth |
Height (2-Burner) |
Height (3-Burner) |
| 18" |
30" |
30" |
14" |
14" |
16" |
| 24" |
36" |
36" |
14" |
14" |
16" |
| 30" |
42" |
42" |
16" |
14" |
16" |
| 36" |
48" |
48" |
16" |
14" |
16" |
| 42" |
54" |
54" |
16" |
14" |
16" |
| 48" |
60" |
60" |
16" |
16" |
Not offered |
| 60" |
72" |
72" |
16" |
16" |
Not offered |
The 2-burner with battery electronic ignition needs a wider firebox, because the valve and battery box sit beside the burner: 18" set 36" front and 36" back; 24" set 42" front and 42" back; 30" set 48" front and 48" back; 36" set 54" front and 54" back; 42" set 60" front and 60" back. Grand Canyon does not publish minimums for the 48" and 60" sizes with that control; call us first.
Keep glass doors fully open while the burner is running, and keep furniture at least 36" from the front. Not for installation in manufactured or mobile homes.
Warranty
Logs: lifetime warranty against manufacturing defects or breakage when installed indoors by a professional installer; five years if installed outdoors. Color fading from use and breakage from handling after installation are not covered. Standard burner: lifetime when installed indoors by a professional installer, one year outdoors. Stainless steel burner: lifetime, indoors or outdoors. Valves and electrical components: two years from the purchase date when installed indoors by a certified gas installer and used with Grand Canyon burners and logs; one year if installed outdoors. Batteries are not covered. Warranty is limited to the original purchaser.
Documents
Grand Canyon publishes a log placement guide only for the 24" size of this set. Contact us and we will request the guide for your size.
