Grand Canyon High Capacity Safety Pilot Kit

Grand Canyon High Capacity Safety Pilot Kit

The Grand Canyon High Capacity Safety Pilot Kit is the larger version of the safety pilot kit: a standing pilot with safety shut-off and manual on/off at the valve, rated to 142,000 BTU. It covers the bigger 2-burner, 3-burner and see-through sizes and the smaller Jumbo burners, and it is rated for indoor and outdoor use.

Order HCSPK-NG for natural gas or HCSPK-LP for propane.

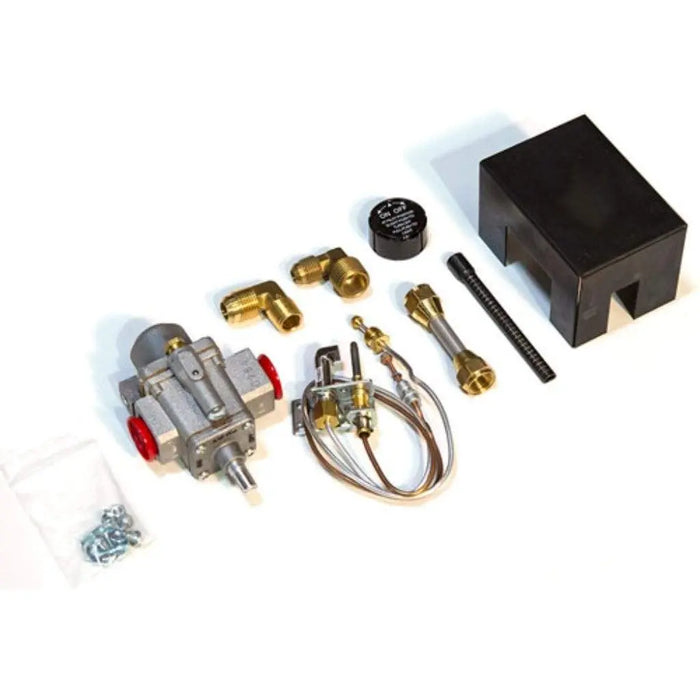

What's Included

• High capacity gas control valve with control knob
• Pilot assembly and bracket
• Heat shield
• Swivel connector, fittings and screws
• Vermiculite (propane kit only)

Key Features

• Standing pilot with safety shut-off
• Manual on/off at the valve; no remote
• 142,000 BTU, natural gas or propane
• Rated indoor and outdoor

What to Order With It

Burners it goes on:

• 2-Burner and 3-Burner (match-lit)
• H-Style Glass Burner
• Kiva Burner
• Jumbo and Jumbo Slimline burners, in the sizes shown below

Specifications

Burner sizes it fits (2026 price guide)

The contents list is from our earlier listing; the safety pilot manual covers the standard kit only. The price guide does not list a remote for this kit.

Warranty

Valves and electrical components: two years from the purchase date when installed indoors by a certified gas installer and used with Grand Canyon burners and logs; one year if installed outdoors. Batteries are not covered. Warranty is limited to the original purchaser.

Documents

• Safety Pilot Valve Manual
• Warranty Statement and Policies
