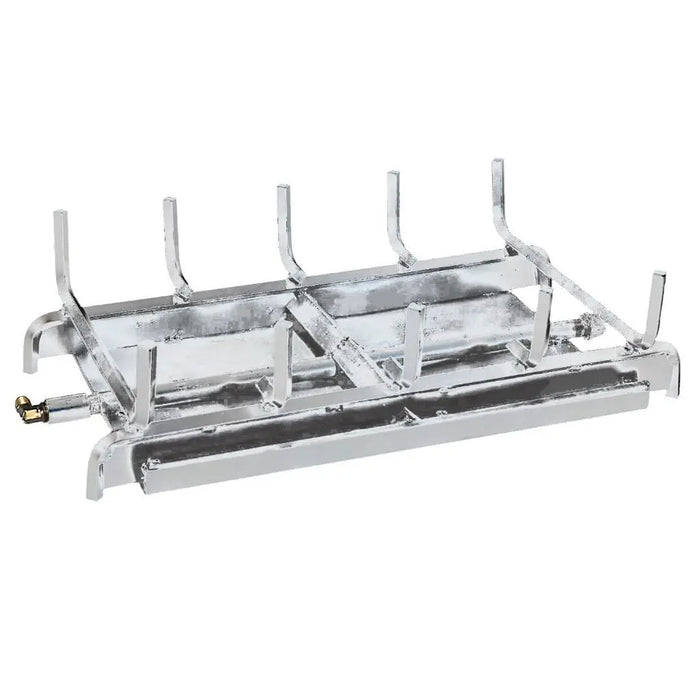

Grand Canyon 18" to 60" Outdoor Vented Stainless Steel See Through 2-Burner System
The Grand Canyon Stainless Steel See-Through 2-Burner System is a vented gas log burner for a see-through (two-sided) fireplace, with a main rear burner and a front ember burner. It is built from 304 stainless steel, for outdoor fireplaces under a patio cover or for indoor use. The burner ships match-lit, without a control valve, so you can add the safety pilot, millivolt or electronic system you want.
It comes in 7 sizes from 18" to 60". Model numbers are 2BRN-ST##-SS, where ## is the size. The burner is built for natural gas; choosing propane adds the LP conversion kit (LP-CONV: orifice and air mixer). Logs are sold separately.
What's Included
- Burner
- Lava rock
- Black glowing embers
- Flex line and inlet fitting
- Damper clamp
- LP conversion kit and vermiculite (propane option only)
- Rating plate and manual
Key Features
- 7 sizes: 18", 24", 30", 36", 42", 48", 60"
- 103,000 to 175,000 BTU on natural gas, depending on size
- 304 stainless steel for outdoor use under a patio cover, away from direct water and sun
- Ships match-lit; add a control system if you want a pilot or remote
- Natural gas burner; propane option adds the LP conversion kit
- 48" and 60" sizes have a middle burner and an elevated back burner, at the height of a 3-burner
- Gas inlet on the left or right, 1/2" NPT
- Vented: the fireplace damper must be locked open with the included damper clamp
- Tested to ANSI Z21.60 for decorative gas appliances in solid-fuel fireplaces
- Logs are required and sold separately (see below)
What to Order With It
The burner does not include logs. Pick one log set in the same size as the burner. Our log listings are sold as logs and burner together, so if you have not bought the burner yet you can order both from the log page.
Required (choose one):
-
Arizona Weathered Oak See-Through Logs (AWOST##LOGS, sizes 18", 24", 30", 36", 42", 48", 60")
-
Arizona Juniper See-Through Logs (AJST##LOGS, sizes 18", 24", 30", 36", 42")
-
Quaking Aspen See-Through Logs (ASPENST##LOGS, sizes 18", 24", 30", 36", 42", 48", 60")
-
Arizona Weathered Oak Charred See-Through Logs (AWOCST##LOGS, sizes 18", 24", 30", 36", 42")
-
Western Driftwood See-Through Logs (DRIFTWOODST##LOGS, sizes 18", 24", 30", 36", 42")
Optional controls:
The millivolt, modulating and battery electronic kits are rated for indoor use only. Tell us the burner size, fuel and where it is going and we will confirm the right control.
Optional:
-
Twig Sets (AJTWIG3, ASPENTWIG4, AWOCTWIG3, AWOTWIG3, AWOTWIG5, DRIFTWOODTWIG3): add height and mass to the log stack
-
Extra Embers (GLE-6B black glowing embers, PBE-1 platinum bright embers)
Specifications
| Size |
Model |
BTU Natural Gas |
BTU Propane (with LP-CONV) |
| 18" |
2BRN-ST18-SS |
103,000 |
93,000 |
| 24" |
2BRN-ST24-SS |
118,000 |
100,000 |
| 30" |
2BRN-ST30-SS |
128,000 |
115,000 |
| 36" |
2BRN-ST36-SS |
135,000 |
125,000 |
| 42" |
2BRN-ST42-SS |
140,000 |
130,000 |
| 48" |
2BRN-ST48-SS |
150,000 |
145,000 |
| 60" |
2BRN-ST60-SS |
175,000 |
165,000 |
| Vent Type |
Vented |
| Manifold Pressure |
3.5" W.C. natural gas, 10" W.C. propane |
| Inlet Pressure |
4.5" to 7" W.C. natural gas, 11" to 14" W.C. propane |
| Gas Inlet |
1/2" NPT, left or right |
| Use |
Indoor, or outdoor under a patio cover |
| Standard |
ANSI Z21.60 |
Minimum Fireplace Dimensions
Measure the empty firebox: front opening width, back width, depth and height. These are the smallest fireboxes each size will fit.
| Burner Size |
Front Width |
Back Width |
Depth |
Height |
| 18" |
30" |
30" |
14" |
14" |
| 24" |
36" |
36" |
14" |
14" |
| 30" |
42" |
42" |
16" |
14" |
| 36" |
48" |
48" |
16" |
14" |
| 42" |
54" |
54" |
16" |
14" |
| 48" |
60" |
60" |
16" |
16" |
| 60" |
72" |
72" |
16" |
16" |
If you add the battery electronic ignition system (MVKEIKN or MVKEIKLP), the firebox must be wider: 18" burner 36" front and 36" back; 24" burner 42" front and 42" back; 30" burner 48" front and 48" back; 36" burner 54" front and 54" back; 42" burner 60" front and 60" back.
Keep glass doors fully open while the burner is running, and keep furniture at least 36" from the front. Not for installation in manufactured or mobile homes.
For a covered-patio install the manual calls for a roof overhang in front of the fireplace, and cover to each side, of at least half the fireplace height.
Warranty
Burner: lifetime warranty against manufacturing defects or breakage, indoors or outdoors, when installed by a professional installer. Natural browning of the stainless finish is not covered. Warranty is limited to the original purchaser.
