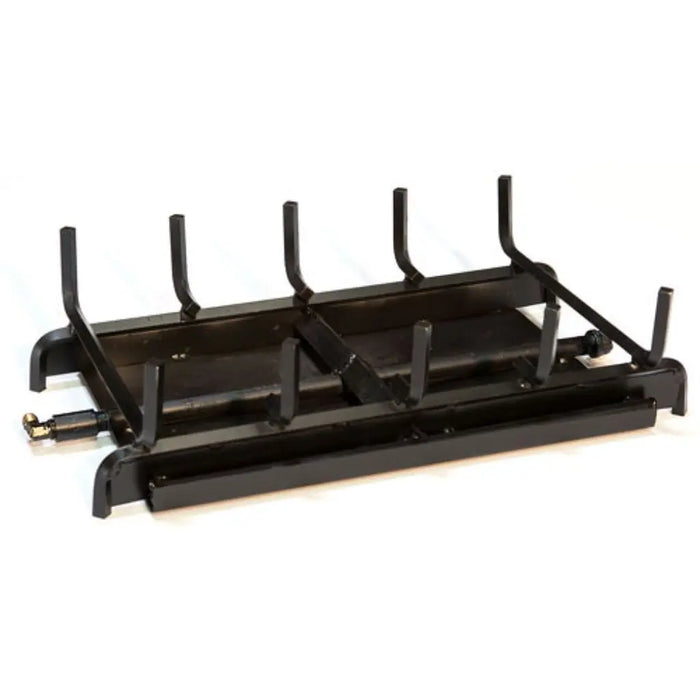

Grand Canyon 18" to 60" Indoor Vented See Through 2-Burner System
Grand Canyon 18" to 60" Indoor Vented See Through 2-Burner System provides a high quality double sided burner component to help complete your ideal see-through gas fireplace. Grand Canyon's Double Sided 2 Burner system features a durable 304 stainless steel chassis for ultimate durability and performance indoors while allowing for gas to flow in from either side of the burner. With 2 front burners on either side, this component provides a substantial flame that is suitable for viewing from either side of your fireplace unit, adding a modern touch to your favorite space.
This burner package comes complete with metal bar stock and burner pipes, lava rock, necessary fittings, a flex line and the ember damper clamp. With (7) different burner size options and a propane or natural gas option, Grand Canyon has ensured a burner that will fit any style of indoor living space, allowing you to achieve an area that your friends and family will love for years to come.
See Through Burners - 100% American manufactured burners listed and tested to the ANSI standard. Indoor burners feature stainless steel pan construction with metal bar stock and burner pipes.
Use with logs: Arizona Weathered Oak (AWO), Arizona Weathered Oak Charred (AWOC), Arizona Juniper (AJ), Quaking Aspen (ASPEN), and Driftwood.
Please Note:
- 2 burner system, middle & elevated back burner w/height of the 3 burner.
- Logs not included.
Features
- Sizes 18" – 60"
- Main rear burner w/Dual action front ember burner
- ANSI Certified with Control Systems
- Fully Welded System w/Sandless Design
- Stainless Steel Chassis
- Lifetime Warranty when installed Indoors
- 1/2" Piping & ½" Bar Stock
- Gas Inlet Left or Right
- Concealed Pilot Mounting Brackets
- NG Burner convertible to LP
- Includes Lava Rock, Embers & Connection Fittings
Specifications
18-Inch
- Front Width: 18"
- Depth: 16"
- Back Width: 18"
- Height: 6"
- BTU Rating NG: 103K
- BTU Rating LP: 93K
|
24-Inch
- Front Width: 24"
- Depth: 16"
- Back Width: 24"
- Height: 6"
- BTU Rating NG: 118K
- BTU Rating LP: 100K
|
30-Inch
- Front Width: 30"
- Depth: 16"
- Back Width: 30"
- Height: 6"
- BTU Rating NG: 128K
- BTU Rating LP: 115K
|
36-Inch
- Front Width: 36"
- Depth: 16"
- Back Width: 36"
- Height: 6"
- BTU Rating NG: 135K
- BTU Rating LP: 125K
|
42-Inch
- Front Width: 42"
- Depth: 16"
- Back Width: 42"
- Height: 6"
- BTU Rating NG: 140K
- BTU Rating LP: 125K
|
Options & Accessories
Click to see Control Valve Options
|
|
Manual Valve Kit (MA)
- Manual On/Off w/ Knob or Wrench Operations ONLY
- Low Profile Design
- Max Inlet 14” W.C.
- Valve Temp Rating 300°
- 90,000 BTU’s (NG/LP)
- For use with:
-
2-Burner / Glass / Kiva
18" - 42" (NG / LP)
-
3-Burner
18" - 30" (NG/LP)
|
|
Safety Pilot Quick Mount Kit (SPQMKN / SPQMKLP)
- Standing Pilot System
- Manual On/Off Operations ONLY
- Low Profile Design
- Max Inlet 14” W.C.
- Valve Temp Rating 300°
- (NG) 90,000 BTU’s
- (LP) 90,000 BTU’s
- For use with:
-
2-Burner / Glass / Kiva
18" - 30" (NG)
18"- 42" (LP)
-
3-Burner
18" - 24" (NG)
18" - 36" (LP)
|
|
|
High Capacity Safety Pilot Kit (HCSPK-N / HCSPK-LP)
- Standing Pilot System
- Manual On/Off Operations ONLY
- Max Inlet 14” W.C.
- Valve Temp Rating 250°
- (NG) 124,000 BTU’s
- (LP) 200,000 BTU’s
-
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
- For use with:
-
2-Burner / Glass / Kiva
18" - 42" (NG)
18"- 60" (LP)
-
3-Burner
18" - 42" (NG)
18" - 42" (LP)
-
Jumbo / Jumbo Slimline
24" - 30" (NG)
24"- 48" (LP)
|
|
|
Millivolt Quick Mount Kit (MVQMKN / MVQMKLP)
- Standing Pilot System
- On/Off Operations ONLY
- Low Profile Design
- Max Inlet 14” W.C.
- Valve Temp Rating 175°
- (NG) 3”-5” W.C. 70,000 BTU’s
- (LP) 8”-12” W.C. 110,000 BTU’s
-
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
- For use with:
-
2-Burner / Glass / Kiva
18" - 30" (NG)
18" - 42" (LP)
-
3-Burner
18" - 24" (NG)
18" - 36" (LP)
-
Jumbo / Jumbo Slimline
24" - 30" (LP)
|
|
Modulating Millivolt Valve Kit with Remote (MMVKR-NG / MMVKR-LP)
- Standing Pilot System
- Variable Flame Height
- Low Profile Design
- Max Inlet 14” W.C.
- Valve Temp Rating 225°
- (NG) 7” W.C. 120,000 BTU’s
- (LP) 7”-14” W.C. 120,000 BTU’s
- For use with:
-
2-Burner / Glass / Kiva
18" - 42" (NG)
18" - 42" (LP)
-
3-Burner
18" - 42" (NG)
18" - 42" (LP)
-
Jumbo / Jumbo Slimline
24" - 30" (NG)
24" - 30" (LP)
|
|
|
High Capacity Millivolt Valve Kit (HCMVQMKN / HCMVQMKLP)
- Standing Pilot System
- High Volume Output Millivolt System
- On/Off Operations ONLY
- Max Inlet 14” W.C.
- Valve Temp Rating 175°
- (NG) 3”-5” W.C. 370,000 BTU’s
- (LP) 8”-12” W.C. 560,000 BTU’s
- For use with:
-
2-Burner / Glass / Kiva
18" - 60" (NG)
18" - 42" (LP)
-
3-Burner
18" - 42" (NG)
18" - 42" (LP)
-
Jumbo / Jumbo Slimline
24" - 108" (NG)
24" - 120" (LP)
|
|
|
Battery Powered Electronic Ignition System (MVKEIKN / MVKEIKLP)
- Non-Standing Pilot
- 2-D Cell Battery Electronic Ignition
- Pilot on Demand System
- On/Off Operations ONLY
- Max Inlet 14” W.C.
- Valve Temp Rating 175°
- (NG) 3”-7” W.C. 88,000 BTU’s
- (LP) 8”-14” W.C. 110,000 BTU’s
-
GCRK (On/Off) remote and GCWS (On/Off) Wall Switch can be use with this kit (Not included - Sold separately)
- For use with:
-
2-Burner / Glass / Kiva
18" - 42" (NG)
18" - 42" (LP)
-
3-Burner
18" - 30" (NG)
18" - 36" (LP)
-
Jumbo / Jumbo Slimline
24" - 30" (LP)
|
|
|
110V Indoor Electronic Ignition System (EIS & EIS-LP)
- Non-Standing Pilot
- Pilot on Demand System
- 24V Electronic Ignition
- On/Off Operations ONLY
- In-Wall Design
- 6’-10’ Pilot Assembly
- Max Inlet 14” W.C.
- Valve Temp Rating 175°
- (NG) 3”-7” W.C. 200,000 BTU’s
- (LP) 8”-14” W.C. 320,000 BTU’s
-
GCRK (On/Off) remote / GCWS (On/Off) Wall Switch and WBPB-12/24 (Wifi / Blutooth Power Box) can be use with this kit (Not included - Sold separately)
- For use with:
-
2-Burner / Glass / Kiva
18" - 60" (NG)
18" - 42" (LP)
-
3-Burner
18" - 42" (NG)
18" - 42" (LP)
-
Jumbo / Jumbo Slimline
24" - 60" (NG)
24" - 96" (LP)
|
Click to see Wall Switch / Remote Control & Power Box
|
Wall Switch (GCWS)
- Basic wall switch kit
- Basic on/off operations
- For indoor or outdoor use
- 15 foot 10-2 low voltage wire
- Rocker switch and cover included
- For Use With:
- HCSPK-N & HCSPK-LP
- MVQMKN & MVQMKLP
- HCMVQMKN & HCMVQMKLP
- MVKEIKN & MVKEIKLP
- ALL EIS Configurations
|
|
|
Remote Control Kit (GCRK)
- Basic On/Off Operations
- RF Transmitter & Receiver
- LCD Temp Display
- Includes Batteries & Wall Plate
- For Use With:
- HCSPK-N & HCSPK-LP
- MVQMKN & MVQMKLP
- HCMVQMKN & HCMVQMKLP
- MVKEIKN & MVKEIKLP
- ALL EIS Configurations
|
|
|
Weather Beater Wifi/Bluetooth Power Box (WBPB-12/24)
- Installs in-wall
- 12V/24V system
- Optional accessory
- Connect with your home
- Automation or weather smart app
- Designed for all EIS configurations
- Weather beater Wi-Fi and Bluetooth power box
|
