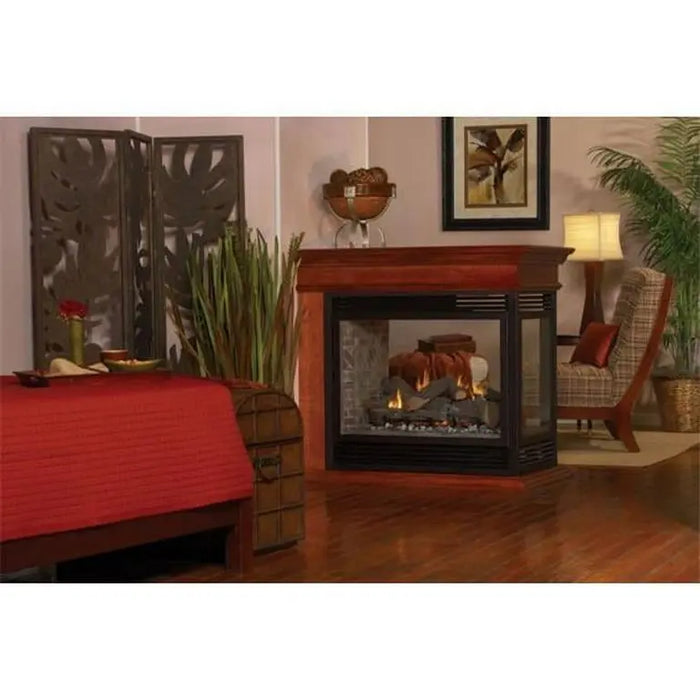

Empire Tahoe Peninsula 36" Direct Vent Gas Fireplace
Heater Rated at 35,000 Btu input, the Empire Tahoe Peninsula 36" Direct Vent Gas Fireplace draws in outdoor air to support combustion and sends its exhaust directly outdoors, and must be located in a position that allows venting through an exterior wall or through the roof. Tahoe Multi-Sided fireplaces install using readily available 4 x 6 5/8 direct-vent pipe.
Empire Tahoe Multi-Sided systems include a built-in 24-inch Slope Glaze Vista Burner, large tempered-glass viewing windows, Banded Brick Liner, ceramic fiber floor liner, dimmer controlled lighting, and glowing embers. The 24-inch Rock Creek Log Set and barrier screens must be ordered to complete the fireplace. (Doors are not available for multi-sided fireplaces.)
Features
- Up to 35,000 BTUs
- Banded brick ceramic fiber liner
- Large tempered glass view windows
- Built-in 24" Slope Glaze Vista Burner
- Standing pilot with remote-ready millivolt controls
- Three open sides provide an excellent view of flames
- Slope Glaze Vista Burner use with Rock Creek refractory log set only
Includes:
- Dimmer Controlled Accent Light
- Banded Brick Liner
Requires:
- Three Barriers (one 22-inch and two 36-inch)
- Rock Creek Log Set
Specifications
| Model |
DVP36PP |
| Actual Dimensions |
41 1/8 H x 39 W x 24 D |
| Framing Dimensions |
41 1/2 H x 39 W x 23 D |
| Fuel Type |
Natural Gas / Propane |
| Vent Type |
Direct Vent |
| Vent Size |
4x6 5/8" |
| Ignition Type |
Millivolt |
| Installation Type |
Zero Clearance |
| Style |
Peninsula |
| Vent Inner Diameter |
4 Inches |
| Vent Outer Diameter |
6 5/8" Inches |
| Input BTU/HR (KW/H) Max/Min (Propane) |
35,000/28,000 |
| Input BTU/HR (KW/H) Max/Min (Natural Gas) |
35,000/24,000 |
Installation Requirements
-
Clearances to combustibles: Ends (air drop) 1/2", sides 1/2", floor 0", top standoff 0", top framing edge 6-3/8"
-
Mantel clearance: Follow the mantel chart in the installation manual for any combustible mantel above the unit.
-
Venting: 4" x 6-5/8" direct vent, top or rear; maximum 40 ft vertical and 20 ft horizontal with rigid pipe (see the venting graph in the manual)
-
Gas input (BTU/hr): Natural gas 35,000 max / 24,000 min; propane 35,000 max / 28,000 min
-
Installation: Must be installed by a qualified installer per the installation manual and local codes.
Downloads
Warranty
- 10-year limited warranty on combustion chamber; limited lifetime on glass.
- All other parts carry a 3-year limited warranty.
- All Remote Controls carry a 1-year limited warranty.
