Superior DRT6340 40" Traditional Direct Vent Gas Fireplace

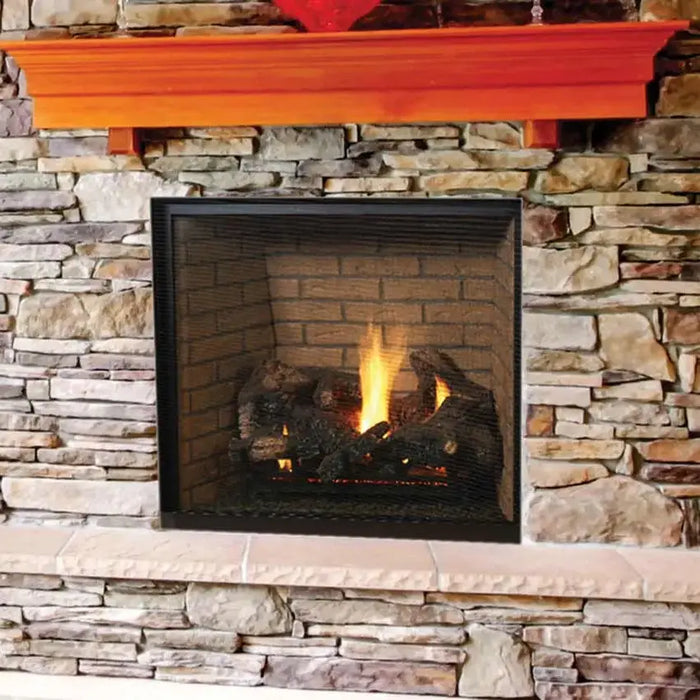

The Superior DRT6340 is the 40" size of Superior's DRT6300 traditional direct vent gas fireplaces, built around a tall flame on a flush hearth floor. The gas controls are hidden to the side of the opening behind the smooth black face, which leaves a clean front to finish around, and the ceramic glass front is 34-3/4" wide and 29-3/8" tall.
It comes as the DRT6340TEN for natural gas, 50,000 Btu/hr high and 32,000 low, with six flame levels on the included remote; a conversion kit sets it up for propane. The electronic IPI/CPI ignition runs on 120 V, with four AA batteries in the receiver as backup in a power outage. It vents from the top in Superior's 8" DV Lock pipe, 8" inner and 11" outer. The power-vent version, the DRT6340TYN, has been discontinued.

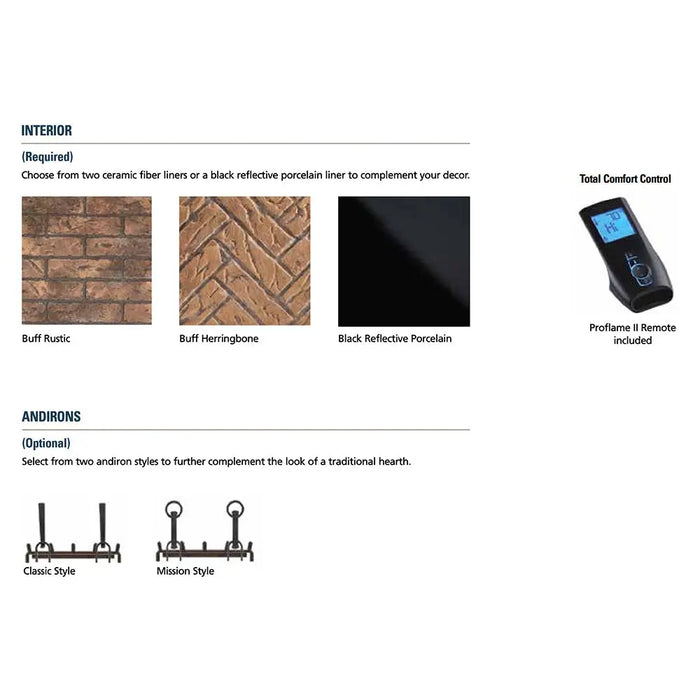

Two items are required and ordered separately: the Oak log set and a firebox liner (black porcelain, or buff herringbone or buff rustic ceramic). Mission and Classic andirons are optional. The DRT6300 also comes in 45" (DRT6345), and the DRT63ST is the see-through model from the same family.
Play video: Superior DRT6300 Direct Vent Gas Fireplace
Key Features
- 34-3/4" x 29-3/8" ceramic glass front on a 50-5/8" wide fireplace
- Natural gas: 32,000 to 50,000 Btu/hr, with six flame levels
- Flush hearth floor and a smooth front face with the gas controls hidden beside the opening

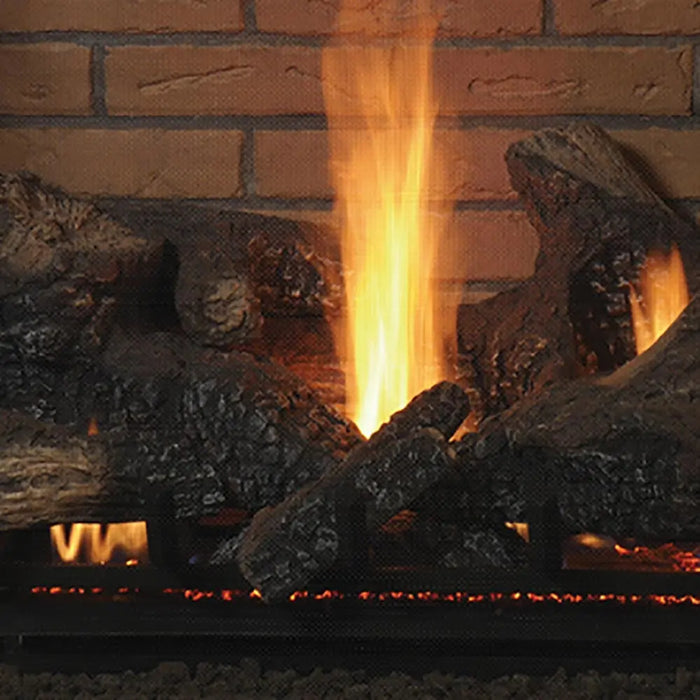

- Burner designed for a tall flame, with a heavy-duty log grate
- Glowing embers, platinum embers and volcanic stone included
- Full-function remote with wall receiver: on/off, six flame levels and IPI/CPI pilot
- Electronic IPI/CPI ignition with four AA battery backup in the receiver
- Barrier screen installed at the factory
- Oak log set and a porcelain or ceramic liner required
- Top vent in 8" DV Lock pipe, up to 40 ft
- Listed for bedrooms and mobile homes
- 20 year limited warranty on the body, firebox and barrier, and on the ceramic glass against thermal breakage
What's Included
- Remote control and wall receiver, with three AAA batteries for the remote and four AA batteries for the receiver
- Heavy-duty log grate
- One bag of glowing embers, one bag of platinum embers and one bag of volcanic stone
- Ceramic glass front with the barrier screen installed
- Door modesty shield
- Header heat shield
- Vent restrictor, packed in the firebox
- Base trim piece, optional to fit, that extends the base 1/2" to line up with the side finish flanges
What to Order With It
Required – Log set:
Required – Firebox liner (choose one):
Required – Venting (8" DV Lock, ordered separately):
Optional – Andirons:
Optional – Gas conversion, media and touch-up:
Specifications
| Model |
DRT6340TEN (natural gas) |
| Order number |
F2208 |
| Type |
Traditional direct vent gas fireplace, single-sided, sealed combustion, flush hearth |
| Input, natural gas |
50,000 Btu/hr high, 32,000 Btu/hr low |
| Input, propane |
50,000 Btu/hr high, 32,000 Btu/hr low, after conversion with GCK-MDLX40NP |
| Efficiency |
35.8% P4 natural gas |
| Glass |
Ceramic, 34-3/4" W x 29-3/8" H |
| Fireplace size |
50-5/8" W x 45" H x 26-1/2" D |
| Framed opening |
50-3/4" W x 45" H x 26" D |
| Ignition |
Electronic IPI/CPI, SIT ProFlame II control; four AA battery backup in the receiver |
| Remote |
Hand-held remote with wall receiver: on/off, six flame levels, IPI/CPI |
| Power |
120 VAC to the appliance receptacle |
| Gas connection |
Supply line routed to the right side |
| Gas inlet pressure |
Natural gas 5.5" to 10.5" WC; propane 11" to 13" WC |
| Venting |
Direct vent, top, Superior 8" DV Lock (8" inner, 11" outer) rigid pipe |
| Vent run |
6 to 40 ft straight up; horizontal runs up to 20 ft with the vertical rise the vent tables call for; 40 ft total; up to three 90° elbows |
| Glass and barrier |
Ceramic glass; barrier screen installed at the factory |
| Logs and interior |
Oak log set and firebox liner required, ordered separately; grate, embers and volcanic stone included |
| Altitude |
0 to 4,500 ft with the standard orifices |
| Listing |
ANSI Z21.50 / CSA 2.22, vented gas fireplace, decorative appliance (PFS report F14-106) |
| Approved locations |
Bedrooms and mobile homes |
| Shipping weight |
306 lb |
| Warranty |
20 year limited (see Warranty below) |
The efficiency figure is the natural gas P4 rating from Superior's installation manual. P4 is the Canadian CSA P.4.1 fireplace efficiency rating; Superior doesn't publish an AFUE figure for this series.
Dimensions and Framing
Fireplace dimensions
| Width at the back (H) |
34" |
| Side to vent center (I) |
25-3/8" |
| Vent center to the front (J) |
14-1/8" |
| Glass width (K) |
34-3/4" |
| Overall width (L) |
50-5/8" |
| Overall height (M) |
45" |
| Glass height (N) |
29-3/8" |
| Opening height (O) |
33-1/8" |
| Overall depth (P) |
26-1/2" |
Letters match the drawing above.
Flat wall framing
| Opening width (A) |
50-3/4" |
| Opening height (B) |
45" |
| Depth (C) |
26" |
| Vent center height, 2 ft vertical vent and one 90° elbow |
75-1/8" |
Corner framing
| Front opening (D) |
50-5/8" |
| Wall to wall across the corner (E) |
83-5/8" |
| Corner to front (F) |
41-7/8" |
| Along each wall (G) |
59-1/8" |
Framing is 2x4 or larger. Frame to the exact sizes shown; the nailing flanges and the screw heads next to them may touch the framing. If the fireplace sits above the floor, build a solid continuous platform under it.
Installation Requirements
-
Clearances to combustibles: 1/2" at the back and sides, 0" at the spacers, the top spacers and the floor.
-
Ceiling: at least 69" from the bottom of the fireplace to the ceiling.
-
Header: a header can touch the top spacers but can't rest on them or be notched around them. All framing above the fireplace must support itself. Fit the header heat shield that ships taped to the top of the fireplace.
-
Front: keep 3 ft clear in front of the fireplace for service.
-
Side walls: if one side is flush with a wall, the wall on the other side can't extend past the front edge of the fireplace, and in a recess neither side wall can. A combustible side wall must be at least 14" from the opening, or 8-1/4" if it is a protected wall. Other combustible materials beside the opening must stay inside the 45 degree safe zone shown in the manual.
-
Mantel: a 12" deep combustible mantel needs to be at least 17" above the top of the fireplace and a 2" deep one at least 7", per the mantel chart in the manual. Non-combustible mantels can go at any height.
-
Wall finish: the face for 10-3/8" above the top of the fireplace must be non-combustible material or cement board; combustible materials can start above that. Never let combustible materials sit in front of or overlap the black front face. Non-combustible trim can go on the face as long as it doesn't cover the removable glass panel.
-
Shelf or TV above: with 2 ft of vertical vent and one 90° elbow, a combustible shelf must be at least 84-1/16" above the base of the fireplace, which includes the 3" clearance above the vent. Don't insulate the space between the fireplace and the shelf. A TV above must stay within its maker's temperature rating.
-
Logs and liner: the fireplace can't be run until the log set and a firebox liner are installed.
-
Floor: no hearth extension is required.
-
Venting: use only Superior 8" DV Lock pipe (8" inner, 11" outer), from the top of the fireplace. Straight vertical runs are 6 to 40 ft. Horizontal runs start with at least 2 ft of vertical vent off the top and can reach 20 ft, with 10 ft of vertical vent for a 20 ft run and 40 ft total, with up to three 90° elbows. The vent restrictor packed in the firebox is needed on some vent layouts; the vent tables in the manual show which. Keep 3" of clearance above horizontal vent runs and 1" at the sides and bottom. Use firestops wherever the vent passes through a combustible wall, floor or ceiling, and the insulation shield in attics or where blown or loose-fill insulation is used.
-
Gas: route the gas line to the right side of the fireplace. Inlet pressure must be 5.5" to 10.5" WC on natural gas or 11" to 13" WC on propane.
-
Power: connect 120 VAC to the fireplace's receptacle; the four AA batteries in the receiver are a backup for power outages. The remote's wall receiver mounts in a junction box (not included) on the wall next to the fireplace, within reach of its wiring harness.
-
Heat source: the DRT6300 is a decorative fireplace and can't be installed as the primary heat source in a home.
-
Altitude: the standard orifices cover 0 to 4,500 ft. Above that, the input has to be reduced; ask your gas supplier.
-
Massachusetts: installation and repair must be done by a licensed plumber or gas fitter. The flexible gas connector can't be longer than 36", and the shutoff must be a T-handle valve. A horizontal termination less than 7 ft above grade also needs a hard-wired carbon monoxide detector with battery backup on the floor where the fireplace is, and a GAS VENT DIRECTLY BELOW sign outside.
-
Manufactured homes: ground the fireplace to the chassis and don't cut or weaken the cross members. It must run on the gas shown on its rating plate unless a certified conversion kit is used.
-
Installation: must be installed by a qualified installer following the installation manual and local codes. Superior calls for an inspection by a qualified service person before first use and once a year.
Frequently Asked Questions
Does the DRT6340 come with logs?
No. The Oak log set (LOG-OAK-MDLX4045) and one firebox liner are ordered separately, and the fireplace can't be run without both. The grate, glowing embers, platinum embers and volcanic stone come in the box.
Can it heat my home?
It puts out heat, and the remote's six flame levels change the flame height and the heat output, but it is listed as a decorative fireplace. It can't be installed as the primary heat source in a home.
Can I put a TV above it?
Yes, if the shelf or TV mount is at least 84-1/16" above the base of the fireplace with 2 ft of vertical vent and one 90° elbow, and the TV stays within its maker's temperature rating. Don't insulate the space between the fireplace and the shelf. Our guide to fireplace heat management explains other ways to keep the wall above cooler.
Will it work during a power outage?
Yes. Four AA batteries in the receiver run the ignition and burner when the power is out.
Can I change it from natural gas to propane, or the other way?
Yes. It ships for natural gas, and Superior's GCK-MDLX40NP kit converts it to propane (32,000 to 50,000 Btu/hr after conversion). GCK-MDLX40PN converts it back. Otherwise it may only run on the gas shown on its rating plate.
Is there a power vent version?
Not any more. The DRT6340TYN power-vent model has been discontinued. The DRT6340TEN vents with Superior's 8" DV Lock pipe, straight up as far as 40 ft or out through a wall with up to 20 ft of horizontal run.
Can it go in a bedroom?
Yes. The DRT6340 is listed for bedrooms and mobile homes, where local codes allow.
Warranty
Superior's 20 Year Limited Warranty covers the DRT6340 against defects in materials and workmanship:
- Fireplace body, firebox and barrier: 20 years
- Ceramic glass: 20 years, against thermal breakage only
- Burner, gas components and gaskets: 1 year
- Optional blowers and remote controls: 1 year
- Parts not listed: 90 days
- Labor: paid at IHP rates for the covered part's warranty period, up to five years
Vent components, trim and paint are not covered. The warranty is for the original owner of a fireplace installed in the US or Canada. Full terms are in the warranty certificate.
