Superior WCT2036 36" Traditional Insulated Louvered Wood Burning Fireplace

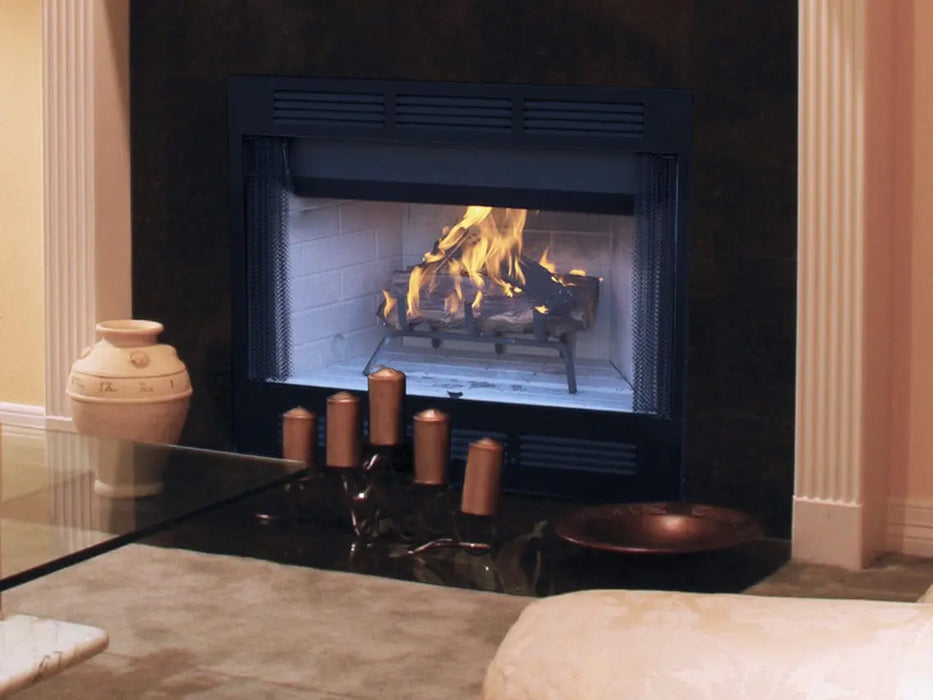

Superior WCT2036 36" Traditional Insulated Louvered Wood Burning Fireplace, though surprisingly economical, the WCT2000 fireplaces present a “big box” look with an oversized brick to brick opening. Available in clean-face and circulating models, the fireplace comes standard with textured, powder coat finish and full smooth white refractory brick liner. 8″ pipe makes for easy installation.

Features

• Available in 36” and 42” models
• Radiant smooth-faced or circulating rolled louver models
• Fully insulated firebox
• White stacked refractory panels
• Log grate
• Push/pull damper control
• Includes mesh fire screens
• Barometric outside air damper
• Fan kit available (for circulating models only)
• Durable textured powder coat finish
• Uses IHP 8 DM (1700º) double wall air cooled wood burning chimney
• 20 year limited warranty

What to Order With It

Venting components are ordered separately — see Venting under Specifications. Nothing below is required; the unit is complete as shipped.

Optional — Doors:

• 36" Standard Bi-Fold Door, Black (BDB36)

Optional — Blower Kits (louvered Models Only):

• 3-Blade Fan, WB & Vent Free Only (BK3)
• 16" Variable Speed Blower With Manual Control (BK)

Optional — Outside Air Kits:

• 4" Air Kit with Collar, Hood & 3' Flex (AK4)
• 4" Air Kit, Collar & Hood Only (AK4X)
• Outside Air Kit Collar, Hood & 3' Flex for Floor Venting (AK4F)
• 50 piece Bulk Outside Air Kit - Collar Only Kit (AK4B)

Specifications

• Model : WCT2036WSI
• Order Number : F0686
• Product Type : Wood-Burning Fireplace
• Venting : Wood-burning chimney — IHP 8" factory-built chimney (8DM standard or 8HT hi-temp)
• Framing Width : 38-1/4"
• Framing Height : 38-5/8"
• Framing Depth : 22"
• Design Style : Open-Hearth
• View Style : Front-View
• Warranty : 20 Year Limited (certificate 900224-00 Rev B)

Framing height is 38-5/8" per Superior installation manual 126628-01 Rev K, spec sheet 900728-00 and smart sheet 785847M.

Documents and Downloads

• Installation & Operation Manual — 126628-01 Rev K, 07/2022
• Care & Operation Manual — 127003-01 Rev C, 02/2018
• Specification Sheet — 900728-00 Rev NC
• Smart Sheet — 785847M, 07/2025
• Brochure (WRT2000-WCT2000 Brochure) — 785356M, 07/2025
• Brochure (Vent-Free Gas Logs) — 785692M, 07/2026
• Warranty Certificate (20 Year Limited) — 900224-00 Rev B

Superior does not publish a separate architect’s guide or a public service manual for this model; the specification sheet is the architect-facing document. Call us if you need service information and we will get it from Superior.
