Empire Tahoe Luxury 36" Direct Vent Gas Fireplace

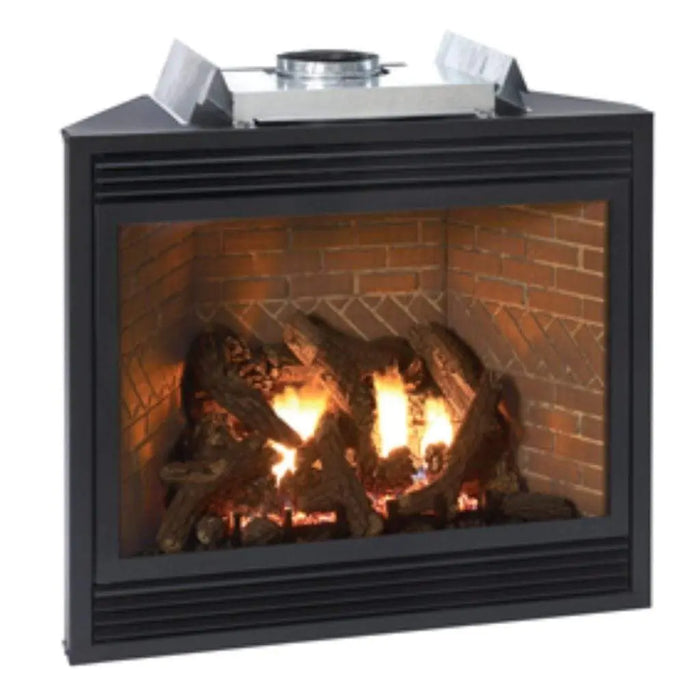

The Empire Tahoe Luxury 36" (model numbers DVX36FP31L, DVX36FP71L and DVX36FP91L, each followed by N for natural gas or P for propane) is a zero-clearance direct-vent gas fireplace with a traditional louvered face. It has ceramic glass, a 13-piece log set and an accent lamp inside the firebox, and the unit is 19 7/8" deep.
Every model comes with the blower and the accent lamp. Millivolt models (FP31) run the burner without house power. Intermittent pilot models (FP71) use electronic ignition with battery backup. Multi-function models (FP91) include a remote that controls flame height, the accent lamp and the blower. On millivolt and intermittent pilot models a dimmer switch sets the lamp.
Key Features
- Up to 35,000 Btu/hr input on natural gas and 30,000 Btu/hr on propane
- 13-piece log set, included
- Ceramic glass, 32 1/2" x 22"
- Accent lamp inside the firebox, on a dimmer (FP31, FP71) or the remote (FP91)
- Blower included on every model
- Millivolt, intermittent pilot or multi-function control
- 4" x 6 5/8" direct venting from the top
- Zero clearance to combustibles at the back, sides and floor
- Liners: banded brick, stacked limestone or black porcelain
What to Order With It
The fireplace ships with its log set. It needs a front before it can run; a barrier is required to operate it.
Required (choose one front):
Optional – Liners:
Optional – Door set (requires the Door Frame with Barrier, DVWQ36BL):
Optional – Outer frame and bottom trim:
Optional – Louvers:
Optional – Remotes and wall controls:
-
Remote, Battery Receiver/Remote, On/Off (FRBC)
-
Remote, Battery Receiver/Remote, Thermostat (FRBTC2)
-
Remote, Electric Receiver/Battery Remote, On/Off (FREC)
-
Remote, Battery Receiver/Remote, TouchScreen, Programmable (FRBTPS)
-
Wall Switch, On/Off (FWS1)
-
Wall Thermostat, Reed Switch (TMV)
-
Wall Thermostat, Wireless (TRW)
Optional – Variable remote kit (intermittent pilot models):
Optional – Accessories:
Optional – Vent kits:
Optional – Conversion kits:
Specifications
| Model numbers |
DVX36FP31LN, DVX36FP31LP, DVX36FP71LN, DVX36FP71LP, DVX36FP91LN, DVX36FP91LP |
| Framing (rough opening) |
39 3/8" W x 40 7/8" H x 19 7/8" D; add 3 3/4" to the height when using a flush mantel base |
| Appliance dimensions |
39" W x 40 3/4" H x 19 7/8" D (34 3/4" H without the top standoffs) |
| Ceramic glass |
32 1/2" x 22" |
| Fuel |
Natural gas (N) or propane (P) |
| Input, maximum |
35,000 Btu/hr natural gas; 30,000 Btu/hr propane |
| Input, minimum |
24,500 Btu/hr natural gas; 21,000 Btu/hr propane |
| Venting |
Direct vent, 4" x 6 5/8", top |
| Control |
Millivolt standing pilot (FP31); intermittent pilot (FP71); multi-function with remote (FP91) |
| Blower |
Included on all models |
| Accent lamp |
Included; dimmer on FP31 and FP71, remote on FP91 |
| Electrical |
Blower and accent lamp plug into a 120V receptacle in the factory-installed junction box |
| Gas connection |
1/2" NPT |
| Installation type |
Zero clearance |
| Listing |
ANSI Z21.88/CSA 2.33 |
| High altitude |
Above 2,000 ft in the US the input may need to be reduced with a smaller orifice; see the manual |
| Manufactured (mobile) home |
May be installed in an aftermarket, permanently located manufactured home (USA only) where local codes allow |
| Shipping weight |
156 lb |
| Style |
Traditional |
Installation Requirements
-
Clearances to combustibles: back 0", sides 0", floor 0", top standoffs 0", top framing edge 6".
-
Ceiling: at least 36" from the top front edge of the fireplace to the ceiling.
-
Side wall: at least 6" from the side of the fireplace to an adjacent side wall.
-
Mantel: follow the mantel chart in the installation manual for any combustible mantel or projection above the unit.
-
Framing: frame the opening with a header across the top. The fireplace mounts flush with the finished facing; the nailing flanges set for 1/2", 5/8" or 3/4" facing.
-
Floor: on carpet, tile or any combustible floor other than wood, set the fireplace on a metal or wood panel the full width and depth of the unit.
-
Venting: 4" x 6 5/8" direct vent from the top. The longest horizontal run is 20 ft, with at least 8 ft of vertical rise; island and room-divider installs follow the same limit. Check the vent graph in the manual for your layout.
-
Power: have a 120V supply wired to the junction box for the blower and accent lamp. Millivolt models run the burner without electricity. Intermittent pilot and multi-function models have battery backup.
-
Barrier: a barrier screen must be installed to operate the fireplace.
-
Installation: must be installed by a qualified installer per the installation manual and local codes.
Options & Accessories
Decorative Louvers
Arch louvers
Mission louvers
Door Set
Door Set, Black, Rectangle (requires the Door Frame with Barrier)
Outer Frame Finishes

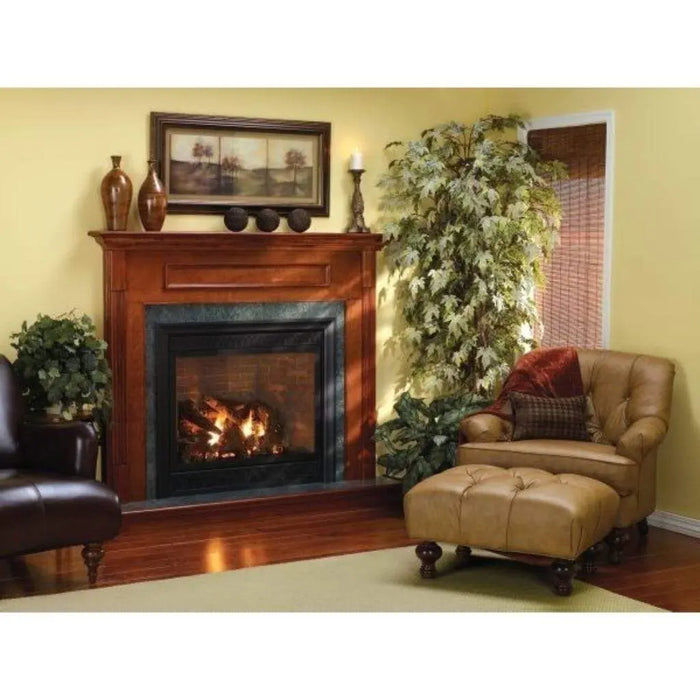

Matte black (shown on a cherry mantel)
Hammered pewter (shown on an oak mantel)
Liners
Liner samples from Empire's range. Availability varies by model; the ones that fit this fireplace are listed under What to Order With It.
Downloads
Warranty
Empire limited parts warranty for Tahoe Luxury fireplaces, from the warranty section of the installation manual:
- Factory-installed glass: limited lifetime
- Combustion chamber and heat exchanger: limited lifetime
- All other components, except remote controls, thermostats, lights, accessories and replacement parts: 3 years
- Remote controls, thermostats, lights, accessories and replacement parts: 1 year
The warranty covers parts for the original purchaser. Travel, diagnostic and freight charges are not covered. Full terms are in the warranty section of the installation manual.
