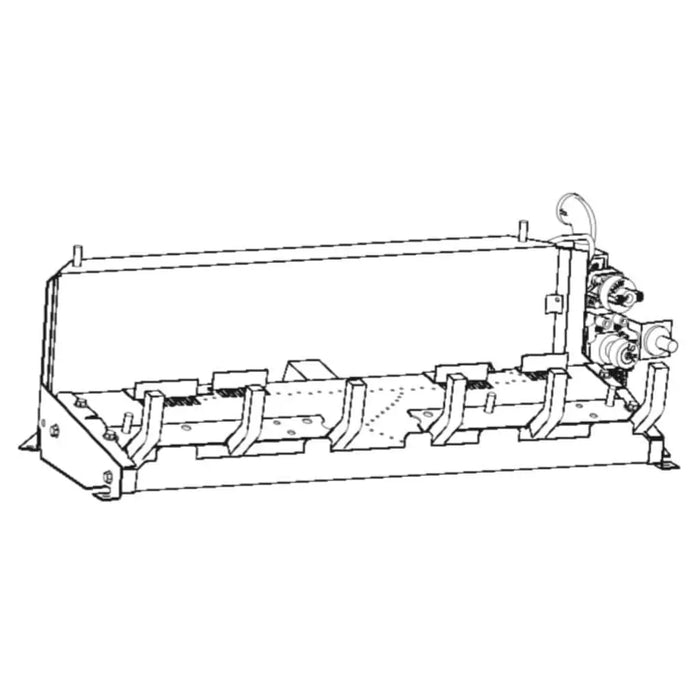

Empire 16"/18"/24"/30" Vent-Free Slope Glaze Gas Burner with Millivolt Valve (Burner Only)

Empire popular Slope Glaze Burners raise the standard for dancing flames. Internal ceramic beads tumble the gas to create an exceptionally realistic flame movement.

Special Ceramic Bead materials within the precisely ported burner swirl the flowing gas to produce naturally flickering flames. All come with piezo ignition and standing pilot.

The Slope Glaze Burner features concealed controls and include a standing pilot for instant starts. This burner includes a millivolt valve and features ON/OFF operation and can be controlled manually or by remote or wall switch (sold separately). There is no flame control or temperature adjustment with this burner. You have the option of using a thermostat, a remote or a combination thermostat and remote. It DOES NOT include a remote or a thermostat.

Features

• Ignition Type: Millivolt Control
• BURNER ONLY: Slope Glaze Burner
• Left and right clearances are determined when facing the front of the heater
• Approved for use in any certified vent-free firebox
• May be installed in an existing wood-burning fireplace, with the damper closed, to operate as a vent-free heating system
• Also certified for installation as vented log set, so long as the installer blocks the fireplace damper partially open. A special flue-damper clamp is included with burner

Installation Requirements

• Approved for: Installation only in a solid-fuel burning masonry or UL 127 factory-built fireplace, or in a listed ventless firebox enclosure. Do not install in a factory-built fireplace whose instructions say it has not been tested with, or should not be used with, unvented gas logs.
• Minimum fireplace size: Check the fireplace against the minimum fireplace dimensions table in the installation manual before ordering.
• Venting: Vent-free: no chimney or vent required. Thermostats are for vent-free applications only and are not approved on vented decorative installations.
• Clearances to combustibles: Sides of the fireplace opening at least 6" from any combustible wall; ceiling above the fireplace opening at least 36" (16") or 41" (18", 24", 30")
• Mantel clearance: Non-combustible material must extend at least 12" above the fireplace opening (at least 8" with a hood). Follow the mantel chart in the installation manual for any combustible mantel above the unit.
• Minimum room size: At least 50 cu ft of room volume per 1,000 Btu/hr of combined appliance input. For the burner alone: 16" 1,250 cu ft (natural gas) / 1,125 cu ft (propane); 18" 1,600 cu ft; 24" 1,800 cu ft; 30" 1,900 cu ft.
• Bedrooms and bathrooms: Not permitted. An unvented heater over 10,000 Btu/hr may not be installed in a bedroom or bathroom (over 6,000 Btu/hr in a bathroom).
• Gas input (BTU/hr): 16": natural gas 25,000 max / 17,500 min, propane 22,500 max / 15,750 min; 18": 32,000 max / 22,000 min; 24": 36,000 max / 25,000 min; 30": 38,000 max / 26,000 min (18"-30" the same for natural gas and propane)
• Altitude: Above 2,000 ft, reduce the input 4% for each 1,000 ft above sea level.
• Massachusetts: Installation must be made by a licensed plumber or gas fitter.
• Glass doors: Do not operate with glass doors closed.
• Power: Millivolt valve with a self-powered thermopile; no 120V electricity needed.
• Installation: Must be installed by a qualified installer per the installation manual and local codes.
