Superior DRT4045 45" Traditional Direct Vent Gas Fireplace

SKU DRT4045TEN-E
Superior authorized dealer
Original price $4,389.00 - Original price $4,389.00
Original price
$4,389.00
$4,389.00 - $4,389.00
Current price $4,389.00
Free shipping over $299To the lower 48 · most items ship in 1–2 business days
Up to 20% OFF

Black Friday Sale

Contact us for this item's sale price. Our team quotes it by phone, text or chat.

Ends Nov 27 · Some exclusions apply

Not sure which options you need? Call 888-486-2909Chat with us

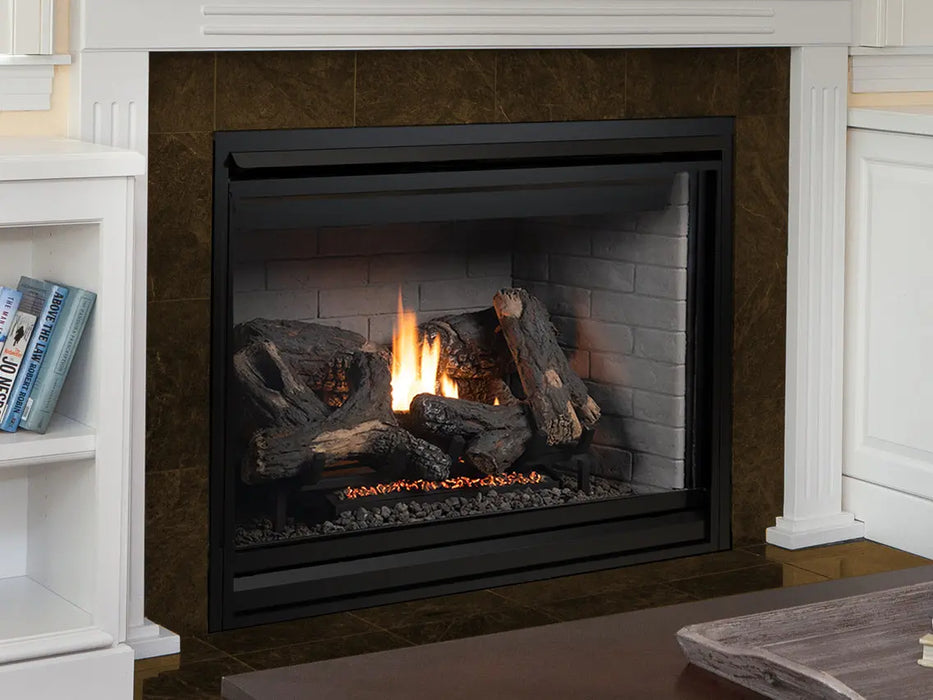

Superior DRT4045 45" Traditional Direct Vent Gas Fireplace

The Superior DRT4045 gives a larger room a big, classic gas fire: a full-size 45" traditional direct vent fireplace with a deep firebox and a high-definition log set.

It runs on natural gas or propane with electronic ignition and a four AA battery backup, and you finish the face with the Vista frame or a Reflection or Craftsman designer facade.

The Superior DRT4045: A Full-Size Traditional Fire

The DRT4045 is the 45" size of Superior's DRT4000 full-size traditional direct vent gas fireplaces. The firebox is 21" deep, with a high-definition ceramic fiber log set on a heavy-duty grate, glowing embers, volcanic stone and a black painted interior behind tempered glass, and the glass viewing area is 39-1/4" wide and 24-1/2" tall.

It comes as the DRT4045TEN-E for natural gas (31,000 Btu/hr high, 21,000 low) or the DRT4045TEP-E for propane (31,000 high, 20,000 low). The electronic IPI/CPI ignition runs on 120 V with four AA batteries as backup, so the fire keeps going in a power outage. It vents from the top in 4-1/2" x 7-1/2" Superior Secure Vent or Secure Flex pipe, and an elbow can connect straight to the flue collar.

One facade is required: the Vista frame, or a Reflection or Craftsman designer facade in black or warm chestnut, each with its screen barrier and hood. You also pick a control, and you can add a blower, a black porcelain or stacked ceramic liner, or a stainless surround. The Superior DRT4245 is the same 45" size with a blower, interior lighting, a remote and ceramic glass included. The DRT4000 series also comes in 40" (DRT4040).

Compare it with our other direct vent gas fireplaces, or see the full Superior fireplace lineup.

Features

  • Viewing area: 39-1/4" x 24-1/2" glass viewing area on a 45-1/4" wide fireplace.
  • Heat input: natural gas 31,000 to 21,000 Btu/hr; propane 31,000 to 20,000 Btu/hr.
  • Full-size firebox: full-size 21" deep firebox with a high-definition ceramic fiber log set on a heavy-duty grate.
  • Embers: glowing embers and volcanic stone included.
  • Runs in a power outage: electronic IPI/CPI ignition with a four AA battery backup keeps the fire going (blower excluded).
  • Glass and liner: tempered glass front and black painted interior; black porcelain and stacked ceramic liners available.
  • Facade choice: one facade required: Vista frame, Reflection or Craftsman, each with a protective screen barrier.
  • Options: optional blower, remote controls, wall switches and thermostats.
  • Venting: top vent.
  • Surround option: stainless surrounds available in three- and four-sided versions.
  • Bedroom approved: listed for bedrooms and manufactured homes.
  • 20 year limited warranty: covers the body, firebox and barrier.

What's Included

  • Electronic IPI/CPI ignition with a battery holder for four AA batteries
  • High-definition ceramic fiber log set on a heavy-duty grate
  • One bag of glowing embers and one bag of volcanic stone
  • Tempered glass front and black painted interior
  • Non-combustible fireboard with side and center brackets
  • Header heat shield and two elbow heat shields
  • Two vent restrictors and two vent cover plates
  • 15 ft of two-conductor wire for a wall control

What to Order With It

Required – Facade (choose one; includes the screen barrier and hood):

Required – Control (choose one):

Required – Venting (4-1/2" x 7-1/2", ordered separately):

Optional – Firebox liners:

Optional – Blower:

Optional – Surround and stone stop:

Optional – Gas conversion, media and touch-up:

Specifications

Models DRT4045TEN-E (natural gas), DRT4045TEP-E (propane)
Superior item numbers F5013 (DRT4045TEN-E), F5014 (DRT4045TEP-E)
Type Traditional direct vent gas fireplace, single-sided, sealed combustion
Input, natural gas 31,000 Btu/hr high, 21,000 Btu/hr low
Input, propane 31,000 Btu/hr high, 20,000 Btu/hr low
Efficiency 59.6% P4 natural gas, 62.8% P4 propane
Glass viewing area 39-1/4" W x 24-1/2" H
Fireplace size 45-1/4" W x 37-1/8" H x 21" D
Framed opening 45-7/8" W x 41-1/4" H x 23" D (add 1/8" per side)
Ignition Electronic IPI/CPI with four AA battery backup
Power 120 VAC, 60 Hz, unswitched, to the junction box
Gas connection 1/2" supply line to the left side
Gas inlet pressure Natural gas 5" to 10.5" WC; propane 11" to 13" WC
Venting Direct vent, top, 4-1/2" x 7-1/2": Superior Secure Vent (rigid), Secure Flex (flexible) or Z-Flex GA
Vent run 6 to 60 ft straight up; horizontal runs up to 25 ft with the vertical rise the vent chart calls for; up to three 90° elbows
Glass and barrier Tempered glass; screen barrier comes with the required facade
Logs and interior High-definition ceramic fiber log set, heavy-duty grate, glowing embers, volcanic stone; black painted interior
Altitude 0 to 4,500 ft with the standard orifices
Listing ANSI Z21.88 / CSA 2.33 and CSA 2.17, vented gas fireplace heater (PFS report 16-120)
Approved locations Bedrooms; aftermarket, permanently located manufactured homes (USA only)
Shipping weight 210 lb
Warranty 20 year limited (see Warranty below)

Efficiency figures are P4 ratings from Superior's installation manual, Table 2. P4 is the Canadian CSA P.4.1 fireplace efficiency rating; Superior doesn't publish an AFUE figure for this series.

Dimensions and Framing

Superior DRT4045 dimension drawing with front, top and side views

Fireplace dimensions

Overall height (A) 37-1/8"
Front face height (B) 34-5/8"
Glass viewing height (C) 24-1/2"
Glass viewing width (D) 39-1/4"
Overall width (E) 45-1/4"
Width at the back (F) 35"
Width at the base of the front (H) 42-7/8"
Vent center from the back (J) 6-7/8"
Overall depth (I) 21"
Vent center to the front (K) 12-3/8"

Letters match the drawing above.

Framing

Opening width 45-7/8"
Opening height 41-1/4", including the 4" top standoffs
Depth 23"

Framing is 2x4 or larger. The opening sizes are minimums, and Superior recommends an extra 1/8" per side. The depth is for a fireplace face installed flush with the framing. The vent framing height and corner framing dimensions are in the installation manual.

Installation Requirements

  • Clearances to combustibles: 1-1/2" to the outer wrapper at the back and 1/2" at the sides, 0" at the spacers, the top standoffs and the floor.
  • Ceiling: at least 64" from the bottom of the fireplace to the ceiling.
  • Header: a header can touch the bent-up 4" top standoffs but can't rest on them or be notched around them. All framing above the fireplace must support itself.
  • Front: keep 36" clear in front of the glass.
  • Side walls: at 6" or more from the side of the fireplace, a combustible side wall can run any length. Combustible mantel legs must stay within the 45 degree safe zone shown in the manual.
  • Mantel: a 12" deep combustible mantel needs to be at least 18" above the fireplace opening and a 2" deep one at least 8", per the mantel chart in the manual. Non-combustible mantels can go at any height, but nothing may hang below the hood.
  • Wall finish: combustible materials can come down to the top of the non-combustible board that ships with the fireplace, but never in front of or over the fireplace face. Non-combustible trim can go on the face as long as it doesn't cover the glass or the control compartment. With a designer facade and thick facing, use the stone stop kit.
  • Shelf or TV above: with top venting and a 90° elbow, a combustible shelf must be at least 52" above the base of the fireplace with a rigid Secure Vent elbow, or 54" with a Secure Flex elbow. Don't insulate the space between the fireplace and the shelf. A TV above must stay within its maker's temperature rating.
  • Facade: the fireplace can't be run until the required facade is installed. The facade carries the screen barrier and the hood.
  • Floor: no hearth extension is required, and one must not block the lower control compartment door. On carpet, vinyl or any combustible floor other than wood, set the fireplace on a metal or wood panel the full width and depth of the unit.
  • Venting: use only Superior Secure Vent, Secure Flex or Z-Flex GA pipe in the 4-1/2" x 7-1/2" size, from the top of the fireplace. Straight vertical runs are 6 to 60 ft, and horizontal runs can reach 25 ft with the vertical rise the vent chart calls for, with up to three 90° elbows. An elbow can connect directly to the flue collar. Keep 3" of clearance above horizontal vent runs and 1" at the sides and bottom.
  • Before first use: remove the cardboard from under the two pressure relief plates in the firebox.
  • Gas: run a 1/2" gas line to the left side of the fireplace. Inlet pressure must be 5" to 10.5" WC on natural gas or 11" to 13" WC on propane.
  • Power: an unswitched 3-wire 120 VAC supply to the junction box is required; the batteries are backup only. The FBK-250 blower runs from the unswitched outlet; the FBK-100 and FBK-200 also need a switched circuit to a wall switch box, run at the time of installation.
  • Control: one control must be connected before the fireplace can run, using the 15 ft of two-conductor wire in the box.
  • Altitude: the standard orifices cover 0 to 4,500 ft. Above that, the input has to be reduced; ask your gas supplier.
  • Massachusetts: installation and repair must be done by a licensed plumber or gas fitter. The flexible gas connector can't be longer than 36", and the shutoff must be a T-handle valve. A horizontal termination less than 7 ft above grade also needs a hard-wired carbon monoxide detector with battery backup on the floor where the fireplace is, and a GAS VENT DIRECTLY BELOW sign outside.
  • Manufactured homes: ground the fireplace to the chassis and don't cut or weaken the cross members. It must run on the gas shown on its rating plate unless a certified conversion kit is used.
  • Installation: must be installed by a qualified installer following the installation manual and local codes. Superior calls for an inspection by a qualified service person before first use and once a year.

Bring the Superior DRT4045 Home with Dreamwood Living

The DRT4045 suits a larger room that calls for a deep firebox and a big, classic fire. Reach out to our team for help choosing a facade, control and vent run.

FAQs

Do I need a remote or wall switch with the DRT4045?
Yes. One control must be used: an on/off wall switch, a thermostat or a remote. None comes in the box, so pick one from the list above. A 15 ft run of two-conductor wire ships with the fireplace for a wall control.

Can it vent out the back?
No. The DRT4045 is a top vent fireplace. The vent can turn horizontal after it leaves the top and run out through a wall, or go straight up through the roof.

Can I put a TV above it?
Yes, if the shelf or TV mount is at least 52" above the base of the fireplace with a rigid elbow (54" with Secure Flex) and the TV stays within its maker's temperature rating. Don't insulate the space between the fireplace and the shelf. Our guide to fireplace heat management explains other ways to keep the wall above cooler.

Will it work during a power outage?
Yes. Four AA batteries run the ignition and burner when the power is out. An optional blower won't run until power returns.

Can I change it from natural gas to propane, or the other way?
Yes, with Superior's conversion kit: GCKSIT4045ENP for natural gas to propane or GCKSIT4045EPN for propane to natural gas. In a manufactured home, the fireplace may only run on the gas shown on its rating plate unless a certified kit is used.

What's the difference between the DRT4045 and the DRT4245?
Both are 45" Superior full-size traditional direct vent fireplaces with the same framing, and both need a facade. The DRT4245 adds a factory-installed blower, interior lighting, a remote and ceramic glass, runs at 42,000 Btu/hr high on natural gas against 31,000 for the DRT4045, and needs a liner. It also needs 1 ft of vertical vent before the first elbow, so a shelf above it has to sit higher.

Can it go in a bedroom?
Yes. The DRT4045 is listed for bedrooms and for aftermarket, permanently located manufactured homes in the USA, where local codes allow.

Documents & Downloads

Warranty

Superior's 20 Year Limited Warranty covers the DRT4045 against defects in materials and workmanship:

  • Fireplace body, firebox and barrier: 20 years
  • Burner, gas components and gaskets: 1 year
  • Tempered glass: 1 year, replacement
  • Optional blowers and remote controls: 1 year
  • Parts not listed: 90 days
  • Labor: paid at IHP rates for the covered part's warranty period, up to five years

Vent components, trim and paint are not covered. The warranty is for the original owner of a fireplace installed in the US. Full terms are in the warranty certificate.
