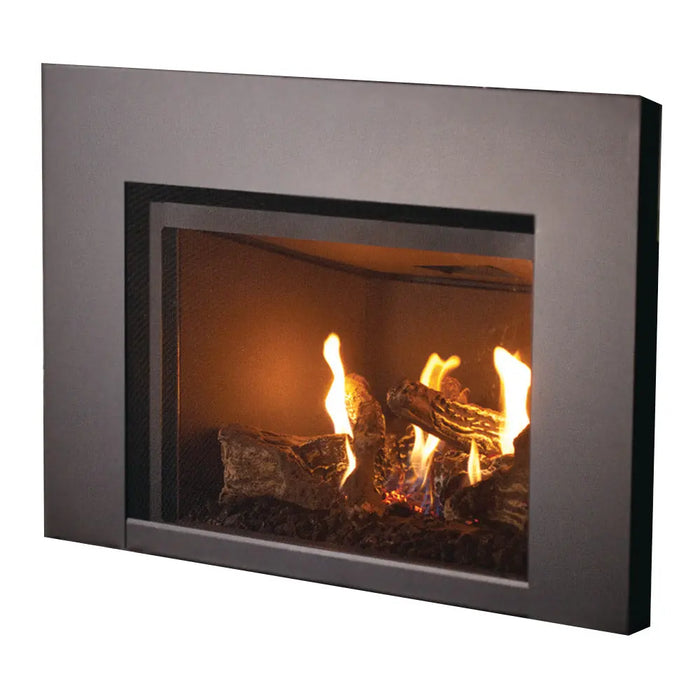

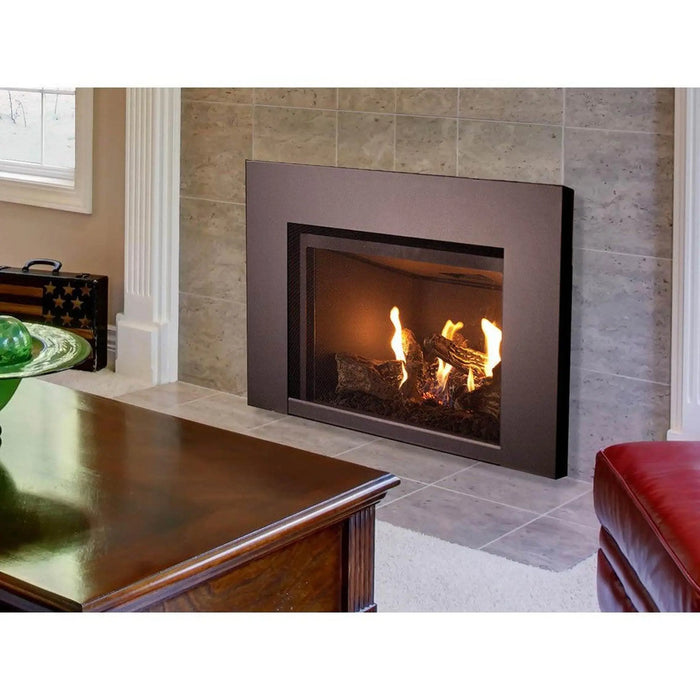

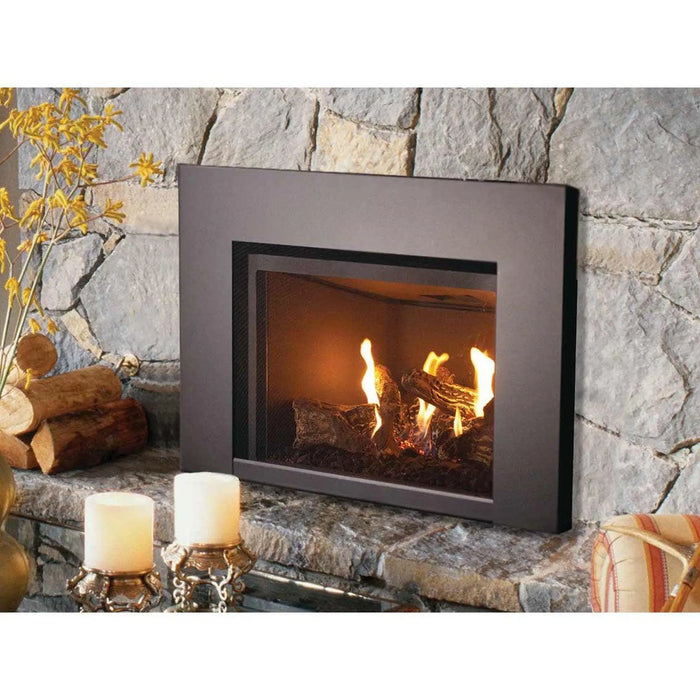

Superior DRI2027 27" Traditional Direct Vent Gas Fireplace Insert
The Superior DRI2027 27" Traditional Direct Vent Gas Fireplace Insert converts an existing wood-burning fireplace into a sealed, efficient gas appliance. It slides into the firebox and vents through a 3" colinear flex liner up the existing chimney, so you keep the fireplace and the mantel you already have while gaining 78% AFUE heating that an open fire cannot approach.
A 25,000 BTU pan burner and a standard 140-CFM variable-speed blower push warmth into rooms from 450 to 1,625 sq ft. The ceramic fiber log set and glowing ember bed give the traditional split-log look, behind a ceramic glass viewing area chosen for heat transfer. Electronic ignition with battery back-up keeps it running during a power outage.
Features
-
Flexible installation — approved for both zero-clearance and masonry fireplaces.
-
25,000 BTU pan burner with a 14,000–25,000 BTU range on natural gas.
-
78% AFUE on natural gas, 75% on propane.
-
IPI/CPI electronic ignition with battery back-up for power outages.
-
Factory-installed 140-CFM variable-speed blower for adjustable heat circulation.
-
Ceramic fiber log set with glowing embers for a traditional appearance.
-
Ceramic glass viewing area optimized for heat transfer and clear viewing.
-
Easy-access controls for flame height and blower speed.
-
Optional remote — hand-held remote or wireless wall switch.
-
Black painted interior panels for flame contrast and depth.
- 20-year limited warranty.
What to Order With It
Venting components are ordered separately — see Venting under Specifications.
Required (choose one) — Full Front Facades:
Optional — Surround Panels:
Optional — Remote Control Kits:
Optional:
Specifications
| Model Number |
DRI2027TEN Gas Insert |
| Order Number |
F3407 |
| Product Type |
Direct Vent Gas Insert |
| Fuel Type |
Natural Gas |
| Ignition |
Electronic |
| Minimum Fireplace Opening — Front Width |
27" |
| Minimum Fireplace Opening — Height |
18" |
| Minimum Fireplace Opening — Depth |
15" |
| Minimum Fireplace Opening — Rear Width |
17" |
| BTU |
14,000 - 25,000 (NG)
16,200 - 22,500 (LP) |
| Heating Capacity* |
450-1,625 sq.ft. |
| Design Style |
Traditional |
| View Style |
Front-View |
| Controls |
Optional Remote |
| Weight |
87.5 lb. |
| Blower |
140-CFM Variable-Speed Blower (standard) |
| Venting |
Direct-vent insert — two 3" flexible liners (intake + exhaust; exhaust liner UL 1777) up the existing chimney; co-linear kit sold separately |
| Agency Listing |
Built to ANSI Z21.88 standard. |
| AFUE |
78% (NG)
75% (LP) |
| Warranty |
20 Year Limited (certificate 900223-00 Rev C) |
Documents and Downloads
Superior does not publish a separate architect’s guide or a public service manual for this model; the specification sheet is the architect-facing document. Call us if you need service information and we will get it from Superior.
