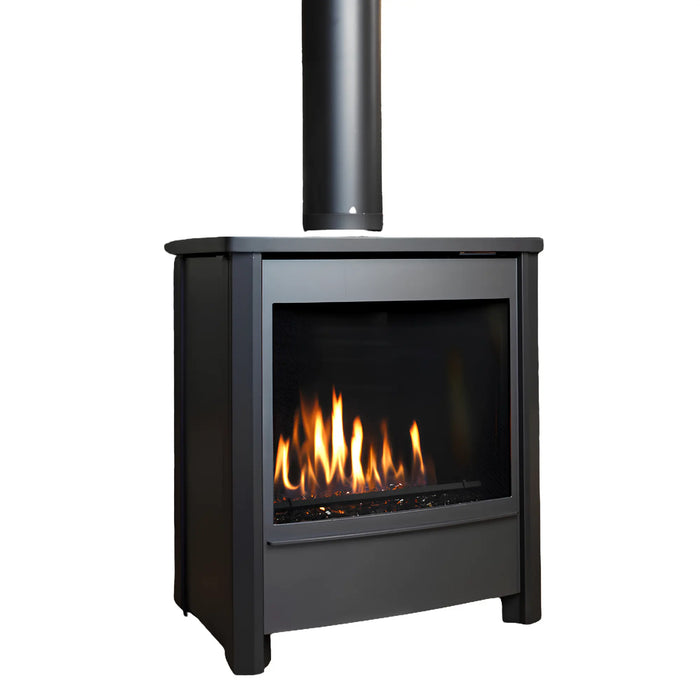

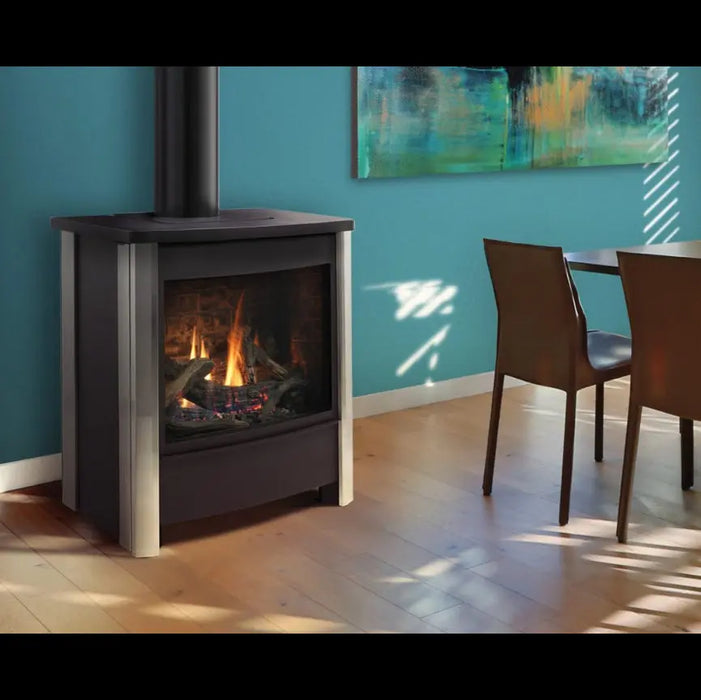

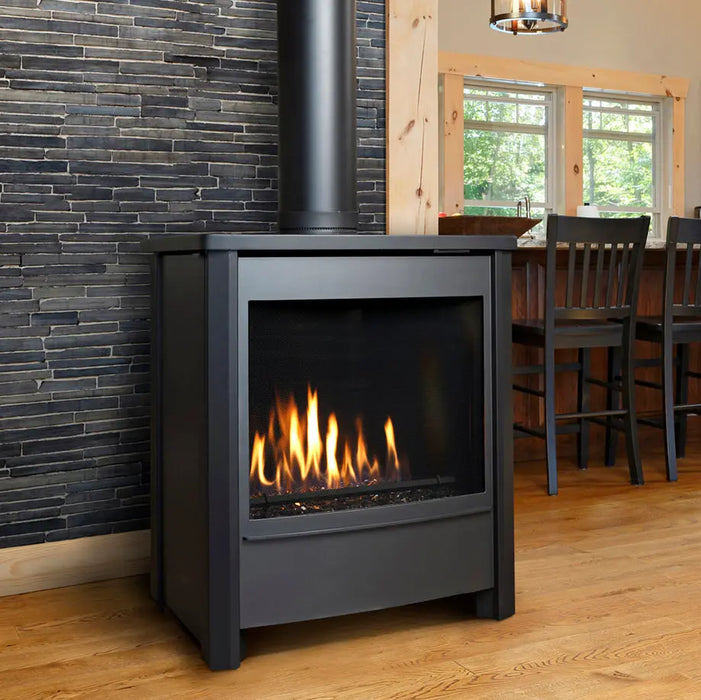

Kingsman 26" FDV451 Freestanding Direct Vent Gas Stove
The Kingsman 26" FDV451 Freestanding Direct Vent Gas Stove Model provides sealed combustion where it draws outside air for combustion. This model can be vented either horizontally or vertically.
The Kingsman FDV451 direct vent gas stove is a safe and efficient appliance to heat your home. Conveniently fueled by either natural gas or propane and with dozens of possible style options and customizations available, this unit is certain to delight visually and conceptually. This unit can be vented either horizontally or vertically for ease of placement in any room of your home. It's approved for mobile homes and for installation in bedrooms.
Kingsman Free Standing Direct Vent Gas Stove also available in FDV200S and FDV350 models.
STANDARD FEATURES
- Dual burner with glowing embers and a realistic flame pattern
- Heat-radiating ceramic glass
- SIT valve with high/low adjustment; millivolt models run without electricity
- 4"/7" direct vent flue, vented horizontally or vertically
- Approved for mobile homes and for bedroom or bed-sitting room installation
*Note: Components may have to be ordered separately to create a complete unit.
*Venting Requirements: This unit requires a venting pipe with an inner diameter of 4 Inches. Please see the Venting Components section for available venting pipe and other venting components that must be used with this unit.
PRODUCT SPECIFICATIONS
| Model |
FDV451LP/LPE/LPE2
|
FDV451N/NE/NE2
|
| Fuel |
Propane |
Natural |
| Flue |
Top
|
Top
|
| Gas Control |
Millivolt / IPI |
Millivolt / IPI |
| Input Max. |
31,000 BTU
|
34,500 BTU
|
| Input Min. |
24,500 BTU
|
23,750 BTU
|
| FE (p.4.1-02)% |
72.14% / 74.06%
|
65.89% / 67.72%
|
Flue Sizes
|
4/7"
|
4/7"
|
Glass Size
|
21 3/8" W x 19 7/16" H
|
21 3/8" W x 19 7/16" H
|
| Glass Type |
Ceramic |
Ceramic |
Size (WxHxD)
|
27 1/8"W x 33 1/2"H x 20 5/16"D
|
27 1/8"W x 33 1/2"H x 20 5/16"D
|
Viewing Area
|
20" W x 16 15/16" H
|
20" W x 16 15/16" H
|
| Venting |
4/7" Flex or 4 x 6 5/8 Hard Pipe*
|
4/7" Flex or 4 x 6 5/8 Hard Pipe*
|
Electronic Ignition
|
Yes |
Yes |
| Certification |
Heater |
Heater |
Bedroom Approved
|
Yes |
Yes |
DIMENSIONS
OPTIONAL ACCESSORIES
Fan Kit
Heat activated with variable speed control
Log Set
Oak
Brick Refractory Liner
Traditional or Herringbone
Reflective Porcelain Liner
Media Types
Bronze Glass or Cannonballs
Thermostat
Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control
On/Off, Thermostat On/Off, Thermostat On/Off modulating, Thermostat On/Off modulating and fan control
B-Vent Adapter
Convert Stove to 4” B-Vent
What to Order
The FDV451 is sold as the stove body. Kingsman requires the front door and side doors on every unit, plus a log set or glass media; venting is ordered separately.
Required: doors
Required: log set or media (glass: 15 lb maximum)
Options
Thermostats (optional)
Remote controls (optional; Proflame 2 “E2” models include a remote)
Fuel conversion kit (only if converting between natural gas and propane)
Venting: 4"/7" direct vent (not included)
