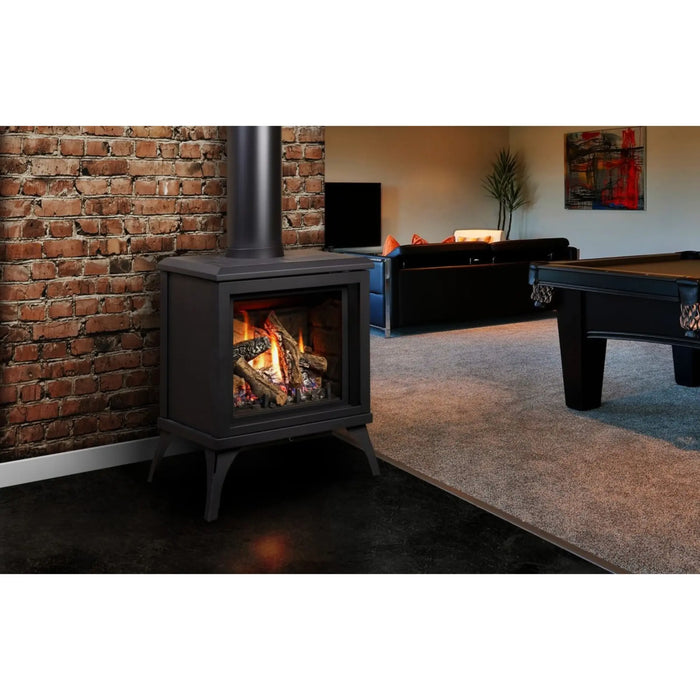

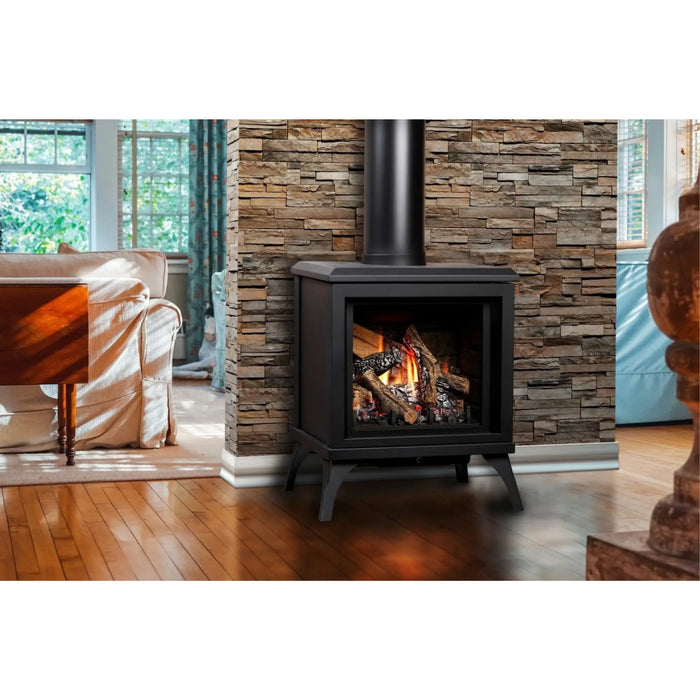

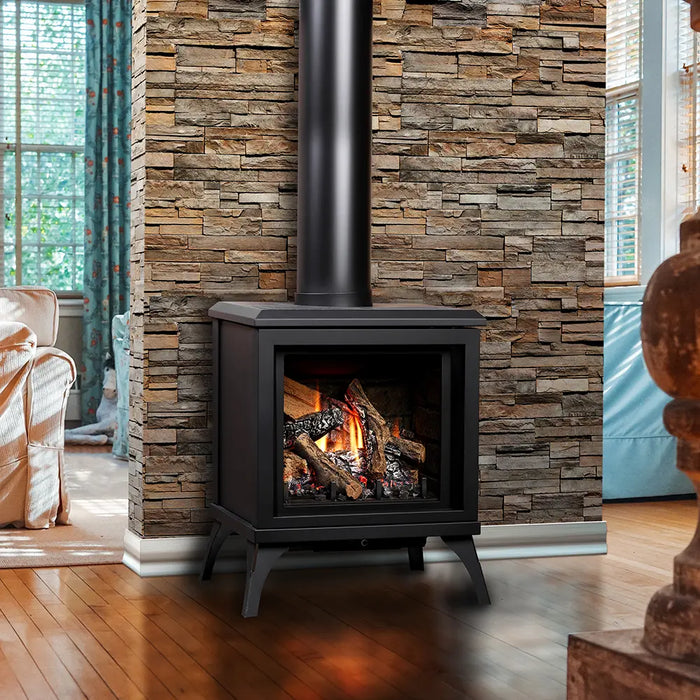

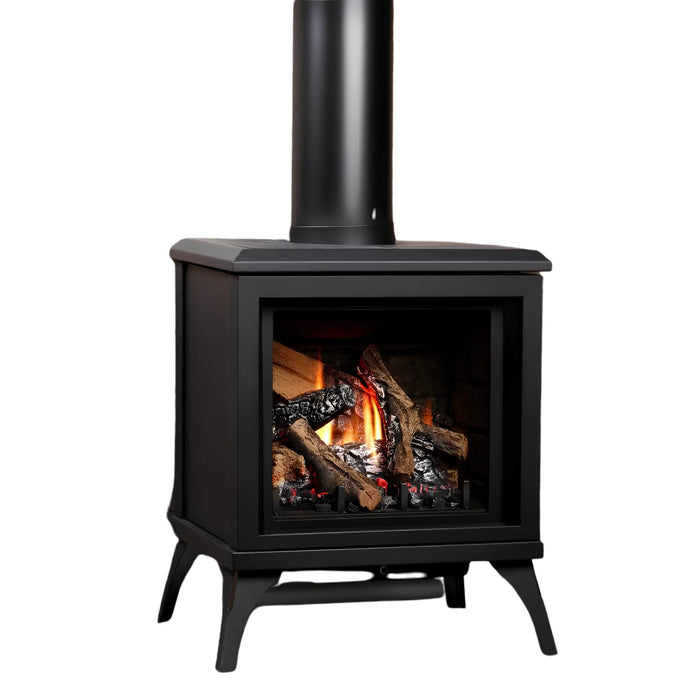

Kingsman FDV200S Free Standing Direct Vent Gas Stove
Kingsman FDV200S Free Standing Direct Vent Gas Stove, the FDV200S Direct Vent model provides sealed combustion which means that it draws outside air for combustion. This model can be vented either vertically or horizontally providing you with the ability to control where the unit is placed for the most efficient heat possible.
The FDV200S is available with millivolt or IPI ignition. Its dual burner system makes it a great addition to any living space, and the optional blower helps keep you warm all winter long.
STANDARD FEATURES
-
Millivolt or IPI Valve System: Allows the direct vent gas stove to operate during a power failure with convenient high-low heat and flame adjustment.
-
Proflame II Remote Control: PF2 models include a remote control with flame, fan, thermostat, smart thermostat, and battery backup functions.
-
Dual Burner System: Provides a realistic flame pattern for an attractive and inviting fire.
-
Heat-Radiating Ceramic Glass: Ceramic glass helps radiate heat while providing a clear view of the flames.
-
Mobile Home Approved: Designed and approved for installation in mobile homes.
-
Bedroom Approved: Approved for installation in a bedroom or bed sitting room where permitted by applicable requirements.
-
Fiber Oak Log Set: The five-piece fiber split oak log set (LOGF200) gives a realistic fire with glowing embers; it is ordered separately.
-
Safety Screen Barrier: Includes a safety screen barrier for added protection during operation.
*Note: Components may have to be ordered separately to create a complete unit.
PRODUCT SPECIFICATIONS
| Model |
FDV200SLP/LPE/LPE2
|
FDV200SN/NE/NE2
|
| Fuel |
Propane |
Natural |
| Gas Control |
Millivolt / IPI |
Millivolt / IPI |
| Input Max. |
26,000 BTU |
28,500 BTU |
| Input Min. |
20,000 BTU |
19,500 BTU |
| FE (p.4.1-02)% |
67.47% / 69.89%
|
66.14% / 68.56%
|
Size (WxHxD)
|
23 13/32" x 30 9/16" x 18 19/32"
|
23 13/32" x 30 9/16" x 18 19/32"
|
| Glass Type |
Ceramic |
Ceramic |
| Certification |
Heater |
Heater |
Bedroom Approved
|
Yes |
Yes |
DIMENSIONS
Optional Accessories
Fan Kit
Heat activated blower with variable speed control
Brick Refractory Liner
3 pieces
Thermostat
Wall Mount Millivolt Thermostat or Programmable Thermostat
Remote Control (Millivolt)
Thermostat On/Off, Thermostat On/Off modulating
What to Order
The FDV200S needs its log set added; venting is ordered separately.
Required: log set
Options
Thermostats (optional)
Remote controls (optional; Proflame 2 “E2” models include a remote)
Fuel conversion kit (only if converting between natural gas and propane)
Venting: 4"/7" direct vent (not included)
