HUUM UKU Wi-Fi Sauna Controller

HUUM UKU Wi-Fi Sauna Controller

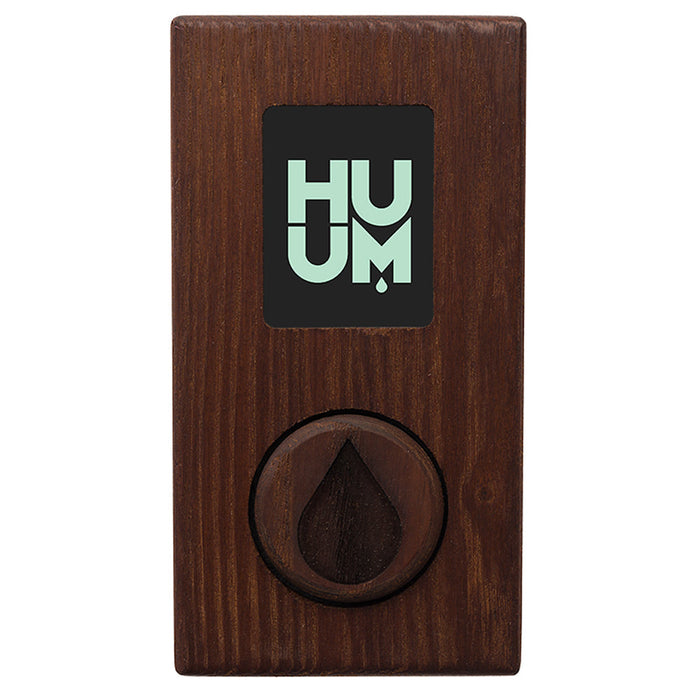

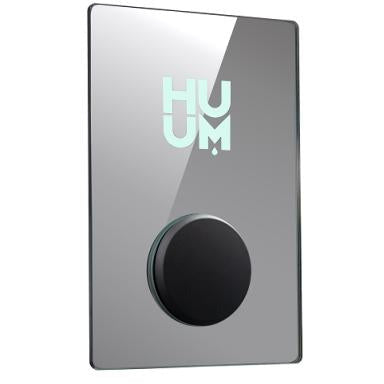

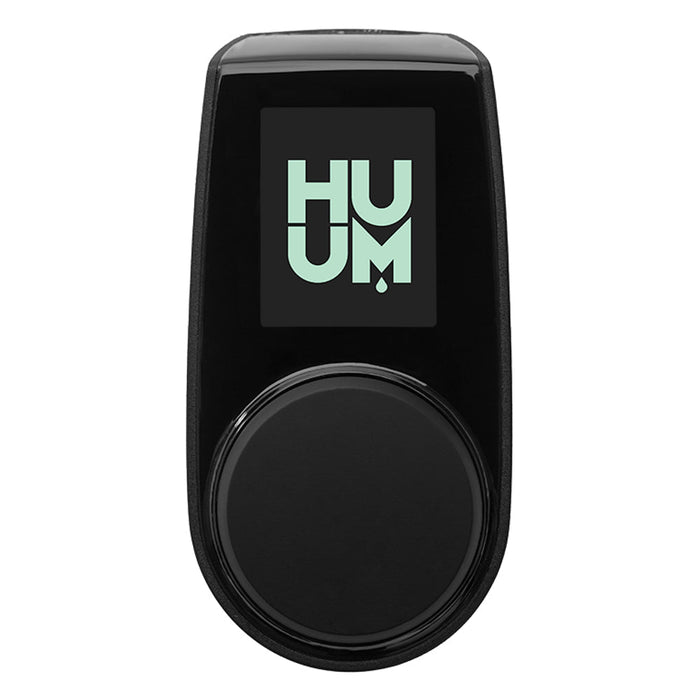

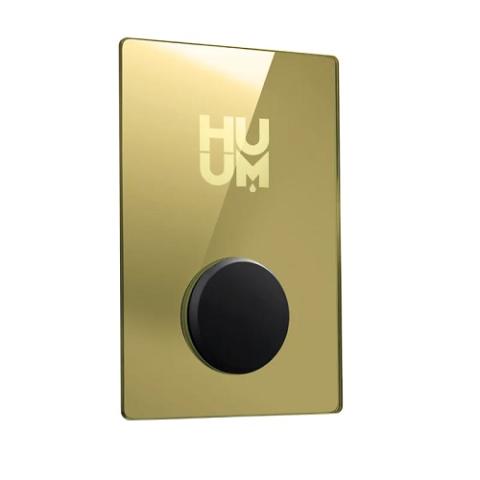

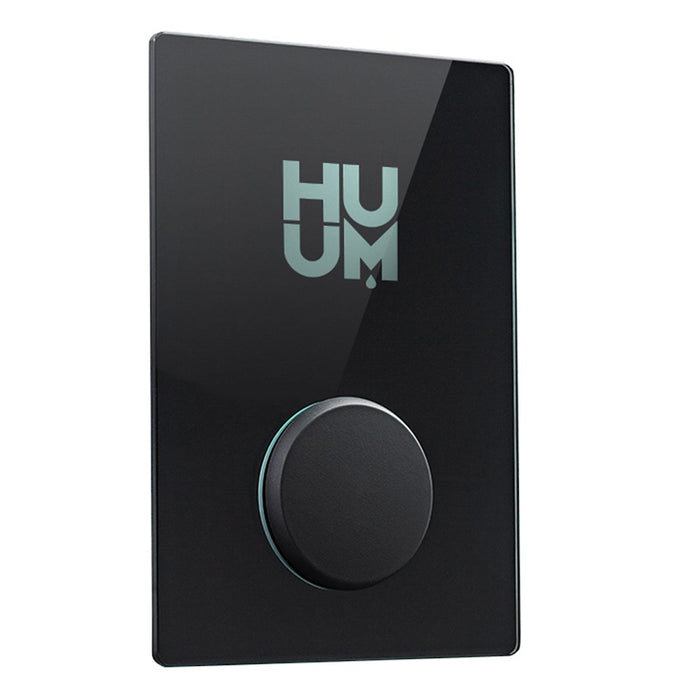

UKU Wi-Fi lets you operate all the features of the UKU control from your smartphone. Regulate lighting, ventilation, timer and temperature from the wall-mounted control, or use the HUUM app from anywhere so the sauna is preheated when you arrive. To ensure a safe sauna experience, UKU includes a door sensor, overheating protection and a child safety lock. Choose a black, thermo-ash wood, black glass, mirror or gold control display panel. Order numbers: Black (H2004012), Wood (UKU-WIFI-WOOD), Glass (H2004032), Mirror (UKU-WIFI-MIRROR), Gold (UKU-WIFI-GOLD).

Package Contents

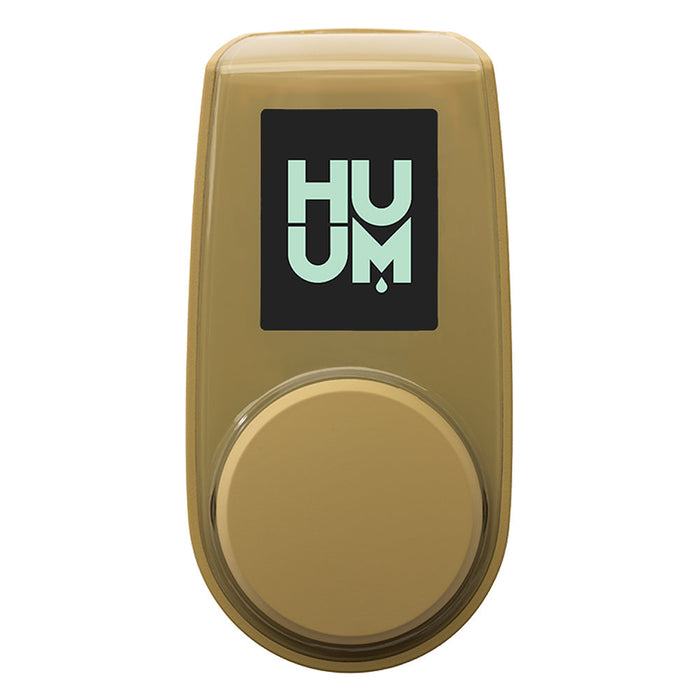

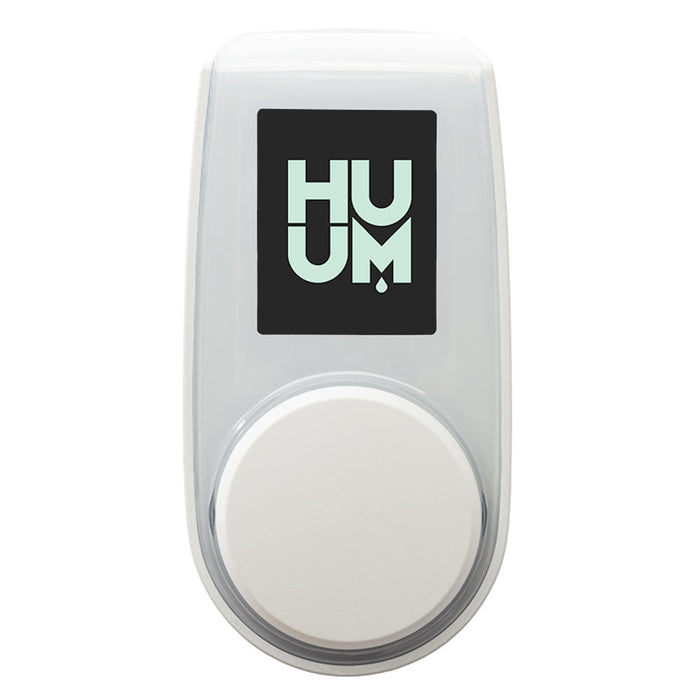

• Control display panel in the finish ordered: Black and Wood 2.16"W (55mm) x 0.86"D (22mm) x 4.13"H (105mm); Glass, Mirror and Gold 3.54"W (90mm) x 0.86"D (22mm) x 5.12"H (130mm)
• Main Wi-Fi control module: Black and Wood 3.54"W (90mm) x 2.28"D (58mm) x 5.6"H (142mm); Glass, Mirror and Gold 6.5"W (165mm) x 2.56"D (65mm) x 9.64"H (245mm)
• Temperature sensor
• Door sensor
• Control display panel cable, 9.84 ft
• Temperature sensor cable, 16.4 ft
• Door sensor cable, 16.4 ft
• Installation and operation manual

Key Features

• Model / Order #: Black / H2004012, Wood / UKU-WIFI-WOOD, Glass / H2004032, Mirror / UKU-WIFI-MIRROR, Gold / UKU-WIFI-GOLD

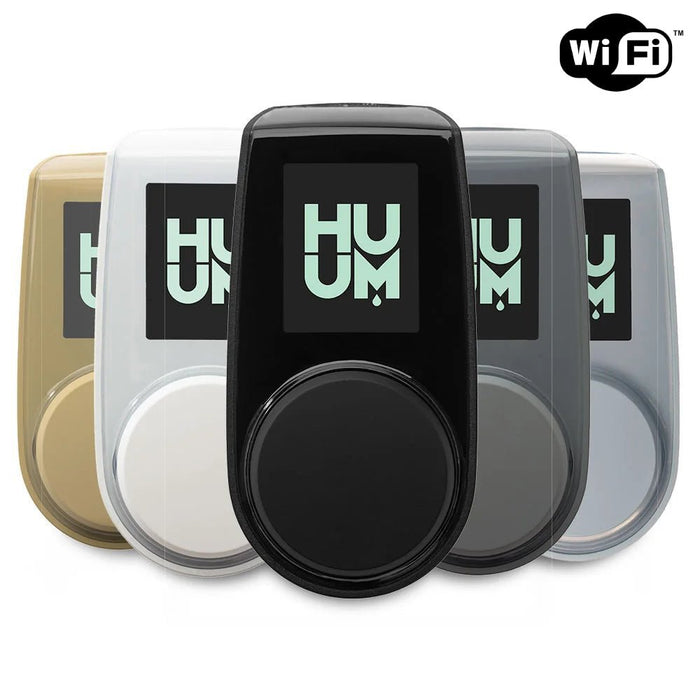

• Five Finishes: Black, thermo-ash wood, black glass, mirror or gold control display panel.
• Glass, Mirror and Gold display panels can be recessed or surface-mounted (surface mounting uses the UKU surface mounting frame, H310302)

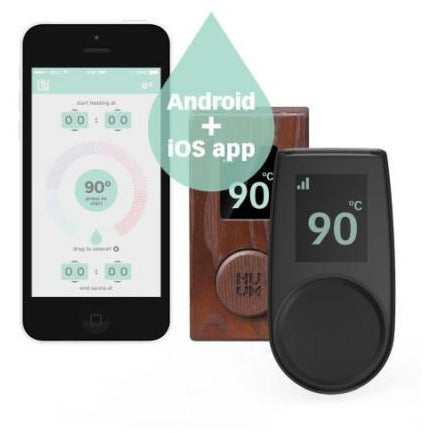

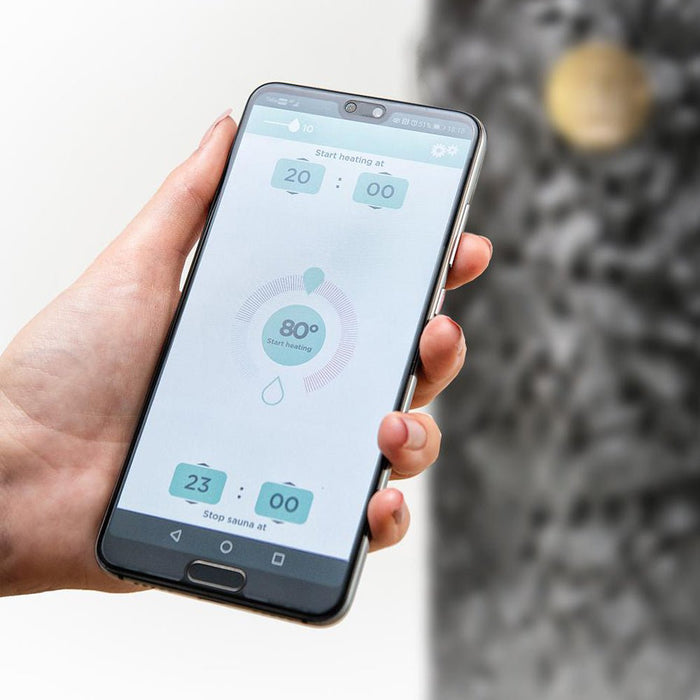

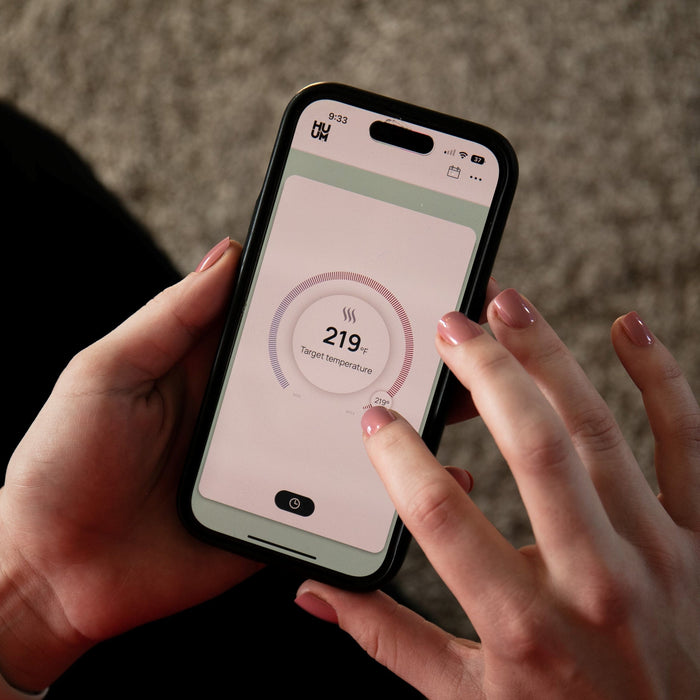

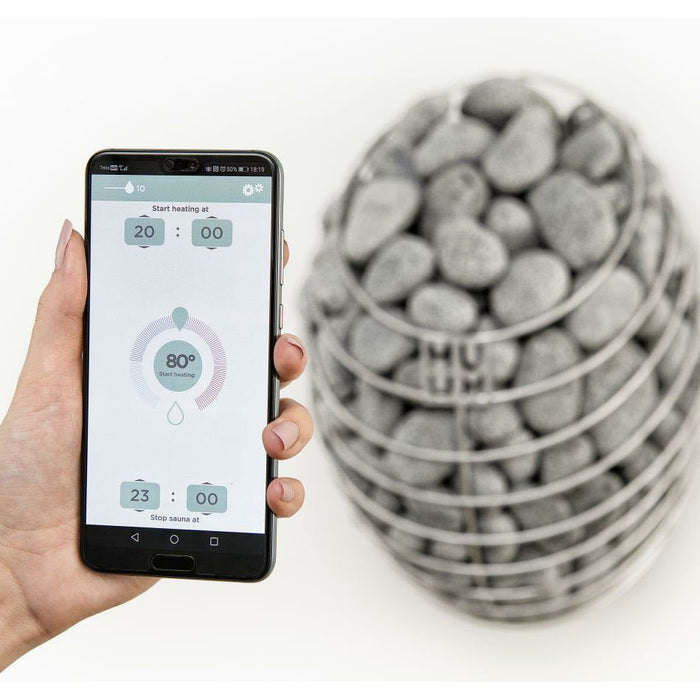

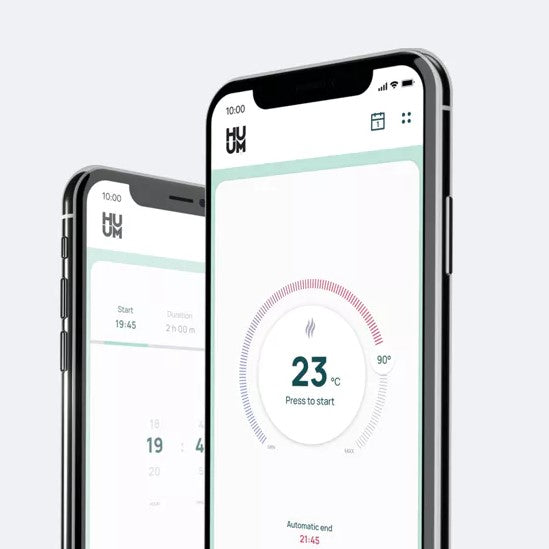

• Built-in Wi-Fi interface for HUUM mobile app
• 8 Language options: English, Estonian, German, Russian, Italian, Finnish, Polish and French
• Unlimited number of users
• Notification when set temperature is reached
• Settable on/off, time, temperature, and delay
• For heaters up to 18kW (12kW and up requires extension box)
• Settable temperature range of 122-230F
• Delayed start up to 48hrs in advance
• Inside/outside sauna room installation
• Optional smart heating setting

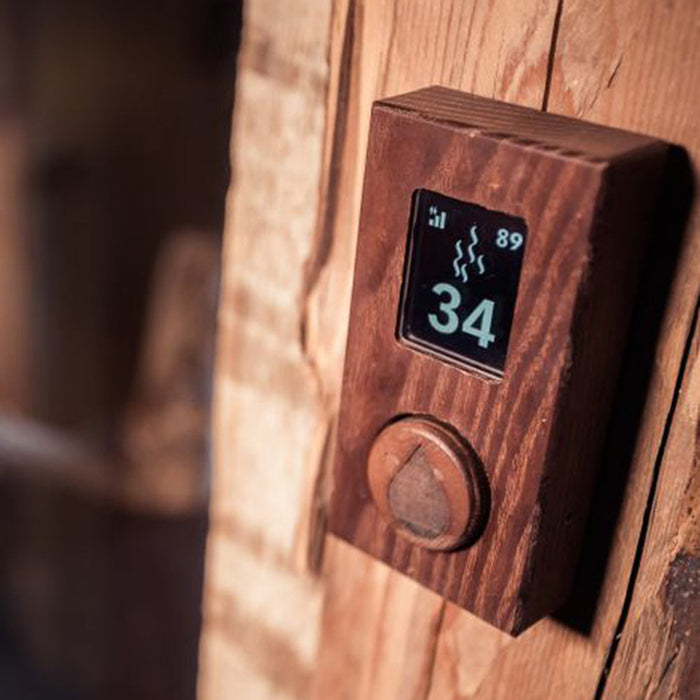

• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock

What It Works With

• HUUM DROP 4, 6, 7 and 9
• HUUM CLIFF Mini 4
• HUUM CLIFF 6, 9 and 11
• HUUM STEEL Mini 4
• HUUM STEEL 6, 9 and 11
• HUUM HIVE Mini 6, 9 and 11
• HUUM CORE 6, 9 and 11
• HUUM HIVE 12, 15 and 18 (with the UKU Extension Box, H2003012)

A HUUM electric heater needs one UKU control. The control is not used with wood-burning stoves.

Specifications

• Heater Output: For heaters up to 18 kW; heaters 12 kW and up also need the UKU Extension Box (H2003012)
• Electrical: 240V, 1-phase, 40 A
• Temperature Range: 122-230 F
• Delayed Start: Up to 48 hours in advance

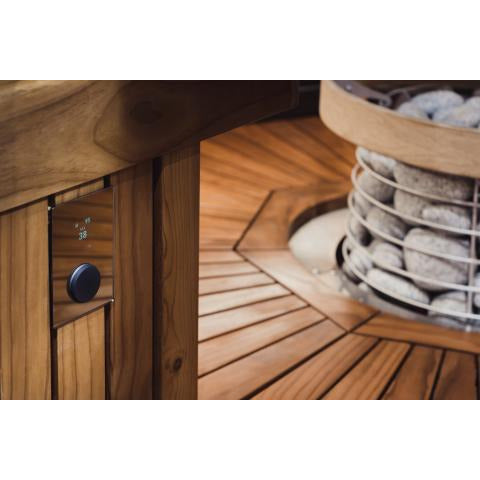

• Installation: Wall-mount display panel, inside or outside the sauna room; main control module located remotely
• Listing: CE, SGS, IPX4
• Delivery: Ships by parcel carrier.
• Warranty: 5-year limited warranty

Videos

Documents

Installation & Operation Manual (UKU sauna control)

Warranty

5-Year Limited Warranty: HUUM covers this product with a 5-year limited warranty against manufacturing defects when it is installed and used according to the manual.
