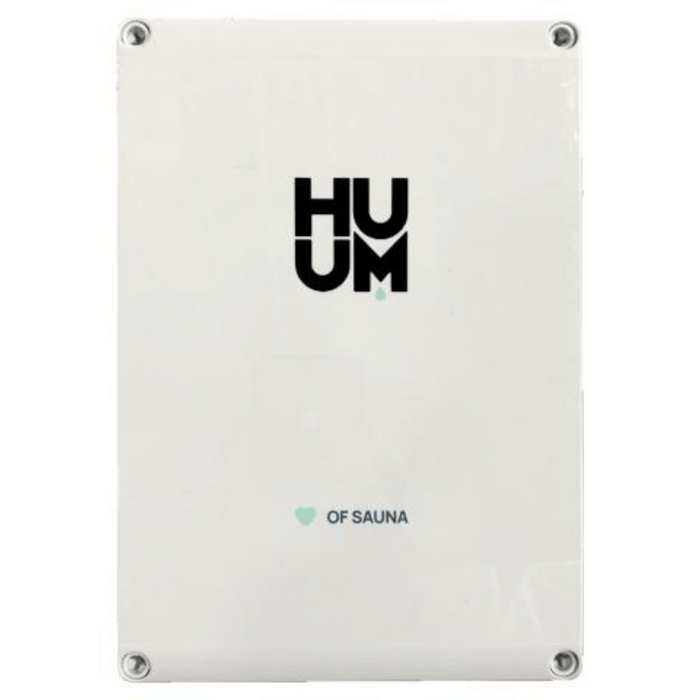

HUUM UKU Extension Box for Sauna Heaters 12kW and Up

HUUM UKU Extension Box for Sauna Heaters 12kW and Up

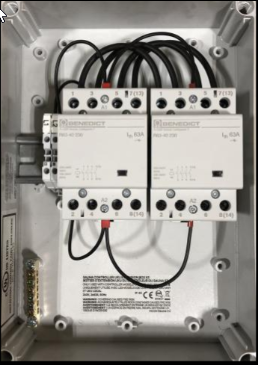

The UKU main module can control heaters up to 11 kW. For larger heaters, the UKU Extension Box is needed: it is required with a UKU control for HUUM sauna heaters 12 kW and up. Model UKU EXT BOX, order no. H2003012.

Package Contents

• Extension box
• Installation and operation manual

Key Features

• Model / Order #: UKU EXT BOX / H2003012
• For use with UKU controls
• For heaters 12kW and up

What It Works With

• HUUM HIVE 12, 15 and 18
• Used together with any HUUM UKU control

Specifications

• Order Number: H2003012
• UPC: 4745090273991
• Finish: Light Grey
• Dimensions: 7"W (177.8mm) x 7"D (177.8mm) x 6"H (152.4mm)
• Weight: 3.25 lbs (1.47 kg)
• Rating: 2 x 63 A
• Delivery: Ships by parcel carrier.
• Warranty: 5-year limited warranty

Documents

Installation Manual (UKU Extension Box)

Warranty

5-Year Limited Warranty: HUUM covers this product with a 5-year limited warranty against manufacturing defects when it is installed and used according to the manual.
