HUUM CORE Electric Sauna Heater 6.5/9/10.5kW

HUUM CORE Electric Sauna Heater 6.5/9/10.5kW

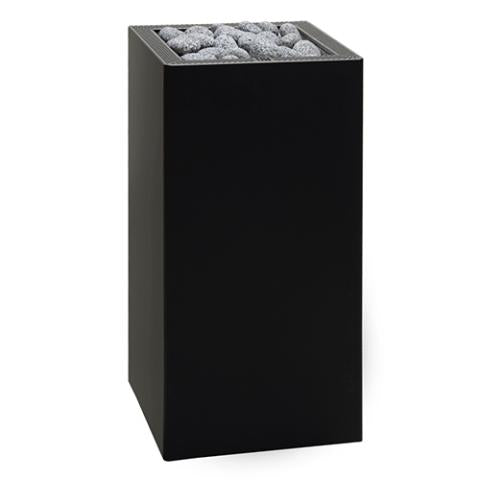

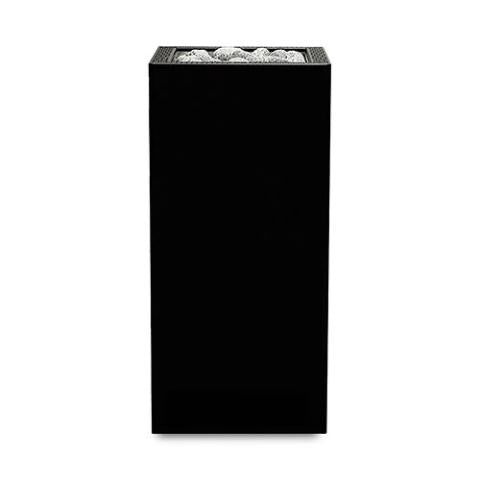

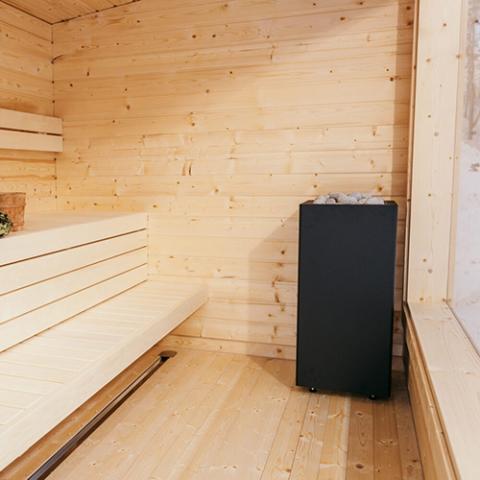

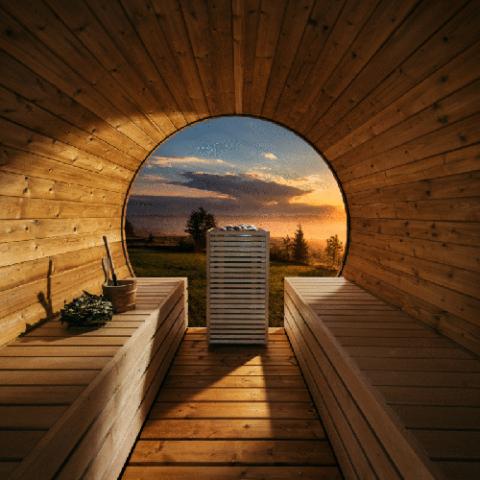

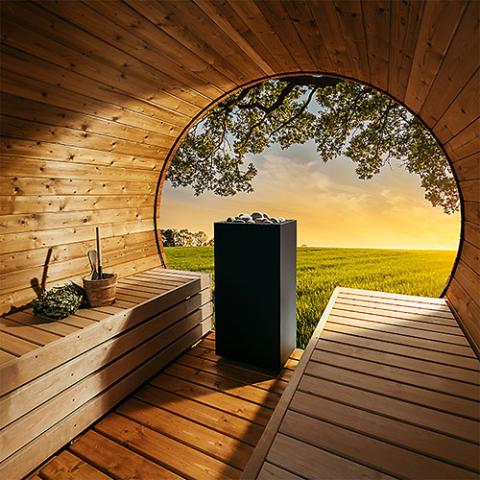

The HUUM CORE is a square, floor-standing electric sauna heater built to blend into the sauna. Choose the matte black steel CORE Black, a version with alder, aspen or thermo-aspen wood panels, or the unfinished CORE with bare metal shields that you finish yourself in tile, stone, glass or wood. All versions can be completely embedded into a sauna bench. Three sizes cover sauna rooms from 177 to 566 cu. ft.: CORE 6 (6.5 kW), CORE 9 (9 kW) and CORE 11 (10.5 kW).

The heater does not run on its own: it requires a HUUM UKU control and sauna stones, both sold separately. See What to Order With It below.

Package Contents

• HUUM CORE sauna heater
• Adjustable legs (4)
• Installation and operation manual
• Unfinished CORE ST and CORE BK: 4 unfinished metal shields, 4 cover strips and cover strip fastening screws
• Alder, aspen and thermo-aspen versions: 4 metal shields, 4 cover strips, 4 wood panels, and fastening screws for the strips and panels

Key Features

• Model / Order #: CORE Black 6 / H1013072, CORE Black 9 / H1013082, CORE Black 11 / H1013092; see the order number table below for the unfinished and wood-panel versions

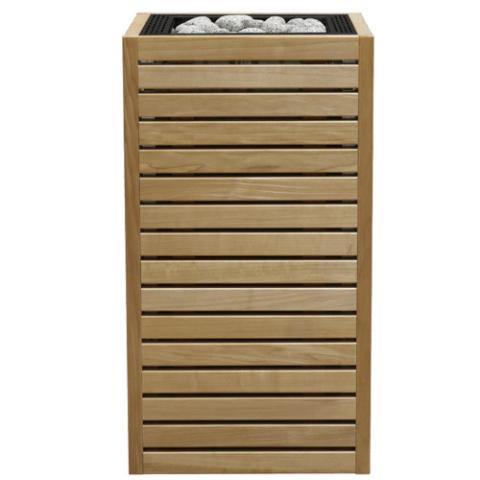

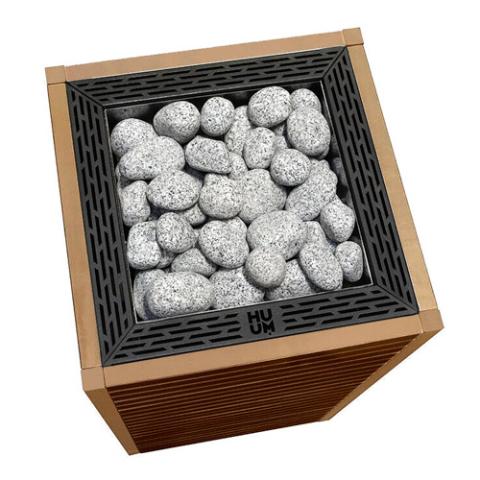

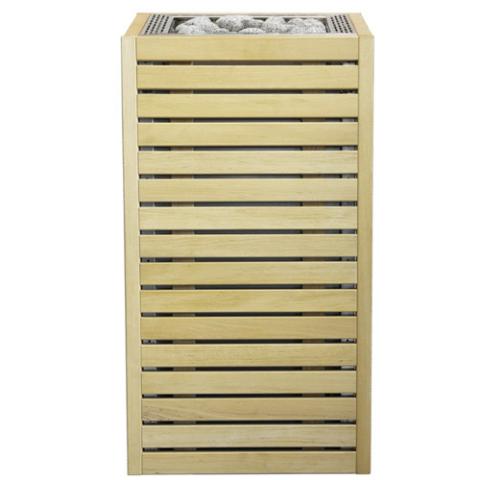

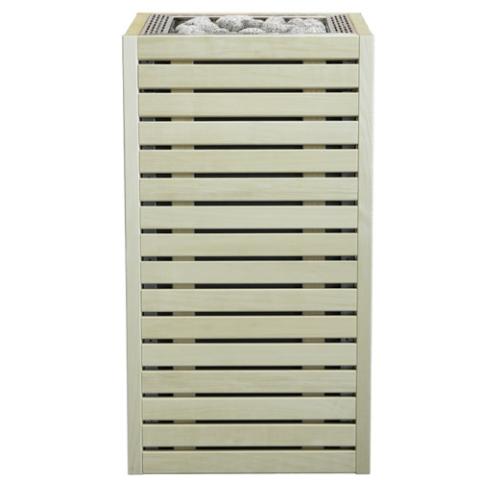

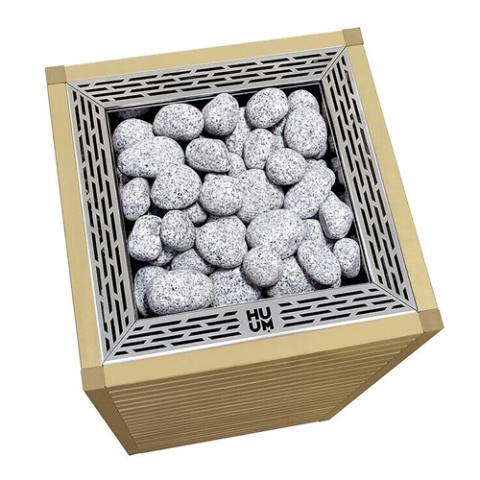

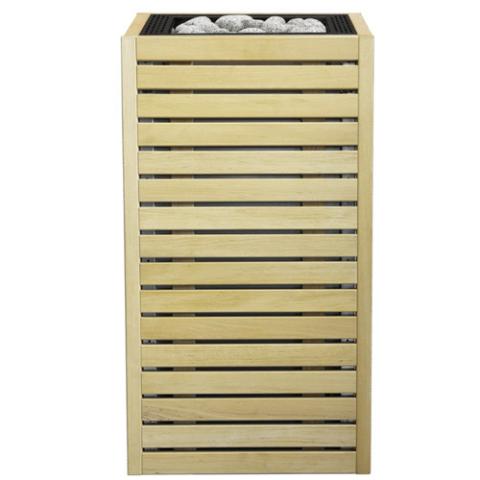

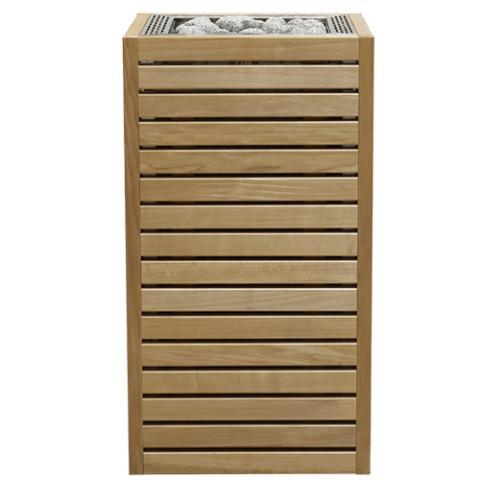

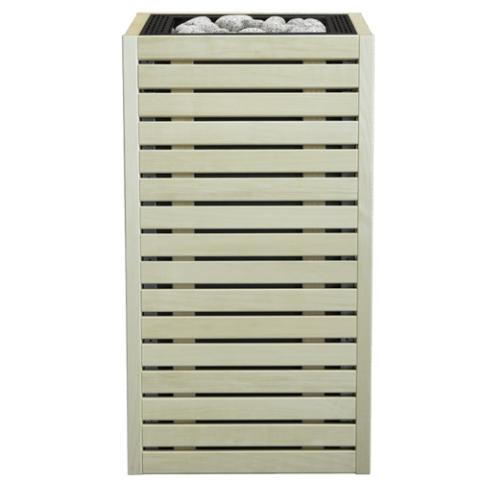

• Nine Exteriors: Matte black steel, unfinished (stainless or black top), or alder, aspen and thermo-aspen wood panels (stainless or black top).

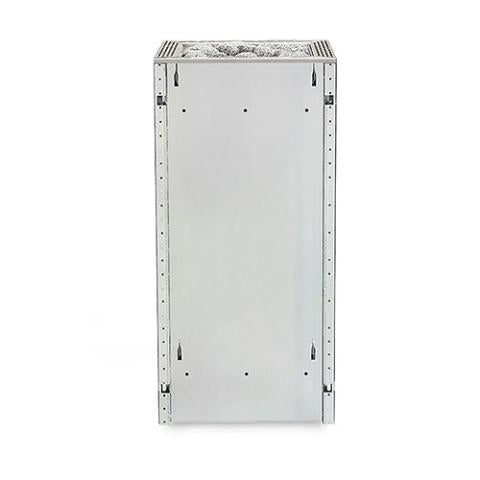

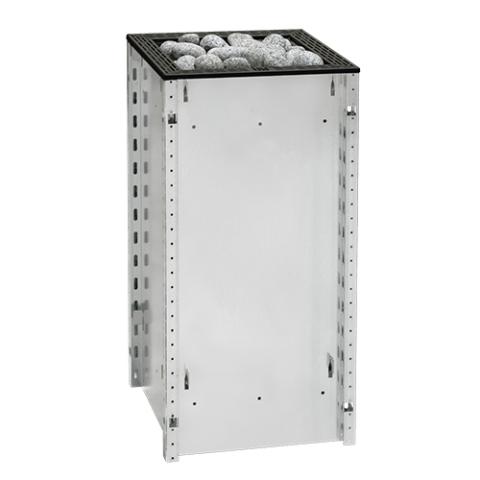

• Customizable: The unfinished version can be finished with ceramic tile, stone, glass or wood to match the sauna.

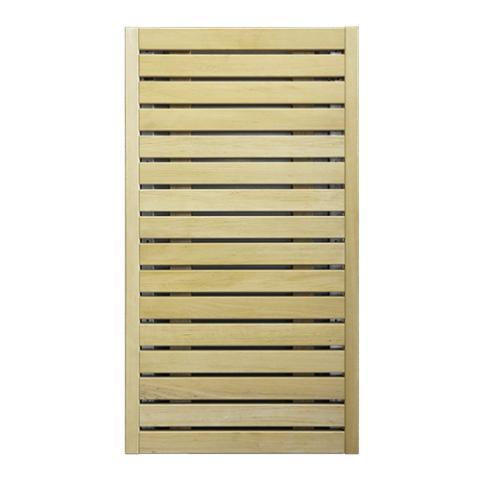

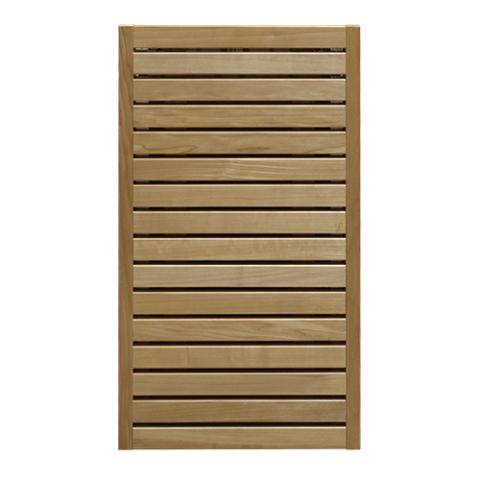

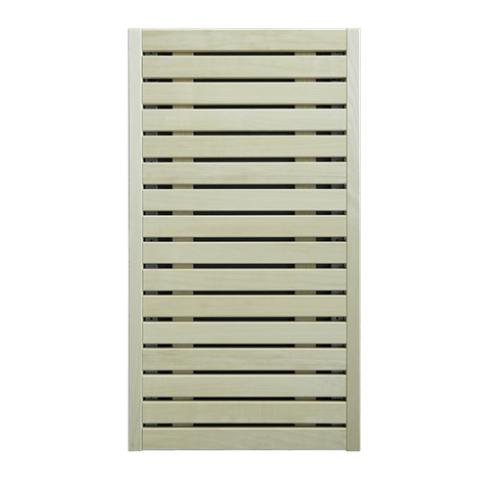

• Wood Panels: Wood panels give the heater a finished look and help prevent burn injuries.

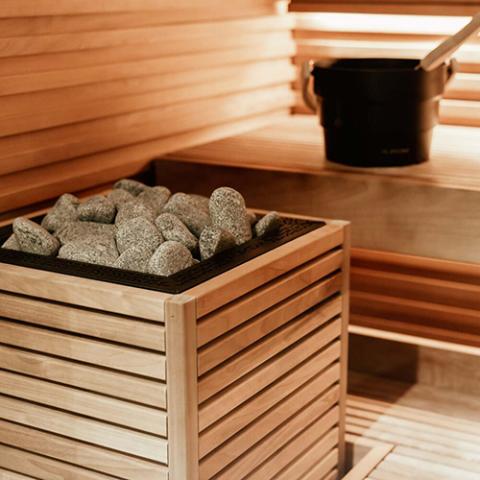

• Bench Embedding: Can be completely embedded into a sauna bench.
• Three Sizes: 6.5, 9 and 10.5 kW for sauna rooms from 177 to 566 cu. ft.
• 240V / 1-Phase: Hardwired 240V single-phase operation. Can also run on 208V single-phase at reduced output.

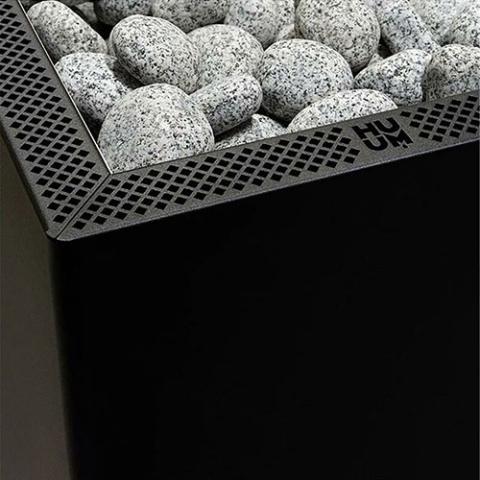

• 66 lb Stone Capacity: Requires 2 boxes of stones, sold separately.
• Direct Stone Contact: Direct contact between the stones and heating elements.
• Heating Elements: Stainless steel, industrial-quality heating elements.
• Control: Works with HUUM UKU controls, sold separately.
• Origin: Designed, engineered and made in Estonia.

What to Order With It

The heater ships without a control or stones. Both are required for operation.

Required (choose one UKU control):

• UKU Local Control, Black (H2004022)
• UKU Local Control, Wood (UKU-LOCAL-WOOD)
• UKU Wi-Fi Control, Black (H2004012)
• UKU Wi-Fi Control, Wood (UKU-WIFI-WOOD)
• UKU Glass Wi-Fi Control (H2004032)
• UKU Mirror Wi-Fi Control (UKU-WIFI-MIRROR)
• UKU Gold Wi-Fi Control (UKU-WIFI-GOLD)

Required (sauna stones, order 2 boxes):

• Small (5-10 cm) Sauna Heater Stones, 33 lb box (H3099021)

Specifications

Exterior options and order numbers:

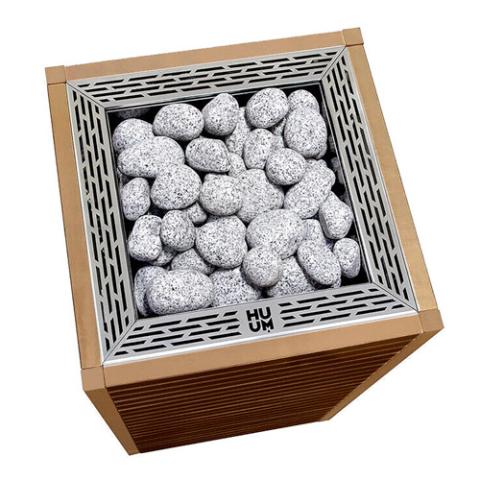

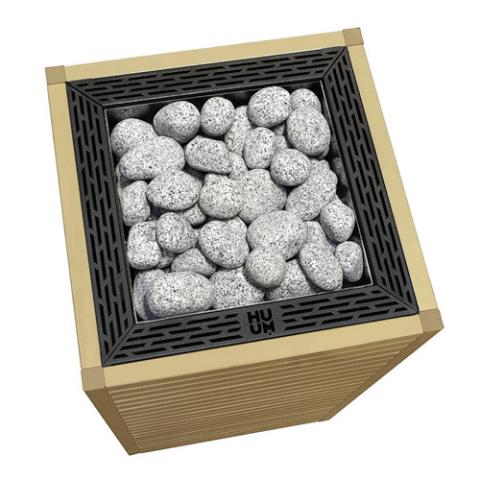

ST and BK refer to the color of the top frame around the stones: stainless steel (ST) or black (BK). Alder, aspen and thermo-aspen heaters share one order number per wood; tell us the size and top color when ordering by phone.

• Heater Type: Electric sauna heater, floor-standing inside the sauna room
• Electrical Service: 240V, 1-phase, hardwired (208V, 1-phase at the reduced outputs shown above). Must be connected by a licensed electrician.
• Control: HUUM UKU control required, sold separately
• Stone Capacity: 66 lbs.
• Stone Size: 2-4 in (5-10 cm)
• Construction: Black steel casing (CORE Black); stainless steel body with unfinished metal shields (CORE ST and CORE BK); stainless steel body with alder, aspen or thermo-aspen wood panels
• High Temperature Limit: At the sensor
• Listing: CE
• Location: Indoor sauna room use
• Delivery: Ships by LTL freight.
• Warranty: 3-year limited residential, 1-year limited commercial, excluding heating elements

Dimensions & Weight

• CORE Black (W x D x H): 15.2" x 15.2" x 32.7" (385 x 385 x 830 mm)
• CORE ST, CORE BK and wood-panel versions (W x D x H): 12.2" x 12.2" x 32.7" (310 x 310 x 830 mm), measured without the exterior finish
• Heater Weight (empty): 41.9 lbs., all sizes

Installation Requirements

Minimum safety clearances (letters refer to the diagrams below):

• Fastening: The CORE 6, 9 and 11 are attached to the floor with the included brackets, one on a heater leg, fixed with a 6 x 40 mm screw.
• Unfinished version: The CORE ST and CORE BK need an exterior finish before use. Connect the wiring from the bottom and test the heater before the finish goes on; a finished heater can be very heavy to turn.
• Power connection: The power cable enters through the bottom cover of the heater. Crimping the power cable ends is mandatory.

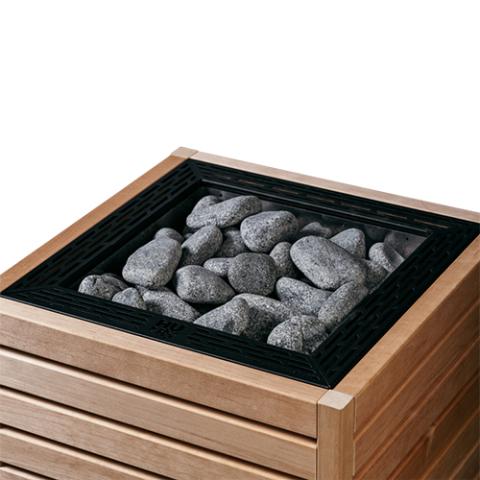

• Stones: Use 2-4 in (5-10 cm) stones. Stack them sparsely between the heating elements and tightly on the outside so the elements are not visible. A stone container filled too sparsely is a fire hazard.
• Sauna room height: Minimum 80 in (2030 mm).
• Surface temperature: Installing the heater closer to flammable construction than the clearances above may cause a fire hazard.
• Wiring: Use heat-resistant power cable that meets UL 62; cable with PVC insulation is not allowed. A circuit breaker that disconnects all poles must be installed on the power circuit ahead of the sauna control. HUUM recommends connecting the heater without a GFCI breaker. Breaker and wire sizes above are from the installation manual; your electrician sizes the circuit to local code.
• Junction box: Must be waterproof and located no more than 19.7 in (50 cm) from the floor.
• Uninsulated walls: For any uninsulated brick, tile or glass wall, add 3.3 cu. ft. to the room volume for each 1 sq. ft. of that wall before choosing a size.
• One heater per room: Do not install more than one heater in the sauna room.
• Installation: Electrical work must be carried out by a licensed electrician, following the installation manual and local codes.

Documents

Installation & Operation Manual (CORE 6 / 9 / 11)

Warranty

3-Year Limited Residential Warranty, 1-Year Limited Commercial Warranty: HUUM covers the CORE with a 3-year limited warranty in residential use and a 1-year limited warranty in commercial use. Heating elements are not covered; they are treated as consumable parts. The warranty applies only when the heater is installed and used according to the manual, and it is void if the heater and sauna room are sized incorrectly.
