HUUM UKU Local Sauna Controller

HUUM UKU Local Sauna Controller

The stylish UKU Local sauna controller makes sauna bathing convenient and easy. Connect it to your lighting, ventilation, and sauna heater to regulate everything through a single control unit. To ensure a safe sauna experience, UKU includes a door sensor, overheating protection, and child safety lock. Order numbers: Black (H2004022), Wood (UKU-LOCAL-WOOD).

Package Contents

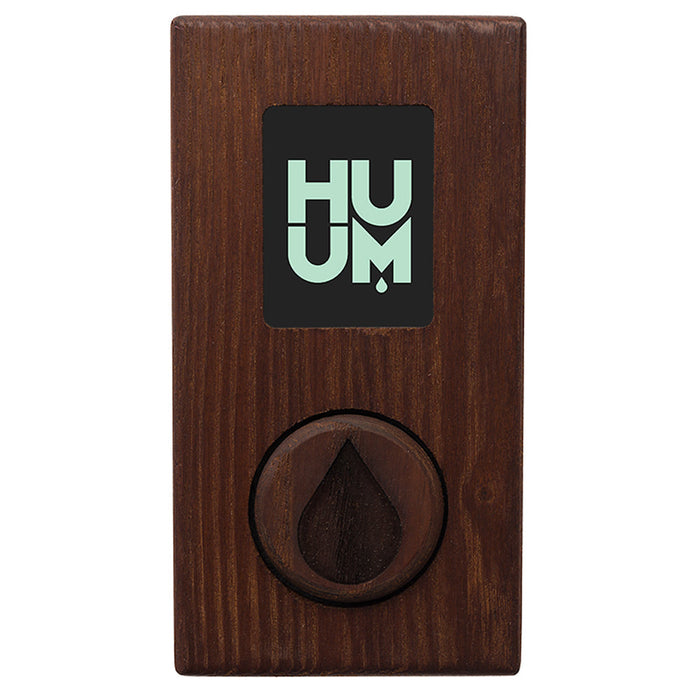

• Control display panel, black or thermo-ash wood, 2.16"W (55mm) x 0.86"D (22mm) x 4.13"H (105mm)

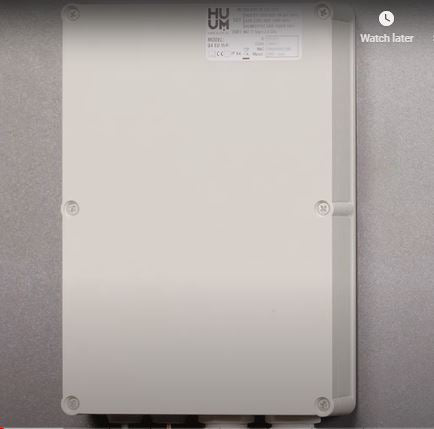

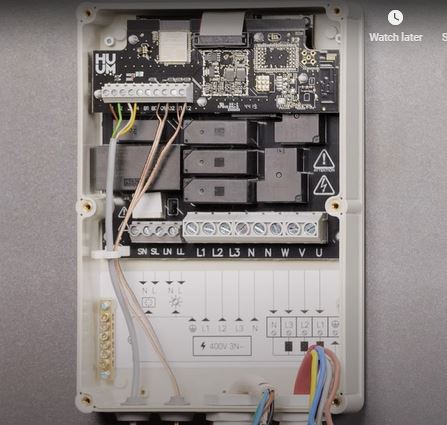

• Main Local control module, 3.54"W (90mm) x 2.28"D (58mm) x 5.6"H (142mm)
• Temperature sensor
• Door sensor
• Control display panel cable, 9.84 ft
• Temperature sensor cable, 16.4 ft
• Door sensor cable, 16.4 ft
• Installation and operation manual

Key Features

• Model / Order #: Black / H2004022, Wood / UKU-LOCAL-WOOD

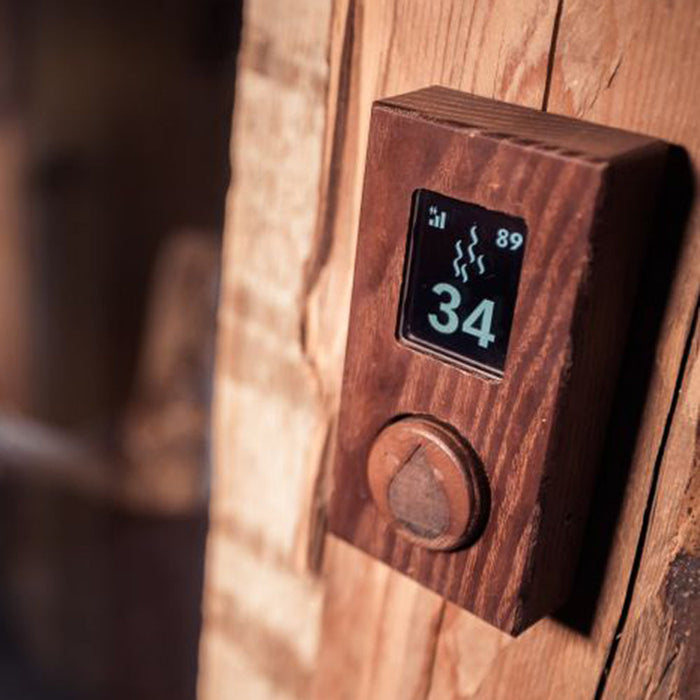

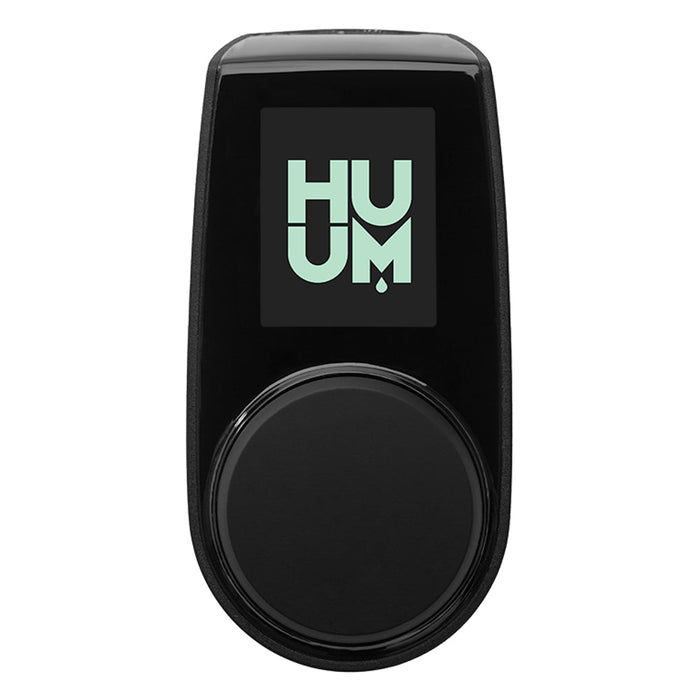

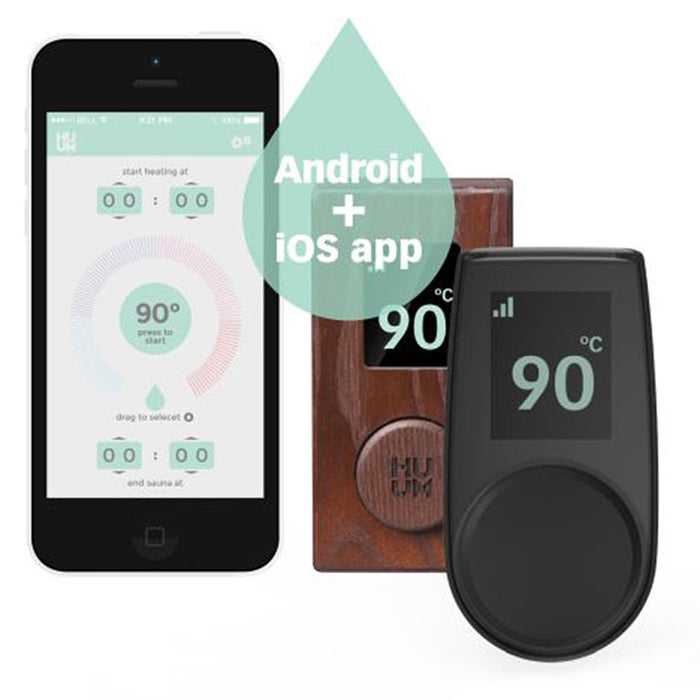

• Two Finishes: Sleek black or hand-crafted thermo-ash wood control display panel.
• Settable on/off, time, temperature, and delay
• For heaters up to 18kW (12kW and up requires extension box)
• Settable temperature range of 122-230F
• Delayed start up to 48hrs in advance
• Inside/outside sauna room installation
• Optional smart heating setting
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock

What It Works With

• HUUM DROP 4, 6, 7 and 9
• HUUM CLIFF Mini 4
• HUUM CLIFF 6, 9 and 11
• HUUM STEEL Mini 4
• HUUM STEEL 6, 9 and 11
• HUUM HIVE Mini 6, 9 and 11
• HUUM CORE 6, 9 and 11
• HUUM HIVE 12, 15 and 18 (with the UKU Extension Box, H2003012)

A HUUM electric heater needs one UKU control. The control is not used with wood-burning stoves.

Specifications

• Heater Output: For heaters up to 18 kW; heaters 12 kW and up also need the UKU Extension Box (H2003012)
• Electrical: 240V, 1-phase, 40 A
• Temperature Range: 122-230 F
• Delayed Start: Up to 48 hours in advance
• Installation: Wall-mount display panel, inside or outside the sauna room; main control module located remotely
• Listing: CE, SGS, IPX4
• Delivery: Ships by parcel carrier.
• Warranty: 5-year limited warranty

Videos

Documents

Installation & Operation Manual (UKU sauna control)

Warranty

5-Year Limited Warranty: HUUM covers this product with a 5-year limited warranty against manufacturing defects when it is installed and used according to the manual.
