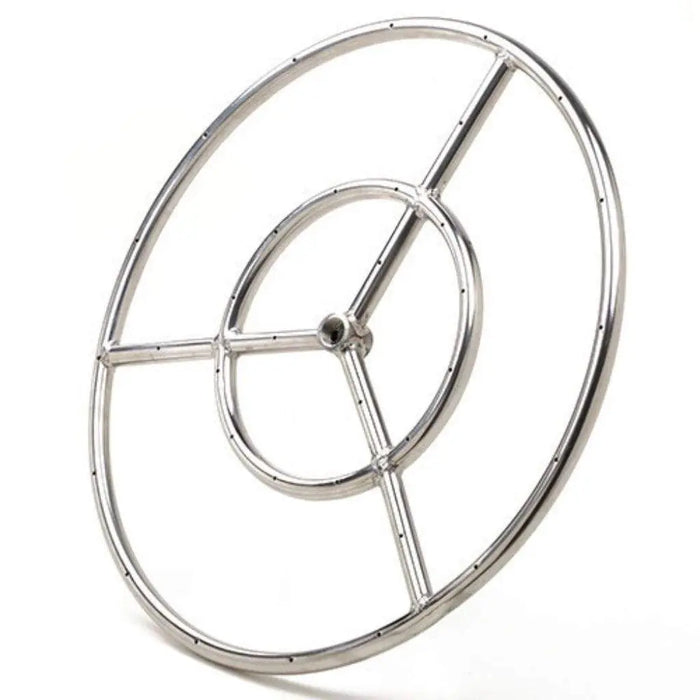

Grand Canyon 6" to 48" Outdoor Three Spoke Stainless Steel Fire Ring
The Grand Canyon Outdoor Stainless Steel Three-Spoke Fire Ring is a round ring burner for round fire pits. It is made from 304 stainless steel and drops into a new or existing outdoor fire pit.
It comes in 7 sizes from 6" to 48". Model numbers are FRS##, where ## is the size. This listing is the burner only. If you need the flex line, key valve and natural gas orifice as well, order the version with fittings.
What's Included
- 304 stainless steel three-spoke fire ring only. Flex line, key valve, orifice and media are sold separately.
Key Features
- 7 sizes: 6", 12", 18", 24", 30", 36", 48"
- 304 stainless steel
- For outdoor fire pits only
- Natural gas or propane; propane needs the matching orifice (see below)
- Use with lava rock, lava pebbles or reflective fire glass
What to Order With It
This is the burner only. You will need gas connection parts and media to finish the fire pit.
Optional:
Specifications
| Size |
Model |
Propane Orifice |
Propane Orifice Rating (BTU) |
| 6" |
FRS06 |
OAS-LP47 |
50,000 |
| 12" |
FRS12 |
OAS-LP47 |
50,000 |
| 18" |
FRS18 |
OAS-LP41 |
75,000 |
| 24" |
FRS24 |
OAS-LP35 |
100,000 |
| 30" |
FRS30 |
OAS-LP12 |
300,000 |
| 36" |
FRS36 |
OAS-LP12 |
300,000 |
| 48" |
FRS48 |
OAS-LP12 |
300,000 |
| Material |
304 stainless steel |
| Use |
Outdoor only |
The 30" to 48" rings use 3/4" gas connections.
For outdoor use only. Do not install indoors or in any enclosed structure.
Warranty
Stainless steel burner: lifetime warranty against manufacturing defects or breakage when installed by a professional installer. Natural browning of the stainless finish is not covered. Warranty is limited to the original purchaser.
Documents
Grand Canyon does not publish a dimensioned drawing or natural gas BTU ratings for these burners in a form we can verify. Contact us and we will request them for your size.
