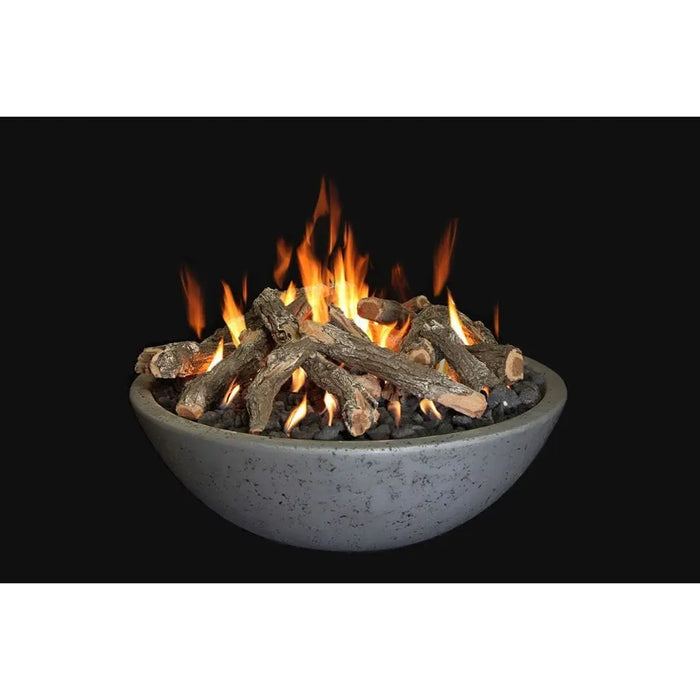

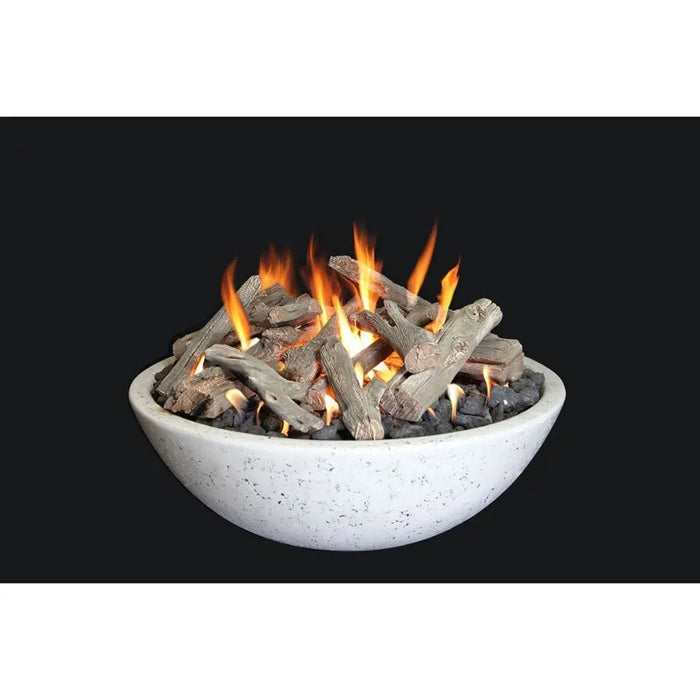

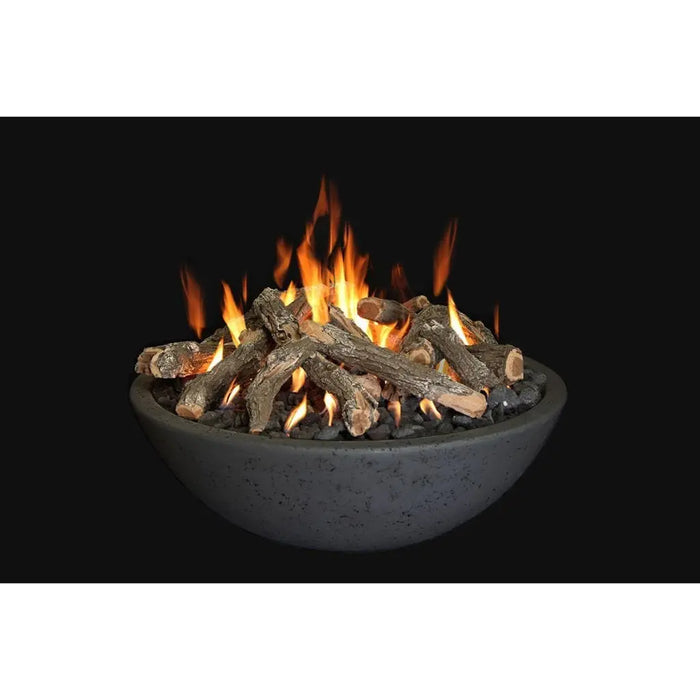

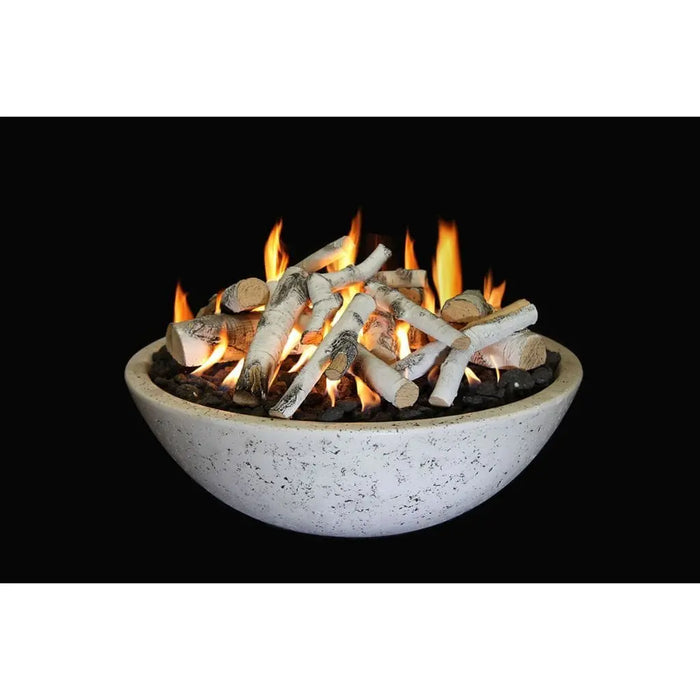

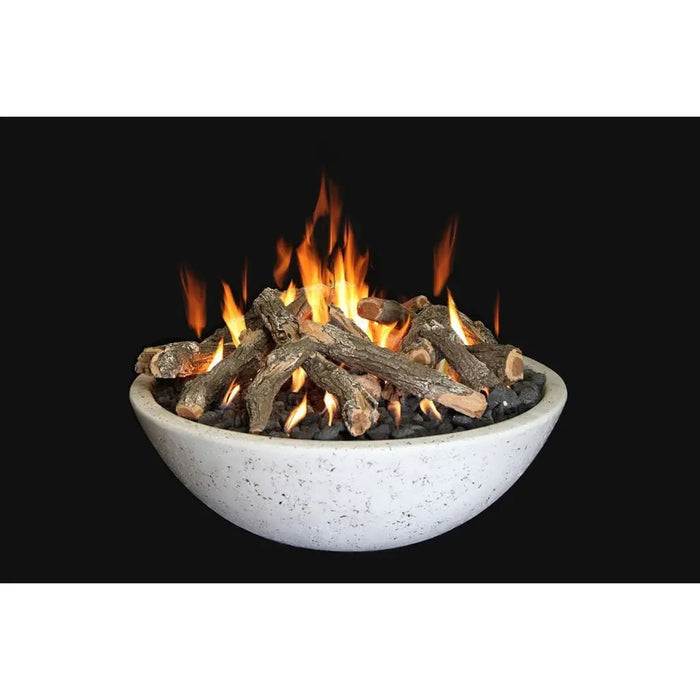

Grand Canyon 39"x13" Fire Bowl with Ring Burner
The Grand Canyon 39" x 13" Fire Bowl with Fire Ring Burner is a glass fiber reinforced concrete (GFRC) bowl with the color running through the material, supplied with a 30" stainless steel fire ring burner. The ring burner gives a wide, even bed of flame for glass or lava rock.
Choose natural gas or propane, and black, white or gray. Model numbers follow the pattern FB3913-R-N-BLK: N or P for the fuel, then BLK, WHT or GRY for the color. Each bowl is cast by hand, so color and texture vary a little. Keep it covered when not in use.
Play videoPlay video
What's Included
- 39" x 13" GFRC fire bowl with feet
- 30" stainless steel fire ring burner
- 33" stainless steel disc
- Natural gas or propane orifice, to match the fuel you choose
- Small installation kit (key valve and flex line)
- Installation manual
Key Features
- 39" diameter, 13" deep, 19" high

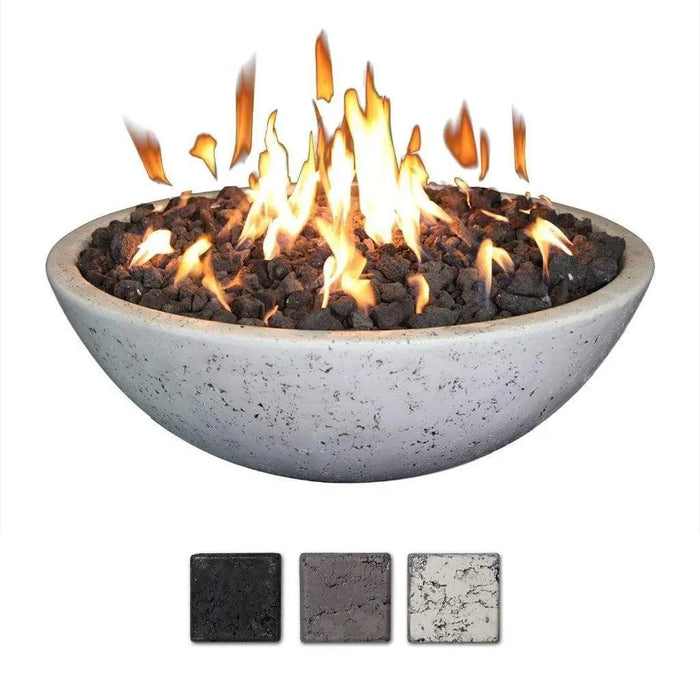

- Glass fiber reinforced concrete in black, white with black wash, or gray with black wash
- 30" fire ring burner, 250,000 BTU
- Natural gas or propane
- Match-lit as shipped; electronic ignition available
- For outdoor use on a solid, level surface
- Media is required and sold separately (see below)
What to Order With It
The bowl ships with its burner, disc, orifice and installation kit. It needs media to cover the burner.
Required (choose one):
Optional:
Specifications
| Fuel |
Black |
White |
Gray |
| Natural Gas |
FB3913-R-N-BLK |
FB3913-R-N-WHT |
FB3913-R-N-GRY |
| Propane |
FB3913-R-P-BLK |
FB3913-R-P-WHT |
FB3913-R-P-GRY |
| Bowl Size |
39" diameter, 13" deep, 19" high |
| Burner |
30" stainless steel fire ring burner |
| Disc |
33" stainless steel |
| BTU |
250,000 BTU/hr, natural gas or propane |
| Inlet Pressure |
Natural gas 3.5" to 14" W.C. (7" normal); propane 8" to 14" W.C. (11" normal) |
| Media Required |
90 lbs of fire glass or 50 lbs of lava rock |
| Clearance to Combustibles |
Side walls 16", overhead 68" |
| Material |
Glass fiber reinforced concrete (GFRC) |
| Use |
Outdoor only |
Do not set the bowl on grass, dirt or any soft surface; that blocks ventilation. Grand Canyon also offers Rust and Bone as made-to-order colors with a 4 to 6 week lead time; contact us if you want one.
For outdoor use only. Do not install indoors or in any enclosed structure.
Warranty
GFRC fire bowl: one year against manufacturing defects. Stainless steel burner: lifetime. Valves and electrical components: one year. Warranty is limited to the original purchaser.
