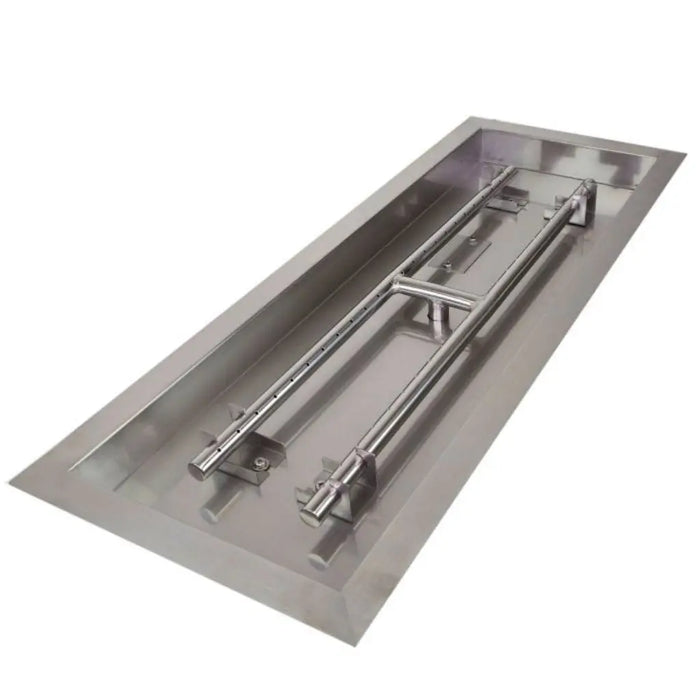

Grand Canyon 24" to 48" Outdoor Rectangle Drop-In Pan with H-Burner
The Grand Canyon Outdoor Rectangle Drop-In Pan is a 304 stainless steel pan with an H-burner already mounted in it. You cut an opening in a non-combustible fire pit or fire table top, drop the pan in and connect the gas. The rectangular and linear pans have folded, reinforced edges so they do not buckle.
It comes in 4 sizes. Model numbers are DIP-REC-##, where ## is the size. Each pan ships with both the natural gas and the propane orifice, so one model covers either fuel.
What's Included
- Stainless steel pan with burner
- Natural gas orifice
- Propane orifice
- Flex line and connection fittings
- Installation manual
Key Features
- 4 sizes: 24", 30", 36", 48"
- 304 stainless steel pan and burner
- 65,000 or 95,000 BTU, depending on size
- Natural gas and propane orifices both included
- For outdoor use only
- The enclosure needs at least 18 square inches of cross ventilation
What to Order With It
The pan ships with its burner, both orifices, connection fittings and a flex line. Add media to cover the burner.
Optional:
Specifications
| Size |
Model |
Pan Size |
Burner |
BTU Natural Gas or Propane |
| 24" |
DIP-REC-24 |
26.5" x 10.5" |
22" x 6" H-burner |
65,000 |
| 30" |
DIP-REC-30 |
32.5" x 12.5" |
28" x 8" H-burner |
65,000 |
| 36" |
DIP-REC-36 |
38.5" x 14.5" |
34" x 10" H-burner |
95,000 |
| 48" |
DIP-REC-48 |
50.5" x 16.5" |
46" x 12" H-burner |
95,000 |
| Material |
304 stainless steel |
| Inlet Pressure |
Natural gas 3.5" to 14" W.C. (7" normal); propane 8" to 14" W.C. (11" normal) |
| Ventilation |
At least 18 sq. in. of cross ventilation in the enclosure |
| Use |
Outdoor only |
Pan sizes are the outside of the pan; cut the opening to suit and check the manual before cutting. Do not run the burner in high wind. Clearances to side walls and overhead cover are in the manual linked below.
For outdoor use only. Do not install indoors or in any enclosed structure.
Warranty
Stainless steel burner: lifetime warranty against manufacturing defects or breakage when installed by a professional installer. Natural browning of the stainless finish is not covered. Warranty is limited to the original purchaser.
