Grand Canyon 18" to 30" Blue Pine Split Vented Gas Logs
Grand Canyon Blue Pine Split Vented Gas Logs are refractory ceramic logs cast from pine found in the bark-beetle-damaged forests of northern Arizona. The deep grain and gray highlights make each log look as if it was split in half, and the logs can be turned around to show the bark side instead. Each log is cast and painted by hand.
The set comes in three sizes: BPS18LOGS, BPS24LOGS and BPS30LOGS. It is a front-view set for the Grand Canyon 2-burner and 3-burner. This listing is the logs only; the burner is ordered separately.
What's Included

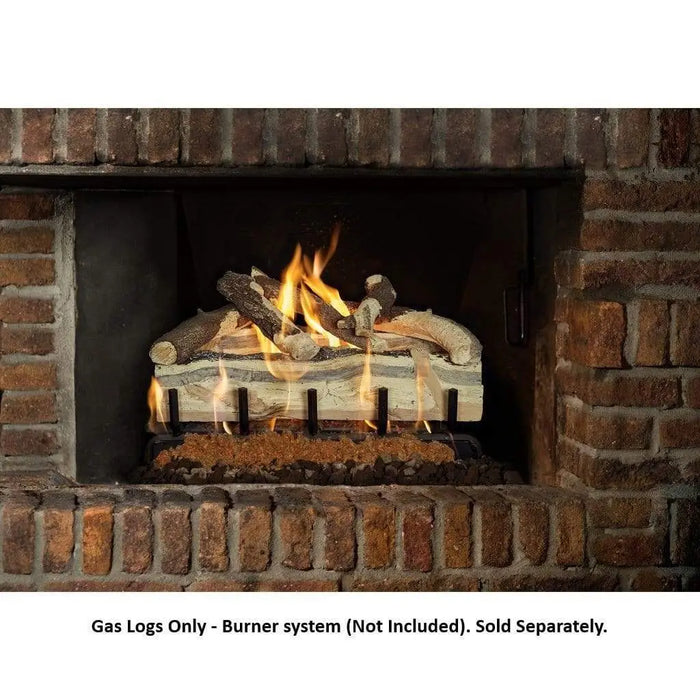

- Blue Pine Split log set in the size you choose. Burner, lava rock and embers come with the burner, which is sold separately.
Key Features
- 3 sizes: 18", 24", 30"
- Hand-painted refractory ceramic logs with a split-log face
- Reversible logs: split face or bark face
- Front view only
- For Grand Canyon 2-burner and 3-burner systems
- Burner is required and sold separately (see below)
What to Order With It
The logs need a Grand Canyon vented burner in the same size.
Required (choose one):
-
Indoor Vented 2-Burner (2BRN-18, 2BRN-24, 2BRN-30): match-lit
-
Indoor Vented 3-Burner (3BRN-18, 3BRN-24, 3BRN-30): match-lit, taller flame
- Assembled 2-Burner with factory-installed control: safety pilot, millivolt and remote, modulating millivolt and remote, battery electronic and remote
- Assembled 3-Burner with factory-installed control: safety pilot, millivolt and remote, modulating millivolt and remote, battery electronic and remote
Optional:
Specifications
| Size |
Model |
| 18" |
BPS18LOGS |
| 24" |
BPS24LOGS |
| 30" |
BPS30LOGS |
| Vent Type |
Vented |
| View |
Front view only |
| Fits |
Grand Canyon 2-burner and 3-burner |
| Log Material |
High-temperature concrete with ceramic refractory and stainless steel fiber |
Minimum Fireplace Dimensions
Firebox size depends on the burner. With the 2-burner, the smallest fireboxes are:
| Size |
Front Width |
Back Width |
Depth |
Height |
| 18" |
30" |
18" |
14" |
14" |
| 24" |
36" |
24" |
14" |
14" |
| 30" |
42" |
30" |
16" |
14" |
The 3-burner needs 16" of height. See the burner page for the full table.
Warranty
Logs: lifetime warranty against manufacturing defects or breakage when installed indoors by a professional installer; five years if installed outdoors. Color fading from use and breakage from handling after installation are not covered. Warranty is limited to the original purchaser.
Documents
Grand Canyon does not publish a log placement guide for Blue Pine Split on its site. Contact us and we will request it.
