Grand Canyon 12" to 72" Outdoor Stainless Steel H-Burner with Fittings
The Grand Canyon Outdoor Stainless Steel H-Burner with Fittings is an H-shaped burner that spreads the flame across a square or rectangular fire pit, sold as a kit with the natural gas orifice, a 36" flex line, connection fittings and a 1/2" key valve. It is made from 304 stainless steel and drops into a new or existing outdoor fire pit.
It comes in 8 sizes from 12" to 72". Model numbers are HBSS##-NGK, where ## is the size. The kit is set up for natural gas; for propane add the orifice listed below. If you already have the gas fittings, the burner is also sold on its own.

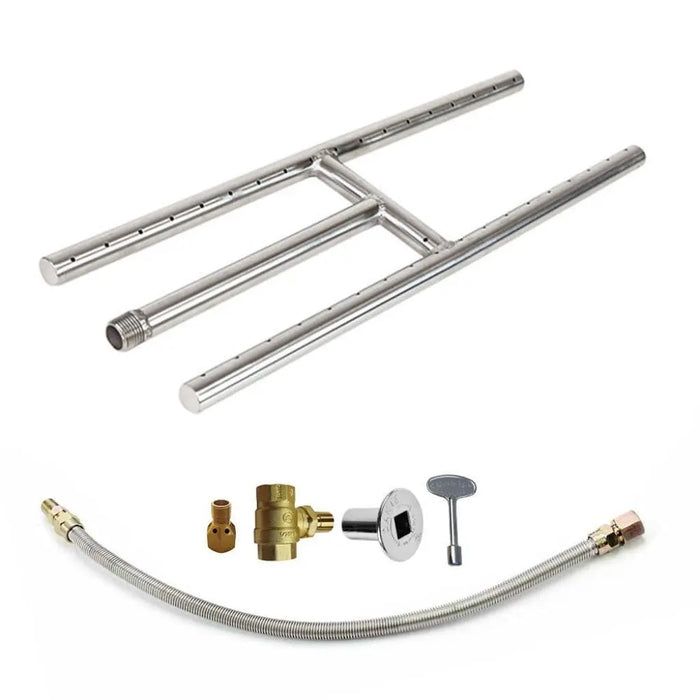

What's Included
- 304 stainless steel h-burner
- Natural gas orifice
- Flex line (36")
- Key valve
- Connection fittings
Key Features
- 8 sizes: 12", 18", 24", 30", 36", 48", 60", 72"
- 304 stainless steel
- For outdoor fire pits only
- Natural gas or propane; propane needs the matching orifice (see below)
- Use with lava rock, lava pebbles or reflective fire glass
What to Order With It
The kit includes what you need to connect to natural gas. Add media to cover the burner.
Optional:
Specifications
| Size |
Model |
Propane Orifice |
Propane Orifice Rating (BTU) |
| 12" |
HBSS12-NGK |
OAS-LP41 |
75,000 |
| 18" |
HBSS18-NGK |
OAS-LP41 |
75,000 |
| 24" |
HBSS24-NGK |
OAS-LP35 |
100,000 |
| 30" |
HBSS30-NGK |
OAS-LP31 |
125,000 |
| 36" |
HBSS36-NGK |
OAS-LP31 |
125,000 |
| 48" |
HBSS48-NGK |
OAS-LP29 |
150,000 |
| 60" |
HBSS60-NGK |
OAS-LP26 |
175,000 |
| 72" |
HBSS72-NGK |
OAS-LP22 |
200,000 |
| Material |
304 stainless steel |
| Use |
Outdoor only |
For outdoor use only. Do not install indoors or in any enclosed structure.
Warranty
Stainless steel burner: lifetime warranty against manufacturing defects or breakage when installed by a professional installer. Natural browning of the stainless finish is not covered. Warranty is limited to the original purchaser.
Documents
Grand Canyon does not publish a dimensioned drawing or natural gas BTU ratings for these burners in a form we can verify. Contact us and we will request them for your size.
