Empire Tahoe Deluxe 42" Direct Vent Gas Fireplace
The Empire Tahoe Deluxe 42" Direct Vent Fireplace models feature our Contour tube-style burner, designed to complement the hand-painted ceramic fiber log set, and produce a natural dancing flame.
The Empire Tahoe Deluxe model has louvers and an available trim kit. The large heat-resistant, tempered glass window provides an unobstructed view to the log set. Tahoe Deluxe models offer several styles of liners – Aged Brick, Herringbone, Stacked Limestone, and Black Reflective.
Tahoe Deluxe models require just 16 inches of depth making them ideal for applications where wall-cavity space is tight.
Features
-
Contour Tube-Style Burner: Creates a natural, dancing flame that enhances realism and complements the hand-painted ceramic fiber log set.
-
Decorative Louvers & Trim Kits: Included for a finished, customizable appearance.
-
Large Tempered Glass Window: Heat-resistant glass offers a wide, unobstructed view of the log set.
-
Multiple Liner Options: Choose from Aged Brick, Herringbone, Stacked Limestone, or Black Reflective for a personalized interior look.
-
Compact Installation Depth: Requires only 16 inches of depth, ideal for tight wall-cavity applications.
Available In Two Types of Ignition
i) Millivolt (MV)
Tahoe Deluxe fireplaces are available in two types of ignition – Millivolt (MV) and Intermittent Pilot (IP). The Millivolt system lights a standing pilot with a pushbutton piezo ignitor. Once the standing pilot is lit, the MV system operates with an on/off switch or with one of Empire’s optional remote control systems.
ii) Intermittent Pilot (IP)
IP systems eliminate the standing pilot for even greater energy savings. Pressing the on/off switch ignites the pilot, which then ignites the main burner. IP systems can also operate with an optional remote control system.
Includes AC Power Adaptor (120VAC) with battery backup (switches to battery during power outage)
Features
- Available in 32", 36", 42" and 48" sizes.
- Tempered Glass: 22 x 36 1/2
- Up to 25,000 BTUs
- The large heat-resistant, tempered glass window provides an unobstructed view to the log set
- Offer several styles of liners - Aged Brick, Herringbone, Stacked Limestone, and Black Porcelain
- Ideal for applications where wall-cavity space is tight
Includes: Log Set
Requires: Fireplace Barrier or Door Set and Frame with Barrier
Specifications
| Model |
DVD42 |

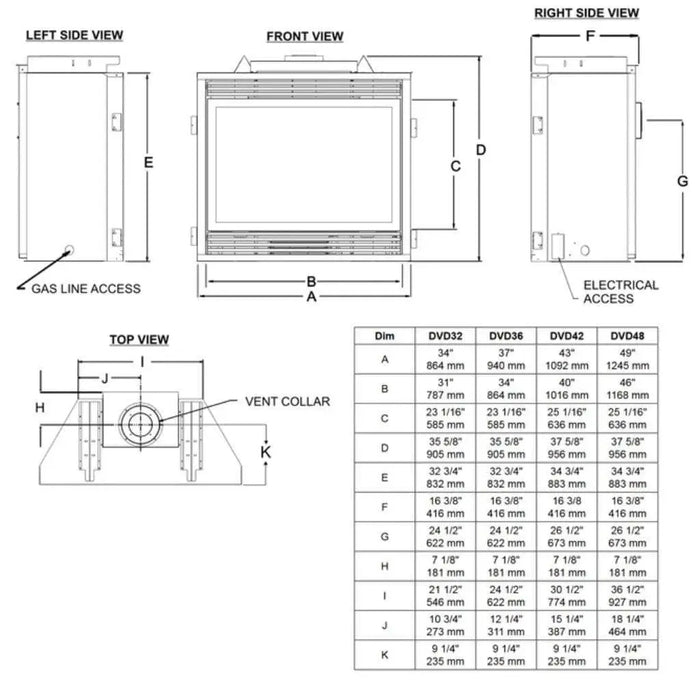

| Actual Dimensions |
37 5/8 H x 43 W x 16 3/8 D |

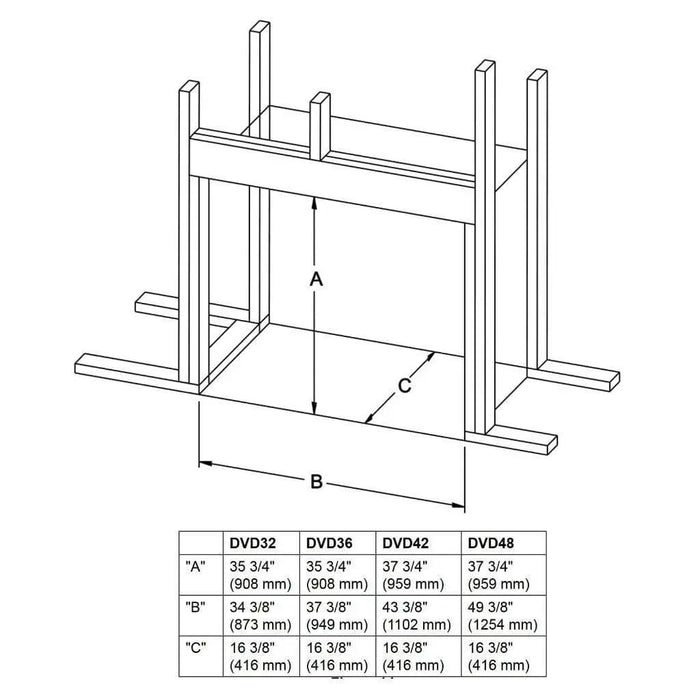

| Framing Dimensions |
37 3/4 H x 43 3/8 W x 16 3/8 D |
| Fuel Type |
Natural Gas / Propane |
| Vent Type |
Direct Vent |
| Vent Size |
4x6 5/8" |
| Ignition Type |
Millivolt / Intermittent Pilot |
| Installation Type |
Zero Clearance |
| Style |
Traditional |
| Vent Inner Diameter |
4 Inches |
| Vent Outer Diameter |
6-5/8 Inches |
| Input BTU/HR (KW/H) Max/Min (Propane) |
25,000/19,500 |
| Input BTU/HR (KW/H) Max/Min (Natural Gas) |
25,000/18,000 |
Installation Requirements
-
Clearances to combustibles: Back 0", sides 0", floor 0", top standoffs 0", top framing edge 3"
-
Mantel clearance: Follow the mantel chart in the installation manual for any combustible mantel above the unit.
-
Venting: 4" x 6-5/8" direct vent, top or rear
-
Gas input (BTU/hr): Natural gas 25,000 max / 18,000 min; propane 25,000 max / 19,500 min
-
Power: Millivolt models (FP30, FP31) need no electricity to run the burner. Intermittent pilot models (FP70, FP71) ship with 4 AA batteries and a power adapter.
-
Installation: Must be installed by a qualified installer per the installation manual and local codes.
Options & Accessories
Decorative Louvers
Decorative Louver Arch
Decorative Louver Mission
Decorative Doors - Include Handles, Screens & Hinges
Decorative Doors, Rectangle
Decorative Doors, Arch
Decorative Door, Mission Rectangle
Decorative Door, Mission Arch
Extruded Aluminum Frames, Frame & Bottom Trim Colors
Matte Black (Shown on Cherry Mantel)
Hammered Pewter (Shown on Oak Mantel)
Liners
Downloads
Warranty
- 10-year limited warranty on combustion chamber; limited lifetime on glass
- All other parts carry a 3-year limited warranty
- All Remote Controls carry a 1-year limited warranty
