Empire Liner Accessory for 36"/42" Tahoe Clean Face DV Multi-function Luxury Fireplace

Name: Empire Liner Accessory for 36"/42" Tahoe Clean Face DV Multi-function Luxury Fireplace
Brand: Empire Hearth
SKU: DVP42XWS
Price: 509.0 USD
Availability: InStock

by Empire Hearth

SKU DVP42XWS

$429.00 - $878.00

$509.00

$429.00 - $878.00

$509.00

Free Shipping over $299

Please contact us directly to request quote for Empire products.

Quantity

Empire Liner Accessory for 36"/42" Tahoe Clean Face DV Multi-function Luxury Fireplace

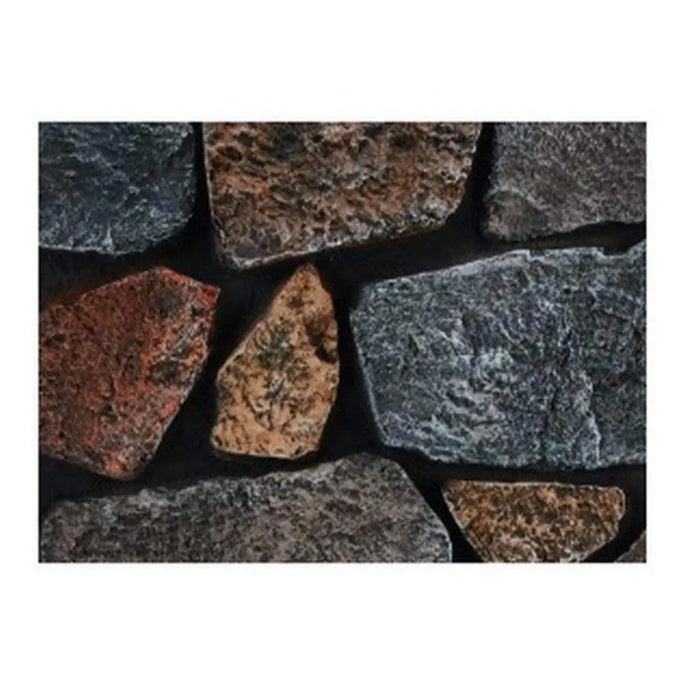

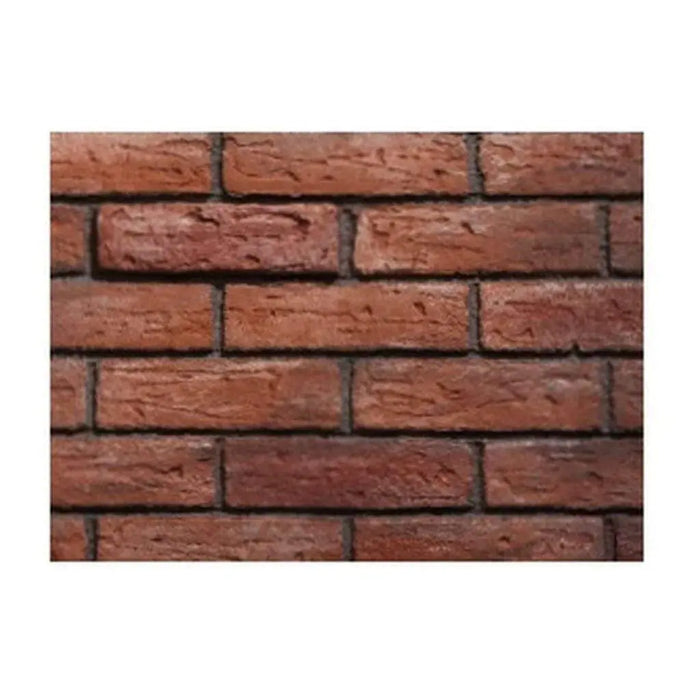

The Empire Tahoe Clean-Face Luxury liners (model numbers DVP36XRB, DVP36XWS, DVP36XKR, DVF36XKR, DVP42XRB, DVP42XWS, DVP42XKR and DVF42XKR) line the firebox of the Tahoe Clean-Face Luxury 36" and 42" direct-vent fireplaces (DVCX36, DVCX42). Choose a rustic brick ceramic fiber liner (XRB), an old world stone ceramic fiber liner with floor (XWS), or a black porcelain liner (XKR). The black porcelain floor (DVF36XKR, DVF42XKR) is a separate piece; this page also offers it together with the black liner.

Fits

Empire Tahoe Clean Face Luxury 36" Direct Vent Gas Fireplace - Millivolt (DVP36XRB, DVP36XWS, DVP36XKR)
Empire Tahoe Clean Face Luxury 36" Direct Vent Gas Fireplace - IP Control (DVP36XRB, DVP36XWS, DVP36XKR)
Empire Tahoe Clean Face Luxury 36" Direct Vent Gas Fireplace - Multi-Function (DVP36XRB, DVP36XWS, DVP36XKR)
Empire Tahoe Clean Face Luxury 42" Direct Vent Gas Fireplace - Multi-Function (DVP42XRB, DVP42XWS, DVP42XKR)
Empire Tahoe Clean Face Luxury 42" Direct Vent Gas Fireplace - Millivolt (DVP42XRB, DVP42XWS, DVP42XKR)
Empire Tahoe Clean Face Luxury 42" Direct Vent Gas Fireplace - IP Control Series (DVP42XRB, DVP42XWS, DVP42XKR)

Related Parts

Oil-rubbed bronze front for the Clean-Face Luxury (DF362XBZT, DF422XBZT)

Specifications

Model numbers	DVP36XRB, DVP36XWS, DVP36XKR, DVF36XKR, DVP42XRB, DVP42XWS, DVP42XKR, DVF42XKR
36" (DVCX36)	DVP36XRB rustic brick; DVP36XWS old world stone with floor; DVP36XKR black porcelain; DVF36XKR black porcelain floor
42" (DVCX42)	DVP42XRB rustic brick; DVP42XWS old world stone with floor; DVP42XKR black porcelain; DVF42XKR black porcelain floor
Liner kits (sheet)	Rear, left and right liners with two brackets and two screws; the black reflective kit adds rear liner insulation, and the ceramic fiber kits add two rear legs

Installation Notes

Floors: the liner sheet says to remove the glass door and control panel (see the fireplace manual), then place the bottom side floor pieces and the bottom middle floor.
Liners: the sheet says to pre-bend the brackets; for ceramic fiber liners, set the two rear legs first; set the rear panel against the back of the firebox (resting on the legs for ceramic fiber; with the insulation behind it for black reflective); remove the screw plugging the bracket hole in the top of the firebox, then hold each side panel in place and secure it with a bracket and one #10 x 1/2" screw. The small dimple on each side liner goes at the bottom rear.
Liner choices: Empire's Clean-Face brochure says old world stone is only available on Luxury models and aged brick is not available on Luxury models.

Downloads

Warranty

Empire's warranty in the fireplace's installation manual covers remote controls, thermostats, accessories and replacement parts for 1 year (parts), for the original purchaser. Full terms are in the warranty section of your fireplace's manual, for example the installation manual.
