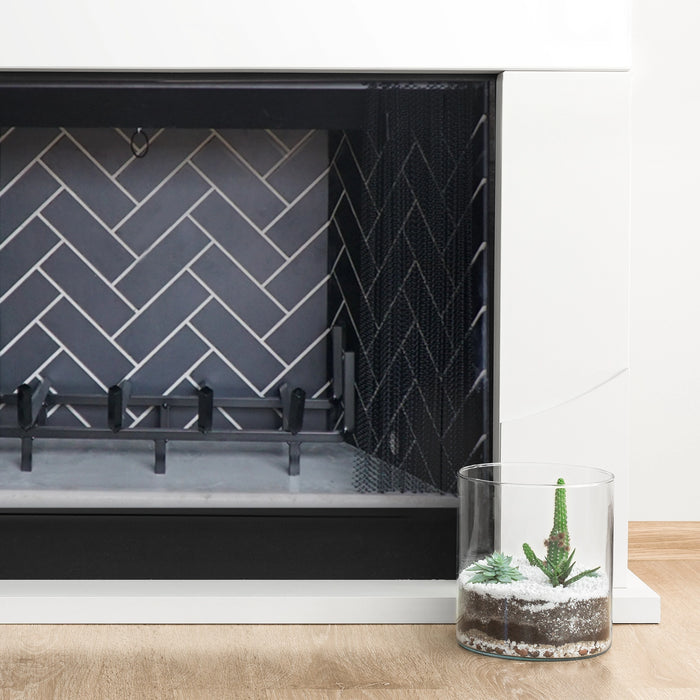

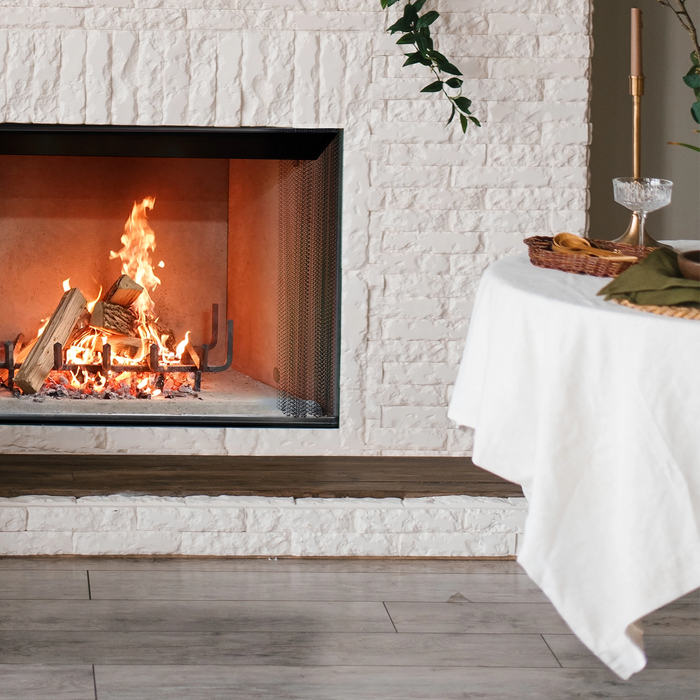

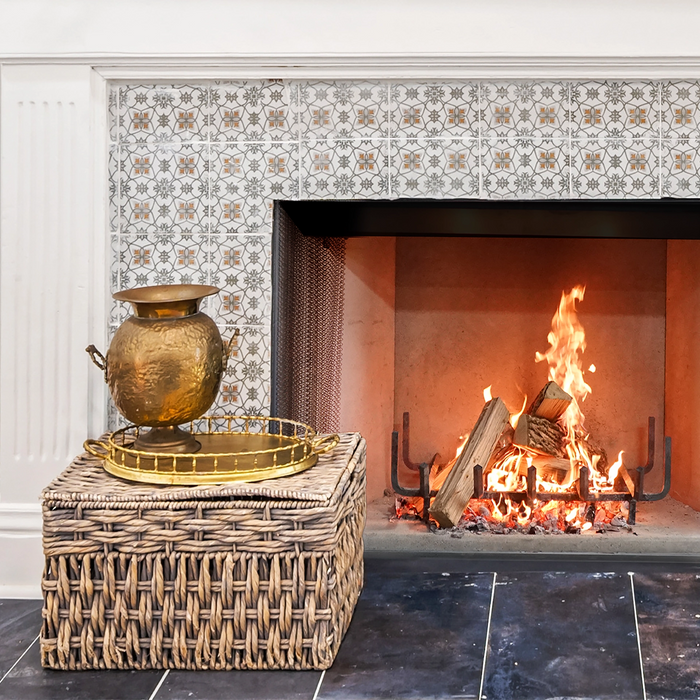

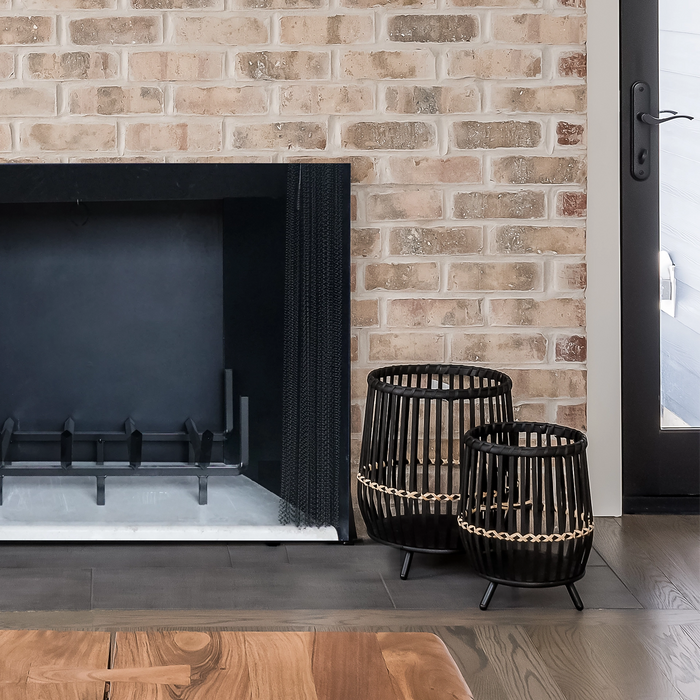

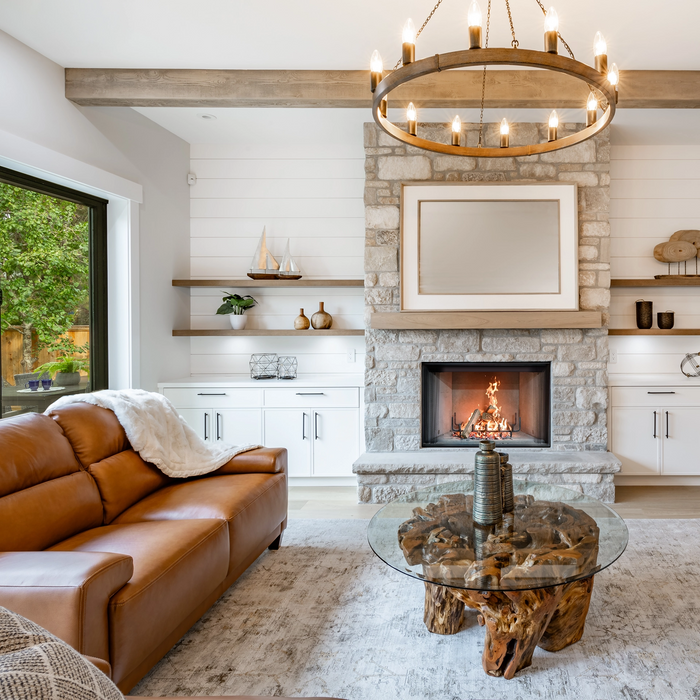

Empire Blackburn 54" Wood Burning Firebox
The Empire Blackburn 54" is an indoor wood burning fireplace firebox, listed to UL 127, with a 54" wide by 34" high opening.
Model number WB5412FB0F comes with a firescreen, grate and attic insulation shield, and vents through Empire's 12" chimney system. It needs a refractory brick liner, a non-combustible hearth extension, the chimney sections and a termination cap, all listed below.
The Blackburn 54": A Large Indoor Wood Burning Firebox
The firebox needs at least 1 1/2" of air space to combustibles at the back and sides, with the opening at least 24" from a sidewall, and a mantel can sit 18" or more above the opening, up to 10" deep. The hearth extension is built as the manual shows for a flush or raised firebox. It may be installed in a bedroom, and it is not approved for manufactured housing.
The chimney uses only the Empire 12" components listed in the manual, at least 20 ft tall (22 ft with two offsets) and no more than 90 ft, with a firestop wherever it passes through a ceiling or floor. For better draft, it goes inside the warm, insulated part of the house, away from doors, walkways and air returns.
See more in our wood fireplaces collection.
Comparing wood heat options? Our guide to types of wood burning fireplaces covers open, EPA-certified, insert and outdoor designs.
Features
-
Indoor wood firebox: listed to UL 127.
-
Opening: 54" wide x 34" high.
-
Included: firescreen, grate and attic insulation shield.
-
Clearances: 1 1/2" at the back and sides; opening 24" from a sidewall.
-
Mantel: 18" minimum above the opening, 10" maximum depth.
-
Chimney: Empire 12" components, 20 ft minimum and 90 ft maximum.
-
Outside air: optional WBOAK kit with 4" flex.
-
Bedroom approved: may be installed in sleeping rooms.
Package Contents
- Blackburn 54" wood burning firebox
- Firescreen
- Grate
- Attic insulation shield
Refractory brick liners, a hearth extension, the 12" chimney and a termination cap are required and ordered separately (see below).
What to Order With It
Order a liner, a hearth extension, the chimney and a cap with the firebox.
Refractory brick liner (one required):
Hearth extension (required):
Chimney (12" Empire components, required):
-
Chimney Section, 12" dia., 6" long (WB12V06)
-
Chimney Section, 12" dia., 12" long (WB12V12)
-
Chimney Section, 12" dia., 18" long (WB12V18)
-
Chimney Section, 12" dia., 36" long (WB12V36)
-
Chimney Section, 12" dia., 48" long (WB12V48)
-
Offset/Return Elbow Kit, 15°, 12" dia. (WB12V15EK)
-
Offset/Return Elbow Kit, 30°, 12" dia. (WB12V30EK)
-
Ceiling Firestop, 12" dia. (WB12VFS)
-
Chase Top Flashing, 12" dia. (chase installations) (WB12VFC)
Chimney cap (one required):
Bi-fold door (optional):
Outside air (optional):
Specifications
| Model numbers |
WB5412FB0F |
| Type |
Indoor wood burning fireplace (firebox) |
| Opening |
54" wide x 34" high |
| Included |
Firescreen, grate and attic insulation shield |
| Required, sold separately |
Refractory brick liners, hearth extension, chimney and termination cap |
| Outside air |
Optional WBOAK kit with 4" flex |
| Chimney |
12" Empire chimney components; 20 ft minimum, 90 ft maximum |
| Clearances |
1 1/2" back and sides; opening 24" from a sidewall |
| Mantel |
18" minimum above the opening, 10" maximum depth |
| Bedrooms |
May be installed in sleeping rooms |
| Manufactured homes |
Not approved |
| Safety listing |
UL 127 |
Installation Requirements
-
Location: inside the warm, insulated part of the house for better draft; away from doors, walkways and air returns. Not approved for manufactured housing.
-
Clearances: at least 1 1/2" of air space to combustibles at the back and sides, the opening at least 24" from a sidewall, and non-combustible materials in front as the manual shows. Do not pack air spaces with insulation.
-
Mantel: at least 18" above the opening and no more than 10" deep; other mantel and wall projections per the manual.
-
Chimney: only the Empire 12" chimney components listed in the manual: at least 20 ft tall (22 ft with two offsets), 90 ft maximum, no more than two pairs of 30° or smaller offsets, with a 2" air space to insulation and framing around the chimney and a firestop wherever it passes through a ceiling or floor.
-
Hearth extension: required; build it as the manual shows for a flush or raised firebox.
-
Doors and gas logs: run with optional glass doors fully open or fully closed. A gas log set or insert must be one tested with this firebox; with a gas log set, keep the damper fully open and meet the National Fuel Gas Code.
-
Installation: must be installed by a qualified installer per the installation manual and local codes.
Make It Yours: Chimney Cap, Door and Outside Air
Top the chimney with a round (WB12VRCC), rain (WB12VRC) or black pyramid (WB12VPC) cap. The optional WBOAK outside air kit uses 4" flex, and the optional bi-fold door, painted black or pewter with wood handles, runs fully open or fully closed.
Bring the Blackburn 54" Home with Dreamwood Living
The Blackburn 54" suits a new build or remodel where you want a large wood fire indoors with a 54" x 34" opening.
Reach out to our team and we will help you plan the liners, hearth extension and chimney.
FAQs
Is the Blackburn 54" right for me?
It fits a new build or remodel with room for a firebox with a 54" wide by 34" high opening, a 12" Empire chimney at least 20 ft tall and a non-combustible hearth extension. For other sizes or an outdoor fire, see our wood fireplaces and outdoor wood fireplaces.
What do I need to order with it?
A refractory brick liner, a non-combustible hearth extension such as the WB54HE kit, Empire 12" chimney sections and a termination cap. The firescreen, grate and attic insulation shield come with it.
How tall does the chimney need to be?
At least 20 ft (22 ft with two offsets) and no more than 90 ft, using only the Empire 12" chimney components listed in the manual, with no more than two pairs of 30° or smaller offsets.
Can it go in a bedroom or manufactured home?
It may be installed in a sleeping room. It is not approved for manufactured housing.
Can I use glass doors or gas logs?
Optional glass doors must run fully open or fully closed. A gas log set or insert must be one tested with this firebox; with a gas log set, keep the damper fully open and meet the National Fuel Gas Code.
Does it need outside air?
The WBOAK outside air kit, with 4" flex, is optional.
Documents & Downloads
Warranty
Empire limited warranty, from the warranty section of the installation manual:
- Combustion chamber: limited lifetime parts, with 5 years limited labor
- Venting: 10 years parts
- Accessories and parts, including handles, glass and cast refractory panels: 1 year parts
The warranty is for the original purchaser. Travel, diagnostic and freight charges and removal and reinstallation costs are not covered. Full terms are in the warranty section of the installation manual.
