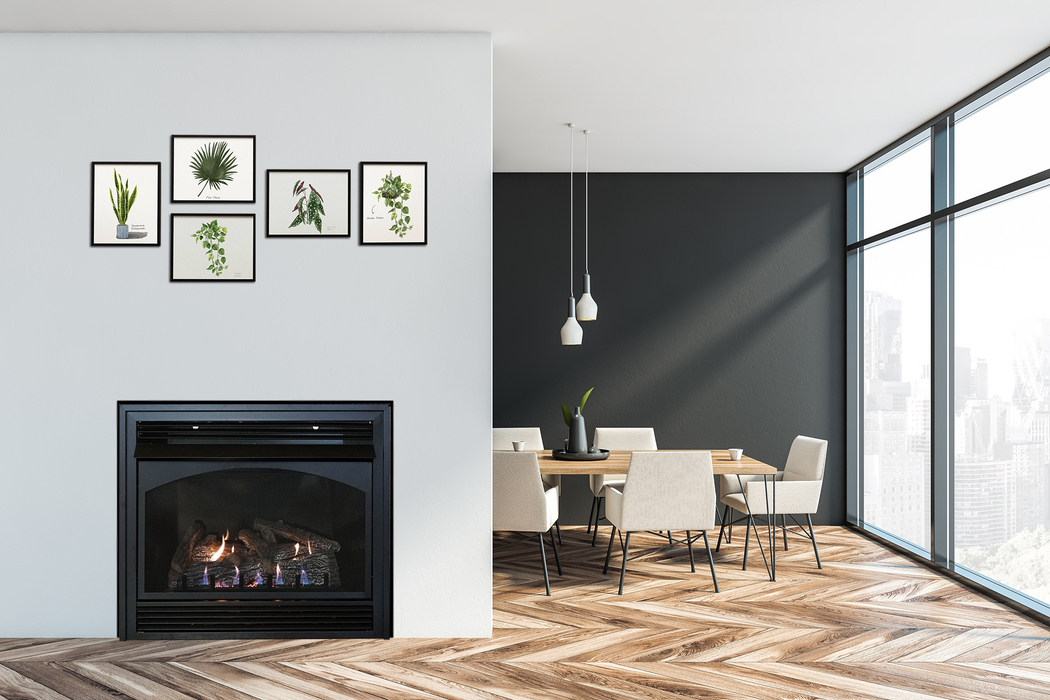

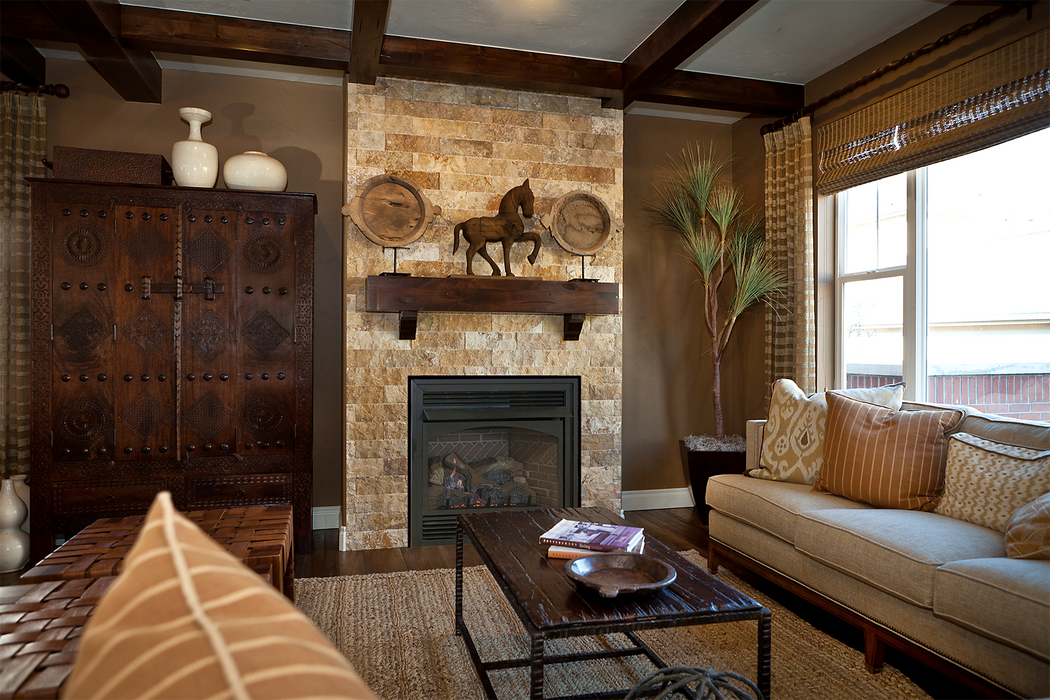

Empire Vail Premium 36" Vent-Free Gas Fireplace, Millivolt
The Empire Vail Premium 36" with millivolt control (model numbers VFPA36BP30LN and VFPA36BP30LP, or VFPA36BP31LN and VFPA36BP31LP with the blower installed) is a vent-free gas fireplace with a slope-glaze burner. It needs no chimney or vent and is meant for supplemental heat.
A log set is required and ordered separately. The fireplace ships with a black hood and trim kit; liners, remotes, louvers, doors and a blower can be added.
Key Features
Up to 36,000 Btu/hr input on natural gas or propane
Slope-glaze burner
Millivolt standing pilot with an on/off switch; runs without house power
Blower installed on models ending 31; optional on the others
Vent-free: no chimney or vent pipe
Log set required, ordered separately
Optional liners, remotes, louvers and doors
What to Order With It
The fireplace ships with its black hood and trim kit. It needs a log set before it can run.
40 1/2" W x 35 3/4" H x 18 3/4" D (add 3 3/4" to the height with the flush mantel base)
Fuel
Natural gas (N) or propane (P); order the model for your gas, field conversion is not permitted
Type
Vent-free (no chimney or vent); oxygen depletion sensor
Input, maximum
36,000 Btu/hr, natural gas and propane
Input, minimum
25,000 Btu/hr, natural gas and propane
Burner
Slope-glaze
Control
Millivolt standing pilot with an on/off switch; runs without house power
Blower
FBB5 installed on models ending 31; optional on models ending 30
Log set
Required, ordered separately
Hood and trim
Black hood and trim kit included
Gas connection
1/2" inlet
Listing
ANSI Z21.11.2, unvented room heater
High altitude
Above 2,000 ft the input should be reduced 4% per 1,000 ft; contact Empire or your gas company before changing the orifice
Manufactured (mobile) home
May be installed in an aftermarket, permanently located manufactured home where local codes allow
Style
Traditional
Installation Requirements
Clearances: the outer casing sides and back are zero clearance to combustibles; keep at least 2" from the inside of the fireplace to a combustible side wall.
Ceiling: at least 36" from the top of the hood to the ceiling.
Top and framing: combustible finishing materials need a 3/4" gap above the top edge of the firebox; frame with 2 x 4 lumber or heavier.
Mantel: a combustible mantel must meet the mantel chart in the installation manual; the supplied hood must be installed.
Room size: the room must be an unconfined space of at least 50 cubic feet per 1,000 Btu/hr of input (adjoining rooms count only if there is no door between them), or extra combustion air must be provided as the manual describes. Vent-free heaters are meant for supplemental heat. Check local codes before you buy; some areas restrict vent-free appliances.
Bedrooms and bathrooms: an unvented heater over 10,000 Btu/hr may not go in a bedroom or bathroom, so this fireplace cannot. Massachusetts prohibits unvented gas heaters in bedrooms and bathrooms.
Floor: on carpet, tile or any combustible floor other than wood, set the fireplace on a metal or wood panel the full width and depth of the unit.
Power: millivolt models need no house power to run; the optional blower needs a 120V supply.
Installation: must be installed by a qualified installer per the installation manual and local codes. In Massachusetts the installation must be made by a licensed plumber or gas fitter.
