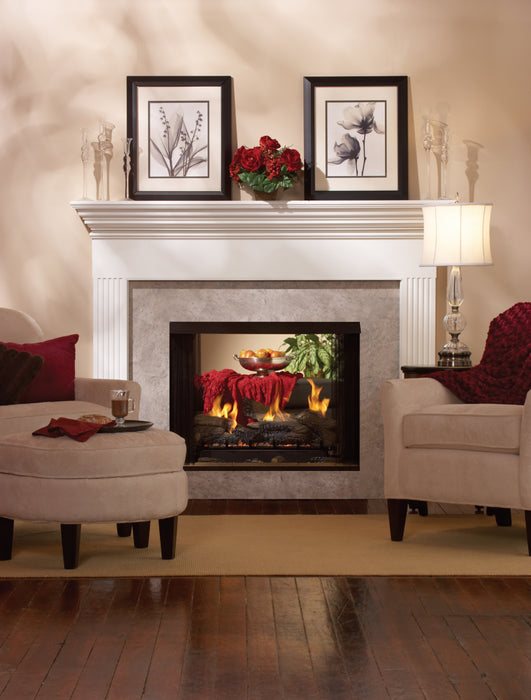

Empire Breckenridge Premium 36" See-Through Vent-Free Firebox
The Empire Breckenridge Premium 36" See-Through (model numbers VFP36SB2EF flush and VFP36SB2EL louvered) is a universal vent-free firebox open on two sides. It holds a vent-free gas log set, needs no chimney or vent, and comes with a banded brick liner.
The log set and burner are sold separately; any listed vent-free log set up to 40,000 Btu/hr that fits the firebox can be used. A black porcelain liner, ember kits, a lighting kit, a blower, louvers, an outer frame and arch door sets can be added.
Key Features
- Universal vent-free firebox for log sets up to 40,000 Btu/hr
- Open on two sides
- Banded brick liner included
- Flush or louvered front
- Optional black porcelain liner, lighting kit, blower, louvers, outer frame and arch door sets
What to Order With It
The firebox ships with its banded brick liner and black hoods. A vent-free log set is required before it can be used.
Required – Vent-free log set:
- Any listed ANSI Z21.11.2 vent-free gas log set of no more than 40,000 Btu/hr whose minimum firebox size fits this firebox (see the log set's manual); sold separately
Optional – Liners:
Optional – Accessories:
Optional – Extended hood (needed when the facing material is more than 1" thick, such as stone or brick):
Optional – Louvers (louvered models only):
Optional – Outer frame, for louvered see-through models:
Optional – Door set (needs the VFY36SBL door frame with barrier):
-
Door Set, Black, Arch (VFR36SCBL)
-
Door Set, Hammered Pewter, Arch (VFR36SCHP)
-
Door Set, Black, Mission Arch (VFR36SMBL)
-
Door Set, Hammered Pewter, Mission Arch (VFR36SMHP)
-
Door Frame with Barrier, Black, Arch (VFY36SBL)
Specifications
| Model numbers |
VFP36SB2EF, VFP36SB2EL |
| Type |
Universal vent-free firebox, see-through (ANSI Z21.91 ventless fireplace enclosure) |
| Log set |
Required, sold separately: a listed ANSI Z21.11.2 vent-free gas log set of no more than 40,000 Btu/hr whose minimum firebox size fits this firebox (check the log set's manual) |
| Framing (rough opening) |
40" W x 41 1/2" H x 23" D; height includes 3" for the standoffs |
| Front |
Flush (models ending F) or louvered (models ending L) |
| Liner |
Banded brick, included |
| Hood |
Black hoods included |
| Blower and light |
Optional (FBB5 blower, LK2 lighting kit) |
| Outer frame |
Optional VBF36TBL (black) or VBF36THP (hammered pewter) for louvered models, with the FBS36HP bottom trim |
| Doors |
Optional VFR36S arch door sets; each needs the VFY36SBL door frame with barrier |
| Manufactured (mobile) home |
May be installed in an aftermarket, permanently located manufactured home (USA only) or mobile home where local codes allow |
| Style |
Traditional, see-through |
Installation Requirements
-
Log set: install only a listed ANSI Z21.11.2 vent-free gas log set of no more than 40,000 Btu/hr that fits this firebox, and follow the log set's own instructions, including its room-size and bedroom/bathroom rules, as well as this manual.
-
Clearances: the outer casing sides need at least 1/2" to combustibles; keep at least 1 3/4" from the inside of the firebox to a perpendicular combustible side wall, and 36" clear in front of each opening.
-
Top and framing: combustible framing may rest on the top standoffs; frame with 2 x 4 lumber or heavier.
-
Ceiling: at least 42" from the top of the hood to the ceiling.
-
Mantel: a combustible mantel must meet the mantel chart in the installation manual.
-
Gas: propane installs need an external regulator limiting supply pressure to 14" w.c. In Massachusetts the installation must be made by a licensed plumber or gas fitter, and unvented heaters are not allowed in bedrooms or bathrooms.
-
Power: only needed for the optional blower or light; wire the junction box at installation, grounded per code.
-
Installation: must be installed by a qualified installer per the installation manual and local codes.
Downloads
Warranty
Empire limited warranty for Breckenridge vent-free fireboxes, from the warranty section of the installation manual:
- Combustion chamber and heat exchanger: limited lifetime parts, with 5 years of limited labor
- All other components, except remote controls, thermostats, accessories and replacement parts: 5 years parts and labor
- Remote controls, thermostats, accessories and parts: 1 year parts
The vent-free log set installed in the firebox has its own warranty. The firebox warranty applies to the original purchaser. Full terms, including what is not covered, are in the warranty section of the installation manual.
