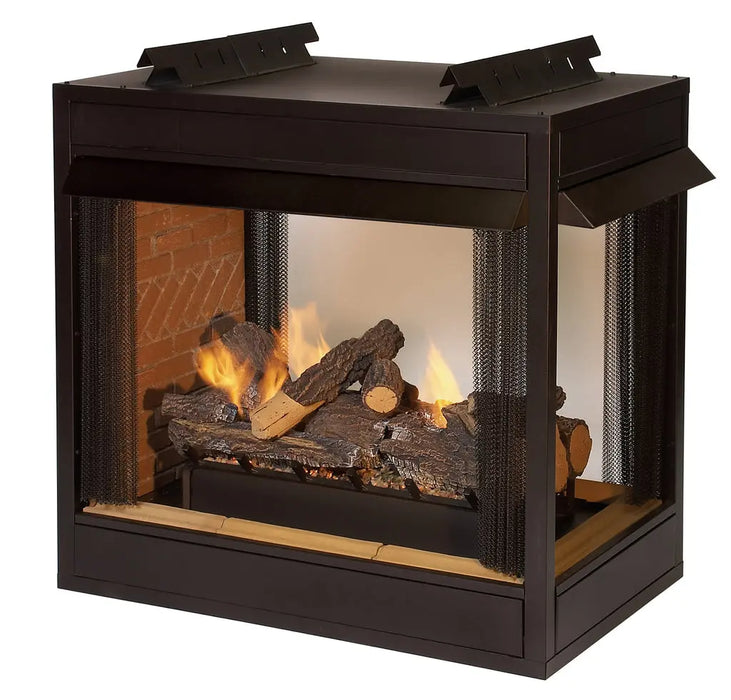

Empire 36" Breckenridge See-Through Vent-Free Firebox

Empire 36" Breckenridge See-Through Vent-Free Firebox

A Vent-Free system uses room air for combustion and delivers 99.9% of the available heat energy directly to the room. Vent-Free systems have an unmatched safety record, thanks in part to their clean-burning technology and their Oxygen Depletion Sensor, which instantly shuts off the valve if oxygen in the room drops to and unsafe level. Because no venting is required, Vent-Free systems offer more installation options.

Vent-Free systems are limited to 40,000 Btu and must be operated as supplemental heating sources in conjunction with a central furnace that circulates air.

Advantages

• Unmatched efficiency – 99.9%
• Offers the most installation versatility
• Usually less expensive to buy and to install
• Can operate with a remote or thermostat
• Most systems can provide life-saving heat during a winter power outage

Multi-sided Firebox (VFP36SB)

Our Breckenridge Multi-sided fireboxes accept any properly sized, certified vent-free burner and log set, such as the 18-inch, 24-inch, or 30-inch Slope Glaze Vista Burner, with a Stone River Ceramic fiber log set or a Rock Creek refractory log set.  The Breckenridge comes with conventional louvers or in a flush face model that can be completely bricked or tiled into place, yet still allow use of the circulation blower.

FEATURES

• Vent-Free See-Through Firebox accepts all Vent-Free Slope Glaze Vista Burners.

  • (VFSUR18, VFSUR24, and VFSUR30)
  • All Stone River and Rock Creek Log Sets
• Flush Front Circulating
• Decorative Accessories Tailor the Look to Your Decor
• Louver and Flush Front Models in Matte Black
• Blower available for Louver and Flush Front models
• Sides require 1/2" clearance to combustibles

• Junction Box
• Standard Hood, Black (3)
• Banded Brick Liner

• Extended hoods for installation where surround materials are thicker than 1-inch
• Burner and Log Set

*PLEASE NOTE:

• Burner and Log set required to complete this unit.
• Suggested Log sets for this Firebox are Rock Creek Log Set (18in, 24in, 30in) and Stone River Log Set  (18in, 24in, 30in)

Dimensions:

Installation Requirements

• Venting: Vent-free. No chimney, flue or vent pipe is required.
• Burner and log set: Sold separately. Install only an ANSI Z21.11.2 vent-free burner and log set (a listed gas-fired unvented decorative room heater) rated no more than 40,000 Btu/hr, and follow the log set's own installation instructions as well as this firebox's. The firebox manual does not name specific burner or log set models.
• Clearances to combustibles: Firebox outer casing sides 1/2" minimum; combustible finishing materials 3/8" from the top edge of the firebox; 1-3/4" minimum from the inside of the firebox to a perpendicular combustible side wall; 36" minimum to combustible material in front of the firebox; ceiling at least 42" above the top of the hood
• Framing: See-through VFP36SB rough opening 41-1/2" H x 40" W x 23" D. Combustible framing may rest on top of the standoffs.
• Mantel clearance: Follow the mantel chart in the installation manual for any combustible mantel above the unit.
• Floor: If the firebox sits directly on carpeting, tile or other combustible material other than wood flooring, install it on a metal or wood panel extending the full width and depth of the unit.
• Room size, bedrooms and bathrooms: The firebox manual sets no room-size rule of its own; follow the room-size and bedroom/bathroom rules in the installation manual of the vent-free burner/log set you install, and local codes. In the Commonwealth of Massachusetts, unvented propane and natural gas-fired space heaters are prohibited in bedrooms and bathrooms.
• Power: Electrical connections (such as the optional blower) must be grounded per local codes or, where there are none, the National Electrical Code, ANSI/NFPA 70. The three-prong grounding plug must go directly into a properly grounded three-prong receptacle.
• Installation: Must be installed by a qualified installer per the installation manual and local codes.

OPTIONS & ACCESSORIES

Liners

*Multi-sided Firebox includes a Banded Brick Liner.

Black Porcelain Liner  Finish: Black Porcelain Gives your firebox a contemporary modern look Reflective black metal design enhances and amplifies the appearance of flames

	Super Ember Kit Large log and ember kit Includes seven burnt log pieces and white ash
	Lighting Kit 120V 120V lighting kit Creates dramatic shadows inside the firebox Provides visual interest even when the fire isn't burning Suitable for use with Vent Free See-Through Firebox Includes: Rheostat
	Platinum Embers Platinum glowing fireplace embers Can be placed directly on the burner Includes approximately 1 gram of ember material
	Automatic Single-speed Blower
	Variable Speed Control for FBB5 Blower Type: Speed Control Allows you to adjust fan speed of FBB5 firebox blower For use with FBB5 Blower
	Hood– Extended - Matte Black Matte black Extended hood  Extended hoods are used for installations with extended empire mantels. *Required for thick surrounding materials - such as stone or brick.

Click to see Louvers

	Mission Louvers Decorative mission louvers Finish: Matte Black and Hammered Pewter
	Arch Louvers Decorative arch louvers Finish: Matte Black and Hammered Pewter

Click to see Door and Frame

	Door Set - Mission Arch Standard mission arch doors Finish: Matte Black / Hammered Pewter Door Set - Requires Arch Hinge Door Frame
	Door Set - Arch Standard arch doors Finish: Matte Black / Hammered Pewter Door Set - Requires Arch Hinge Door Frame
	Arch Door Frame - Matte Black Arched door frame Finish: Attractive matte black Door Frame - Required for Door Set

Click to see Frame and Trim

	Steel Frame, Black 3-piece outer frame Transitions appliance to adjoining surface
	Steel Frame, Hammered Pewter 3-piece outer frame Transitions appliance to adjoining surface
	Bottom Trim Kit Bottom trim kit for fireplaces and fireboxes Available in hammered pewter

WARRANTY

• All Vent-Free products carry a five-year limited warranty with a five-year limited labor warranty.
• All remote controls carry a one-year limited warranty
