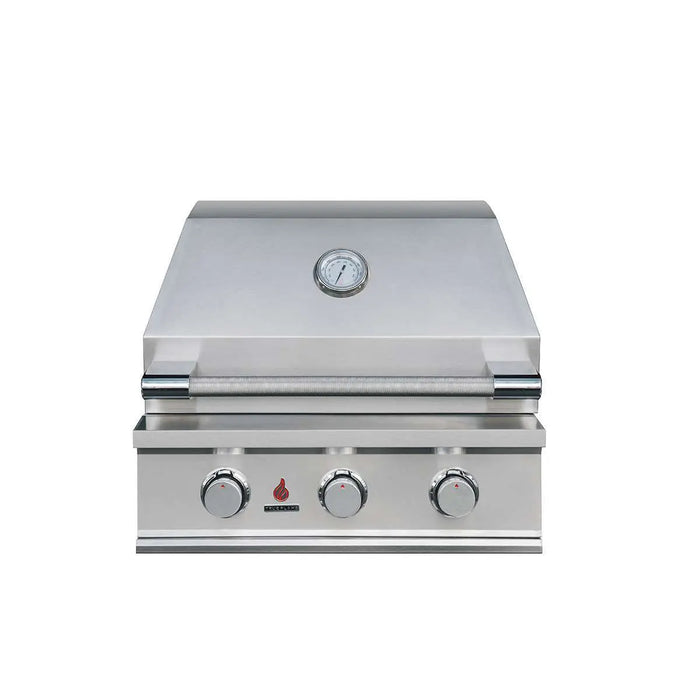

TrueFlame E Series 25″ Built-In 3-Burner Gas Grill - TFE25

TrueFlame E Series 25″ Built-In 3-Burner Gas Grill - TFE25

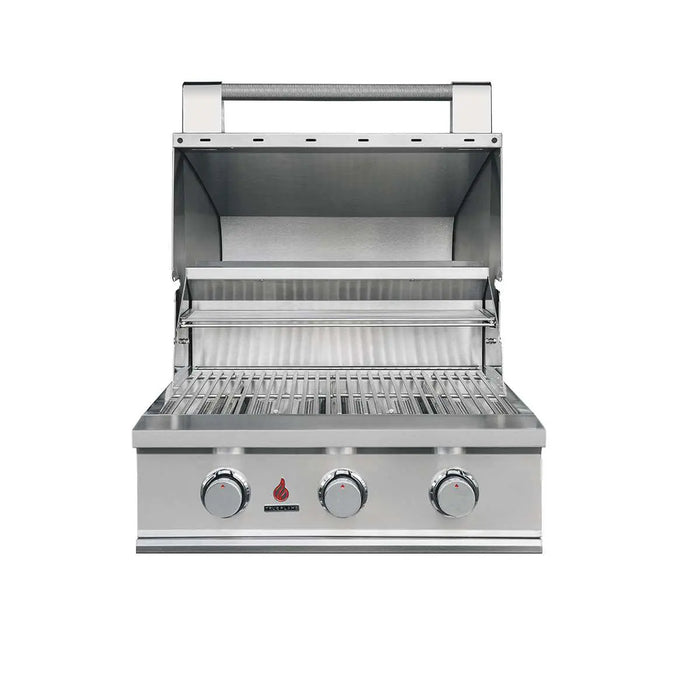

The TrueFlame E Series 25" built-in gas grill has 3 stainless steel tube burners, 8mm round stainless steel grates and a #304 stainless steel body, with no lights or rear burner. Order TFE25 for natural gas or TFE25L for liquid propane. Choose the gas you will connect; orifices for the other gas are included.

What's Included

• Burner covers (3)
• Cooking grates (3)
• Drip tray (1)
• Heat zone separators (2)
• Warming rack (1)
• Manual (1)
• Orifices for converting to the other gas type (packed with the manual)
• Natural gas models: NG regulator

Key Features

• #304 stainless steel construction and hood

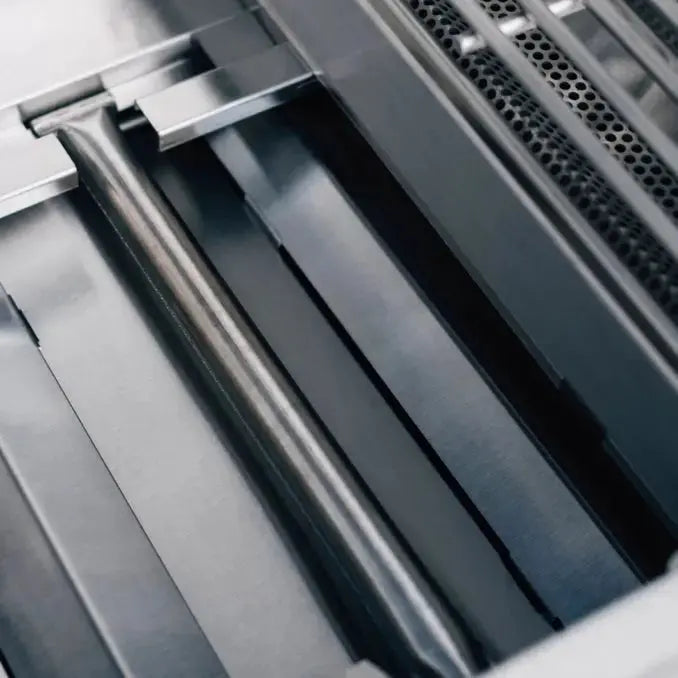

• 3 #304 stainless steel tube burners, 14,000 BTU each

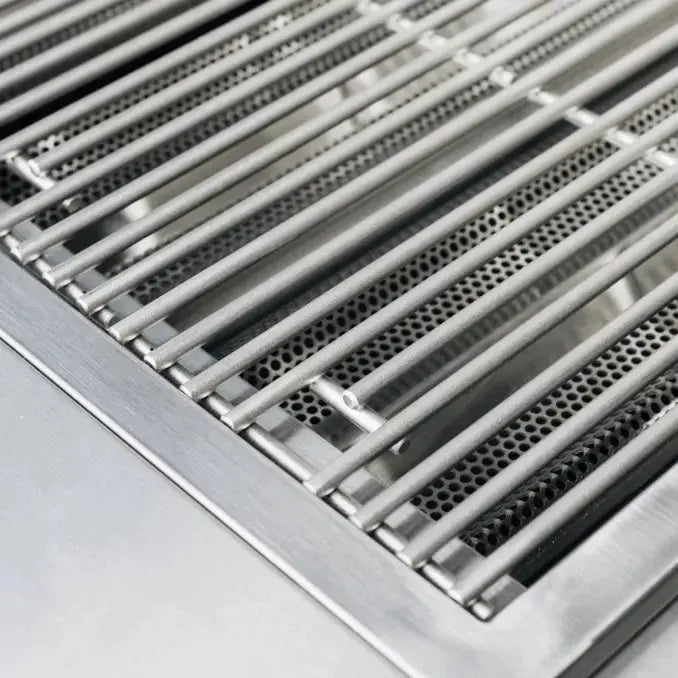

• 8mm round stainless steel cooking grates

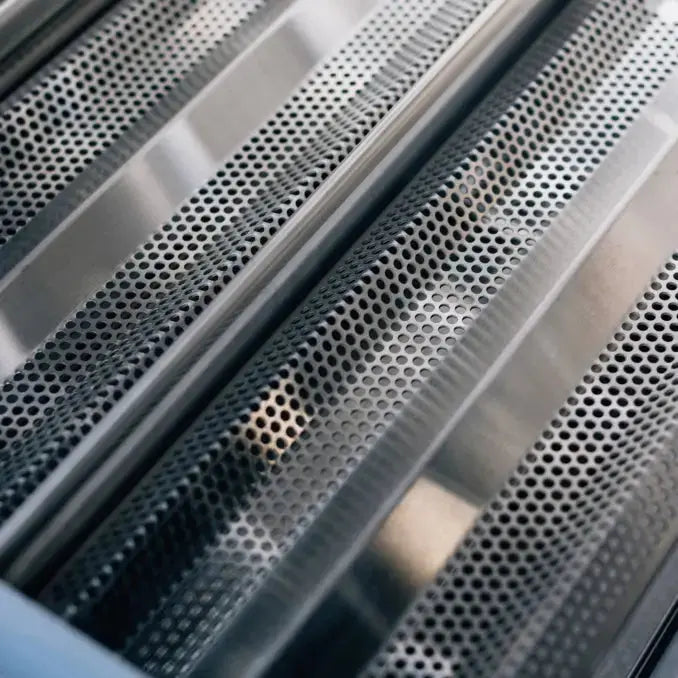

• #304 stainless steel flame tamers and heat zone separators
• Upper warming rack

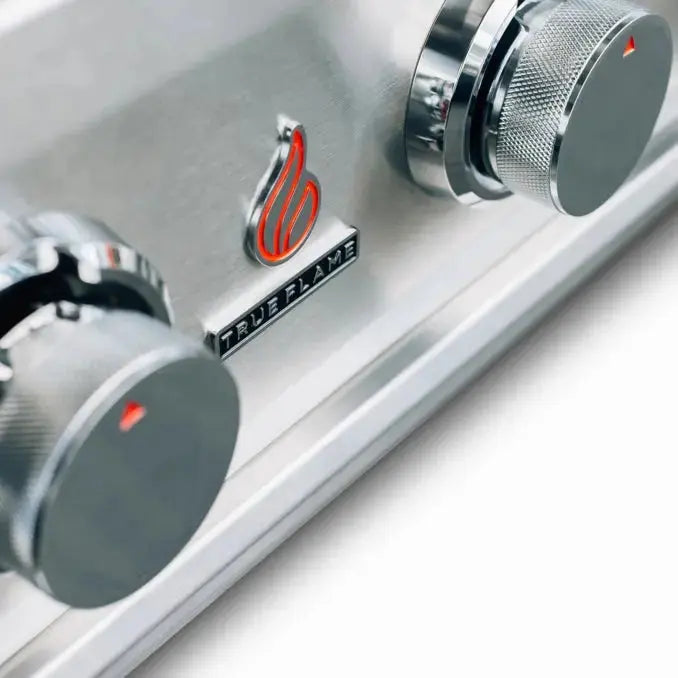

• Flame Thrower ignition with a manual flash tube for match lighting

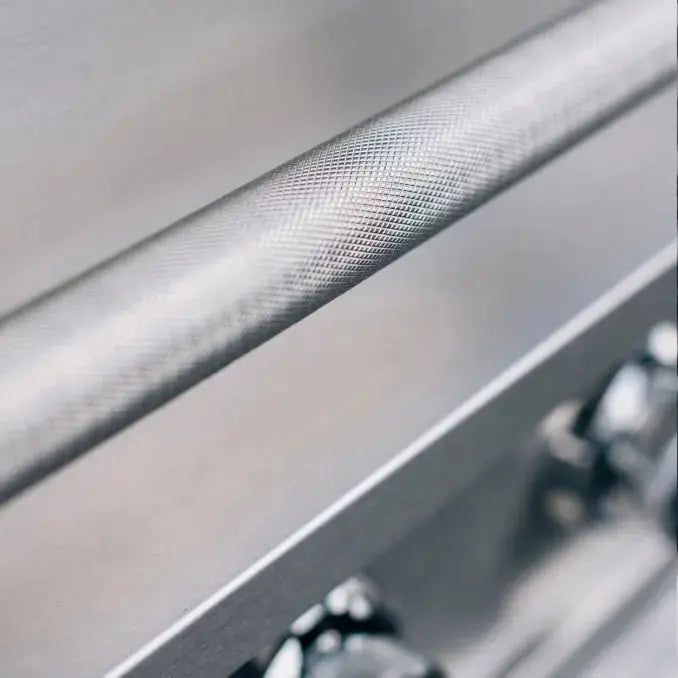

• Knurled, heat-resistant hood handle

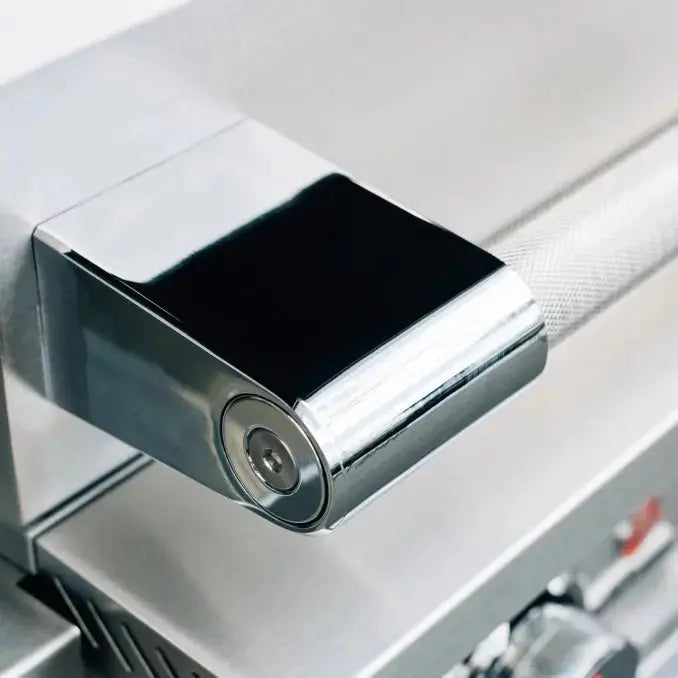

• Patent pending balanced, multi-position hood hinge
• No lights, no transformer and no rear burner

What to Order With It

Required:

• TrueFlame Insulated Grill Liner for Built-In Grills (GL-TF25): Insulating jacket/grill liner required when the grill is installed in a combustible surround (not needed in a non-combustible island)

Optional:

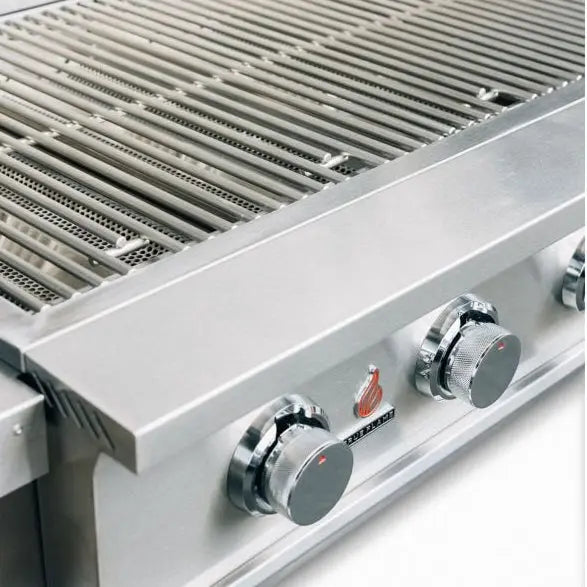

• TrueFlame Deluxe Cart with Fold-Down Side Shelves, KD - Fits TF25/TFE25, TF32/TFE32, TF40 (CART-TF-25DC): Deluxe cart that makes this grill freestanding
• TrueFlame Deluxe Grill Cover for Grills (Built-In models & Freestanding models) (TFGC-25): Deluxe cover for the 25" grill, built-in
• TrueFlame Rotisserie Kit for Grills (Built-In models & Freestanding models) (TFRK-25): Rotisserie kit for the 25" grill
• TrueFlame Rotisserie Kit Storage Bag (TF-GRILLCOV-ROT25): Storage bag for the rotisserie kit

Specifications

Order numbers:

Dimensions

Installation

• Island: the manual calls for non-combustible construction (cement board over steel studs is recommended). If the grill goes into a combustible surround, the TrueFlame insulating jacket/grill liner (GL-TF25) must be used.
• With the GL-TF25 liner, cut the island to the liner cutout instead of the grill cutout.
• Clearances to the right, left and rear: 4" minimum to a non-combustible wall, 14" to a protected combustible wall, 18" to a combustible wall.
• Overhead: at least 5 ft between the countertop and any overhead construction. Under any overhead construction an exhaust hood is required, larger than the cooking area, with a blower of at least 1200 CFM. Never install under unprotected combustible overhead construction.
• Island ventilation: leave one side of the enclosure completely open, or provide at least two vent openings with a combined free area of at least 40 sq. in. Natural gas: vents near the top of the enclosure; propane: vents near the bottom. Openings sit 1" to 5" from the countertop or floor.
• A regulator is required; never connect the grill to an unregulated gas supply. Natural gas: install with the NG regulator supplied with the grill, set to 4.0" water column. Liquid propane: install with an LP regulator set to 11" water column.
• Inlet pressure: natural gas 4.0" to 7.0" water column; propane 10.0" to 14.0" water column.
• Gas supply pipe: never less than 1/2" inside diameter.
• LP models are designed for a standard 20 lb. LP tank with a type 1 valve connection (tank not included).
• Orifices for the other gas type are included with the grill (packed with the manual). Converting may require additional parts that are not included.
• Electrical: the grill has no lights and no transformer. The optional rotisserie motor plugs into an outlet; outlets near the grill must be grounded per local codes or the National Electrical Code (ANSI/NFPA 70).

Please Note

• Build to the cutout listed here. The line drawing recommends adding 1/4" to the inner cutout dimensions so the grill fits. Confirm against the line drawing or with us before cutting.
• Overall dimensions are from the manufacturer's manual; the line drawing and data sheet print slightly different fractions. Contact us if a fraction of an inch matters for your build.
• The TF-IRB drop-in infrared sear burner is listed by the manufacturer for TF Series grills only and is not compatible with E Series grills.

Warranty

Gold Standard Lifetime Warranty on the stainless steel construction, cooking grates, burners, burner covers, valves, flame tamers and heat zone separators; 3 years on all other parts, components and electrical. Register online within 30 days of purchase; coverage is replacement parts only (no labor) for the original purchaser.

Documents

• TrueFlame E Series Grill Manual (TFE25, TFE32) (rev. 07/30/26)
• TFE25 Line Drawing (rev. 06/05/24)
• TrueFlame E Series Grill Spec Sheet (rev. 06/25/24)
• TrueFlame Cutout Dimensions Sheet (rev. 09/09/26)
• TrueFlame Care and Cleaning Guide (rev. 04/23/24)

Compare TrueFlame Grills

Not sure which TrueFlame is right for you? Our TrueFlame grills compared guide puts the TF Series and E Series side by side in one chart, with every size, price and island cutout.
