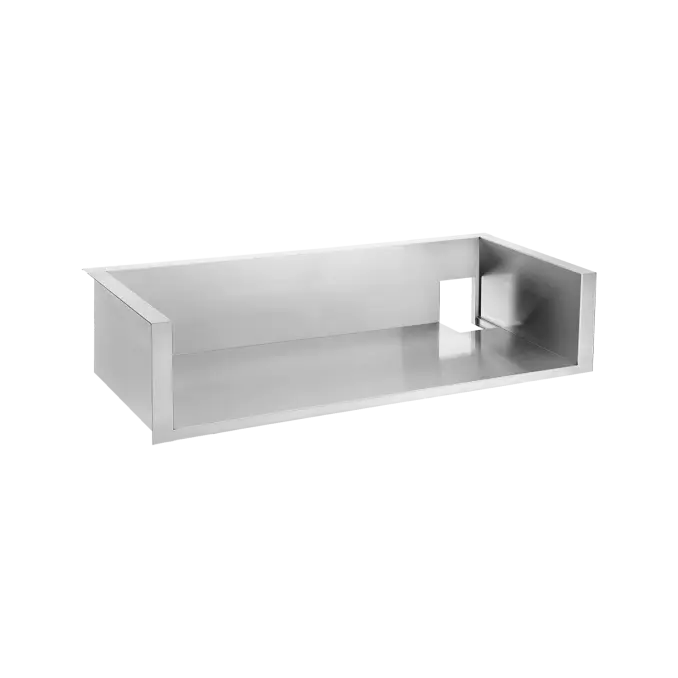

TrueFlame Insulated Grill Liner for Built-In Grills - GL-TF25 / GL-TF32 / GL-TF40
A #304 stainless steel, double-walled insulating jacket that goes into the island cutout under a TrueFlame built-in grill. The manufacturer requires it when the grill is installed in a combustible surround. Choose GL-TF25 for the TF25 or TFE25, GL-TF32 for the TF32 or TFE32, and GL-TF40 for the TF40.
Key Features
- #304 stainless steel construction
- Double-walled design
- Protects combustible island construction from the grill
- Double wall helps protect the grill chassis against corrosion
- Sized to each TrueFlame grill width: 25", 32" and 40"
- Made in the USA
Specifications
Order numbers:
| Order Number |
Option |
Description |
| GL-TF25 |
25" Grill Liner |
25" Grill Liner |
| GL-TF32 |
32" Grill Liner |
32" Grill Liner (TF32L, TF32, TFE32L, TFE32L) |
| GL-TF40 |
40" Grill Liner |
40" Grill Liner (TF40L, TF40) |
| Material |
#304 stainless steel |
| Fits |
GL-TF25: TF25, TFE25; GL-TF32: TF32, TFE32; GL-TF40: TF40 |
| Use |
Required for a built-in grill in a combustible surround |
| Made in |
USA |
Dimensions
| GL-TF25 island cutout (W x D x H) |
26" W x 22" D x 9 3/4" H |
| GL-TF32 island cutout (W x D x H) |
33" W x 22" D x 9 3/4" H |
| GL-TF40 island cutout (W x D x H) |
40 3/8" W x 22" D x 9 3/4" H |
| GL-TF25 overall (W x D x H) |
27.8" W x 22.8" D x 9.6" H |
| GL-TF32 overall (W x D x H) |
34.7" W x 22.8" D x 9.6" H |
| GL-TF40 overall (W x D x H) |
42.1" W x 22.8" D x 9.6" H |
Installation
- Cut the island to the liner cutout, not the grill cutout; the grill then sits in the liner.
- The line drawing recommends adding 1/4" to the inner cutout dimensions.
- The grill's wall clearances in its manual still apply.
- For built-in installation only; a grill on a cart does not use a liner.
Please Note
- Confirm the liner cutout against the line drawing or with us before cutting.
- GL-TF40 fits the TF40 only.
Warranty
Gold Standard Lifetime Warranty on construction, workmanship and materials for all stainless steel parts, including grill liners. Register online within 30 days of purchase; coverage is for the original purchaser and does not include labor.
