TrueFlame 4" Spacer Bracket for 36" Vent Hood - TF-VH36-2-SP4

TrueFlame 4" Spacer Bracket for 36" Vent Hood - TF-VH36-2-SP4

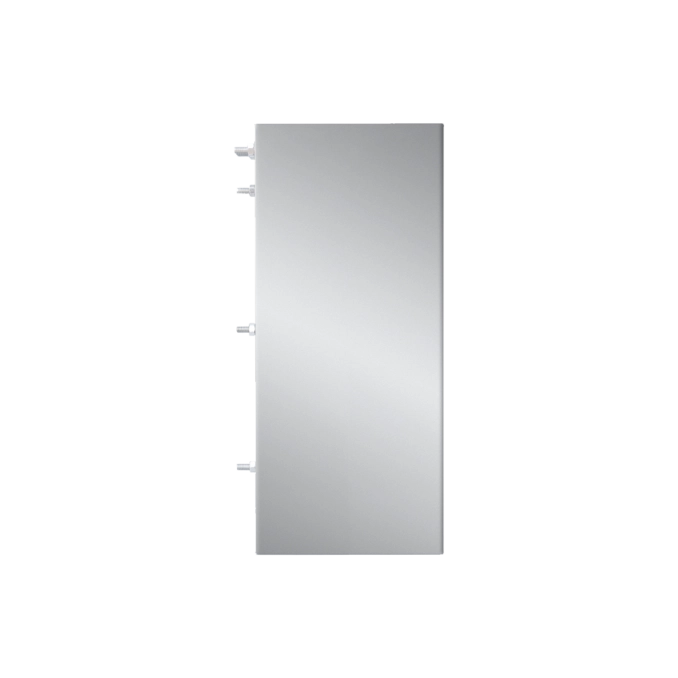

The TrueFlame TF-VH36-2-SP4 is a 4" spacer bracket for the 36" TF-VH36-2 vent hood. It mounts between the wall and the hood and moves the hood 4" off the wall. It fits the TF-VH36-2 only; for an 8" offset, choose the TF-VH36-2-SP8.

What's Included

• 2 filler plate spacers
• 12 1/4-20 x 1 1/8" hex head screws, 18-8 stainless steel
• 12 M6 washers, 18-8 stainless steel
• 12 M6 split lock washers, 18-8 stainless steel
• 12 1/4-20 hex nuts, 18-8 stainless steel
• Instruction sheet

Key Features

• Moves the 36" hood 4" off the wall
• Works with top or rear ducting
• #304 stainless steel
• Stainless steel mounting hardware included
• Used in place of the 1/2" mounting template that comes with the hood

What to Order With It

Required:

• TrueFlame 36" Vent Hood with 1,000 CFM Motor and Mounting Bracket (TF-VH36-2): The 36" vent hood this spacer is made for

Optional:

• TrueFlame 12" Duct Cover for 36" Vent Hood (TF-VH36-2-DC): 12" duct cover for the TF-VH36-2

Specifications

Dimensions

Installation

• Use this spacer in place of the hood's 1/2" mounting template; never use the template and a spacer together.
• Secure the spacer into multiple wall studs with proper hardware. Metal framing needs additional studs and screws.
• The manufacturer says spacer installation must be done by a qualified professional installer.
• Mount the bottom of the hood 32" minimum and 36" maximum above the grill cooking surface (manufacturer recommendation).

Please Note

• If you add a duct cover to a hood mounted on this spacer, a 4" duct cover filler panel (TF-DCF-SP4) closes the gap between the duct cover and the wall. Ask us about this part.

Warranty

Covered by the TrueFlame (AMD Direct) Gold Standard Lifetime Warranty, for purchases as of 3/1/23. It covers replacement parts only (labor is not covered), applies to the original purchaser, and requires online registration within 30 days.

Documents

• TrueFlame Vent Hood Spacer Instructions (rev. 06/26/24)
• TF-VH36-2-SP4 Line Drawing
• TrueFlame Vent Hood Manual (VH36-2, VH42-3, VH48-3, VH60-3, VH72-3) (rev. 08/14/25)
