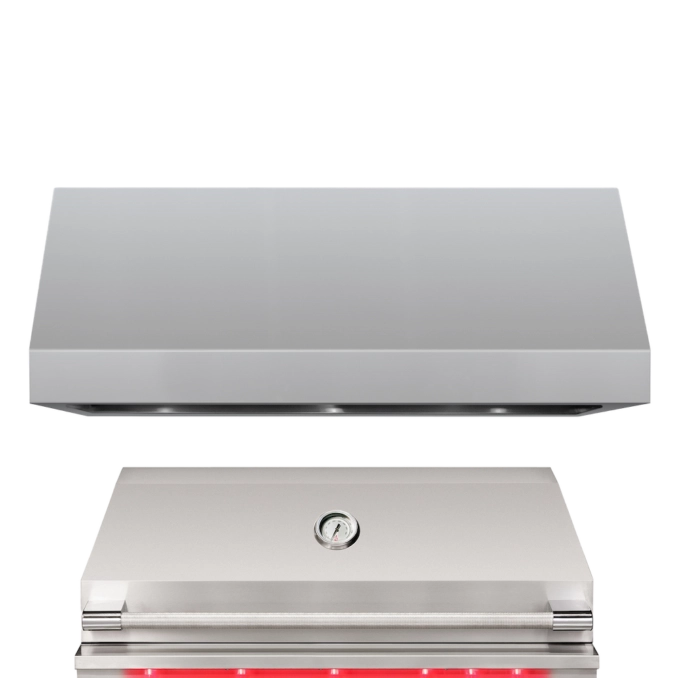

TrueFlame 36" Vent Hood with 1,000 CFM Motor and Mounting Bracket - TF-VH36-2

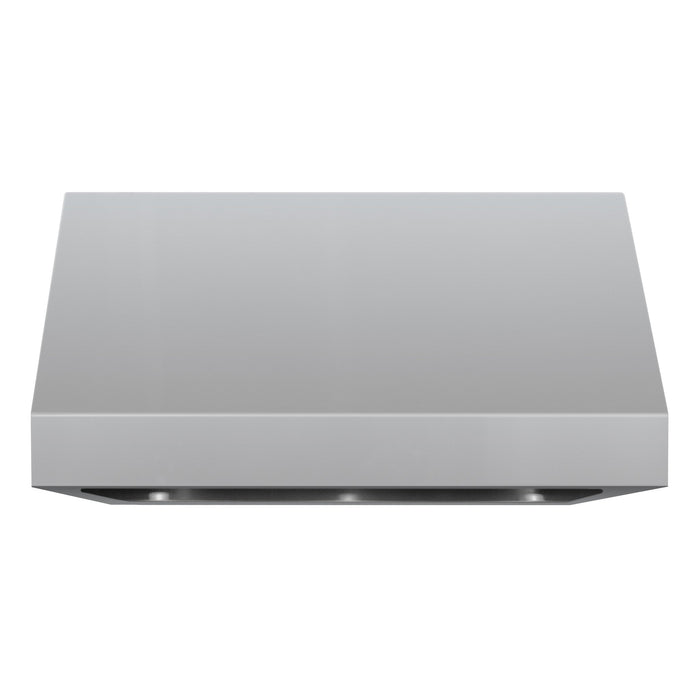

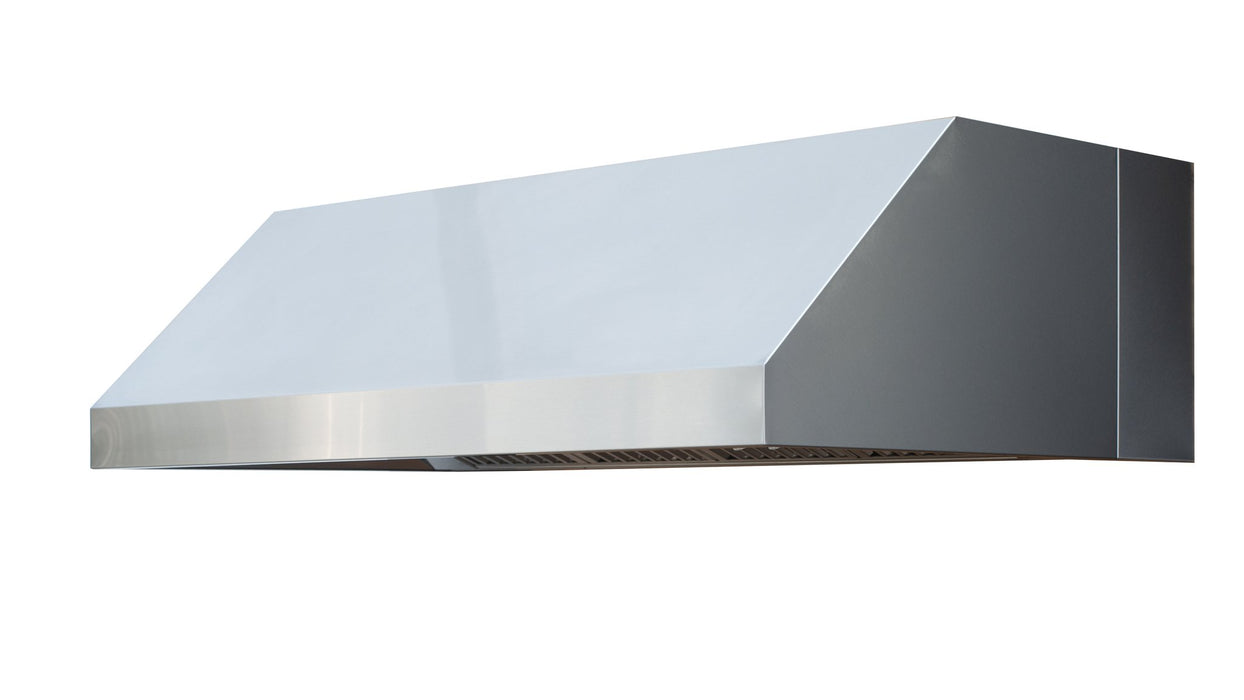

The TrueFlame TF-VH36-2 is a 36" outdoor rated, wall-mounted vent hood with one 1,000 CFM blower, two LED lights and a single 8" duct connection. It vents from the top or the rear and comes with a 1/2" mounting template (the mounting bracket). The manufacturer recommends a hood at least 6" wider than the cooking appliance below it.
What's Included
- 36" vent hood with one 1,000 CFM blower installed
- 1/2" mounting template (mounting bracket)
- 2 LED lights
- 3 stainless steel 12" baffle filters
- Grease tube
- 8" transition collar
- Power cord
Key Features

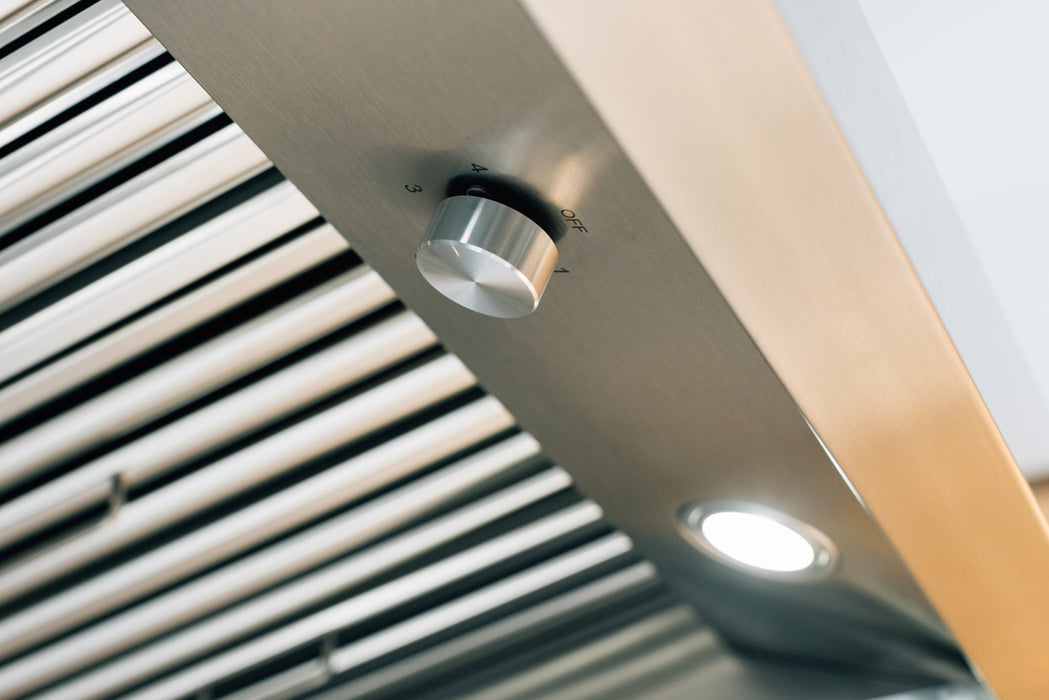

- One 1,000 CFM centrifugal blower
- 4 fan speeds
- 58 dB noise level
- 2 LED lights
- Top or rear venting through one 8" duct
- Double-lined #304 stainless steel hood

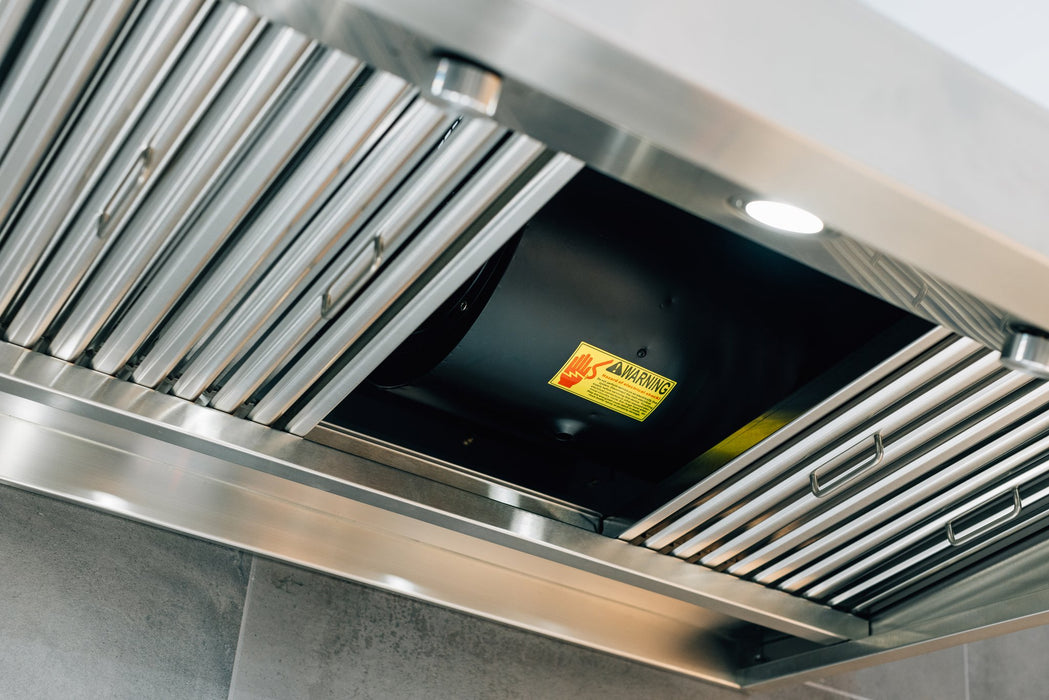

- Stainless steel baffle filters are dishwasher safe
- Grease tube collects grease from the filters
What to Order With It
Optional:
Specifications
| Model Number |
TF-VH36-2 |
| Airflow |
1,000 CFM |
| Blower |
1 centrifugal blower, 980 rpm at top speed |
| Fan speeds |
4 |
| Noise level |
58 dB |
| Lights |
2 LED, 3 W each |
| Filters |
3 x 12" stainless steel baffle filters |
| Venting |
Top or rear |
| Duct connection |
1 x 8" round |
| Material |
#304 stainless steel, double-lined hood |
| Electrical |
120 V / 60 Hz, 246 W, 2 A |
| Mounting |
Wall mount |
| Use |
Outdoor rated; residential use only |
| Made in |
China |
Dimensions
| Overall (W x D x H) |
36" W x 30" D x 18" H |
| Top depth |
15" |
| Duct transition |
8" collar, extends 3" above the hood top; centered 5 1/2" from the rear and 18" from the side |
Installation
- Mount the bottom of the hood 32" minimum and 36" maximum above the grill cooking surface (manufacturer recommendation).
- For wood or charcoal, the manual recommends a minimum clearance of 36".
- Choose a hood at least 6" wider than the cooking appliance; it should extend 3"-6" past each side and the front of the grill.
- Use 8" round galvanized rigid single-wall vent pipe from the transition onward, with an 8" roof or wall vent cap minimum.
- Use a non-restrictive termination cap; do not use a restrictive cap or damper.
- Do not end the vent in an attic or other enclosed area. More than 20 ft of total vent pipe reduces the hood's effectiveness.
- Power: 120 V / 60 Hz. The earlier manual for this model calls for a properly wired 120 VAC (15 amp minimum) GFCI grounded 3-wire receptacle (not included) and no extension cord.
- Use either the included 1/2" mounting template or a 4" or 8" spacer bracket, never the template and a spacer together.
- TrueFlame also makes a 22"-43" telescopic duct cover for this hood (TF-VH36-DCT) and duct cover filler panels for spacer-mounted installs; ask us about these parts.
Please Note
- The manufacturer's installation manual gives different limits in different places for the elbows allowed in the vent run and for how many people are needed to install the hood. Follow the installation manual and confirm your vent run and install plan with us before you buy duct parts.
- For residential use only, per the manufacturer.
Warranty
Covered by the TrueFlame (AMD Direct) Gold Standard Lifetime Warranty, with replacement parts 100% non-prorated, for purchases as of 3/1/23. It covers replacement parts only (labor is not covered), applies to the original purchaser at the original delivery site, requires online registration within 30 days, and excludes commercial use, improper installation, surface rust, corrosion and discoloration.
