TrueFlame 30" Built-In Griddle Grill - TFG30

TrueFlame 30" Built-In Griddle Grill - TFG30

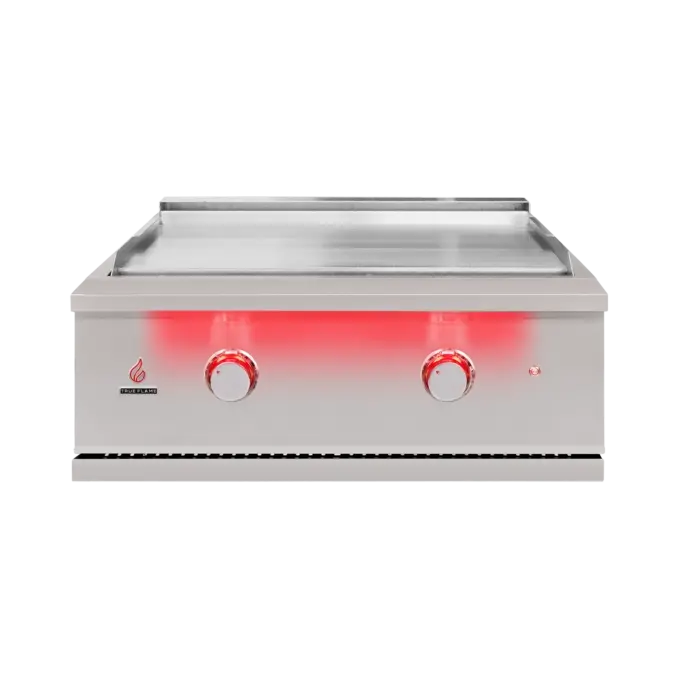

The TrueFlame 30" griddle is a built-in, slide-in gas griddle with two 18,000 BTU burners under a 495 sq. in., 1/2" thick stainless steel cooking surface. Choose TFG30 for natural gas or TFG30L for liquid propane; a conversion kit comes in the box.

What's Included

• Removable #304 stainless steel lid
• Drip tray
• Gas conversion kit (natural gas / liquid propane)
• Transformer for the front-panel LED lighting

Key Features

• Two 18,000 BTU #304 stainless steel U-tube burners
• 495 sq. in. cooking surface of 1/2" thick stainless steel
• #304 stainless steel construction, easy to clean

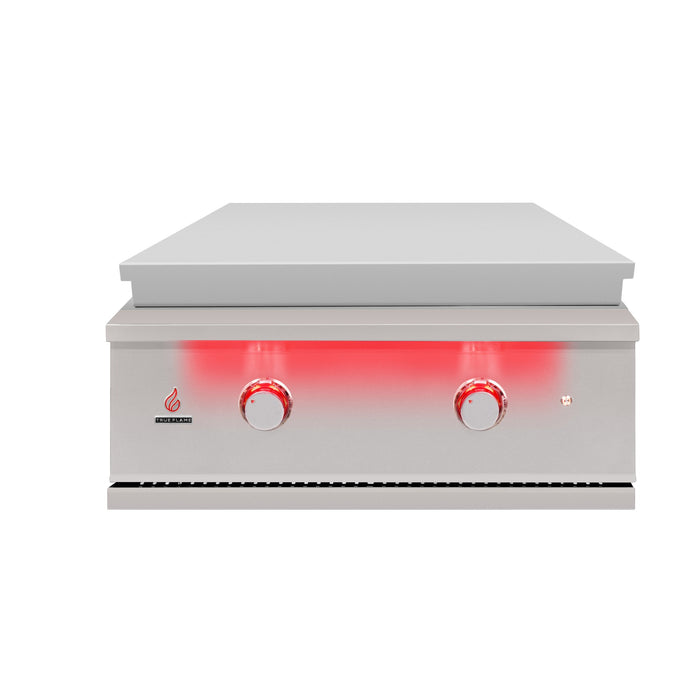

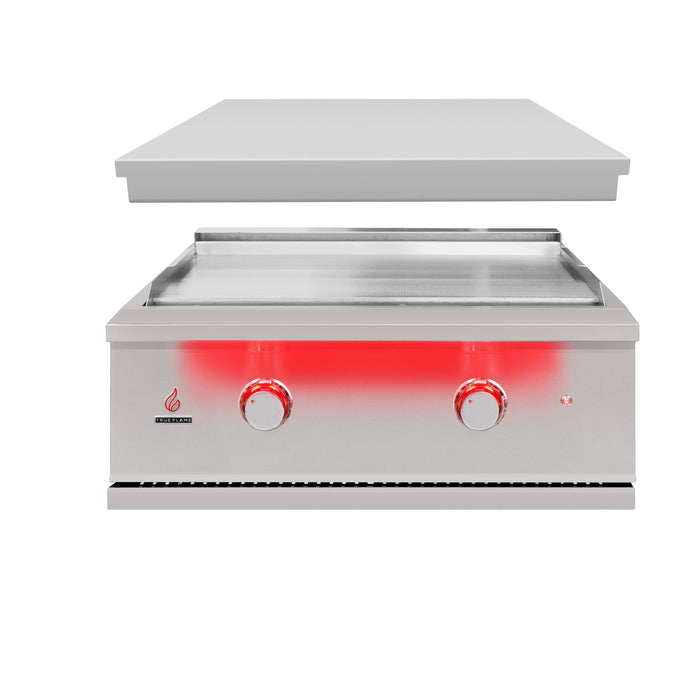

• Removable #304 stainless steel lid
• Large-capacity drip tray, reached through the 1" front air space

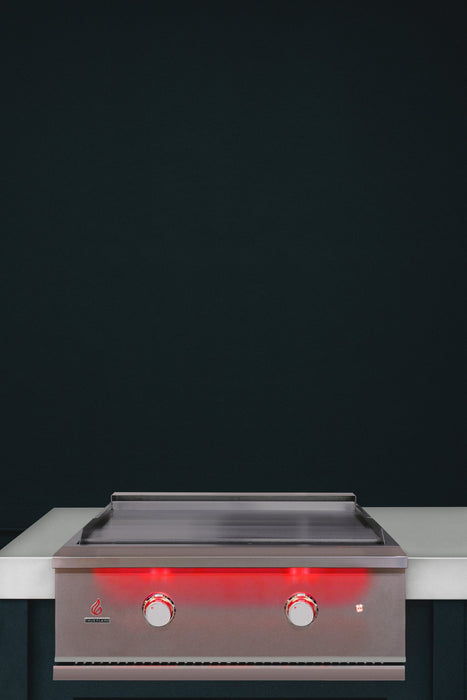

• Full-length exterior LED bar above the knobs, with lighting behind each knob that shows whether a burner is on or off
• Push-and-turn sure-strike ignition, with a lit match or BBQ lighter as backup
• Gas conversion kit included

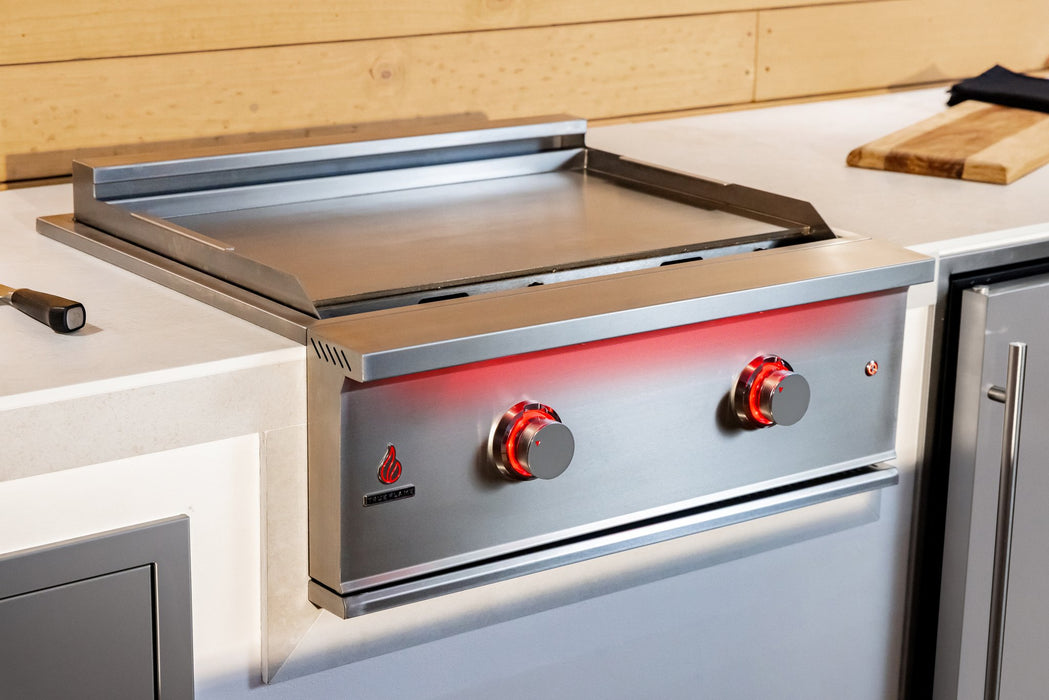

• Slide-in unit for open-front, non-combustible enclosures; the control panel removes for gas hookup and service

What to Order With It

Required:

• TrueFlame Grill Liner for 30" Griddle Grill (Built-In model) (GL-TFGRID30): Insulating liner required if the griddle goes into a combustible enclosure (wood, plastic or similar framing). Not needed in a masonry or other non-combustible island.

Optional:

• TrueFlame Deluxe Grill Cover for 30" Griddle Grill (Built-In model) (TFGC-GRID30): Deluxe cover for the built-in 30" griddle

Specifications

Order numbers:

Dimensions

Installation

• Install in masonry or another fireproof surround. The griddle is not insulated; for a combustible enclosure, use the GL-TFGRID30 insulating liner.
• Keep a minimum of 18" from the sides and back of the griddle to adjacent vertical combustible construction.
• Non-combustible construction: a minimum 1" from the back above the cooking surface is required; 1" at the sides above the cooking surface is recommended.
• The side lip needs 1" of countertop on each side and at the back to support the unit.
• Keep the 1" front air inlet along the bottom of the control panel clear. The control panel must stay removable after installation.
• The griddle must be level in all directions.
• Do not install under unprotected overhead combustible construction. Under any overhead construction, use an exhaust hood over the cooking surface; under a patio roof, an exhaust fan rated up to 1,000 CFM may be necessary. Fully enclosed patio installation is not allowed.
• Outdoor use only; not in a building, garage or other enclosed area.
• Electrical: the LED lighting runs through the included transformer; use a grounded outlet per local codes or NEC ANSI/NFPA 70.
• It is recommended to build the griddle at least 6"-12" lower than the countertop.
• Gas pressure: natural gas 4" w.c. minimum to 7" w.c. maximum; liquid propane 11" w.c. minimum to 14" w.c. maximum.
• Use the regulator supplied with the griddle; it is required for the warranty. Never connect an unregulated gas supply.
• Liquid propane models are designed for a standard 20 lb. LP tank with a Type 1 valve and OPD (tank not included), up to approximately 12" diameter x 18 1/2" high.
• The conversion kit is included; converting gas type may require additional parts not included.
• Gas hookup by a qualified technician, with an accessible shutoff valve, to local codes or the National Fuel Gas Code (ANSI Z223.1/NFPA 54).
• To run one gas line to both a side burner and the griddle, use a 'T' adapter fitting (not provided).

Please Note

• Confirm the cutout against the TFG30 line drawing or with us before cutting. The line drawing recommends adding 1/4" to the inner dimension.
• If you use the GL-TFGRID30 liner, cut the island to the liner cutout (30 1/2" W x 23 1/4" D x 11 1/2" H), not the griddle cutout.
• The manufacturer's documents give 11" w.c. as the minimum liquid propane pressure in one place and a factory LP regulator setting of 10" w.c. in another; confirm with us before connecting.

Warranty

TrueFlame (AMD Direct) Gold Standard Lifetime Warranty on construction, stainless steel construction, burners, valves and heat zone separators, with all replacement parts 100% non-prorated; 3 year warranty on other parts and electrical, including LED bulbs, wire harness, switches, power source wire and transformer. Register online within 30 days of purchase; the warranty covers replacement parts only (no labor) and is void on transfer of ownership.

Documents

• TrueFlame 30" Griddle Manual (TFG30) (rev. 06/12/26)
• TFG30 Line Drawing
• TrueFlame Cutout Dimensions Sheet (rev. 09/09/26)
• TrueFlame Care and Cleaning Guide (rev. 04/23/24)
