TrueFlame Grill Liner for 30" Griddle Grill (Built-In model) - GL-TFGRID30

TrueFlame Grill Liner for 30" Griddle Grill (Built-In model) - GL-TFGRID30

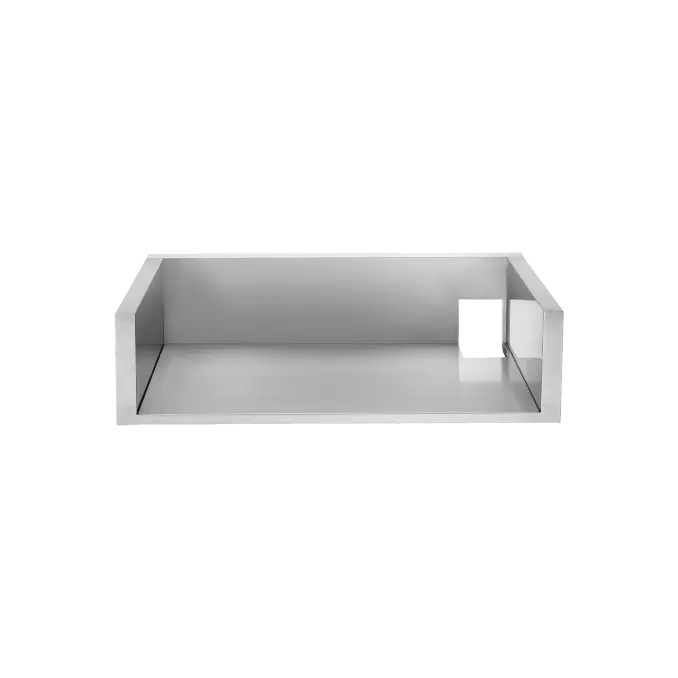

The TrueFlame GL-TFGRID30 is a double-walled #304 stainless steel insulating liner (jacket) for the built-in TrueFlame 30" griddle, TFG30 or TFG30L. The griddle is not insulated, so you need this liner when it goes into an island built with combustible materials.

Key Features

• #304 stainless steel, easy to clean
• Inch-thick double-walled insulation blocks heat from reaching combustible surfaces or framing such as wood or plastic
• Double-walled design protects the appliance chassis against corrosion
• Made in the USA
• Fits the TrueFlame 30" griddle, TFG30 and TFG30L

What to Order With It

Optional:

• TrueFlame Deluxe Grill Cover for 30" Griddle Grill (Built-In model) (TFGC-GRID30): Deluxe cover for the built-in 30" griddle

Specifications

Dimensions

Installation

• Required when the TFG30 griddle is installed in a combustible enclosure; without it the griddle must go in masonry or another fireproof surround.
• Cut the island opening to the liner cutout (30 1/2" W x 23 1/4" D x 11 1/2" H), not to the griddle cutout.
• The griddle still needs its own gas, electrical and overhead-clearance requirements met.

Please Note

• Confirm the cutout against the GL-TFGRID30 line drawing or with us before cutting. The line drawing recommends adding 1/4" to the inner dimension.
• The TFG30 griddle line drawing lists this liner as GL-GRID30; the current part number is GL-TFGRID30.

Warranty

Gold Standard Lifetime Warranty on construction, workmanship and materials for stainless steel parts, including grill and side burner liners. Register online within 30 days of purchase; the warranty covers replacement parts only.

Documents

• TrueFlame 30" Griddle Manual (TFG30) (rev. 06/12/26)
• GL-TFGRID30 Line Drawing
• TrueFlame Cutout Dimensions Sheet (rev. 09/09/26)
