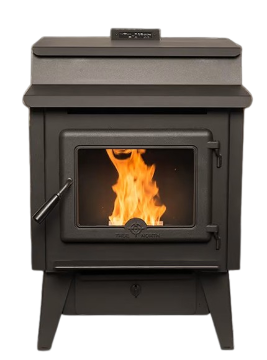

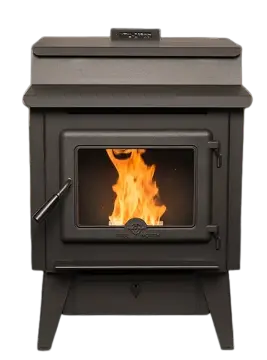

True North TN40 Pellet Stove with Legs
The True North TN40 is a freestanding wood pellet stove with an 80 lb hopper and digital controls, certified to the EPA 2020 standard. This listing is the leg model, order number 33010001.
What's Included
- TN40 pellet stove (33010001)
- Cast iron door
- Convection blower
- Legs
- Power cord
Key Features
- EPA 2020 certified: 1.36 g/hr
- Digital control panel with five heat levels
- Runs in manual mode as shipped. Hi/low and automatic modes need a low-voltage wall thermostat, sold separately.
- Automatic igniter
- Hopper holds up to 80 lb of pellets; the lid has a safety shut-off switch
- Stainless steel burn pot liner and an ash pan
- Air wash keeps the glass clear
- Approved for mobile homes with outside air
What to Order With It
True North lists no factory options for the TN40 stove.
Required, supplied by your installer:
- 3 in. or 4 in. Type PL or Type L pellet vent listed to UL 641. The stove has a 3 in. flue collar. True North suggests 4 in. vent above 4,000 ft, for horizontal runs over 10 ft, or with more than three elbows.
- Non-combustible floor protection (see below)
- In a mobile home: outside combustion air. The intake takes 2 in. inside-diameter non-combustible pipe.
Optional:
Specifications
| Order Number |
33010001 |
| Model |
TN40, Series A |
| Base |
Legs |
| Fuel |
Premium wood pellets graded by PFI, ENplus or CANplus |
| Input |
About 10,000 to 39,500 BTU/hr, depending on fuel |
| EPA Tested Output |
7,400 to 28,200 BTU/hr |
| Efficiency |
72.2% HHV, 78.9% LHV |
| Emissions |
1.36 g/hr |
| Hopper |
Up to 80 lb, depending on fuel density |
| Maximum Feed Rate |
About 4.5 lb per hour |
| Electrical |
120V, 60 Hz. 5 A maximum, 2.5 A in normal operation. Grounded three-prong plug. |
| Flue Collar |
3 in. |
| Weight |
325 lb |
| Safety Listing |
ASTM E1509, UL 1482 |
| Use |
Indoor, residential and mobile home |
Dimensions
| Width |
24 in. |
| Height |
34 1/4 in. |
| Depth |
27 1/4 in. |
| Flue Center |
16 1/2 in. above the floor |
Clearances to Combustibles
| Sides |
6 in. from the edge of the stove top |
| Back |
3 in. from the back of the hopper |
| Corner |
3 in. |
| Front |
48 in. |
| Alcove |
Minimum height 7 ft, minimum width 36 in., maximum depth 36 in. |
| Vent Pipe |
As the vent manufacturer specifies |
At minimum clearances the stove may have to be moved for service, so leave more room where you can. Store pellets at least 48 in. from the stove.
Floor Protection
The stove must stand on a non-combustible ember protector that covers the full width and depth under the stove, including the vent pipe, and extends 6 in. beyond the front and each side of the door and ash pan openings.
Install to the manual and your local codes. True North recommends an NFI-certified installer. Ask your local building or fire officials about permits and inspection before you install.
Warranty
True North Pellet Products Warranty, for the original purchaser:
- 3 years parts, 1 year labor: firebox, castings and glass (thermal breakage only, not impact)
- 1 year parts and labor: electrical components and switches
- 1 year parts only: gaskets, paint (peeling), bricks, firebox liner, burn pot and liner
The warranty is not transferable and covers normal residential use. It is void if the unit burns fuel it is not EPA certified for. Conditions and exclusions are in the manual.
