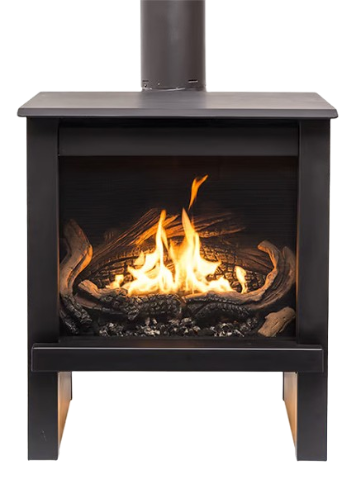

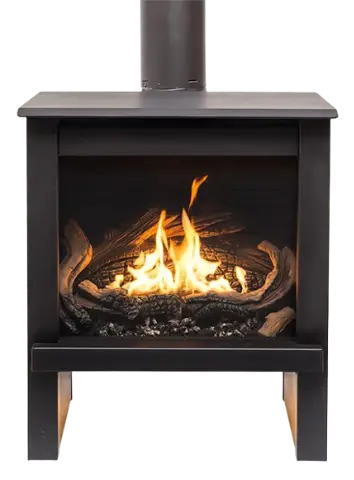

True North TN24 Gas Stove
The True North TN24 is a direct vent freestanding gas stove rated at 24,000 BTU/hr input, with a log set, black porcelain panels, interior lighting and a Proflame 2 remote. The stove ships set up for natural gas under order number 32010001. Choose Liquid Propane above and we add the LP conversion kit, order number 32180001.
What's Included
- TN24 gas stove body with burner (32010001)
- Log set with embers
- Black porcelain panel set
- Interior accent lighting
- Glass door and safety screen barrier
- Proflame 2 remote control
- Power cord
- Liquid Propane option only: LP conversion kit (32180001) with pilot and burner orifices and a pressure modulator, to be fitted by a qualified installer
Key Features
- Direct vent: sealed combustion through 4 in. x 6 5/8 in. coaxial vent
- Remote with six flame levels, room thermostat and Smart thermostat modes
- Remote also sets fan speed and accent light level, six steps each
- Continuous or intermittent pilot, selected from the remote
- Sits directly on any stable floor. No floor protector is needed.
- Approved for a bedroom or bed-sitting room
- Approved for an aftermarket installation in a manufactured (mobile) home in the USA, where local codes allow
- Can vent through an existing masonry chimney with co-linear flex liners
What to Order With It
Required, supplied by your installer:
- 4 in. x 6 5/8 in. coaxial direct vent pipe and a termination from one approved brand: ICC EXCELDirect, Metal-Fab Sure-Seal, Security Secure Vent, Selkirk Direct-Temp or DuraVent DirectVent Pro. Do not mix brands.
- Gas supply line and connector. The stove has a 3/8 in. flare fitting.
Optional:
Specifications
| Order Number |
32010001 (natural gas). Liquid Propane adds conversion kit 32180001. |
| Model |
TN24, Series A |
| Input, Natural Gas |
24,000 BTU/hr maximum, 13,500 BTU/hr minimum |
| Input, Propane |
24,000 BTU/hr maximum, 12,000 BTU/hr minimum |
| AFUE |
73.0% |
| Vent |
4 in. x 6 5/8 in. coaxial direct vent. Maximum total length 30 ft, with no more than three 90 degree elbows. |
| Co-Linear Venting |
Two 3 in. flex liners, 10 ft minimum to 35 ft maximum to the termination |
| Gas Connection |
3/8 in. flare |
| Supply Pressure |
Natural gas 5.0 to 13.9 in. WC. Propane 12.5 to 13.9 in. WC. |
| Electrical |
Plugs into a standard wall outlet. Blower rating 115V, 60 Hz, 1.1 A. |
| Remote |
Proflame 2 handset, 3 AAA batteries |
| Altitude |
0 to 4,500 ft |
| Safety Listing |
ANSI Z21.88 / CSA 2.33 vented gas fireplace |
| Use |
Indoor |
Dimensions
| Width |
25 in. |
| Height |
29 11/16 in. |
| Depth |
19 3/16 in. |
| Flue Outlet Center |
24 in. above the floor |
Clearances to Combustibles
| Side Wall |
4 in. |
| Back Wall |
4 in. |
| Ceiling |
18 in. |
| Vent Pipe |
1 in. |
Installation and service must be done by a qualified installer, service agency or the gas supplier, to the National Fuel Gas Code, ANSI Z223.1, and local codes. In Massachusetts only a licensed plumber or gas fitter may install this stove.
Warranty
The TN24 manual does not include the warranty statement. Contact us for True North's current gas stove warranty terms.
