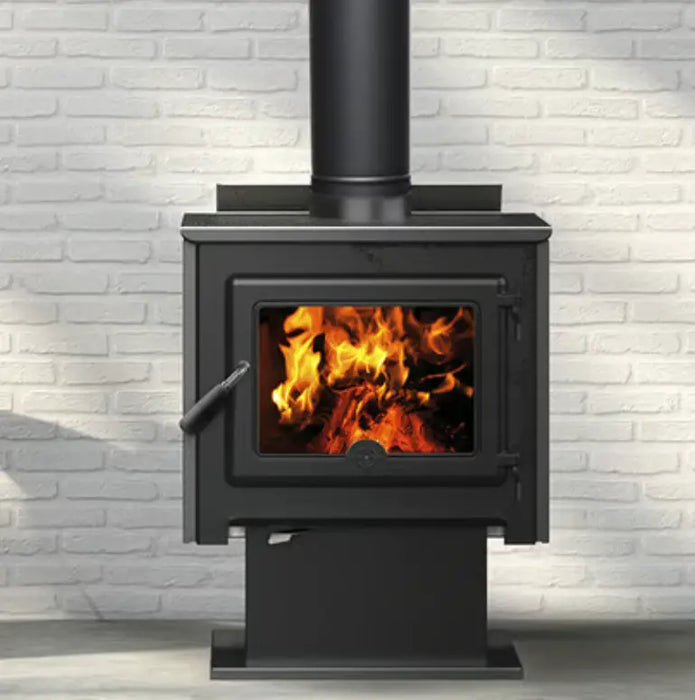

True North TN20 Wood Stove with Pedestal
The True North TN20 Series B is a non-catalytic wood stove with a 2.0 cu. ft. firebox, certified to the EPA 2020 standard at 1.6 g/hr. This listing is the pedestal model in metallic black, order number 31010010.
What's Included
- TN20 Series B wood stove body, metallic black (31010010)
- Cast iron door
- Side shields
- Pedestal base
Key Features
- EPA 2020 certified: 1.6 g/hr
- Non-catalytic tube combustion: no catalyst to maintain or replace
- Burn time about 6 to 8 hours per True North; it depends on draft, fuel and loading
- Air wash system keeps the ceramic glass clear
- Single-lever air control
- Heavy plate-steel top and gasketed cast iron door
- Takes combustion air from the room or from outside
- Approved for mobile homes with outside air and a listed double-wall connector
- Log length: 18 in. ideal, 20 in. maximum
What to Order With It
Optional:
Required, supplied by your installer:
- Not included: a 6 in. chimney connector and a chimney listed to UL 103HT, or a code-approved masonry chimney with a flue liner
- Non-combustible floor protection (see below)
Specifications
| Order Number |
31010010 |
| Model |
TN20 Series B |
| Base |
Pedestal |
| Finish |
Metallic black |
| Fuel |
Seasoned cordwood only |
| Firebox |
2.0 cu. ft. |
| Peak Output |
55,000 BTU/hr |
| EPA Tested Output |
13,900 to 29,200 BTU/hr |
| Efficiency |
72.7% HHV, 78% LHV |
| Emissions |
1.6 g/hr |
| Log Length |
18 in. ideal, 20 in. maximum |
| Flue |
6 in. |
| Safety Listing |
UL 1482 |
| Use |
Indoor, residential and mobile home. Not for a sleeping room. Not for installation in a fireplace. |
Dimensions
| Width |
21 5/8 in. |
| Height |
28 1/8 in. overall, 26 1/4 in. to the stove top |
| Depth |
28 3/4 in. overall, 23 7/8 in. body |
Leg and pedestal models have the same dimensions.
Clearances to Combustibles
Minimum clearances to combustible surfaces, from the manual. The connector and chimney must be 6 in. diameter.
| Installation |
Back wall to stove |
Side wall to stove |
Corner walls to stove |
Back wall to flue center |
Side wall to flue center |
Corner walls to flue center |
| Single-wall connector |
12 in. |
12 in. |
8 in. |
18 3/8 in. |
22 3/4 in. |
19 in. |
| Double-wall connector |
5 in. |
8 in. |
3 in. |
11 3/8 in. |
18 3/4 in. |
14 in. |
| Mobile home (double-wall only) |
5 in. |
8 in. |
3 in. |
11 3/8 in. |
18 5/8 in. |
14 in. |
Alcove (double-wall connector): minimum height 7 ft, maximum depth 3 ft.
A mobile home installation must use a listed double-wall connector and outside combustion air, and the chimney must rise at least 12 ft above the top of the stove.
Floor Protection
The stove can sit on a combustible floor when it stands on non-combustible ember protection (UL 1618 Type 1, the equivalent of 20 gauge steel or tile). The protection must reach 16 in. in front of the firebox and 8 in. past each side of the loading door opening. Minimum size: 28 1/2 in. wide x 40 in. deep. It is also needed under a horizontal chimney connector and 2 in. beyond each side of it.
Install to the manual and your local codes. True North recommends an NFI-certified installer. Ask your local building or fire officials about permits and inspection before you install.
Warranty
True North Wood Products Warranty, for the original purchaser:
- 3 years parts, 1 year labor: firebox, castings and glass (thermal breakage only, not impact)
- 1 year parts and labor: electrical components and switches
- 1 year parts only: gaskets, paint (peeling), bricks, baffle tubes, baffle manifold and ceramic fibre board
The warranty is not transferable and covers normal residential use. Conditions and exclusions are in the manual.
