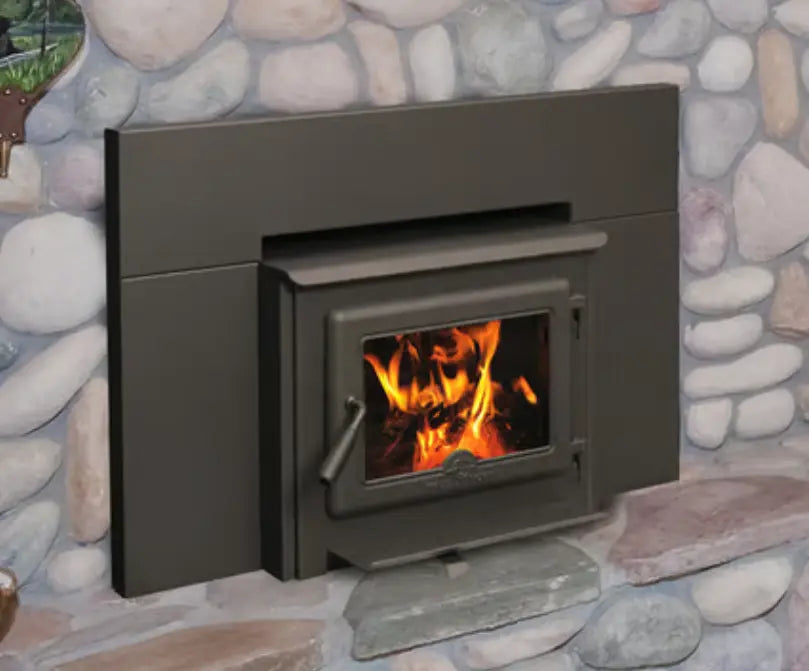

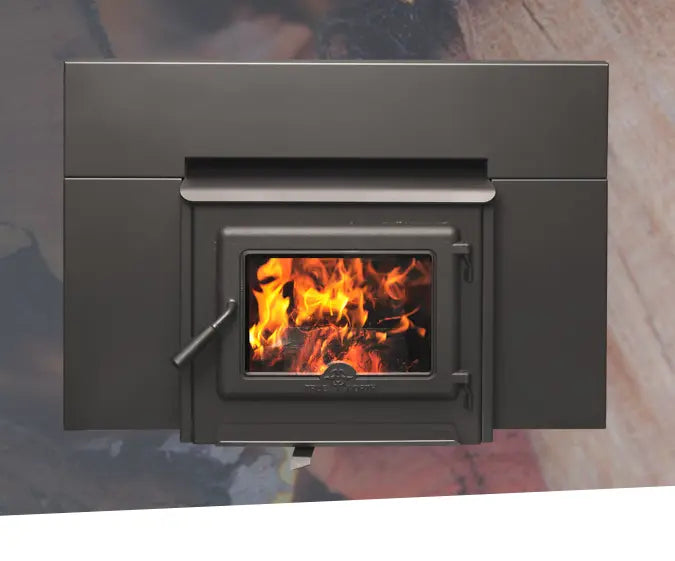

True North TN20 Wood Insert
The True North TN20 Series B is a non-catalytic wood insert with a 2.0 cu. ft. firebox that turns an existing fireplace into an EPA 2020 certified heater. It ships complete with the standard surround and a blower. Order number 31040002, metallic black.
What's Included
- TN20 Series B wood insert, metallic black (31040002)
- Cast iron door
- Standard surround, 27 in. high x 38 in. wide
- Blower with variable speed control and power cord
- Leveling leg bolts
Key Features
- EPA 2020 certified: 1.6 g/hr
- Non-catalytic tube combustion: no catalyst to maintain or replace
- Air wash system keeps the ceramic glass clear
- Single-lever air control
- Takes combustion air from the room or from outside through the fireplace ash clean-out
- Log length: 18 in. ideal, 20 in. maximum
- Burn time about 6 to 8 hours per True North; it depends on draft, fuel and loading
- For masonry and factory-built fireplaces
What to Order With It
Optional, for a fireplace opening the standard surround does not cover:
Required, supplied by your installer:
- 6 in. listed stainless steel chimney liner, rigid or flexible. Pacific Energy recommends a full liner to the top of the chimney. A direct flue connection, with the liner sealed into the first flue tile, is also permitted in the USA.
Specifications
| Order Number |
31040002 |
| Model |
TN20 Insert, Series B |
| Finish |
Metallic black |
| Fuel |
Seasoned cordwood only |
| Firebox |
2.0 cu. ft. |
| Peak Output |
55,000 BTU/hr |
| EPA Tested Output |
13,900 to 29,200 BTU/hr |
| Efficiency |
72.7% HHV, 78% LHV |
| Emissions |
1.6 g/hr |
| Log Length |
18 in. ideal, 20 in. maximum |
| Flue |
6 in. liner |
| Blower |
Included. 115V, 60 Hz, 0.5 A, grounded three-prong plug |
| Standard Surround |
27 in. high x 38 in. wide |
| Use |
Indoor, in a masonry or factory-built fireplace |
Minimum Fireplace Dimensions
| Width at Front |
29 in. |
| Width at Back |
22 in. |
| Height |
20 1/4 in. |
| Depth |
18 in. |
Recommended minimum chimney height is 15 ft. The manual has the full dimension drawing of the insert.
Clearances to Combustibles
| Adjacent Side Wall |
12 in. from the side of the insert |
| Side Facing |
8 1/2 in. from the side of the insert (facing up to 2 in. deep) |
| Mantel or Top Facing |
15 in. above the top of the firebox (mantel up to 12 in. deep) |
| Ceiling |
54 in. from the base of the insert |
Hearth
The masonry hearth must extend at least 16 in. in front of the fireplace opening and 8 in. beyond each side when it is raised at least 1 in. above a combustible floor. If the hearth is flush with a combustible floor it must extend 21 in. in front.
Install to the manual and your local codes. True North recommends an NFI-certified installer. Ask your local building or fire officials about permits and inspection before you install.
Warranty
True North Wood Products Warranty, for the original purchaser:
- 3 years parts, 1 year labor: firebox, castings and glass (thermal breakage only, not impact)
- 1 year parts and labor: electrical components and switches
- 1 year parts only: gaskets, paint (peeling), bricks, baffle tubes, baffle manifold and ceramic fibre board
The warranty is not transferable and covers normal residential use. Conditions and exclusions are in the manual.
