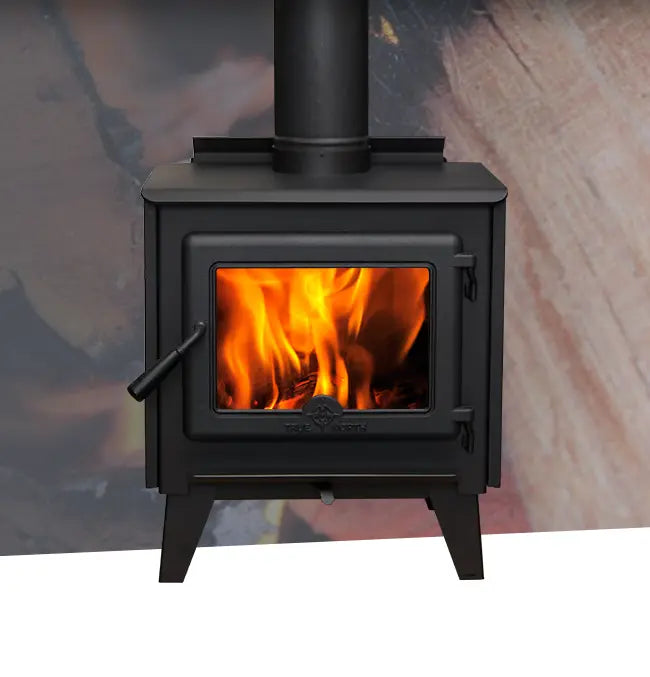

True North TN10 Wood Stove with Legs
The True North TN10 is a non-catalytic wood stove with a 0.8 cu. ft. firebox, certified to the EPA 2020 standard at 1.4 g/hr. This listing is the leg model in metallic black, order number 31010018.
What's Included
- TN10 wood stove body, metallic black (31010018)
- Cast iron door
- Side shields
- Leg kit, four legs (31130002). The legs bolt to the stove body when it is installed.
- Securing brackets for the rear legs
Key Features
- EPA 2020 certified: 1.4 g/hr
- Non-catalytic tube combustion: no catalyst to maintain or replace
- Burn time about 4 to 6 hours per True North; it depends on draft, fuel and loading
- Air wash system keeps the ceramic glass clear
- Single-lever air control
- Heavy plate-steel top and gasketed cast iron door
- Takes combustion air from the room or from outside
- Approved for mobile homes with outside air and a listed double-wall connector
- Log length: 12 in. ideal, 14 in. maximum
What to Order With It
Optional:
Required, supplied by your installer:
- Not included: a 6 in. chimney connector and a chimney listed to UL 103HT, or a code-approved masonry chimney with a flue liner
- Non-combustible floor protection (see below)
Specifications
| Order Number |
31010018 |
| Model |
TN10 |
| Base |
Legs |
| Finish |
Metallic black |
| Fuel |
Seasoned cordwood only |
| Firebox |
0.8 cu. ft. |
| Peak Output |
30,000 BTU/hr (True North brochure) |
| EPA Tested Output |
13,084 to 17,623 BTU/hr |
| Efficiency |
72.6% HHV, 80.4% LHV |
| Emissions |
1.4 g/hr |
| Log Length |
12 in. ideal, 14 in. maximum |
| Flue |
6 in. |
| Safety Listing |
UL 1482 |
| Use |
Indoor, residential and mobile home. Not for a sleeping room. Not for installation in a fireplace. |
Dimensions
| Width |
21 3/8 in. |
| Height |
27 3/4 in. overall, 26 1/4 in. to the stove top |
| Depth |
15 in. (18 1/2 in. with the optional blower) |
| Flue Center |
5 3/8 in. from the rear of the stove |
Clearances to Combustibles
Minimum clearances to combustible surfaces, from the manual. The connector and chimney must be 6 in. diameter.
| Installation |
Back wall to stove |
Side wall to stove |
Corner walls to stove |
Back wall to flue center |
Side wall to flue center |
Corner walls to flue center |
| Single-wall connector |
8 in. |
8 in. |
6 in. |
13 1/4 in. |
18 5/8 in. |
16 1/4 in. |
| Double-wall connector |
6 in. |
8 in. |
3 in. |
11 1/4 in. |
18 5/8 in. |
13 1/4 in. |
| Mobile home (double-wall only) |
6 in. |
8 in. |
3 in. |
11 1/4 in. |
18 5/8 in. |
13 1/4 in. |
Alcove (double-wall connector): minimum height 5 ft, minimum width 38 in., maximum depth 3 ft.
A mobile home installation must use a listed double-wall connector and outside combustion air, and the chimney must rise at least 12 ft above the top of the stove.
Floor Protection
The stove can sit on a combustible floor when it stands on non-combustible ember protection (UL 1618 Type 1, the equivalent of 20 gauge steel or tile). The protection must reach 16 in. in front of the firebox and 8 in. past each side of the loading door opening. Minimum size: 28 3/8 in. wide x 29 1/2 in. deep. It is also needed under a horizontal chimney connector and 2 in. beyond each side of it.
Install to the manual and your local codes. True North recommends an NFI-certified installer. Ask your local building or fire officials about permits and inspection before you install.
Warranty
True North Wood Products Warranty, for the original purchaser:
- 3 years parts, 1 year labor: firebox, castings and glass (thermal breakage only, not impact)
- 1 year parts and labor: electrical components and switches
- 1 year parts only: gaskets, paint (peeling), bricks, baffle tubes, baffle manifold and ceramic fibre board
The warranty is not transferable and covers normal residential use. Conditions and exclusions are in the manual.
