Superior DWLS-RNCL55 Driftwood Log Set for DRL2055 and DRL3555

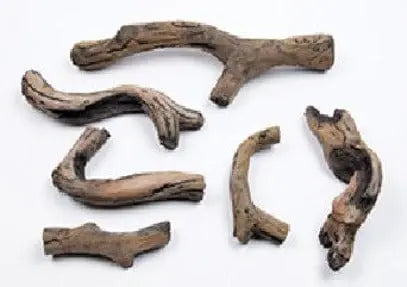

The Superior DWLS-RNCL55 is the high-definition driftwood log set Superior lists for its 55" linear direct-vent gas fireplaces, the Superior DRL2055 and the Superior DRL3555. It sits on the fireplace's crushed glass bed and adds a driftwood look to the linear flame.
The set is optional: both fireplaces come with crushed glass media and run without logs. For the other sizes, see the DWLS-RNCL35 and DWLS-RNCL45.
Key Features
- High-definition driftwood log set sized for Superior 55" linear fireplaces
- Fits the DRL2055 and DRL3555
- Sits on the fireplace's crushed glass media
- Optional; the fireplace runs with or without it
What's Included
- Driftwood log set for 55" DRL2000 and DRL3500 fireplaces
What to Order With It
Required – The fireplace:
Specifications
| Model |
DWLS-RNCL55 |
| Order number |
F4442 |
| Type |
High-definition driftwood log set |
| Fits |
Superior DRL2055 and DRL3555 (55" linear direct-vent fireplaces) |
| Use with |
The fireplace's crushed glass media (up to 7.5 lb in a 55" model) |
| Required? |
No, optional |
| Warranty |
Logs: 1 year, thermal breakage (see Warranty below) |
Compatibility
| Superior DRL2055 |
55" linear direct-vent fireplace, DRL2000 series |
| Superior DRL3555 |
55" linear direct-vent fireplace, DRL3500 series |
| Other sizes |
DWLS-RNCL35 and DWLS-RNCL45
|
Installation Requirements
-
When: only after the fireplace is fully installed, the gas line has been leak-tested and the burner has been lit and checked. Handle the logs with the gas and power off and the logs cool; they stay hot for up to an hour after the fireplace shuts off.
-
Glass media first: the 55" fireplace takes up to 7.5 lb of glass media: one layer behind and over the burner, up to two layers in front, never mounded, and none dropped between the pilot cover and the burner (keep the 1/2" gap there). Sift the media rather than pouring it from the bag, since fine pieces clog burner ports.
-
Logs: set the logs on the glass bed as Superior's instructions for the set show, keeping every piece out of the flames and clear of the pilot. Check the pilot and burner flames after placing them.
-
Rules: use only the media and accessories Superior lists for the fireplace, and never burn wood in it.
Frequently Asked Questions
Which fireplaces does it fit?
The Superior DRL2055 and DRL3555, the 55" models of the DRL2000 and DRL3500 linear direct-vent series. The 35", 45" and 55" sizes each have their own set.
Is it required?
No. The fireplace comes with crushed glass media and runs without logs; the set adds a driftwood look on top of the glass.
How do the logs sit?
On top of the crushed glass bed, placed the way Superior's instructions for the set show, with no piece in the flames or over the pilot.
How do I clean the logs?
Wait until they're cool, lift them out carefully (fiber logs get fragile once they've been fired) and clean off carbon with a vacuum or a soft brush, such as a paintbrush. Put each piece back exactly where the instructions show; logs out of position cause carbon build-up and change how the fireplace burns.
What if I see soot on the logs or glass?
Soot almost always means a flame is touching a log. Turn the fireplace off, let it cool, and check every piece against the placement instructions so nothing sits in the flames or over the burner ports. If it still soots with the logs in the right place, have a qualified service technician check the burner's air adjustment.
Warranty
The log set is covered under Superior's 20 Year Limited Warranty on the Superior DRL2055 or DRL3555 it's installed in, which treats logs this way:
- Logs: replacement for one year from installation, against thermal breakage only
- Labor: paid at IHP rates for the logs' one-year warranty period
Wear and tear, misuse and faulty installation aren't covered, and Superior says using a log set that isn't approved for the fireplace voids the fireplace's warranty. The warranty is for the original owner of a fireplace installed in the US or Canada. Full terms are in the warranty certificate.
