The Sierra Flame Abbot 30 is a direct vent gas insert for converting an existing masonry fireplace, venting through two 3" pipes run up the chimney. Choose ceramic brick panels with a log set for a traditional look, or black porcelain panels with glass and rocks. Both come in the Deluxe version with the programmable thermostat remote, modulating valve and variable speed fan.
Key Features
- Direct vent insert for existing masonry fireplaces

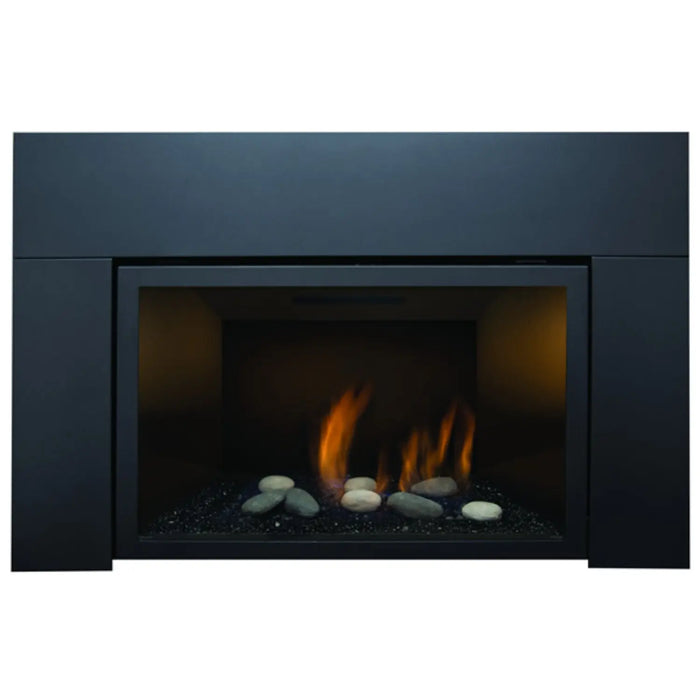

- Two looks: ceramic brick panels with log set, or black porcelain panels with glass and rock media
- 26,000 Btu/hr maximum (natural gas)
- Deluxe remote with programmable thermostat and modulating valve
- Variable speed fan
- 68.3% efficiency (EnerGuide, natural gas)
What to Order With It
- Safety screen (required): ABBOT-DVISC.
- Surround (required): ABBOT-30-BLK-26 or ABBOT-30-BLK-28 three-sided black surround (40" W x 26" or 28" H), or ABBOT-4PCE-BLK-29 four-sided black surround (40" W x 29" H).
- Venting (3" x 3" co-linear): 94203370HWS insert kit and CHIM-CAP chimney cap.
- Propane: choose the Liquid Propane option above.
Specifications
| Models |
ABBOT-30BL-DELUXE-NG / -LP (ceramic brick panels, log set), ABBOT-30PG-DELUXE-NG / -LP (black porcelain panels, glass and rocks) |
| Type |
Direct vent insert |
| Input, maximum |
Natural gas: 26,000 Btu/hr
Propane: 23,000 Btu/hr |
| Venting |
Two 3" pipes (co-linear) in the existing chimney |
| Framing (H x W x D) |
20 1/4" H x 27" W x 16 1/4" D |
| Glass viewing area |
16" H x 25" W |
| Efficiency |
68.3% EnerGuide (natural gas) |
Installation must be done by a licensed gas fitter or qualified technician, following the installation manual and local codes. Check the manual for clearances, venting runs and framing details before you build.
Downloads
Warranty
Sierra Flame gas fireplace limited warranty: five years against defects in materials and workmanship on the combustion chamber, heat exchanger and burners (and stainless steel parts against tarnishing); one year on electrical and wear parts such as blowers, gas valves, switches, wiring, remote controls, igniters, gaskets, glass (thermal damage only) and pilot assemblies. It covers the original purchaser from an authorized Sierra Flame dealer and requires installation by a licensed technician to the manual and local codes. Labor, venting components, and damage from water, weather or chemical cleaners are not covered. Read the full terms in the Sierra Flame Gas Fireplace Warranty (2024).
