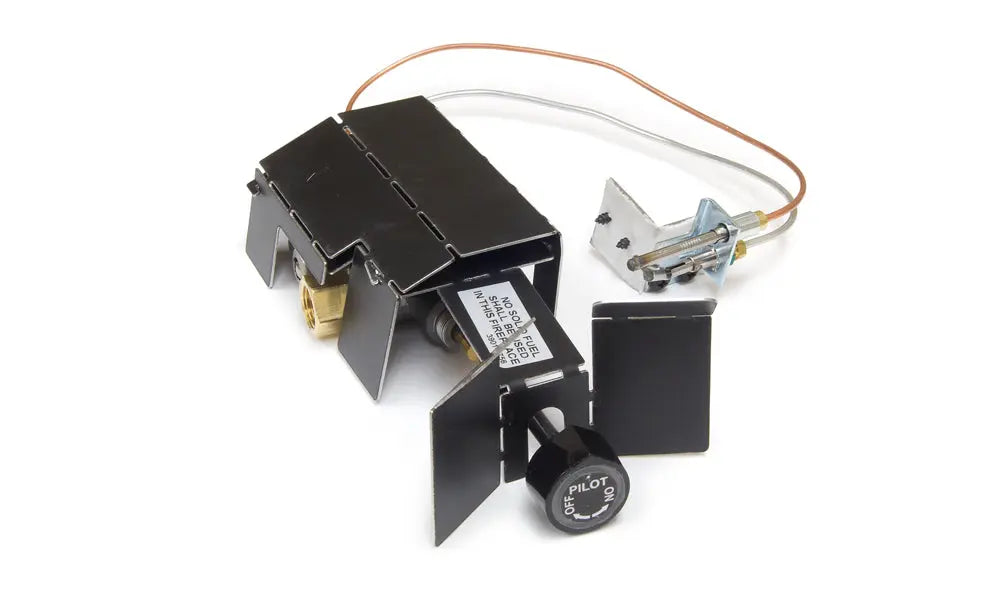

Real Fyre SPK-26 Low Profile Safety Pilot Kit

The Real Fyre SPK-26 is a low profile safety pilot kit: a manual safety valve with a standing pilot and a removable knob handle. It is sold as a kit to add to a match-lit Real Fyre vented burner. Order SPK-26 for natural gas or SPK-26P for propane.

A propane orifice is included and the kit is field convertible, but order the model for the gas you have.

What's Included

• Low profile safety valve
• Standing pilot assembly with thermocouple
• Heat shield
• Removable knob handle

Key Features

• Manual on/off control at the burner
• Standing safety pilot shuts off the gas if the pilot goes out
• Low profile valve

What to Order With It

The kit fits Real Fyre match-lit vented burners within the size and BTU limits in the table below.

Burners it fits:

• G4 Glowing Ember Burner (G4-24)
• G45 Triple T Burner, match lit (G45-24)
• G45-2 See-Thru Triple T Burner, match lit (G45-2-24)
• GX45 Triple T Burner with Heavy Duty Grate
• PB Pan Burner, match lit

A gas appliance control must be installed by a qualified gas technician and checked for leaks before use.

Specifications

Limits are from the 2026 Real Fyre price list and assume a Real Fyre burner.

Warranty

SPK-26 safety pilot kit: three years. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.

Documents

• SPK-26 Safety Pilot Kit Instructions (A2-081)
• Real Fyre Vented Product Catalog
