Real Fyre PB Pan Burner for Glass, Match Lit

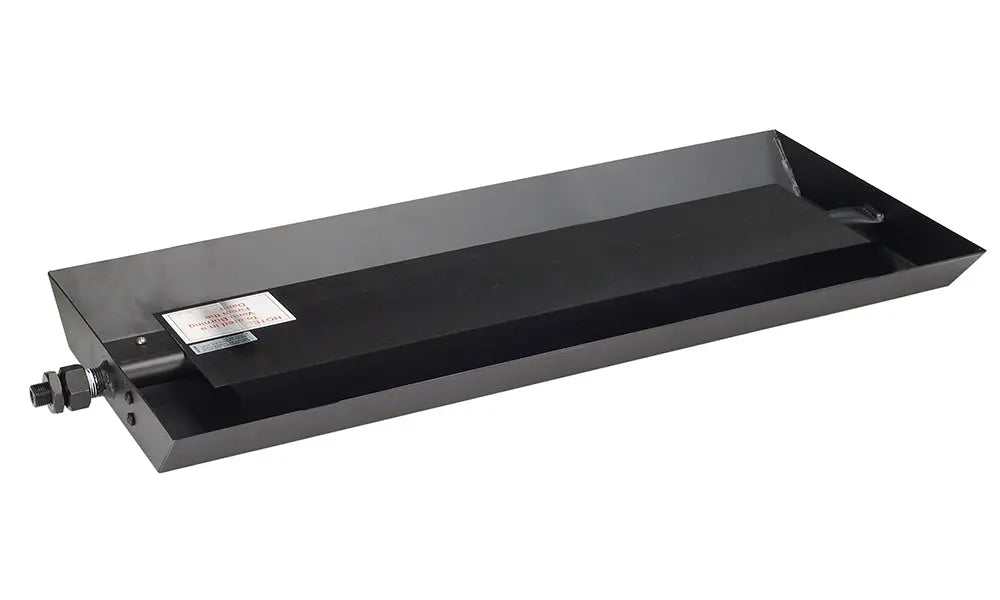

The Real Fyre PB is a vented flame pan burner for contemporary fire glass: a steel pan that spreads flame across the whole surface of the glass instead of through a log set. This listing is the match-lit PB burner, in seven sizes from 16" to 42", order number PB-## (natural gas) or PB-##P (propane), where ## is the size.
The glass is not included. Fyre Glass, Fyre Gems or Diamond Nuggets are ordered separately. The natural gas burner has no valve or pilot: you light it with a long match or lighter and control the flame from your fireplace gas valve. Propane cannot be match lit, so the propane version includes the SPK-26P safety pilot kit, which must be installed with the burner.
What's Included
- PB flame pan burner assembly
- Connector kit
- Sand (natural gas) or vermiculite (propane)
- Damper clamp
- Propane only: SPK-26P safety pilot kit
Key Features
- 7 sizes: 16", 18", 20", 24", 30", 36", 42"
- Flame across the whole pan, for fire glass
- Natural gas or propane
- Match lit on natural gas; safety pilot kit included on propane
- Glass sold separately
What to Order With It
The burner needs decorative media over the pan.
Required (choose one):
Optional for natural gas, to add a safety pilot:
If you want the valve factory installed, see PB Pan Burner with Safety Valve and the PB remote models linked from that page.
Specifications
| Size |
Natural Gas |
Propane |
BTU, Natural Gas |
BTU, Propane |
| 16" |
PB-16 |
PB-16P |
45,000 |
40,000 |
| 18" |
PB-18 |
PB-18P |
75,000 |
60,000 |
| 20" |
PB-20 |
PB-20P |
90,000 |
65,000 |
| 24" |
PB-24 |
PB-24P |
90,000 |
75,000 |
| 30" |
PB-30 |
PB-30P |
90,000 |
80,000 |
| 36" |
PB-36 |
PB-36P |
110,000 |
90,000 |
| 42" |
PB-42 |
PB-42P |
130,000 |
100,000 |
| Vent Type |
Vented |
| Control |
Match lit (natural gas); SPK-26P safety pilot kit included (propane) |
| Use |
Indoor, in a wood-burning fireplace with a working flue |
BTU ratings are from the PB match-lit owner's manual.
Minimum Fireplace Dimensions
Match lit, natural gas:
| Size |
Front Width |
Rear Width |
Depth |
Height |
| 16" |
22" |
20" |
14" |
17" |
| 18" |
24" |
22" |
14" |
17" |
| 20" |
26" |
24" |
14" |
17" |
| 24" |
30" |
28" |
14" |
17" |
| 30" |
36" |
34" |
14" |
17" |
| 36" |
42" |
40" |
14" |
17" |
| 42" |
48" |
46" |
14" |
17" |
With a safety pilot kit installed (required for propane):
| Size |
Front Width |
Rear Width |
Depth |
Height |
| 16" |
28" |
26" |
14" |
17" |
| 18" |
30" |
28" |
14" |
17" |
| 20" |
32" |
30" |
14" |
17" |
| 24" |
36" |
34" |
14" |
17" |
| 30" |
42" |
40" |
14" |
17" |
| 36" |
48" |
46" |
14" |
17" |
| 42" |
54" |
52" |
14" |
17" |
Vented gas logs go only in a wood-burning fireplace with a working flue. The damper must be clamped open with the damper clamp supplied with the burner, glass doors must be fully open while the burner is on, and an adult must be present whenever it is burning. Do not install the burner in a fireplace with an ash lip or recess deeper than 3/4".
Warranty
Indoor burners and stainless steel burners, excluding controls: ten years. SPK-26 safety pilot kit: three years. APK-17 kit and the 17 series valve: two years. All other valves, pilots and controls: one year. Batteries are not covered. Fyre Glass, Fyre Gems and Diamond Nuggets: ten years. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.
Documents
