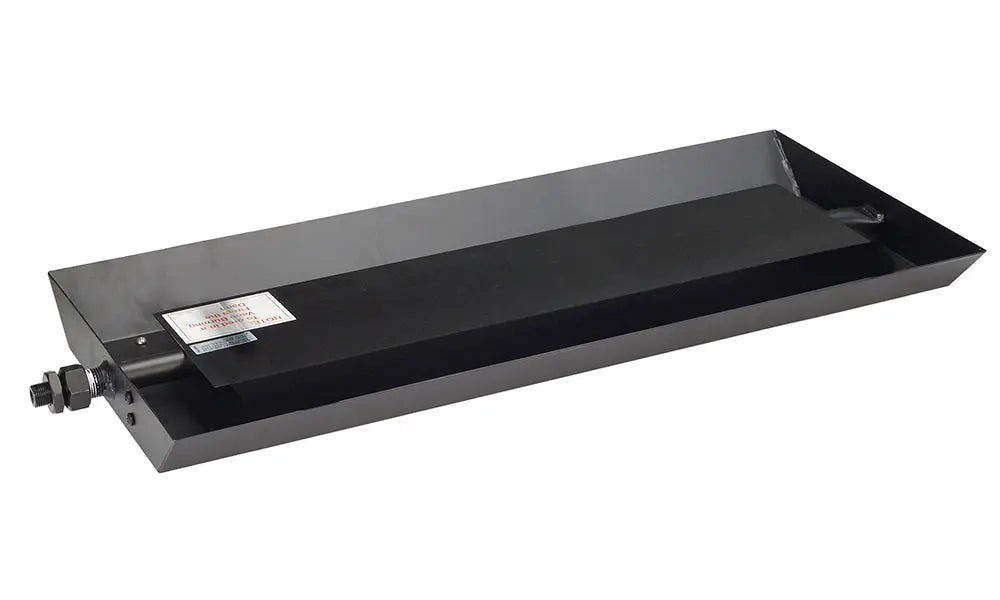

Real Fyre PB Pan Burner for Glass with 02 Electronic Valve & On/Off Remote
The Real Fyre PB is a vented flame pan burner for contemporary fire glass: a steel pan that spreads flame across the whole surface of the glass instead of through a log set. This listing is the ANSI certified PB burner with the 02 series electronic valve with intermittent pilot ignition and an on/off remote, assembled at the factory. It comes in 18", 24" and 30", for natural gas or propane (for example PB-24-02 and PB-24-02P).
The glass is not included. Fyre Glass, Fyre Gems or Diamond Nuggets are ordered separately.
What's Included
- PB flame pan burner with the control valve installed
- Connector kit
- Sand (natural gas) or vermiculite (propane)
- Damper clamp
- Remote transmitter and receiver
Key Features
- 3 sizes: 18", 24", 30"
- ANSI certified, valve factory installed
- Natural gas or propane
- Glass sold separately
What to Order With It
The burner needs decorative media over the pan.
Required (choose one):
Other PB control options:
Specifications
| Size |
Natural Gas |
Propane |
BTU, Natural Gas |
BTU, Propane |
| 18" |
PB-18-02 |
PB-18-02P |
75,000 |
60,000 |
| 24" |
PB-24-02 |
PB-24-02P |
90,000 |
75,000 |
| 30" |
PB-30-02 |
PB-30-02P |
110,000 |
90,000 |
| Vent Type |
Vented |
| Control |
02 series electronic valve with an on/off remote. The basic transmitter and receiver are included. |
| Certification |
ANSI Z21.60 vented decorative appliance |
| Use |
Indoor, in a wood-burning fireplace with a working flue |
BTU ratings are from the PB owner's manual. Order the fuel you have.
Minimum Fireplace Dimensions
| Size |
Front Width |
Rear Width |
Depth |
Height |
| 18" |
33" |
29" |
16" |
17" |
| 24" |
39" |
35" |
16" |
17" |
| 30" |
45" |
41" |
16" |
17" |
Vented gas logs go only in a wood-burning fireplace with a working flue. The damper must be clamped open with the damper clamp supplied with the burner, glass doors must be fully open while the burner is on, and an adult must be present whenever it is burning. Do not install the burner in a fireplace with an ash lip or recess deeper than 3/4".
Warranty
Indoor burners and stainless steel burners, excluding controls: ten years. SPK-26 safety pilot kit: three years. APK-17 kit and the 17 series valve: two years. All other valves, pilots and controls: one year. Batteries are not covered. Fyre Glass, Fyre Gems and Diamond Nuggets: ten years. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.
