Real Fyre EPK-2M-AD 110V Electronic Pilot Kit

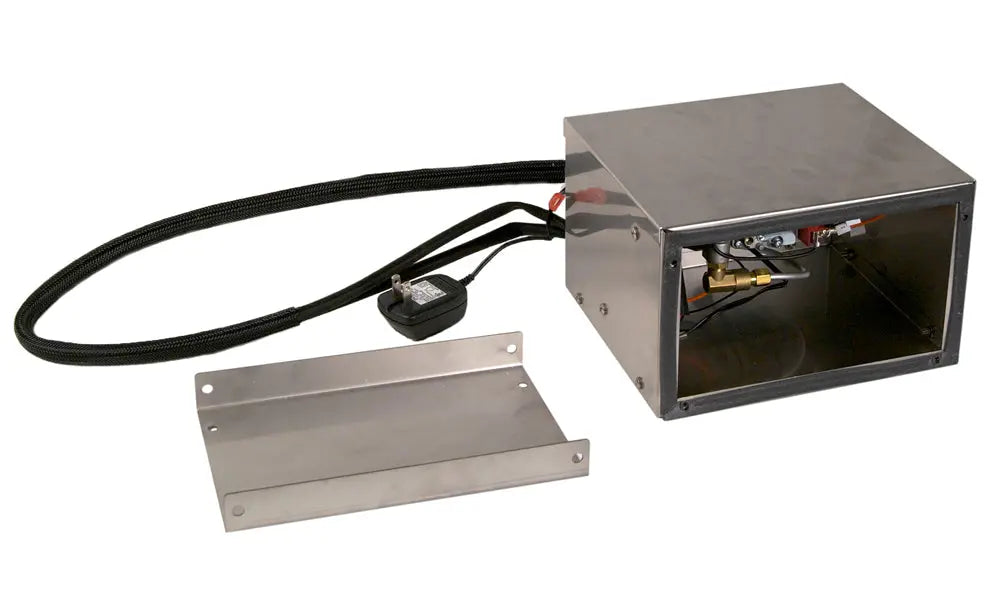

The Real Fyre EPK-2M-AD is a 110 volt electronic pilot kit with an adaptor plug and mounting bracket: a non-standing pilot system designed to be installed outside the firebox. It is sold as a kit to add to a match-lit Real Fyre vented burner. Order EPK-2M-AD for natural gas or EPK-2M-AD/LP for propane.

This kit is not field convertible: order the model for the gas you have. The kit has no remote; it is switched from a wall switch, which is ordered separately: see Wall Switches & Wall Timer.

What's Included

• 110V electronic valve
• Non-standing, flame-sensing pilot assembly
• Adaptor plug
• Mounting bracket

Key Features

• 110V AC powered
• Valve mounts outside the firebox
• On/off operation; a wall switch is sold separately

What to Order With It

The kit fits Real Fyre match-lit vented burners within the size and BTU limits in the table below.

Burners it fits:

• G4 Glowing Ember Burner (G4-24)
• G45 Triple T Burner, match lit (G45-24)
• G45-2 See-Thru Triple T Burner, match lit (G45-2-24)
• GX45 Triple T Burner with Heavy Duty Grate
• PB Pan Burner, match lit

A gas appliance control must be installed by a qualified gas technician and checked for leaks before use.

Specifications

Limits are from the 2026 Real Fyre price list and assume a Real Fyre burner.

Warranty

Valves, pilots and controls: one year. Batteries are not covered. The warranty is from R.H. Peterson Co., applies to the original purchaser for single-family residential use, runs from the purchase date and needs proof of purchase.

Documents

• EPK-2M-AD Instructions (A2-454)
• Real Fyre Vented Product Catalog
