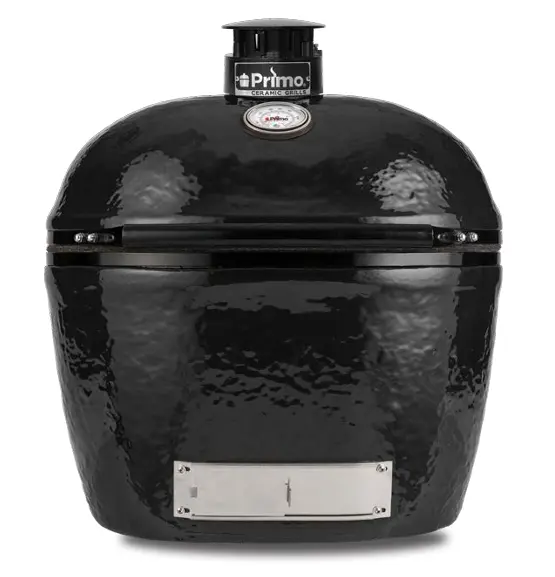

Primo Oval X-Large Charcoal Grill (Ceramic Body Only) - PGCXLH
The Primo Oval X-Large Charcoal Grill (model number PGCXLH) is the Oval XL 400 ceramic grill head on its own, ready to set in a Primo cart, cradle, table or a built-in outdoor kitchen. It cooks on 400 sq in of grate — 680 sq in with the optional rack system, enough for 8 whole chickens, 10 racks of ribs or 2 whole turkeys at once, and works as a grill, oven, roaster or smoker.
Key Features
- Patented oval shape with two true cooking zones: sear on one side while you roast on the other
- Premium-grade ceramic body that holds steady heat, low and slow or hot and fast
- Reversible cooking grates
- Temperature range from about 151°F to over 850°F
- Burns 100% natural lump charcoal
- Made in Poplar Bluff, Missouri, USA
What to Order With It
The grill head ships without a stand. Pick one of these, or set it in a built-in outdoor kitchen using the cut-out template below.
Stand, cart or table (choose one):
Add-ons (each needs the base or top named in it):
Cooking accessories (optional):
Covers (optional):
Specifications
| Model number |
PGCXLH |
| Model |
Primo Oval XL 400 |
| Configuration |
Ceramic grill head only |
| Fuel |
100% natural lump charcoal |
| Cooking area |
400 sq in |
| Optional rack system |
280 sq in |
| Total cooking area with racks |
680 sq in |
| Cooking grid |
18.5" x 25" |
| Temperature range |
151°F to 850°F+ |
| Grill weight (grill only) |
250 lb |
| Width at lid (widest) (grill only) |
28" |
| Width at base (grill only) |
22" |
| Depth (grill only) |
21.5" |
| Lid height (grill only) |
11" |
| Base height (grill only) |
16.5" |
| Overall height, lid closed (grill only) |
27.5" |
| Clearance behind the grill |
12" to open the dome |
| Clearance around the grill |
2" minimum around the exterior |
| Built-in supporting shelf depth |
Standard cut-out: 12" below the countertop surface; hinge-notch cut-out: 14" |
| Made in |
Poplar Bluff, Missouri, USA |
Light it with natural lump charcoal and a fire starter cube, a chimney starter or an electric starter. Never use lighter fluid: the ceramic absorbs it and it flavors the food.
Building it in? Print the cut-out template at full size and check it against the grill on site before cutting. Leave room behind the grill for the dome to open.
Downloads
Warranty
Primo limited warranty for the original purchaser: limited lifetime on ceramic parts; 5 years against rust-through on metal parts other than cast iron; 1 year on cast-iron parts and on other parts and accessories unless stated otherwise; 30 days on felt gaskets and thermometers. Read the Primo warranty terms.
