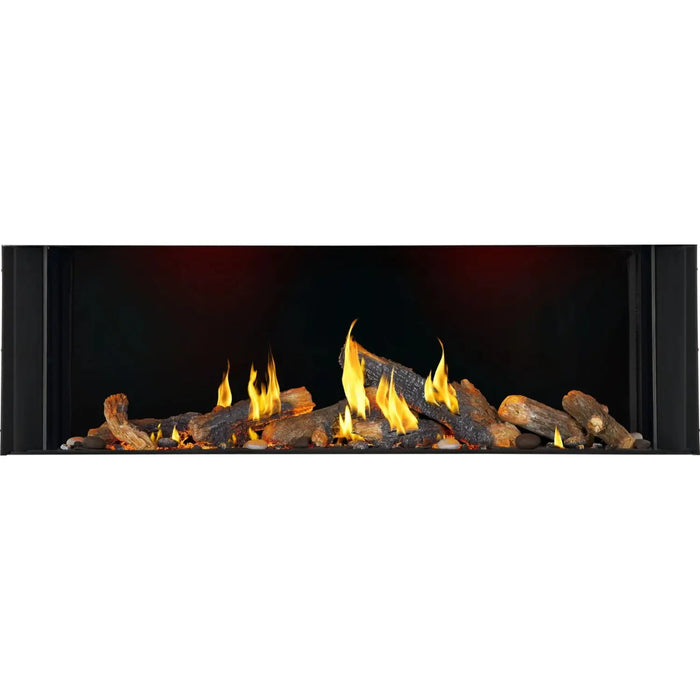

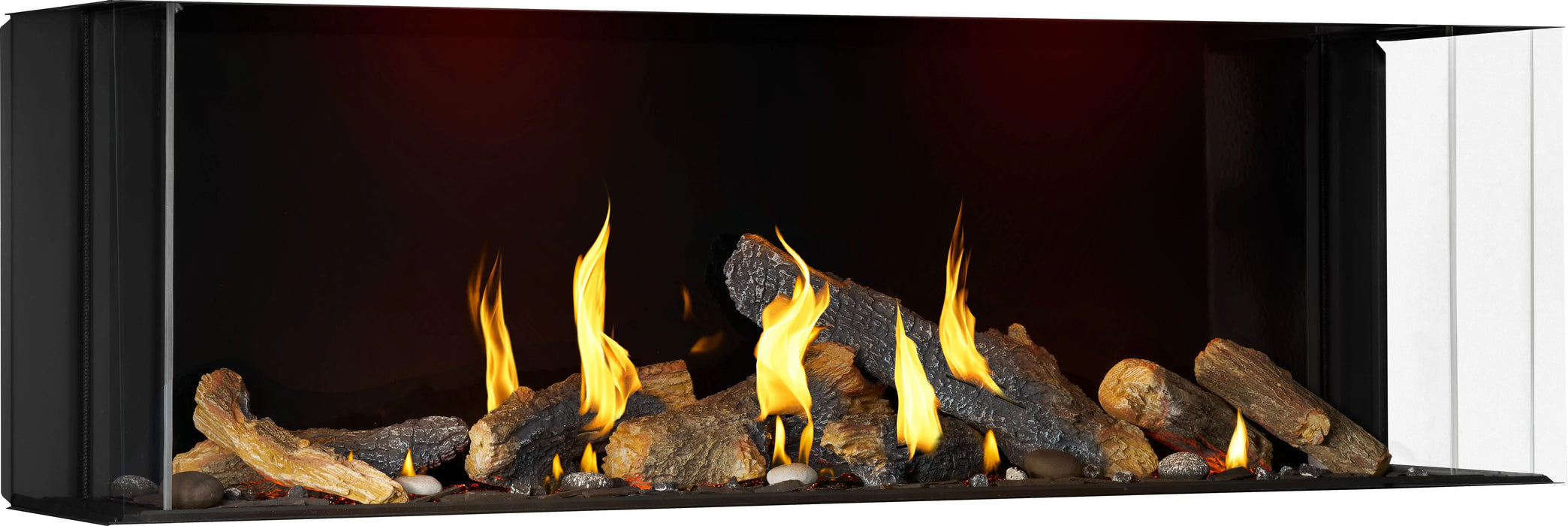

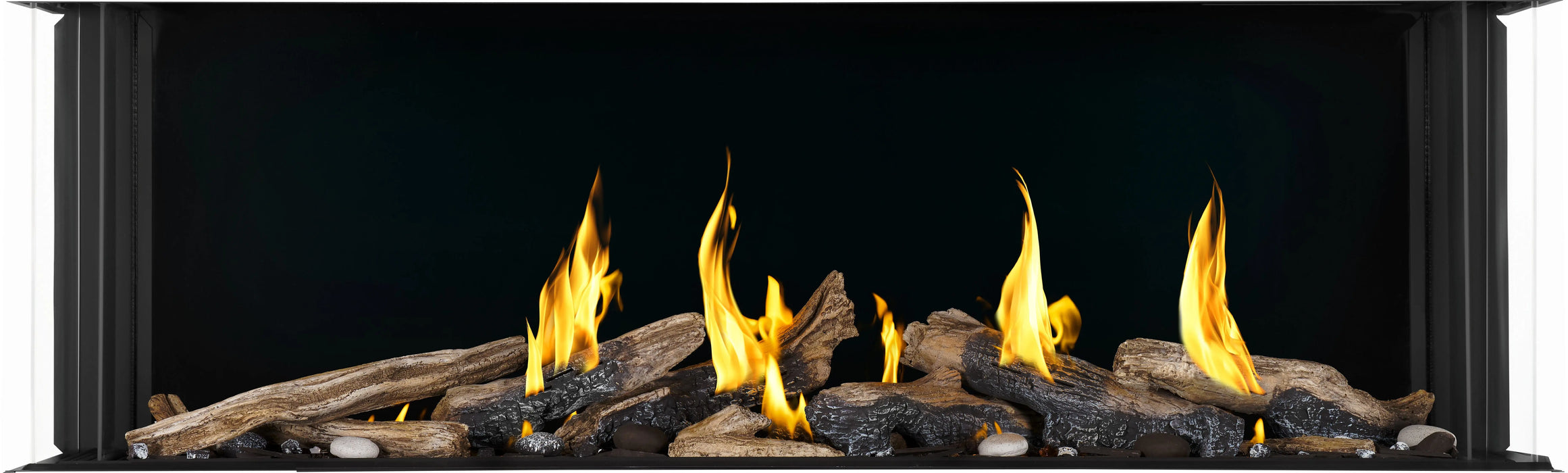

Napoleon Tall Bay Luxuria 62" 3-Sided Direct Vent Gas Fireplace

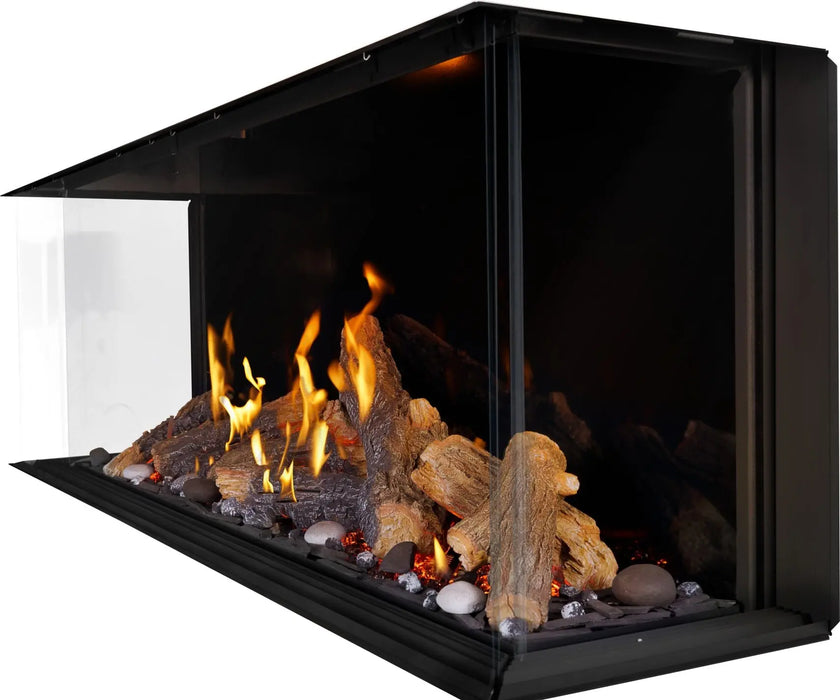

The Napoleon Tall Bay Luxuria 62" Direct Vent Gas Fireplace (TLVX62LBN) installs as a three-sided bay, a corner or a single-sided fireplace. Luminous Logs sit above a modulating electric ember bed behind 21" tall, double-pane glass: heat-radiating ceramic inner glass plus a Low-E glass guard.

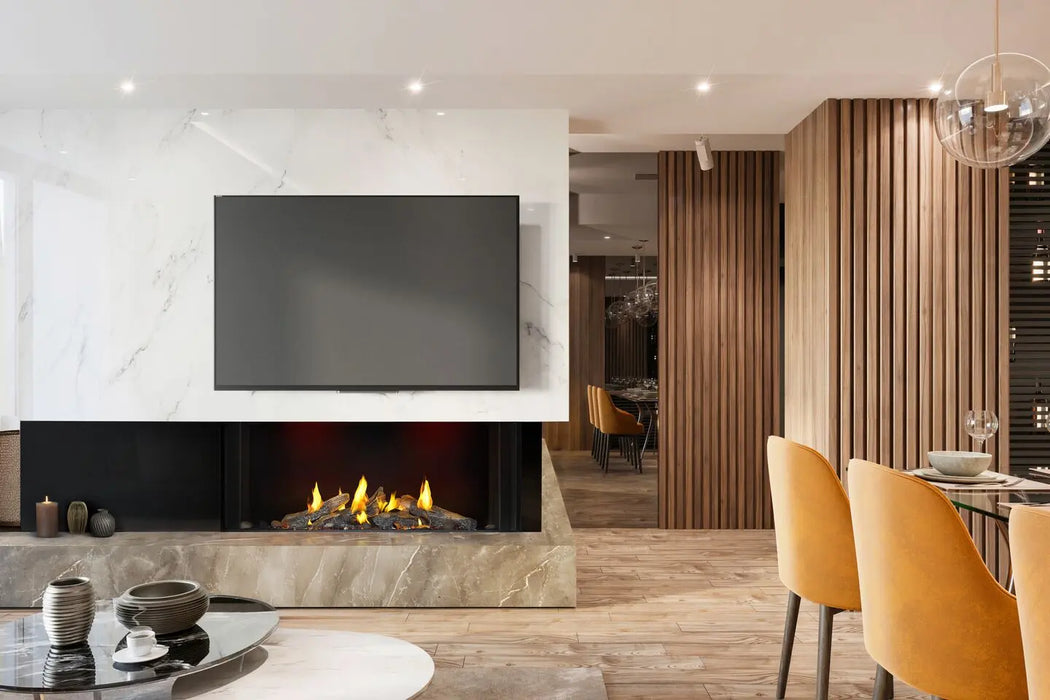

Dreamwood Living supplies the Tall Bay Luxuria 62 to homeowners, designers and builders planning a statement fireplace for an open room or a corner. Dynamic Heat Control™ is included, and a Luminous Log Burner Kit in driftwood, oak or birch is required and sold separately.
Why the Napoleon Tall Bay Luxuria 62" Stands Out
The same appliance installs as a three-sided bay, in a corner with the optional Corner Installation Kit, or as a single-sided fireplace, and no power vent or outside air kit is required. Split flow lets you switch the Luminous Logs burner on or off from the remote, while top accent lighting and NIGHT LIGHT™ dimmer control set the mood when the fire is off.
Dynamic Heat Control™ Linear (DHCL2) is included, MIRRO-FLAME™ porcelain reflective panels add depth to the flame, and the battery back-up control system keeps on/off and flame height control working during a power failure.
Explore Gas Fireplaces
Key Features
- Up to 44,000 BTU/hr input (natural gas)

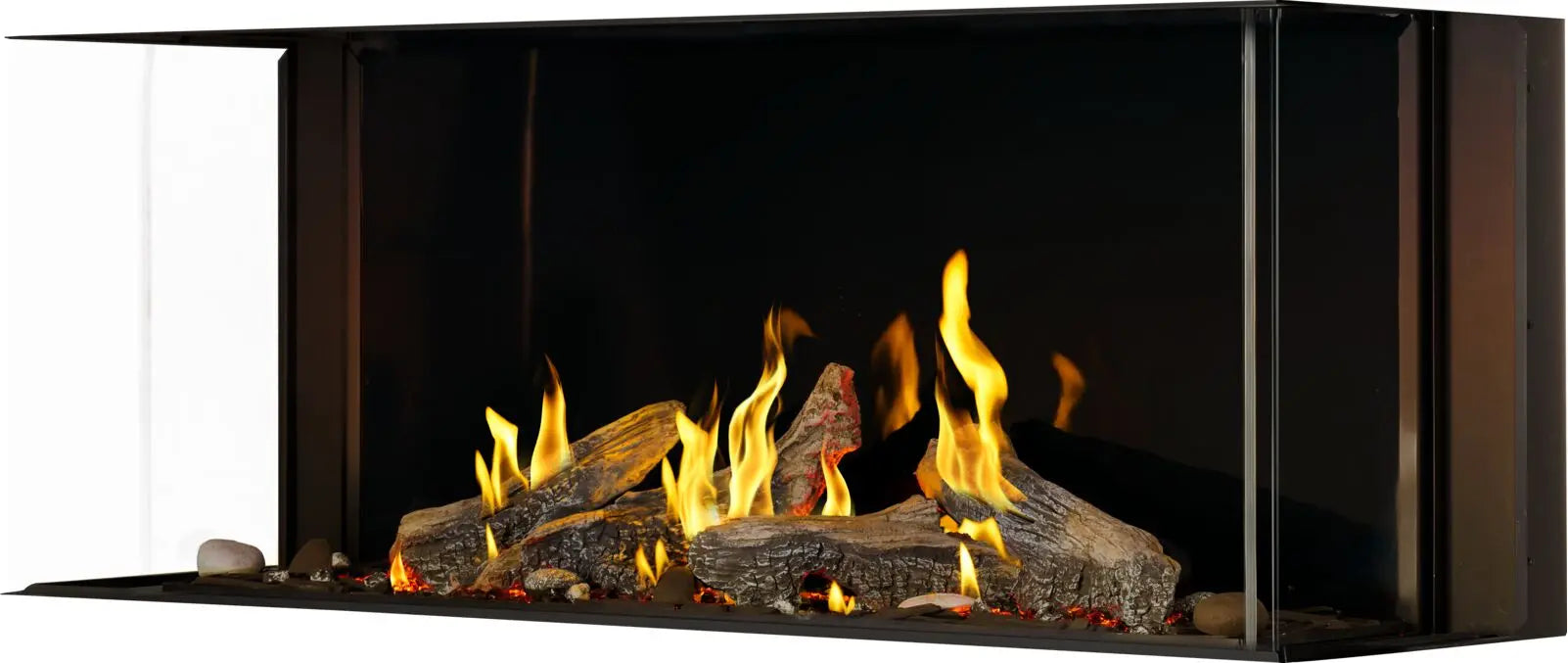

- Three-sided, corner and single-sided installations

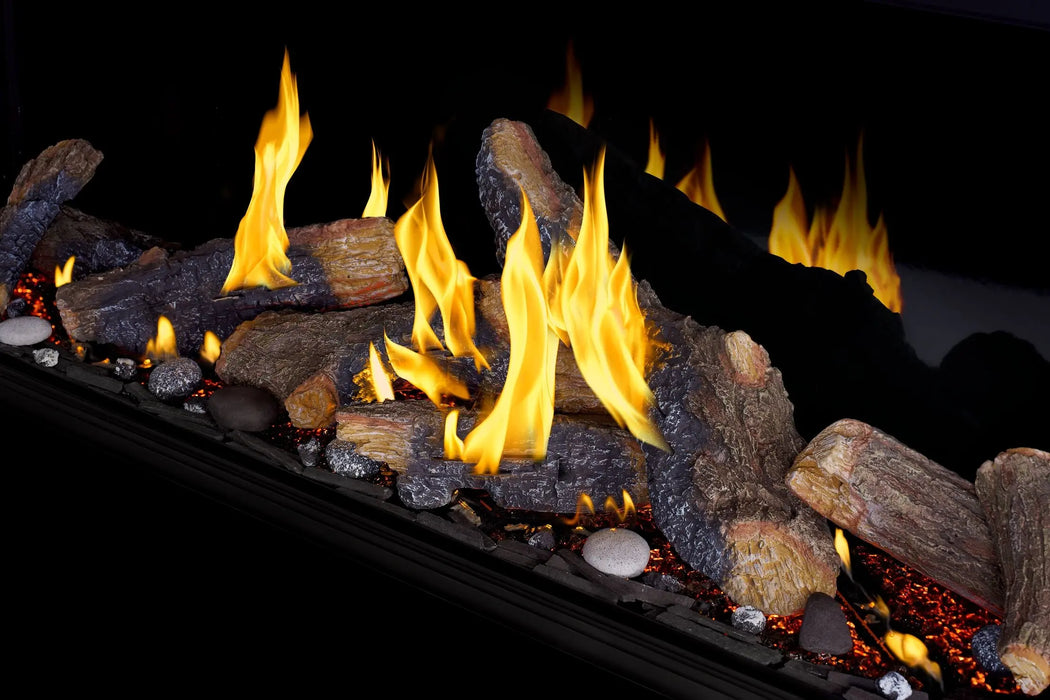

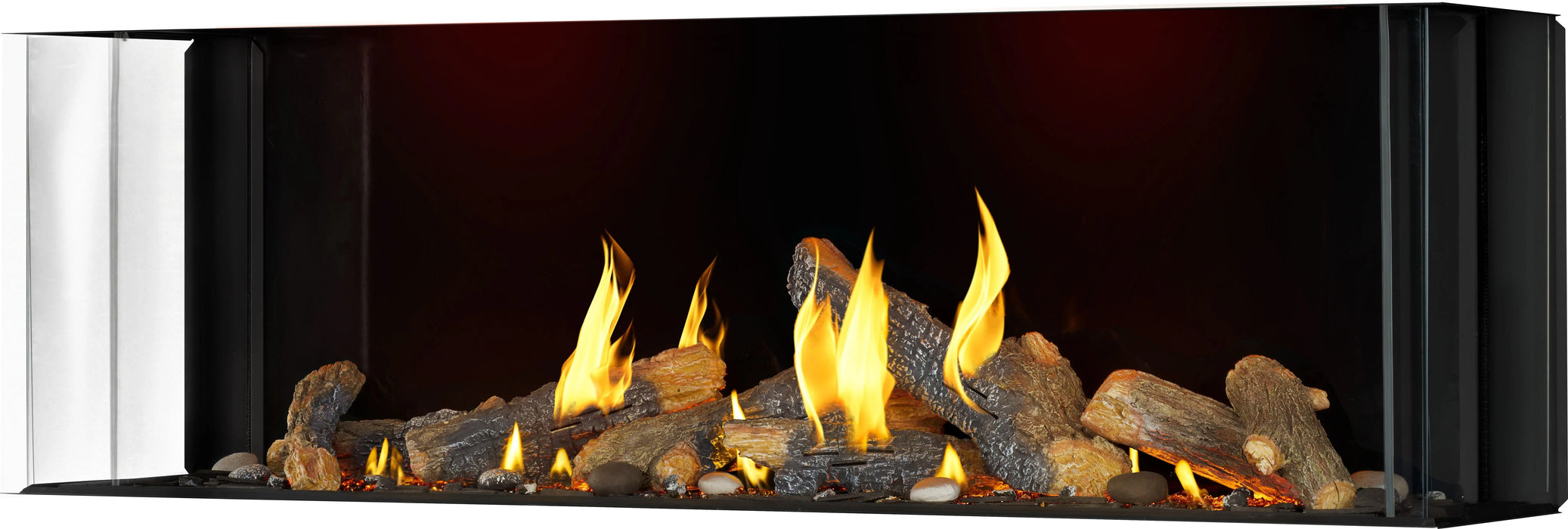

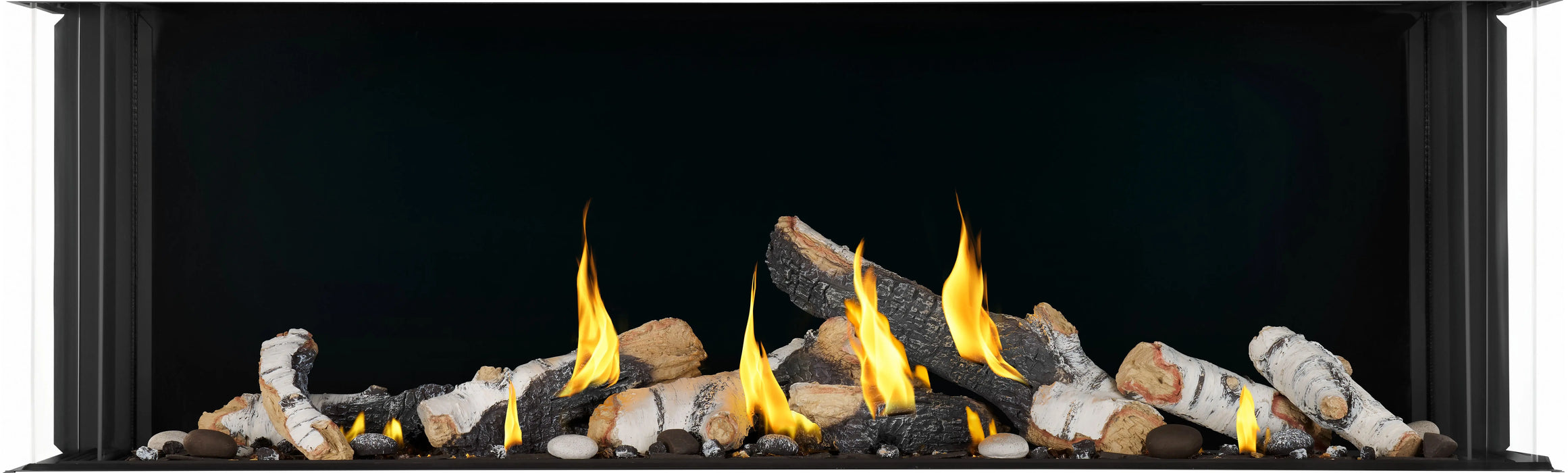

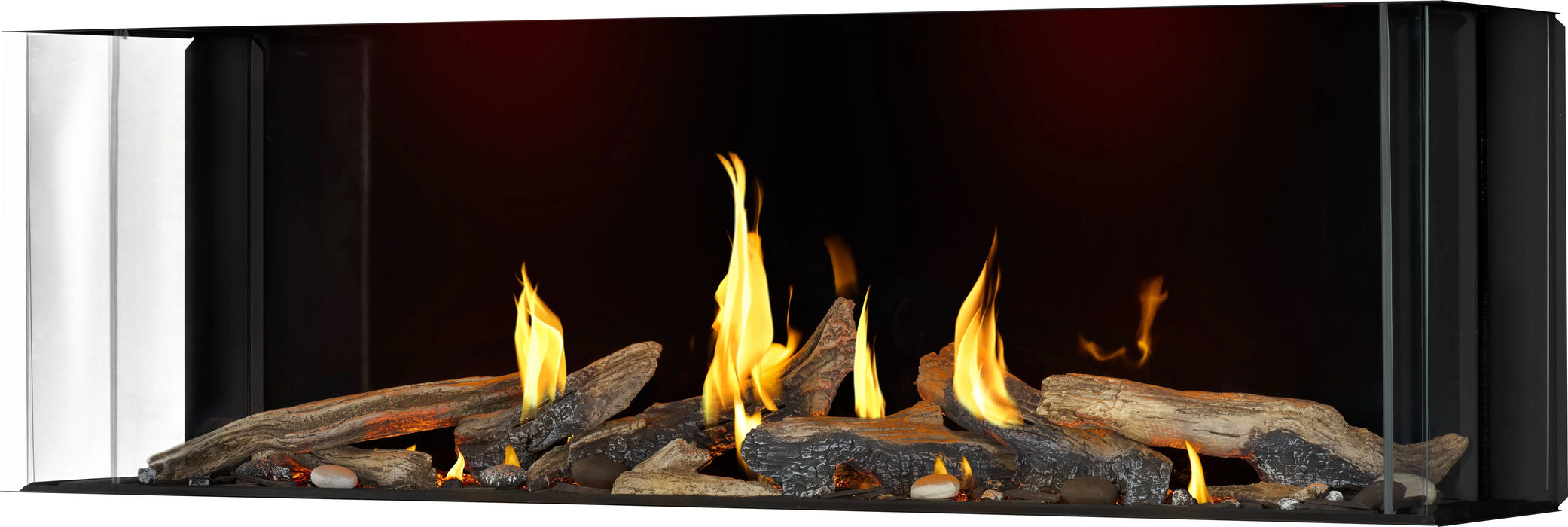

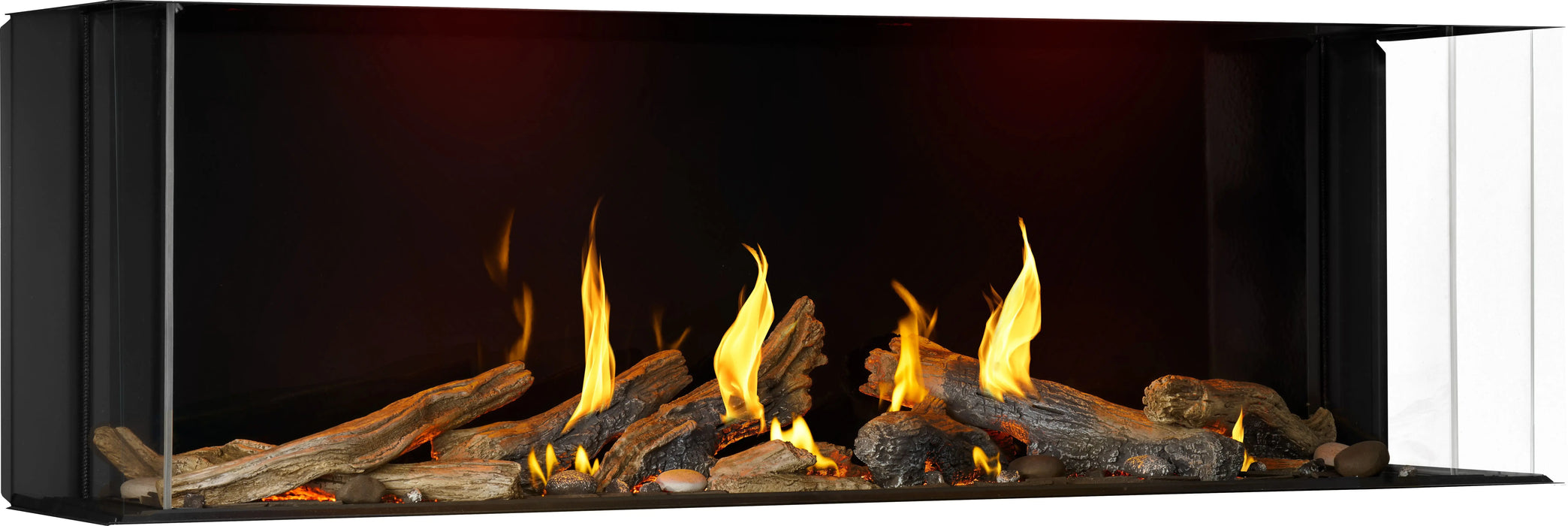

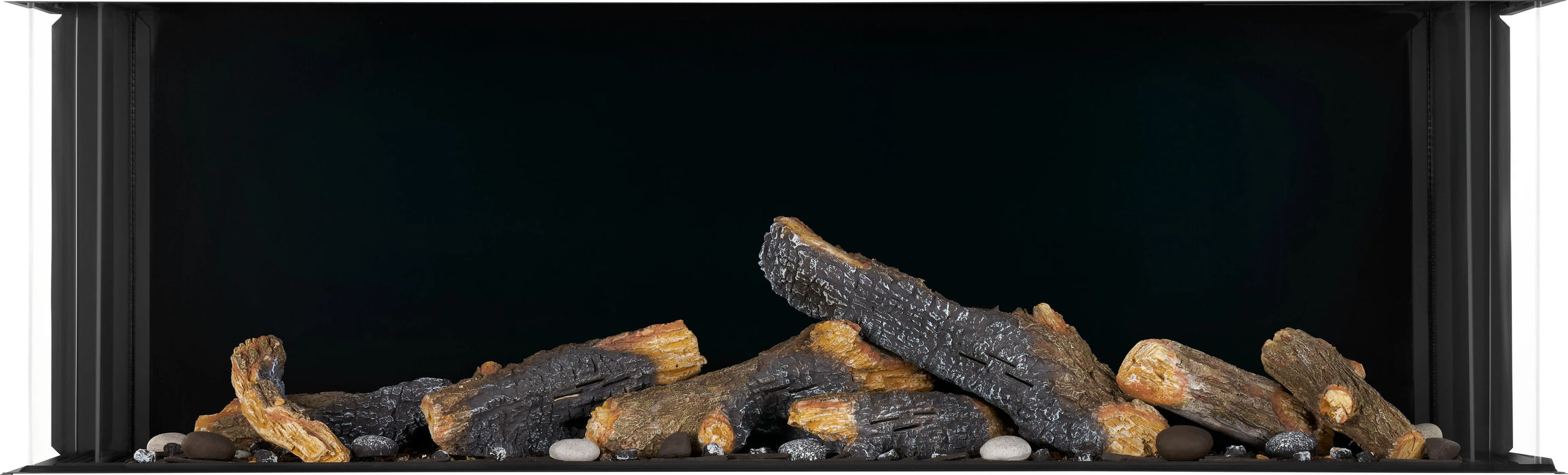

- Luminous Logs with modulating electric ember bed for a lifelike appearance
- Luminous Log Burner Kit required (driftwood, oak or birch), sold separately
- Split flow switches the Luminous Logs burner on or off
- 21" tall double-pane glass: heat-radiating ceramic inner glass and a Low-E glass guard
- Top accent lighting with NIGHT LIGHT™ dimmer control
- ProFlame II remote, wall switch and eFIRE controller included (app control via Bluetooth)
- Battery back-up control system
- MIRRO-FLAME™ porcelain reflective radiant panels included
- Dynamic Heat Control™ Linear (DHCL2) included; DHC+ and DHM optional
- Firestop / vent shield
- Stainless steel flex connector
- Easy-access air control
- No power vent or outside air kit required; propane installs require rigid vent or power vent
- Approved for bedroom, bathroom and bed-sitting room installations; certified for mobile home installation
- President’s Lifetime Limited Warranty
What to Order With It
Required (choose one):
-

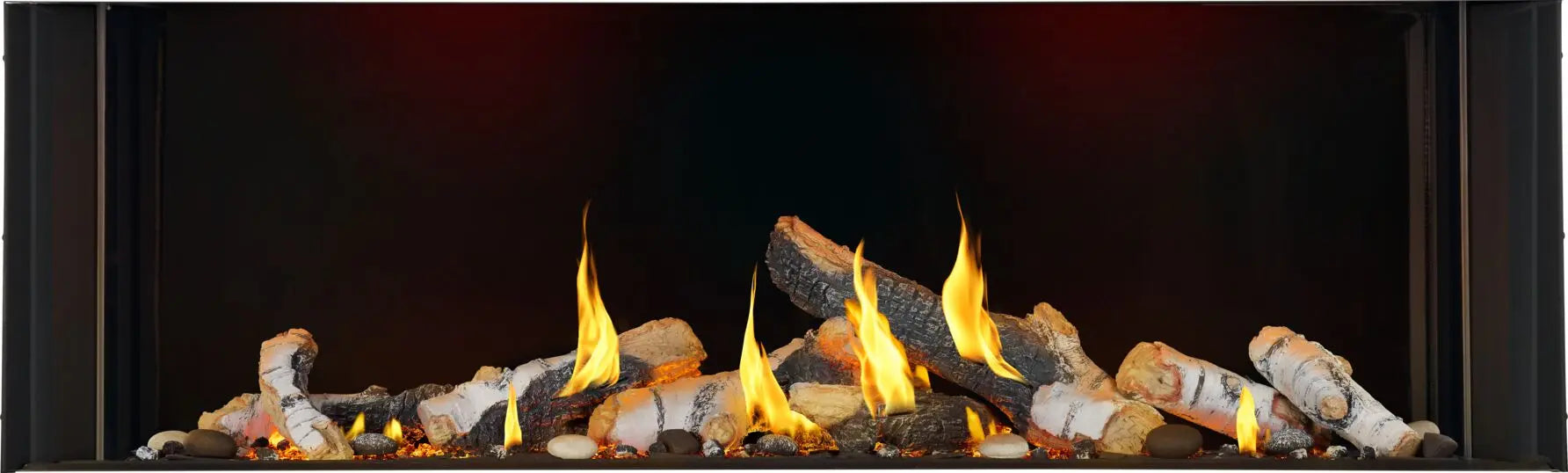

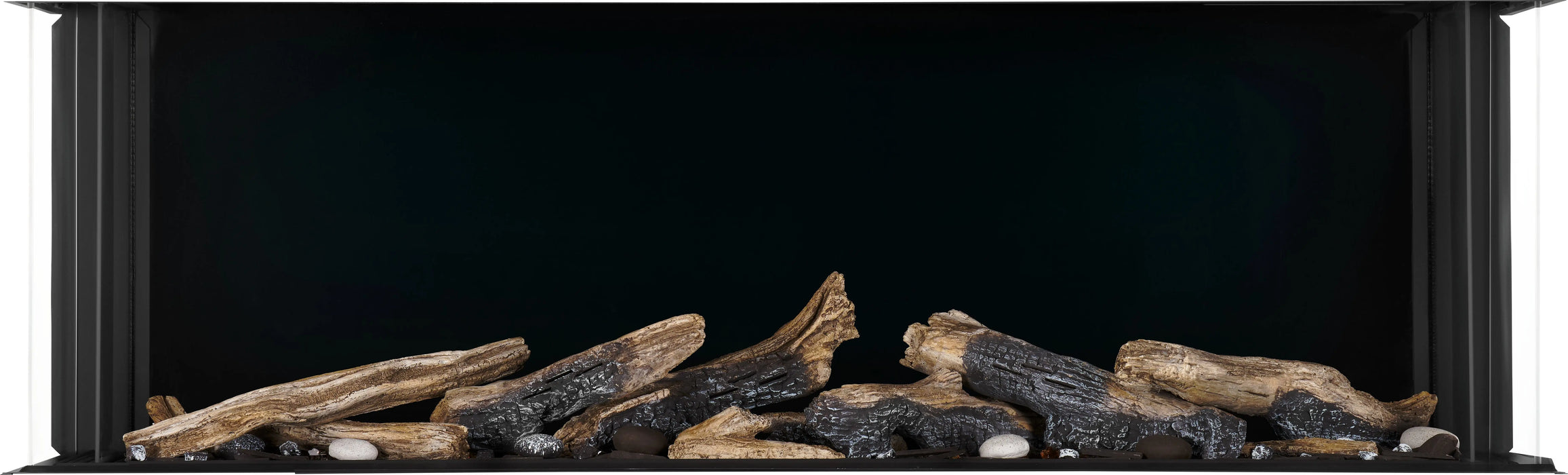

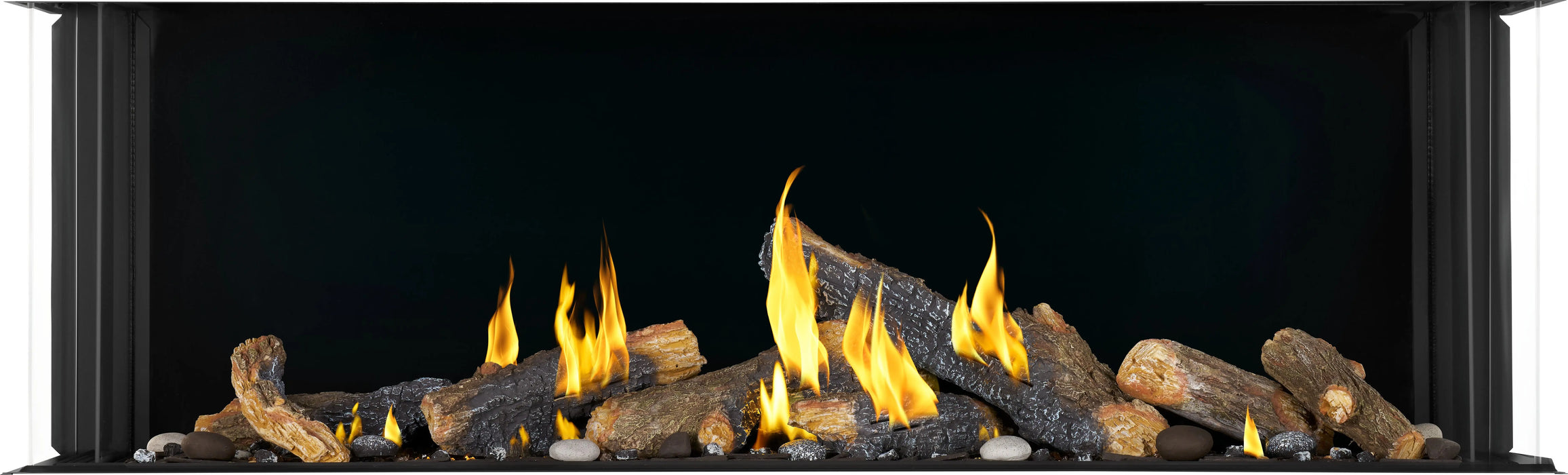

Luminous Log Burner Kit for the 62" – Driftwood (DLKTLV62L), Oak (OLKTLV62L) or Birch (BLKTLV62L). Each kit includes the logs, rocks, glowing embers, charcoal, shale, glass and vermiculite.
Required (choose one vent terminal):
Optional:
Specifications
| Model |
TLVX62LBN (natural gas) |
| Type |
Direct Vent |
| Installation |
Built-in |
| Style |
Tall linear bay: three-sided, corner or single-sided |
| Fuel Type |
Natural Gas |
| Ignition |
Electronic with battery back-up |
| Certification |
Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50) |
| Maximum Input, Natural Gas |
44,000 BTU/hr |
| Minimum Input, Natural Gas |
25,000 BTU/hr |
| Viewing Area |
68" W x 21" H (front) |
| Venting |
Top 5" exhaust / 8" air intake |
| Glass |
Heat-radiating ceramic inner glass with Low-E glass guard |
| Media |
Luminous Log Burner Kit required (sold separately) |
| Controls |
ProFlame II remote, wall switch and eFIRE controller (included); wall mount control optional |
| Heat Management |
Dynamic Heat Control™ Linear (DHCL2) included; DHC+, DHM or blower kit optional |
| Warranty |
President’s Lifetime Limited Warranty |
Appliance Dimensions
| Overall Width |
68-1/8" |
| Overall Height |
51-13/16" |
| Overall Depth |
20-1/4" |
Minimum Framing Dimensions
| Framing Width |
68-9/16" |
| Framing Depth |
20-1/2" |
| Minimum Enclosure / Ceiling Height |
93" (measured from the bottom of the appliance; 10 ft maximum) |
The finishing flange defines the perimeter of the fireplace opening; framing or finishing materials must never encroach inside it. Some venting configurations that require more vertical rise need a larger enclosure. Refer to the installation manual for complete framing, venting and clearance requirements.
Frequently Asked Questions
What is the gas input of the Tall Bay Luxuria 62?
The TLVX62LBN has a maximum input of 44,000 BTU/hr and a minimum of 25,000 BTU/hr on natural gas. It is certified as a vented decorative gas appliance.
Are the logs included?
No. Napoleon lists the Luminous Log Burner Kit as a mandatory option, sold separately. Choose driftwood, oak or birch in the 62" size.
Can it be installed in a corner or against a flat wall?

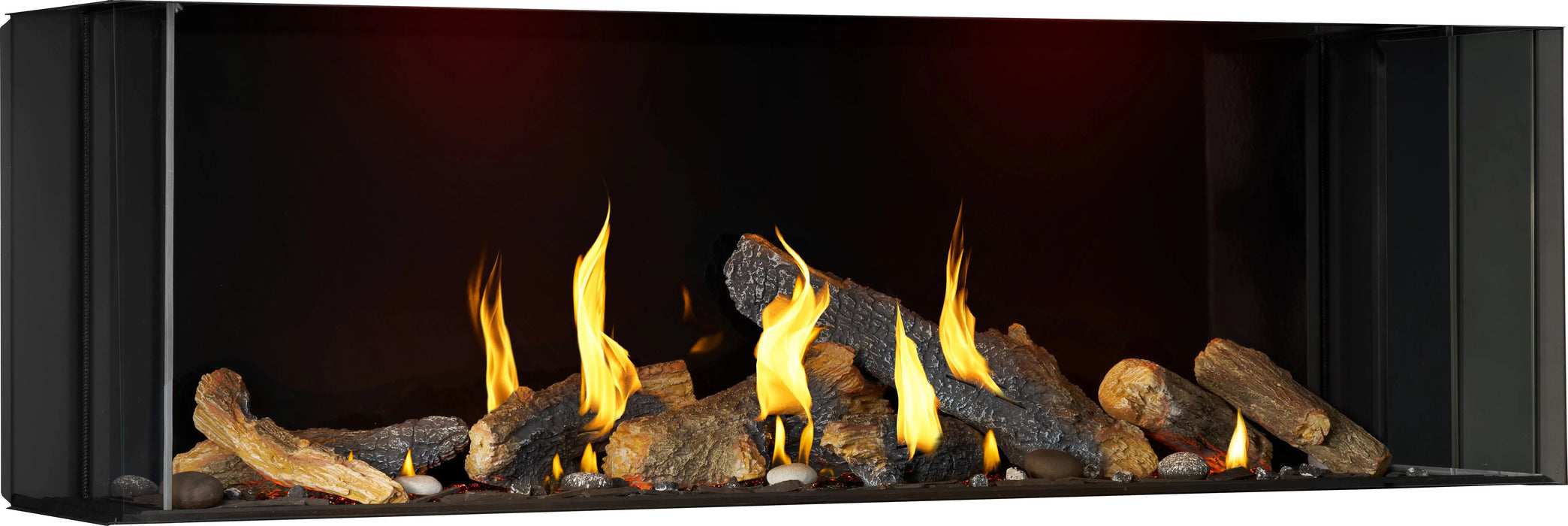

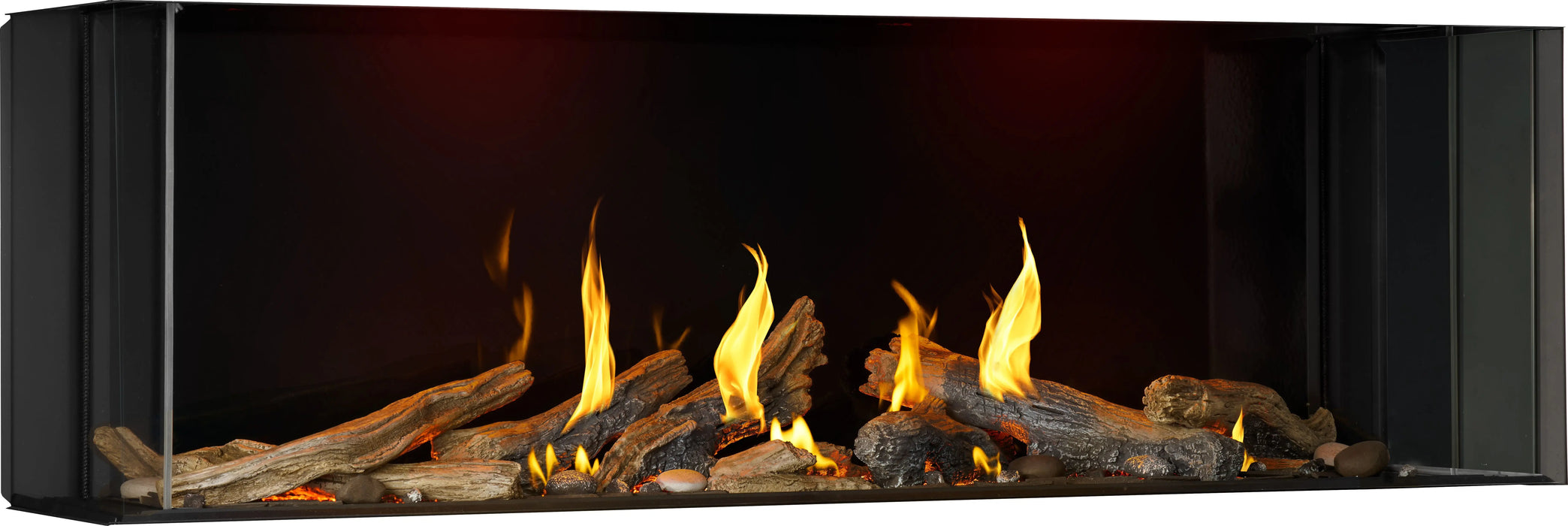

Yes. The Tall Bay Luxuria installs as a three-sided bay, a corner or a single-sided fireplace. Corner installations use the optional Corner Installation Kit (TLVX-CK), which includes the left and right panels.
What size enclosure does it need?
Frame 68-9/16" wide by 20-1/2" deep, with a minimum enclosure/ceiling height of 93" measured from the bottom of the appliance (10 ft maximum). Always confirm against the installation manual for your venting configuration.
Does the fireplace still work during a power outage?
Yes. With batteries in the wall switch battery holder, the fireplace keeps on/off and flame height control during a power failure. The blower and NIGHT LIGHT™ will not operate until power returns.
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Fireplaces – President’s Lifetime Limited Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
