Napoleon Ascent 76" Linear Direct Vent Gas Fireplace
The Napoleon Ascent™ 76" Linear Direct Vent Gas Fireplace adds modern elegance to any living space. This premium linear gas fireplace features a stunning flame display accented by the included Topaz CRYSTALINE™ ember bed, creating a sophisticated focal point. Customize the look with an optional standard birch, driftwood or split oak log set, the Beach Fire log set, or glass, Shore Fire, Woodland and mineral rock media kits to create a unique contemporary fireplace that complements your home's décor.
The Napoleon Ascent™ 76 Direct Vent Gas Fireplace has a maximum input of 32,000 BTU/hr on natural gas or propane, with electronic ignition and USB battery back-up. Mix and match decorative media to achieve a personalized appearance. Ideal for modern homes, this fireplace brings luxurious ambiance and eye-catching beauty to any room.
Features
-
Up to 32,000 BTU/hr Input – A striking contemporary flame display on natural gas or propane.
-

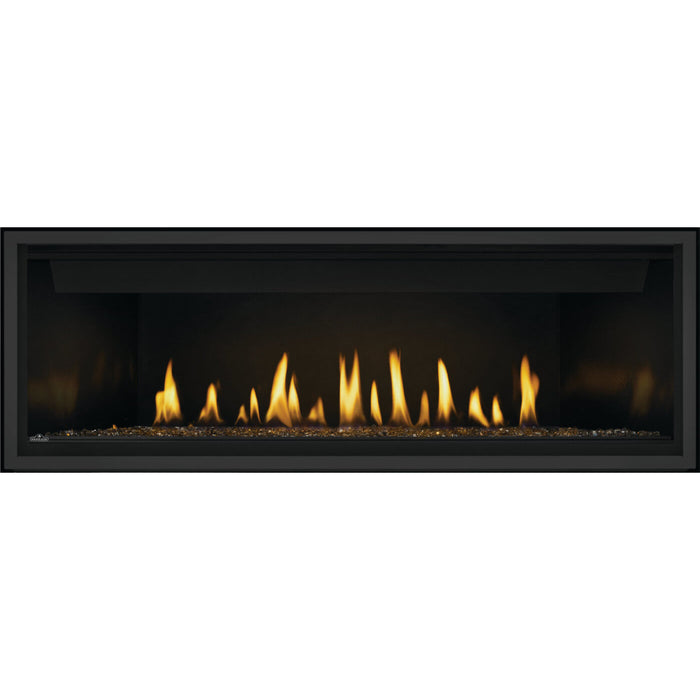

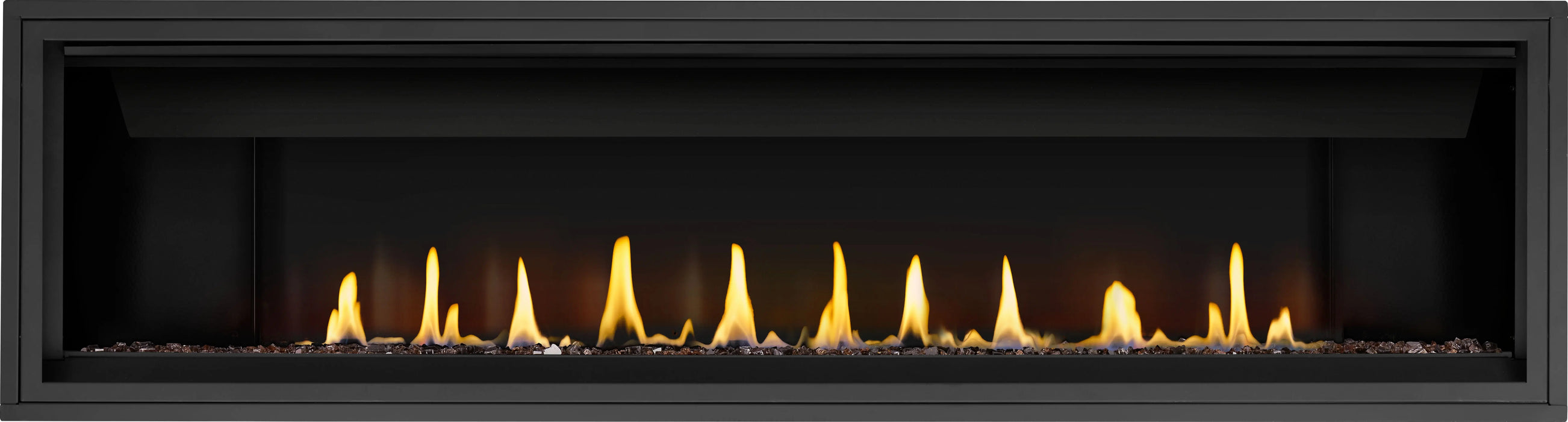

Topaz CRYSTALINE™ Ember Bed Included – Premium sparkling ember media enhances the realistic appearance of the fire.
-
Direct Vent Design – 5" exhaust / 8" air intake venting, reducible to 4"/7".
-

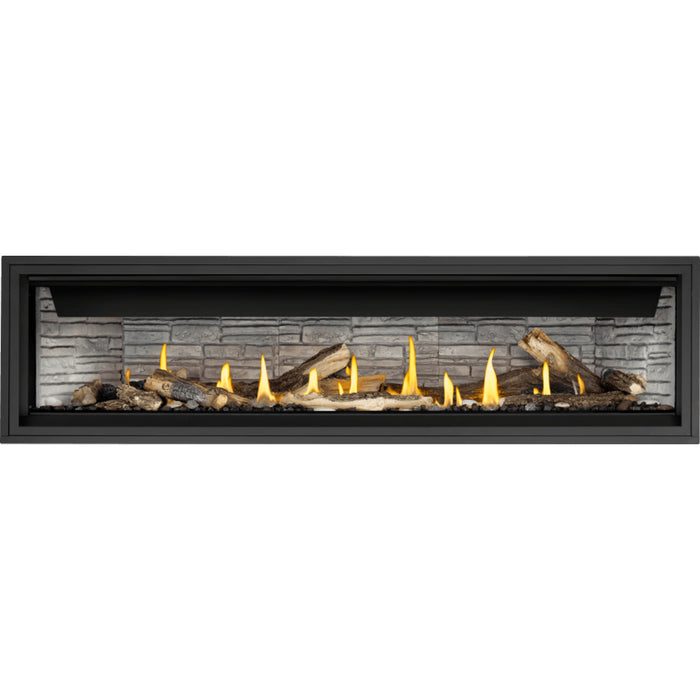

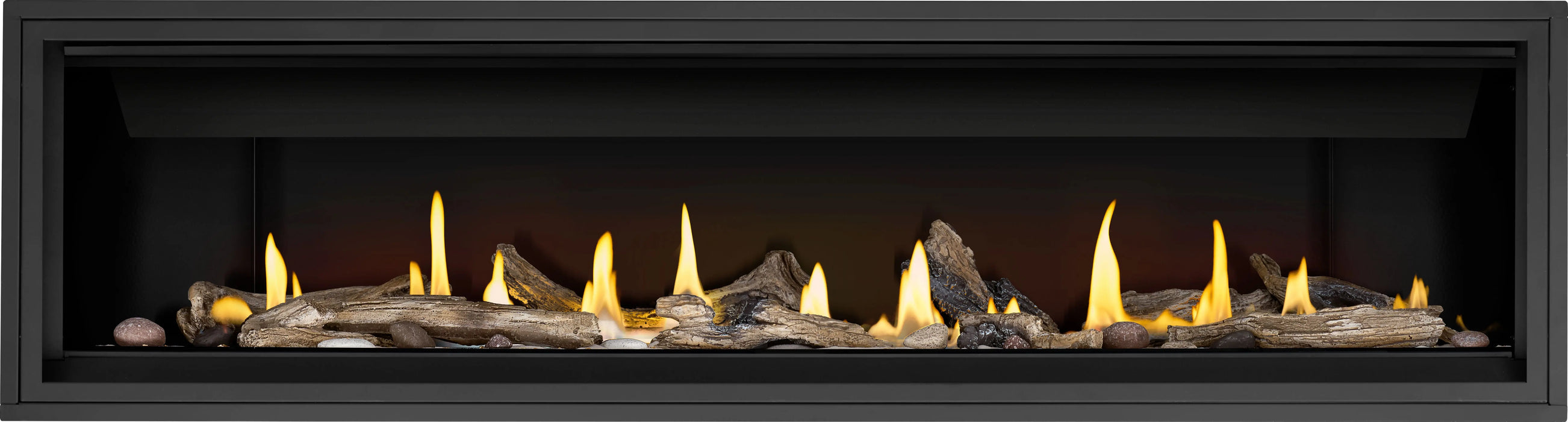

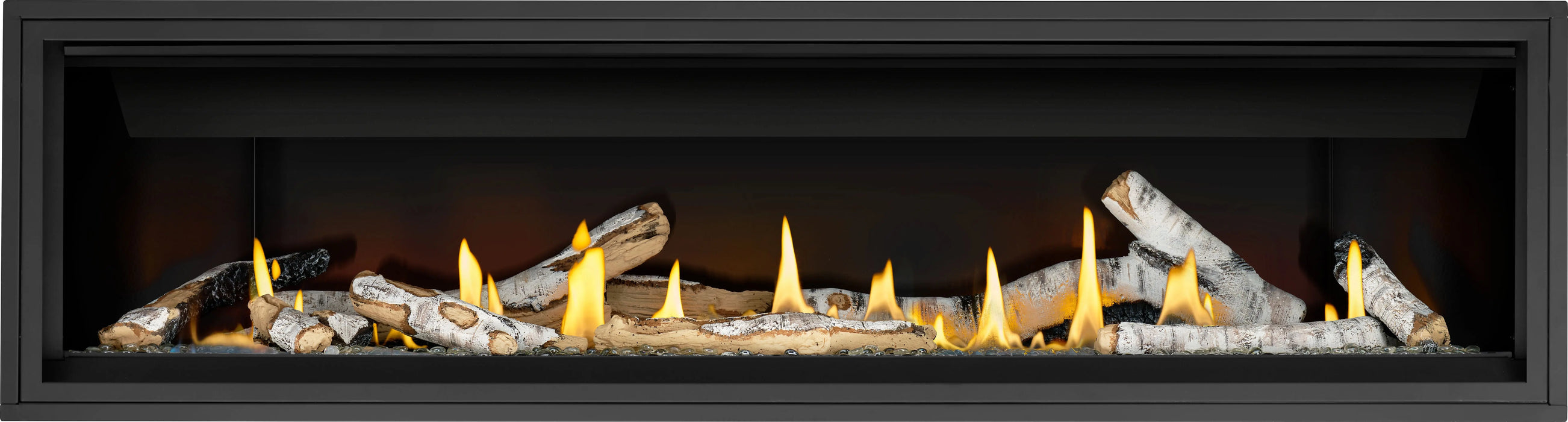

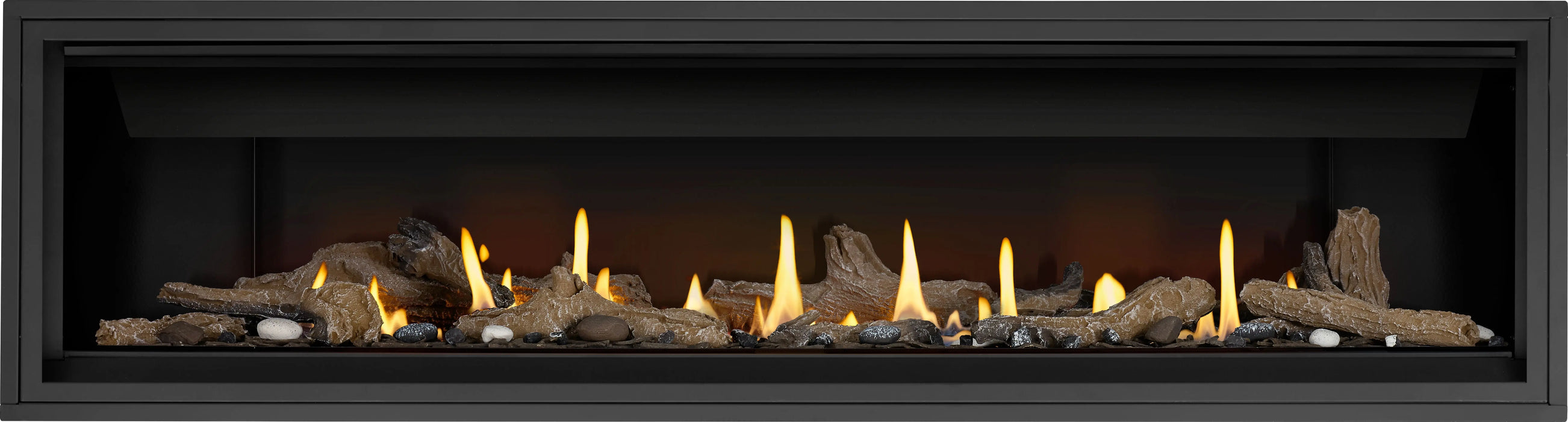

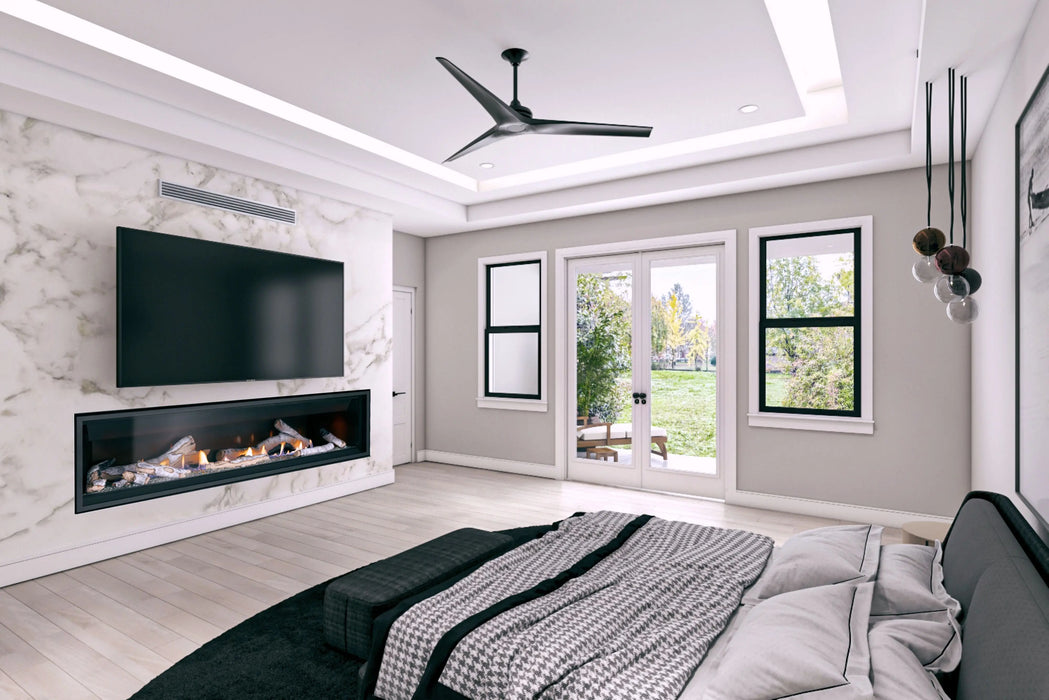

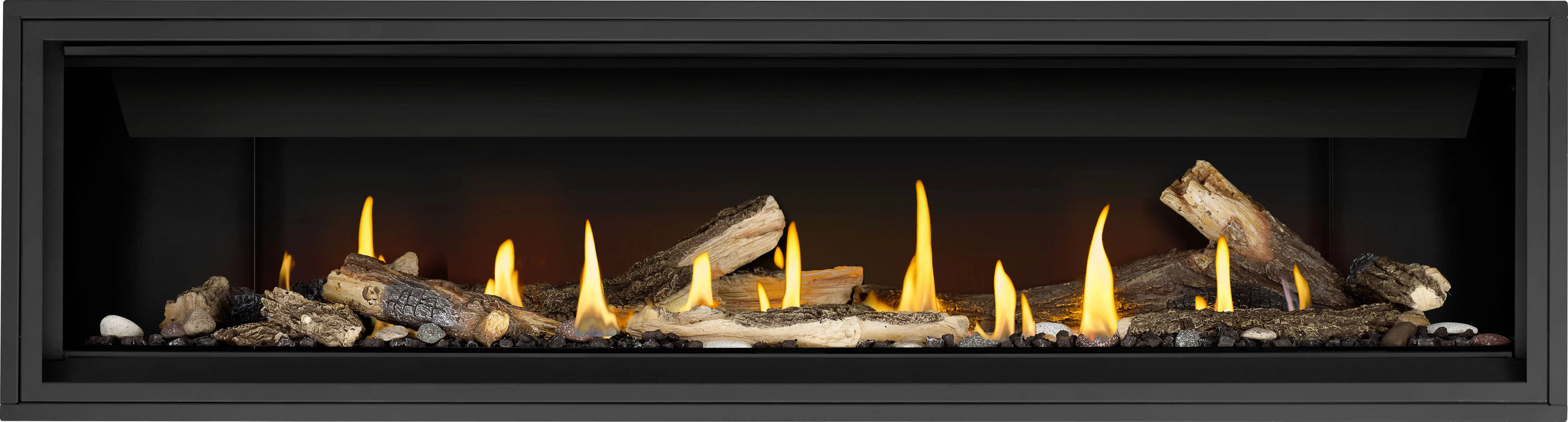

Customizable Decorative Media – Optional standard birch, driftwood or split oak logs, Beach Fire logs, glass beads or embers, Shore Fire, Woodland and Mineral Rock kits, and Ambient-Glow embers for a personalized fireplace design.
-
Easy Access Air Control – Convenient air control allows quick flame adjustment and simplified maintenance.
-
Battery Back-Up – Operates from a USB power bank during a power outage.
-
Non-Combustible Material Included – Helps simplify installation while meeting safety requirements.
-
Stainless Steel Flex Connector – High-quality connector ensures dependable gas line installation.
-

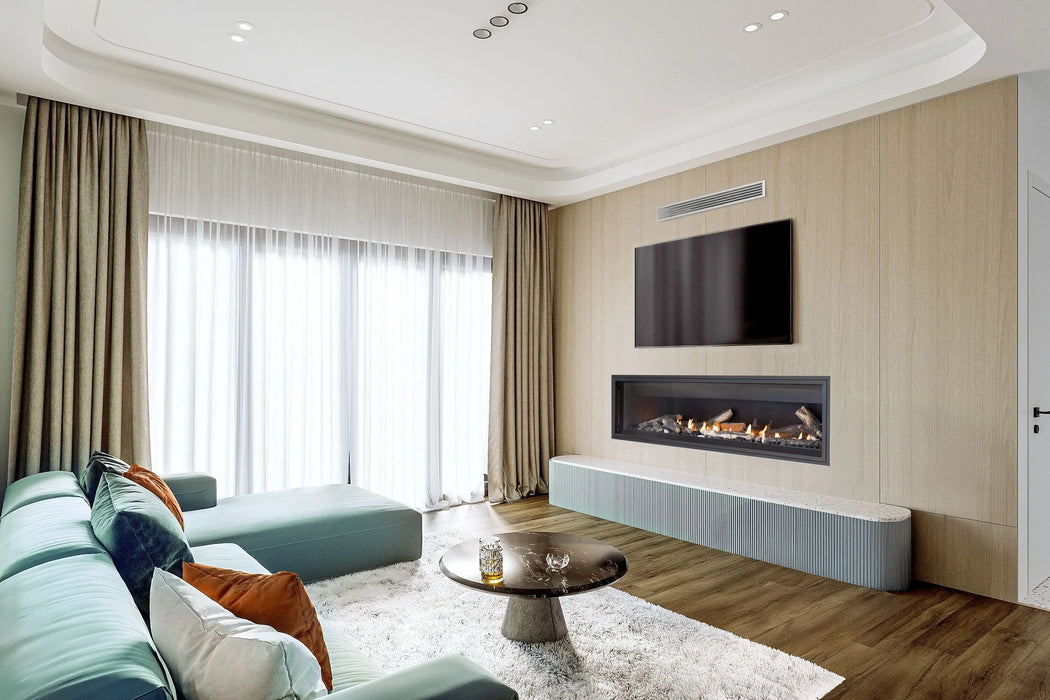

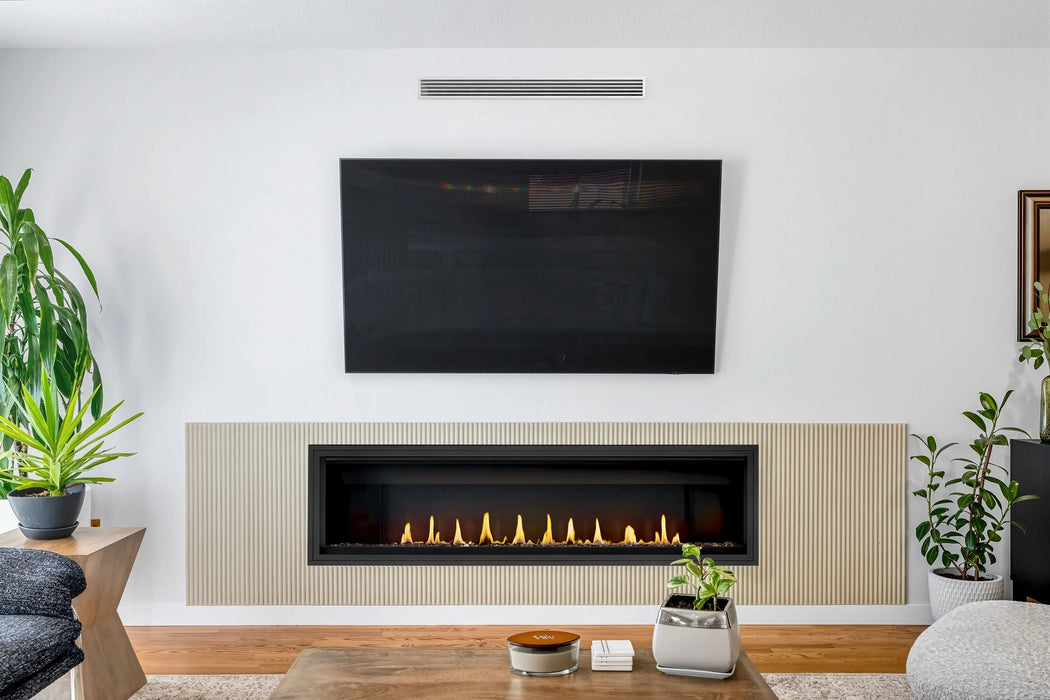

Optional Ducted Heat Management (DHM) – Redirects warm air away from the fireplace to reduce clearances and allow a TV or artwork above the unit. A Hot Air Distribution (LHAD) kit is also available.
-

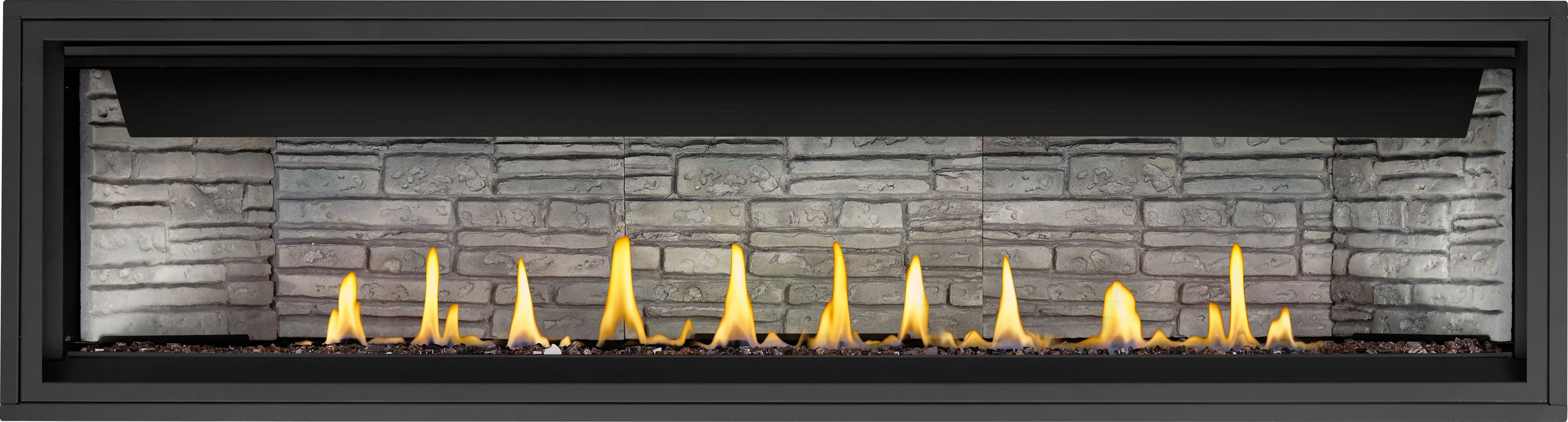

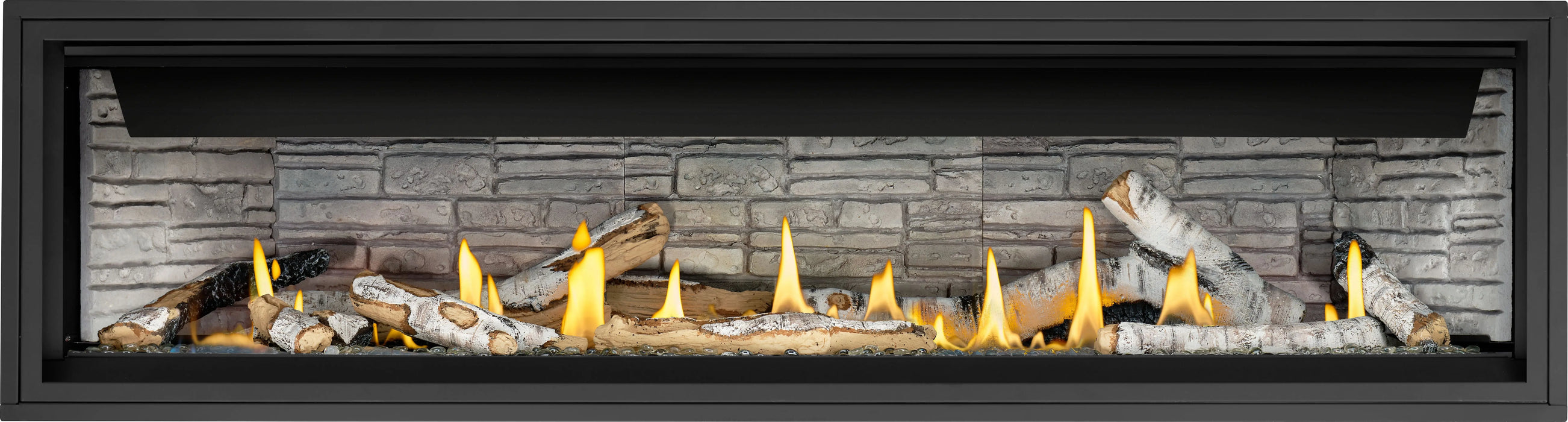

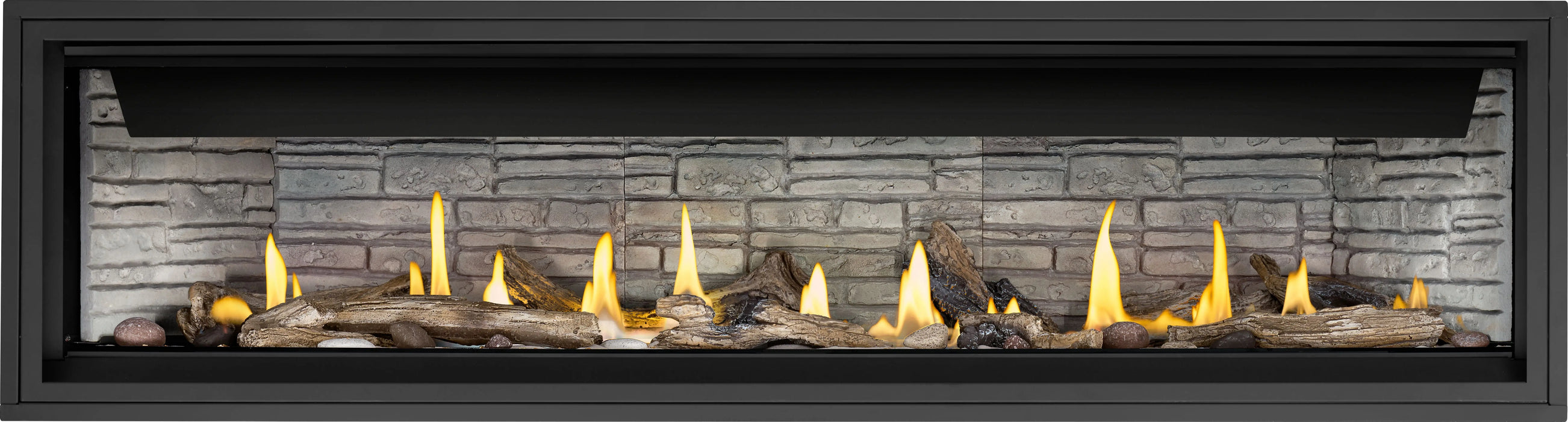

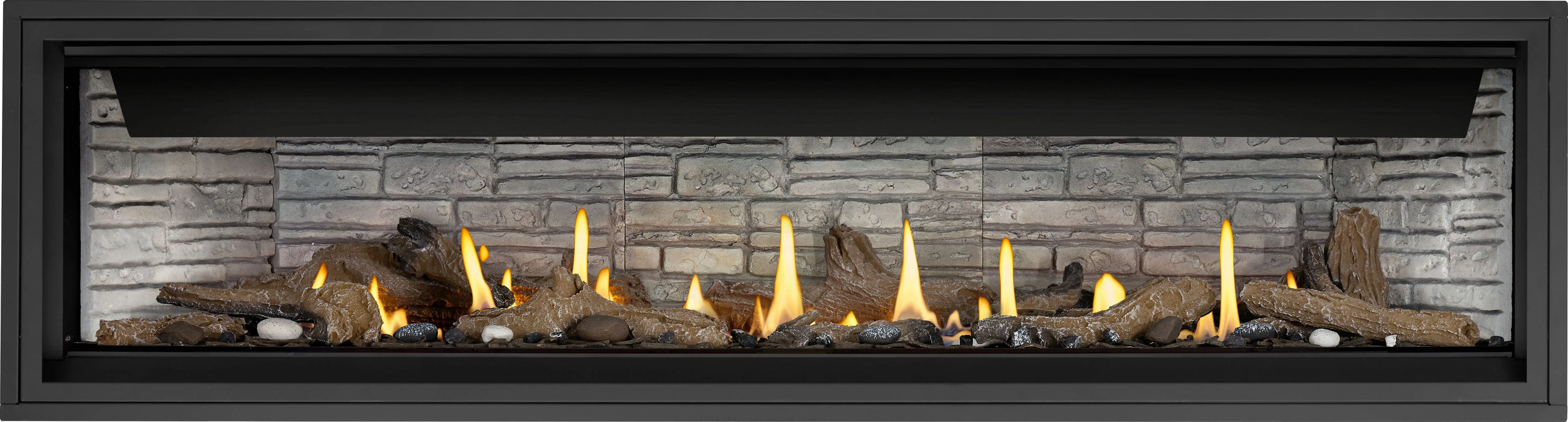

Optional Decorative Finishes – MIRRO-FLAME™ porcelain or Ledgestone panels and a 5/8" black 4-sided finishing trim.
-

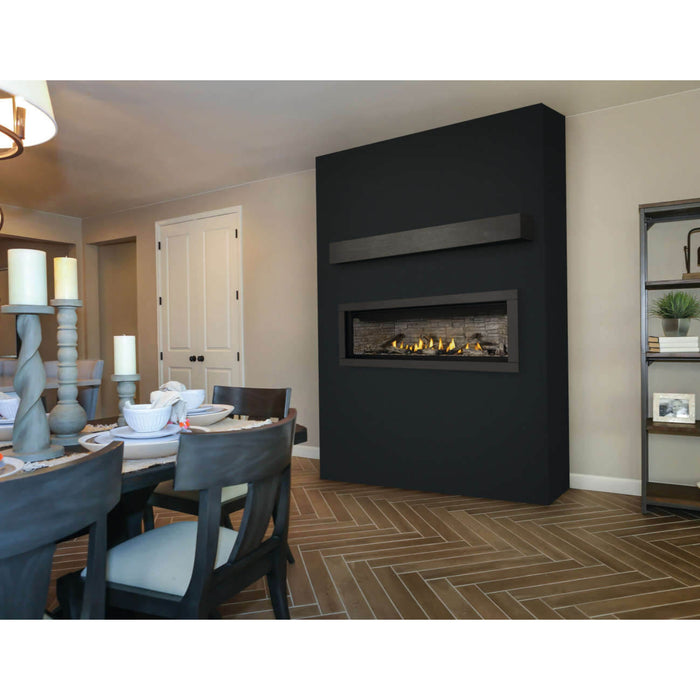

Contemporary Linear Design – Sleek, modern profile creates a stunning focal point in living rooms, great rooms, and open-concept spaces.
- No hearth extension required
- Outdoor Room Certified
What to Order With It
The Topaz CRYSTALINE™ ember bed is included. Everything below is optional; Napoleon recommends a log set plus glass or a media enhancement.
Optional:
Specifications
| Specification |
Details |
| Model |
BL76NTE (natural gas) / BL76PTE (propane) |
| Type |
Direct Vent |
| Style |
Linear, single sided |
| Fuel Type |
Natural Gas or Propane |
| Ignition |
Electronic with battery back-up |
| Certification |
Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50) |
| Outdoor Room |
Outdoor Room Certified |
| Maximum Input, Natural Gas |
32,000 BTU/hr |
| Maximum Input, Propane |
32,000 BTU/hr |
| Venting |
Top 5" exhaust / 8" air intake (reducible to 4"/7" — see manual) |
| Heat Management Kit |
DHM or LHAD (optional); optional blower available |
| Warranty |
President’s Lifetime Limited Warranty |
Appliance Dimensions
| Overall Width |
76" |
| Overall Height |
38-13/16" |
| Overall Depth |
18-5/16" |
Minimum Framing Dimensions
| Framing Width |
76-1/2" |
| Framing Height |
39-3/8" |
| Framing Depth |
18-9/16" |
A minimum of 1 ft of vertical rise is required directly off the top of the unit on this model. Framing height is measured allowing for finished floor and hearth thickness. Leave a 14" wide area centered along the front of the appliance clear above the unit for vent clearance, and allow for finishing material thickness when constructing the enclosure. Refer to the installation manual for complete framing, venting and clearance requirements.
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Fireplaces – President’s Lifetime Limited Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
