Napoleon Altitude X Series 36" Direct Vent Gas Fireplace
The Napoleon Altitude X Series 36" Direct Vent Gas Fireplace offers exceptional flexibility for homeowners who want a fireplace tailored to their style rather than settling for a one-size-fits-all design. With multiple front styles, decorative brick panels, premium log sets, and convenient smart controls, it blends timeless aesthetics with modern functionality.
At Dreamwood Living, we recommend the Altitude X Series for anyone looking to create a fireplace that’s as unique as the room it anchors.
Play video
Napoleon Altitude X Series 36": A Direct Vent Fireplace Designed Around You
The clean-faced, minimalist design opens the full-width firebox for uninterrupted flame viewing, and the included NIGHT LIGHT™ lets you set the tone even when the fire is off. The aspect ratio is intentionally proportioned to look balanced in a standard living room setting.
Homeowners exploring direct vent gas fireplaces will find the Altitude X Series 36" stands apart for the sheer volume of finish and accessory combinations available.
Key Features
- Up to 36,500 BTU/hr input (natural gas) or 34,000 BTU/hr (propane)
- Exclusive NIGHT LIGHT™ included for ambient lighting independent of the flame
- Clean-face design with a full-width firebox for an unobstructed flame view

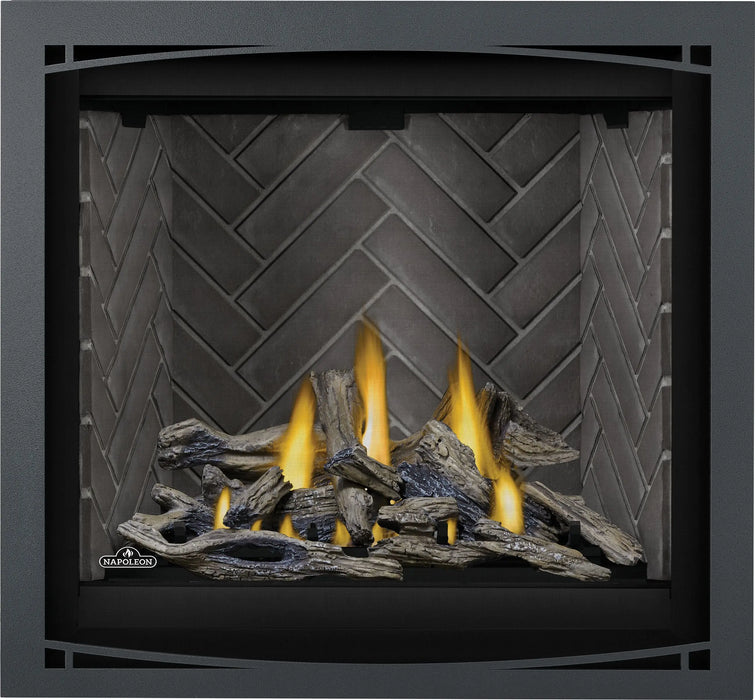

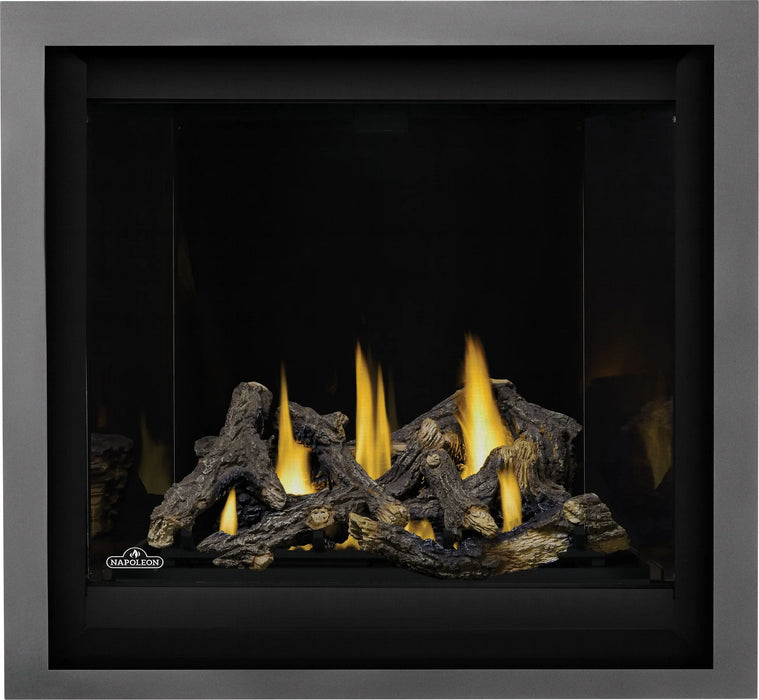

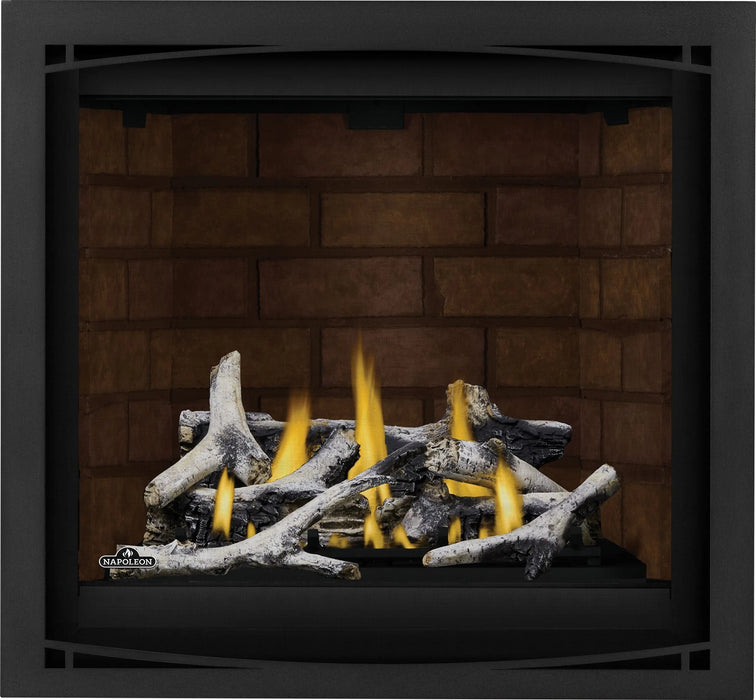

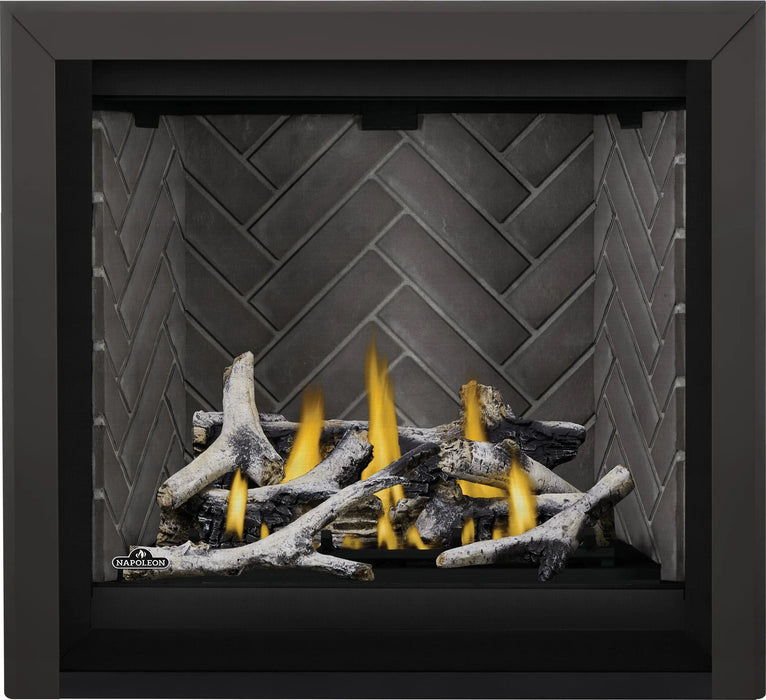

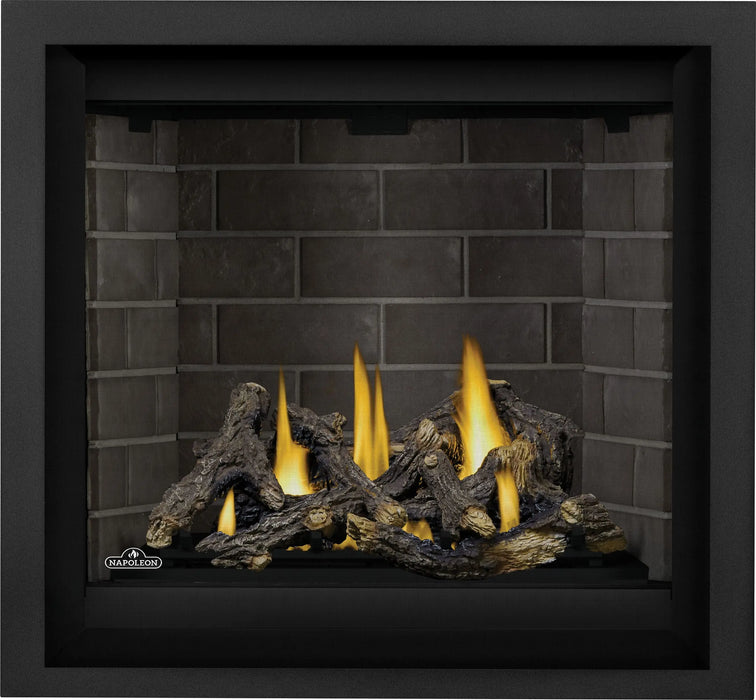

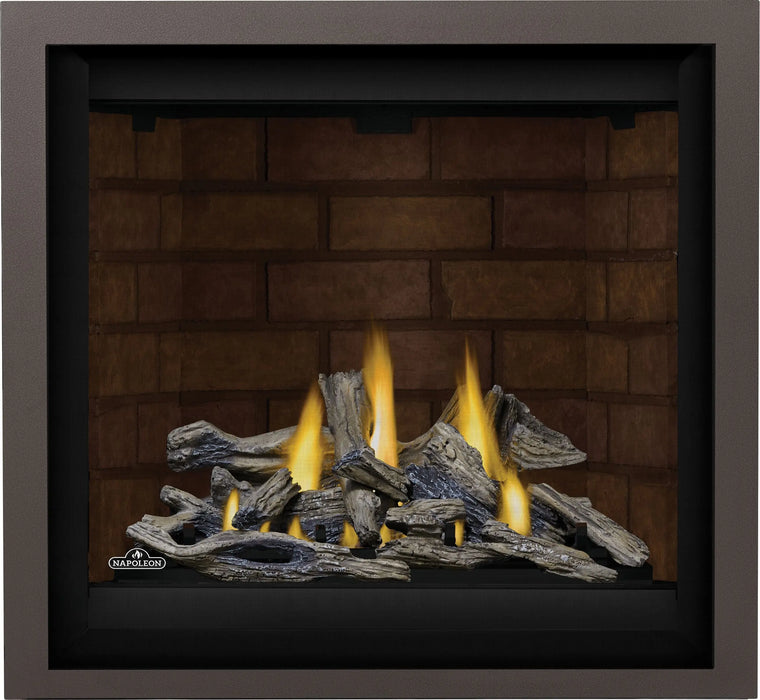

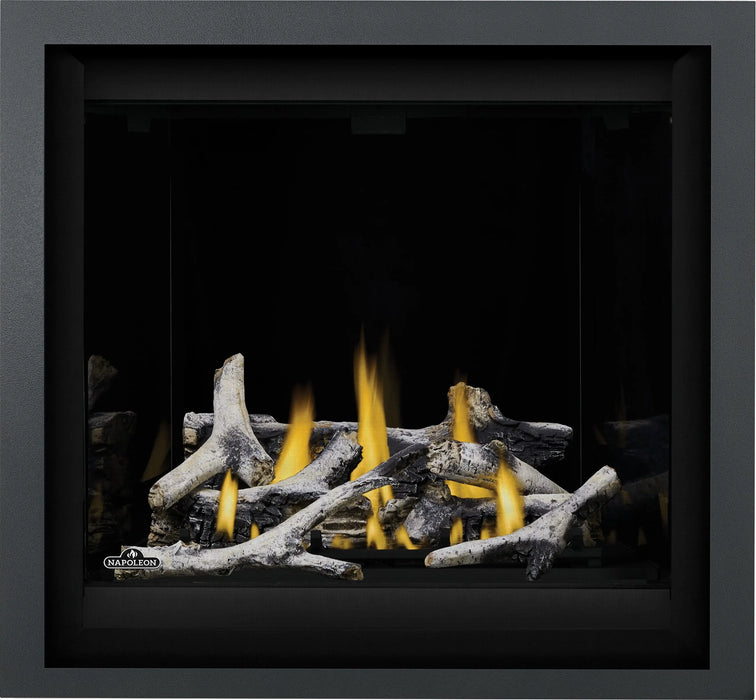

- High Definition log kit required: Driftwood, Oak or Birch (sold separately)
- Decorative panels required: MIRRO-FLAME™ porcelain reflective panels, Black Illusion Glass, Newport™ Standard brick, or Westminster™ Herringbone or Standard brick (sold separately)
- Optional decorative fronts: Whitney in Black, or Zen in Black or Charcoal
- Optional finishing trims: 2" Black or Charcoal (4-sided), or 3.5" Black with a beveled edge (3-sided)
- ProFlame II remote and eFIRE controller included, for control from the remote or a mobile device
- Heat circulating blower with variable speed and thermostatic control included
- Premium safety screen included
- Firestop included
- Electronic ignition (IPI / CPI selectable) with battery back-up
- Optional Ambient-Glow embers enhance the glowing ember bed appearance
- Optional heat management: DHC, DHC+, DHM or LHAD (DHC and DHM reduce clearances to mantels and wall-mounted televisions)
- No hearth extension required
What to Order With It
Required (choose one log kit):
Required (choose one set of decorative panels):
-
Decorative Panels – MIRRO-FLAME™ porcelain (PRPA36), Black Illusion Glass (BIGAX36-1), Newport™ Standard brick (DBPAX36NS-1), Westminster™ Herringbone brick (DBPAX36WH-1) or Westminster™ Standard brick (DBPAX36WS-1)
Optional – Vent terminal kits:
Optional:
Specifications
| Model |
AX36NTE-2 (natural gas) / AX36PTE-2 (propane) |
| Type |
Direct Vent |
| Style |
Traditional, single sided |
| Fuel Type |
Natural Gas or Propane |
| Ignition |
Electronic (IPI / CPI selectable) with battery back-up |
| Certification |
Vented decorative gas appliance (CSA 2.22 / ANSI Z21.50) |
| Maximum Input, Natural Gas |
36,500 BTU/hr |
| Maximum Input, Propane |
34,000 BTU/hr |
| Venting |
Top 5" exhaust / 8" air intake |
| Appliance Dimensions (W x H x D) |
35-1/4" x 42-7/16" x 18-3/4" |
| Viewing Area (W x H) |
35-1/4" x 33-1/8" |
| Burning Display |
High Definition log kit required (sold separately) |
| Decorative Panels |
Required, choose one (sold separately) |
| Control |
ProFlame II remote and eFIRE controller (included); wall mount control optional |
| Heat Management Kit |
DHC, DHC+, DHM or LHAD (optional) |
| Warranty |
President’s Lifetime Limited Warranty |
Minimum Framing Dimensions
| Framing Width |
35-3/4" |
| Framing Height |
43-5/8" |
| Framing Depth |
19" |
| Minimum Enclosure Height |
72" (84" for a recessed installation) |
Framing height is measured allowing for finished floor and hearth thickness. It is not necessary to install a hearth extension with this appliance. Refer to the installation manual for complete framing, venting and clearance requirements.
FAQs
What size opening do I need to frame for the Altitude X 36?
Frame a minimum rough opening of 35-3/4" wide by 43-5/8" high by 19" deep. Always confirm against the installation manual for your specific model and venting configuration before cutting, and never let framing or finishing material encroach inside the fireplace’s finishing flange.
Can the Napoleon Altitude X Series 36" be controlled without the eFIRE app?
Yes. The fireplace includes a ProFlame II remote for everyday operation. The eFIRE controller is also included, and the app is an additional convenience for control from a mobile device, not a requirement.
What is the gas input of this model?
The AX36-2 has a maximum input of 36,500 BTU/hr on natural gas or 34,000 BTU/hr on propane. It is certified as a vented decorative gas appliance.
What does the optional heat management system do?
The optional Dynamic Heat Control (DHC) or Ducted Heat Management (DHM) system reduces the required clearances to mantels and wall-mounted televisions, giving more flexibility in how the fireplace is positioned relative to surrounding materials and electronics.
Personalize Your Fireplace, Then Make It Perfect
The Napoleon Altitude X Series 36" is one of the most configurable options in our fireplace collection. Dreamwood Living stocks this fireplace because homeowners, designers, and contractors keep coming back to it for a traditional gas fireplace with a thoroughly modern approach to customization.
Have questions about front options, log set styles, or installation clearances? Talk to our team, and we’ll help you put together the exact configuration your space calls for.
How the Altitude X compares with the Ascent, Ascent X and Elevation X: Napoleon Ascent vs Ascent X vs Altitude X vs Elevation X
Documents & Downloads
Warranty
Napoleon Warranty
Napoleon products are designed with superior components and materials and assembled by trained craftsmen who take great pride in their work. Once assembled, the complete appliance is thoroughly inspected by a qualified and authorized installer, service agency, or supplier before packing to ensure that you, the customer, receive the quality product that you expect from Napoleon. (Registered under the world recognized ISO 9001 : 2015).
Gas Fireplaces – President’s Lifetime Limited Warranty
The following are warranted against defects for as long as you own the appliance: combustion chamber, heat exchanger, stainless / steel burner, PHAZER® logs and embers, rocks, ceramic glass (thermal breakage only), gold plated parts against tarnishing, porcelainized enameled components and aluminum extrusion trims.* During the first 10 years Napoleon will repair or replace defective parts covered by the lifetime warranty free of charge. From 10 years to life, Napoleon will provide replacement parts at 50% of the current retail price.
Electrical (110V and millivolt) components and wearable parts are covered during the first year: blowers, gas valves, thermal switches, switches, wiring, remote controls, ignitors, gaskets and pilot assemblies.* Labour related to warranty repair is covered during the first year (not applicable to gas log sets) and must be done through an authorized Napoleon dealer.
*Construction of models varies. Warranty applies only to components included with your specific appliance.
*PLEASE REFER TO PRODUCT MANUAL FOR EXACT INSTALLATION INSTRUCTIONS.
