Majestic Quartz Platinum 36" Direct Vent Propane Fireplace
The Majestic Quartz Platinum 36" takes the slim Quartz and adds more heat, clear ceramic glass, an LED-lit ember bed, a variable speed fan and the RC400 touchscreen remote. It is still only 16-5/16" deep, so it fits walls where a deeper fireplace will not. Majestic refreshed the Quartz Platinum for 2026 and now offers it in 32", 36" and 42" sizes.
This is the propane model, number TBSC36XL, rated 18,000 to 29,500 Btu/hr. It lights with IntelliFire Touch and keeps working on battery backup when the power goes out. It replaces the earlier QUARTZPLA36IL.
Video
Play video: Majestic Quartz gas fireplace series video
The Majestic Quartz Platinum 36": The Slim Fireplace, Upgraded
The viewing area is 32-1/16" W x 21-1/2" H behind clear ceramic glass. LED illuminated embers glow under the logs, the included GFK-160A fan pushes warm air into the room, and the RC400 touchscreen remote handles flame height, the fan and the thermostat. It frames into a 16-1/4" deep opening, the same as the standard Quartz.
It suits a living room, family room, bedroom or basement. Majestic certifies it for bedrooms and bed-sitting rooms, and it can be installed in a manufactured home in the US. It sits on a combustible floor with no hearth extension required. Compare it with the rest of our direct vent gas fireplaces and Majestic gas fireplaces.
It vents off the top with SLP pipe or off the back with 8" DVP pipe. A top vent can run up to 60 ft straight up, or turn and run up to 15 ft horizontally within a 40 ft total; SLP-Flex is approved with a 25% shorter horizontal run. A rear vent can go straight out through an outside wall with up to 24" of pipe. Majestic also approves a co-linear kit for venting up an existing masonry chimney, and power vent kits (PVLP-SLP, PVI-SLP-B and PVV-SLP) with the power vent wire harness and the RC400 remote.
Choosing between Majestic families? Our guide Majestic Quartz vs Meridian vs Marquis II compares the Quartz with the Meridian and Marquis II.
Features
-
Only 16-5/16" deep: frames into a 16-1/4" deep opening for shallow walls and chases.
-
18,000 to 29,500 Btu/hr: on propane, with the natural gas model rated 17,500 to 30,500.
-
LED illuminated embers: a glowing ember bed under the logs.
-
Variable speed fan included: the GFK-160A fan with rheostat and temperature sensor moves warm air into the room.
-
RC400 touchscreen remote included: flame height, fan speed, thermostat and timer from your chair.
-
Clear ceramic glass: 32-1/16" W x 21-1/2" H viewing area.
-
IntelliFire Touch ignition: lights from a wall switch, a remote or the IntelliFire app with the Wi-Fi module.
-
Battery backup: keeps the fireplace lighting during a power outage.
-
Your choice of logs: oak or birch log sets, ordered with the fireplace.
-

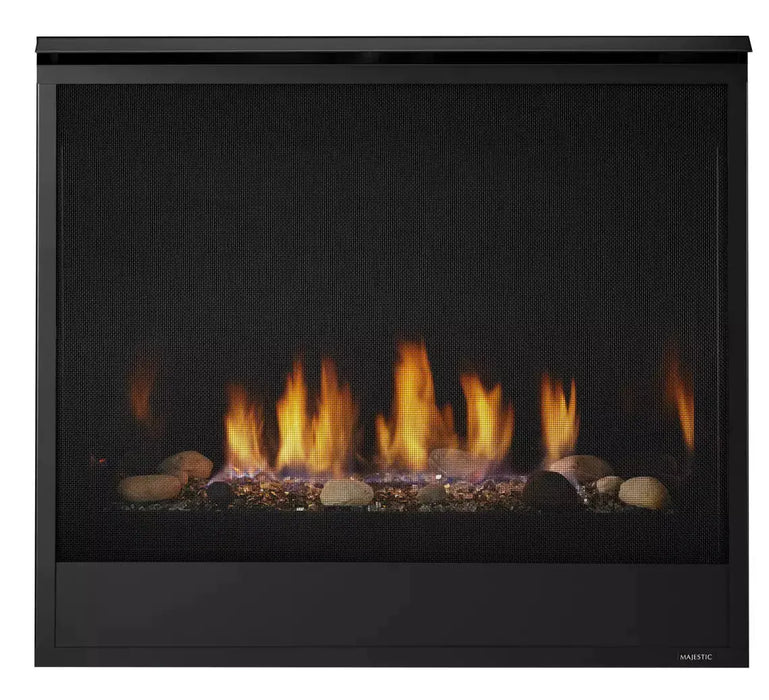

Two front styles: the Contemporary Rectangular Door in black or new bronze, or the Decorative Black Mesh front.
-
Top or rear venting: SLP pipe off the top, 8" DVP pipe off the back.
-
Heat management ready: Heat-Zone and Heat-Out kits move heat to another room or outdoors.
-
Bedroom approved: certified for bedrooms and bed-sitting rooms.
What's Included
- Quartz Platinum 36" fireplace, propane (TBSC36XL)
- Ceramic glass, 32-1/16" W x 21-1/2" H viewing area
- LED illuminated embers
- RC400 touchscreen remote
- GFK-160A variable speed fan
- IntelliFire Touch ignition system with battery backup
- 4" x 6-5/8" top vent collar and 5" x 8" rear vent collar
- External air shutter adjustment
- Junction box
- Gas flex connector with manual shut-off valve
The Quartz Platinum 36" ships without a front, a log set or interior panels. Pick them below.
What to Order With It
Majestic lists the following as required to complete this unit. They are sold separately.
Required front (choose one):
Required log set (choose one):
Required interior panels (choose one):
Optional trim kit:
Optional controls:
Optional heat management:
Venting: SLP pipe for a top vent or 8" DVP pipe for a rear vent, plus a termination cap. Our team can put the vent list together for your run.
Specifications
| Model number |
TBSC36XL (propane) |
| Type |
Traditional direct vent gas fireplace, top or rear vent, Platinum |
| Btu/hr input |
18,000 to 29,500 (propane) |
| Viewing area |
32-1/16" W x 21-1/2" H |
| Glass |
Ceramic |
| Overall size |
41" W x 37-7/8" H x 16-5/16" D |
| Back width |
30-3/4" |
| Framing (rough opening) |
42" W x 38-1/4" H x 16-1/4" D |
| Weight |
140 lb |
| Vent |
SLP pipe off the top (4" x 6-5/8" collar); 8" DVP pipe off the back (5" x 8" collar) |
| Vent run |
Top vent: up to 60 ft straight up, or up to 15 ft horizontal within 40 ft total. Rear vent: up to 24" straight through the wall |
| Gas inlet pressure |
Natural gas 5.0 to 10.0 in. w.c. (7.0 recommended); propane 11.0 to 13.0 in. w.c. (12.0 recommended) |
| Electrical |
Unswitched 110-120 VAC circuit to the junction box |
| Ignition |
IntelliFire Touch with battery backup |
| Floor and hearth |
Installs on a combustible floor; no hearth extension required |
| Certification |
Listed to CSA/ANSI Z21.88 as a vented gas fireplace heater; bedroom approved; US manufactured home approved |
| Required to complete |
Front and log set and interior panels |
Pick a Front, a Log Set and an Interior

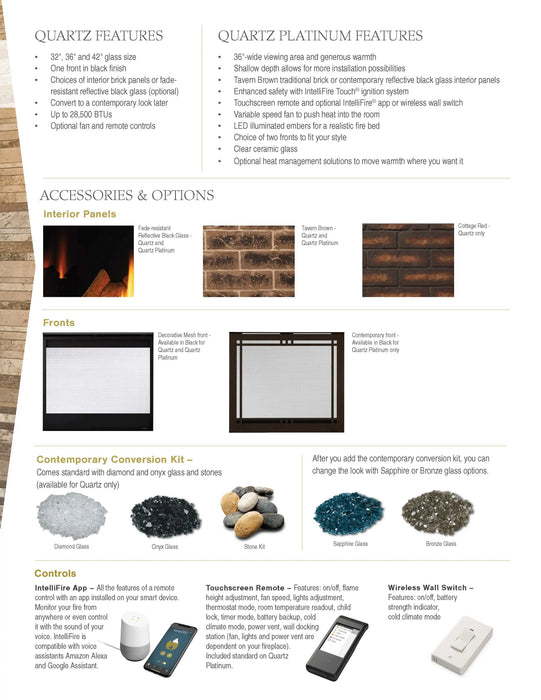

The Contemporary Rectangular Door overlaps the opening with a clean rectangular frame in black or new bronze, while the Decorative Black Mesh front fits inside it for a lighter, more open look.
Oak logs give a classic, rustic fire, and birch logs read lighter and more modern. Behind them, Tavern Brown brick panels look like a traditional masonry firebox and reflective black glass panels mirror the flames. Browse all our gas fireplaces to compare styles.
Bring the Quartz Platinum 36" Home with Dreamwood Living
The Quartz Platinum 36" is a strong fit where wall depth is tight but you still want a full traditional fire. Reach out to our team for help choosing a front, logs and panels, or planning the vent run.
FAQs
Does the Quartz Platinum 36" come with logs and a front?
No. Since the 2026 update Majestic ships the front and logs separately, so you choose a Contemporary Rectangular Door or Decorative Black Mesh front and an oak (LOGS-SL7) or birch (LOGS-SL7X-BIR) log set, plus interior panels.
What changed from the earlier QUARTZPLA36IL?
Majestic gave the fireplace a new model number. The framing size and viewing area are the same.
Is there a natural gas version?
Yes. The natural gas model is the TBSC36XN, with its own page: Majestic Quartz Platinum 36" Direct Vent Gas Fireplace w/ IntelliFire Touch ignition.
Can it vent into my existing chimney?
Yes. Majestic approves a co-linear setup in an existing masonry chimney (LINK-DV30B flex liner kit with the DV-46DVA-GCL appliance connector). Your installer will confirm the chimney meets the requirements in the installation manual.
How does the Quartz compare with the Meridian and Marquis II?
Our Majestic Quartz vs Meridian vs Marquis II guide covers size, depth, venting and what each family needs to complete.
Documents & Downloads
Warranty
Majestic fireplaces are covered by the Hearth & Home Technologies limited warranty. Majestic describes it as a limited lifetime warranty on the firebox and heat exchanger, the most important parts of the fireplace. Glass, electrical parts, burners and logs carry shorter terms, all listed in the warranty document.
Download the warranty (PDF)
